Configuration Details

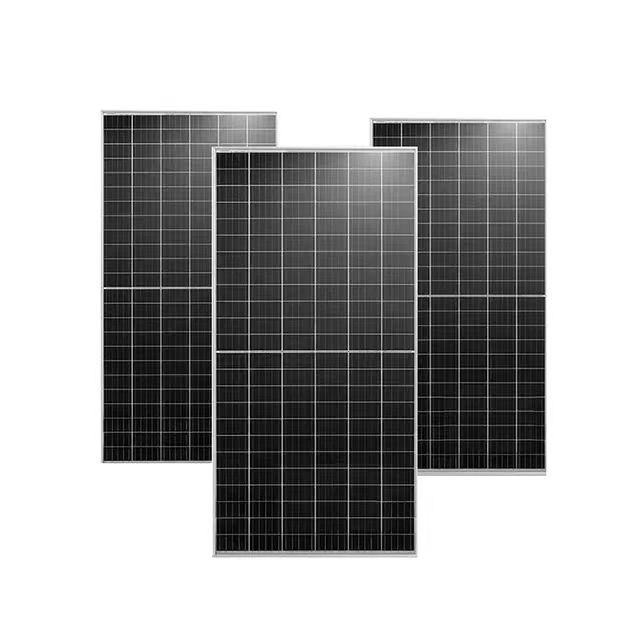

630W Solar Panel
- Mono A grade half cut solar panel
- High efficiency ＞23.3%
- 30 years Linear Power Warranty
- 0.4% Annual Degradation Over 30 years
- Anti-PID Guarantee
- Load Capacity 5400Pa & Resistance to Heat Spots

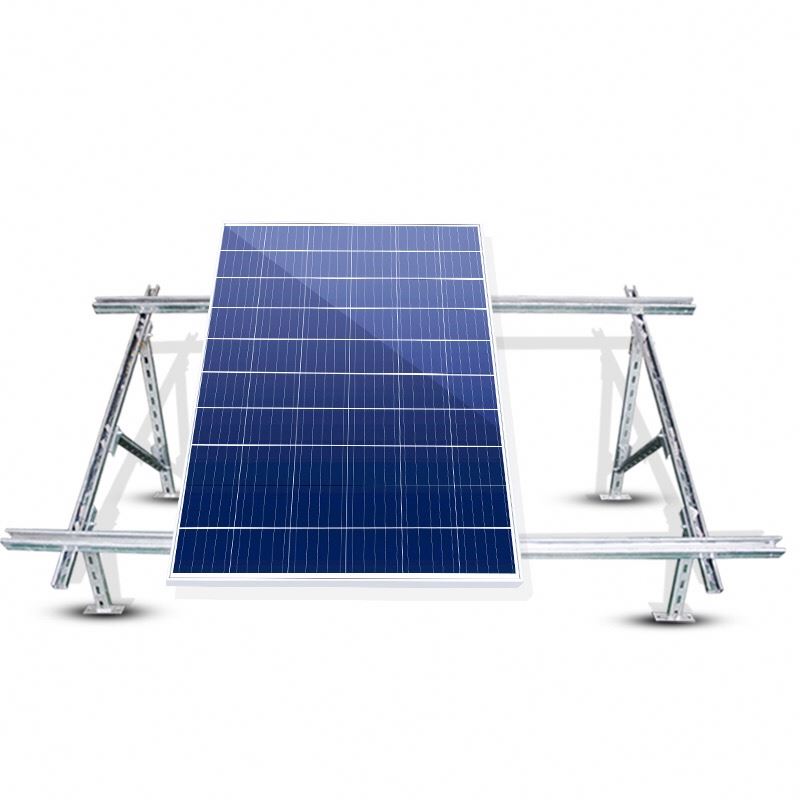

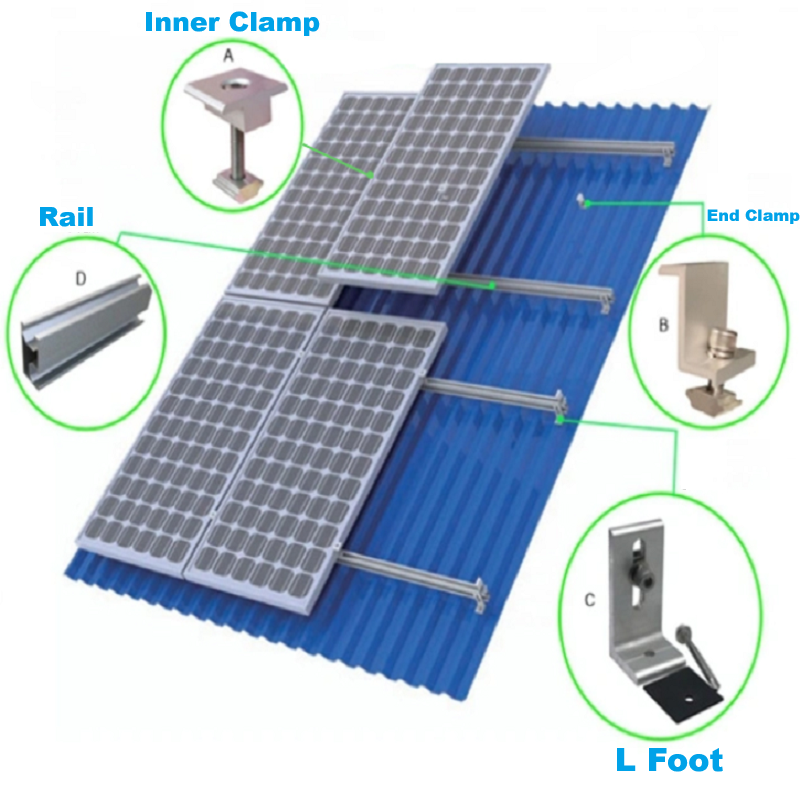

Solar Panel Mounting Bracket
- Wind Load Max: 55m/s
- Snow load: Max 1.5kn/m²
- Setting angle: 0-60°
- Material: Aluminum alloy
- Standard: Suitable for EU, AU, US standards

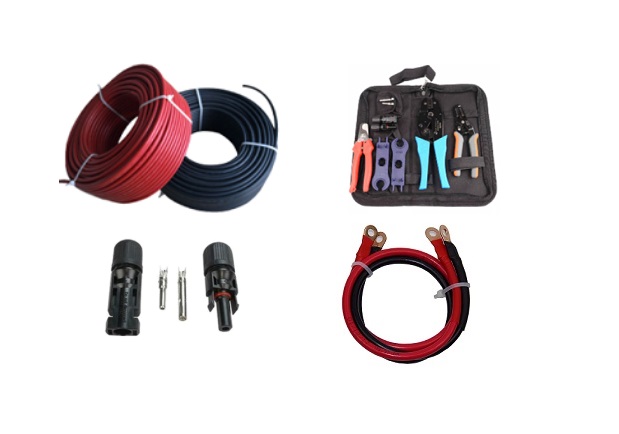

4mm² Wire & Accessories
- Pure Copper wire suitable for solar systems
- Work Environment: -45℃ to 120℃
- Additional parts: MC4 connectors, Wire Cable Cutter & Stripper, MC4 Crimper, Disassembly Tool, Battery Cable

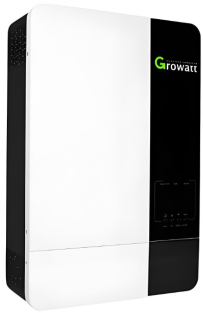

Growatt 3.5KW / 5KW Inverter
- Integrated MPPT charge controller
- Works with or without battery
- PV input voltage up to 450VDC
- Configurable grid or solar input priority
- WIFI remote monitoring support
- PV and grid power the load jointly if PV energy is insufficient
- Flexibly schedule Inverter charging and discharging times

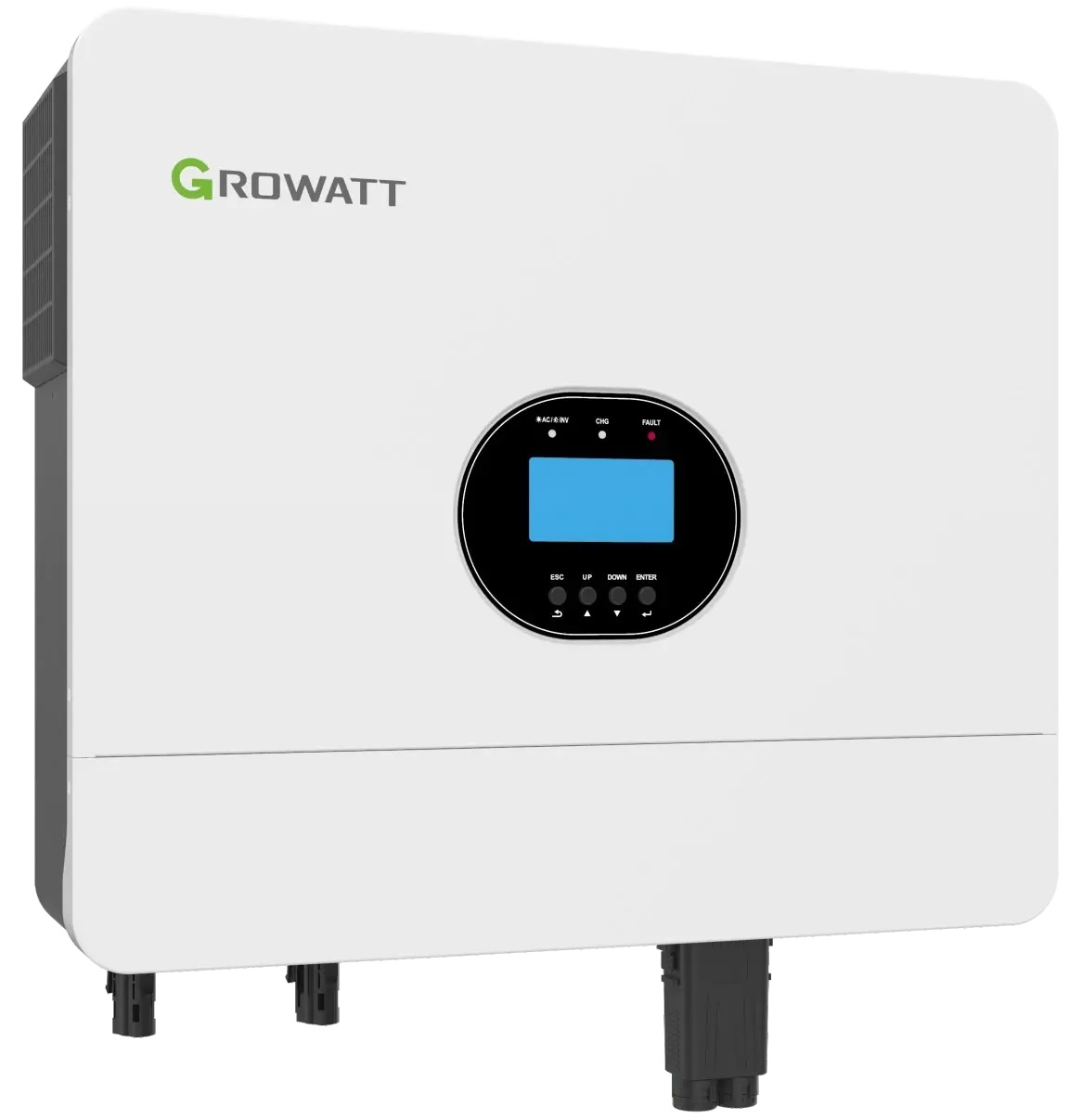

Growatt 8KW / 10KW / 12KW Inverter
- Dual MPP trackers
- WIFI remote monitoring support
- Maximum PV input voltage up to 550VDC
- Two AC input terminals with integrated transfer switch
- Featuring grid-tied function for peak shaving
- Supports parallel operation for capacity expansion up to 108kW
- Dual outputs for smart load management

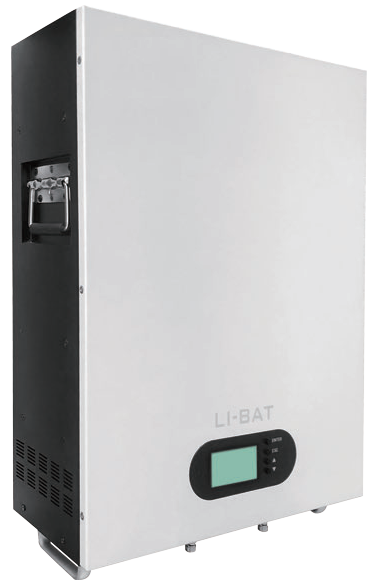

51.2V 200AH LiFePO4 Lithium Battery
- A Grade battery cell with longer lifespan (above 20 years)
- Above 6000 cycles at 90% DOD (Total cycles: ＞10000 times)
- Convenient installation & easy operation
- BMS function & over-voltage protection
- Includes battery cables and wall-mounted racks

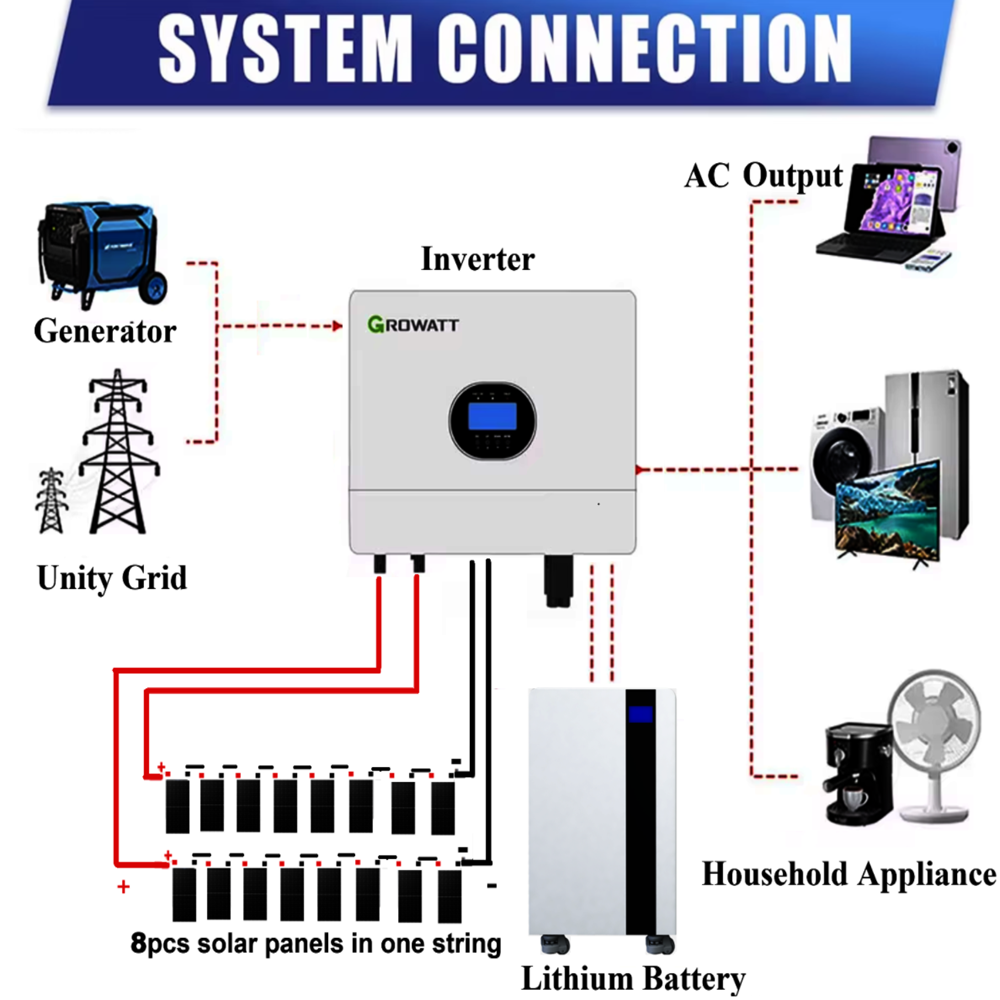

Solar System Configuration
| Model |
XHM5KW-OFF |
XHM6KW-OFF |
XHM8KW-OFF |
XHM10KW-OFF |
| Solar Panel 630W |
8 PCS |
10 PCS |
12 PCS |
16 PCS |
| Mounting Bracket |
1 Set |
1 Set |
1 Set |
1 Set |
| DC Cable 4mm² |
100 Meters |
100 Meters |
100 Meters |
100 Meters |
| Lithium Battery |
5.12V 200AH |
5.12V 200AH |
5.12V 314AH |
5.12V 314AH |
| Inverter |
5KW |
6KW |
8KW |
10KW |
| Accessories |
MC4 connector, Wire Cable Cutter & Stripper, MC4 Crimper, Battery cable |
Solar System Instruction
Usually 5kw, 6kw, 8kw, 10kw, and 12kw are top selections for home use. We provide high-quality solar panels and lithium batteries paired with famous brand inverters. The system runs smart, intelligent, with low noise, and stable performance.
It can operate with or without batteries. Grid power can charge the batteries, and priorities for DC or AC input can be set manually.
Expected 5 to 6 years cost-recovering period, 25 years warranty, and above 30 years of free electricity generation.
Choose the Suitable System for Home Use

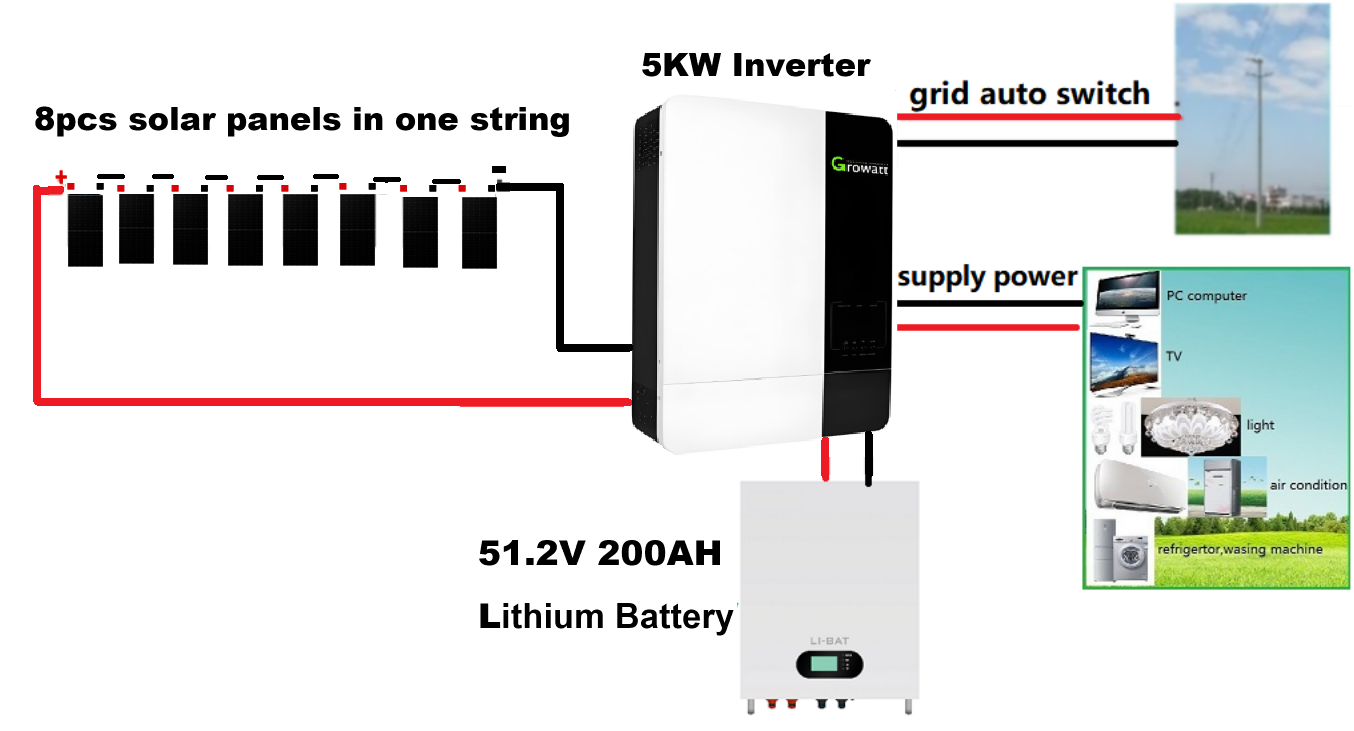

5KW Solar System
Produces up to 15 to 25 KWH on a sunny day

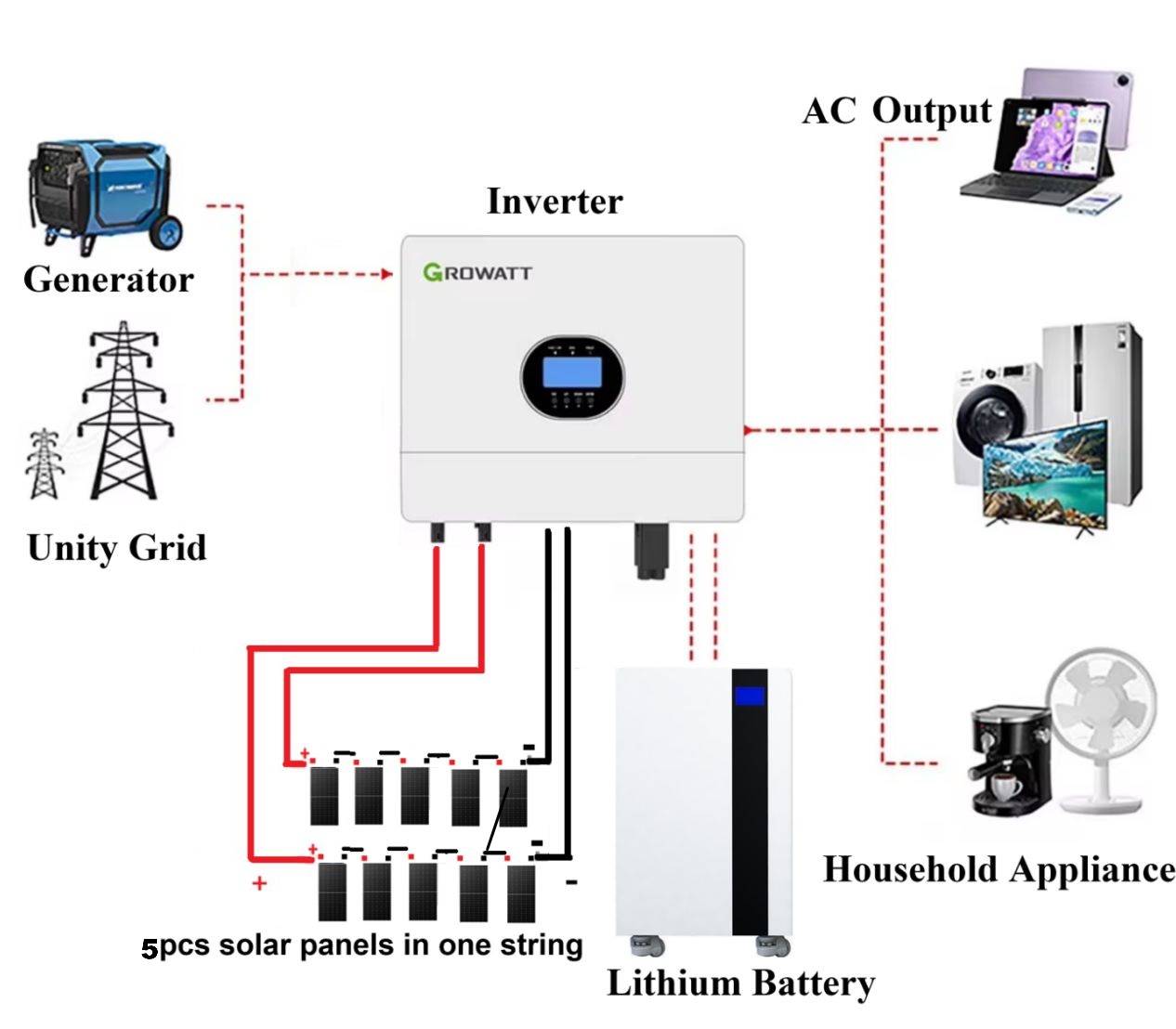

6KW Solar System
Produces up to 20 to 25 KWH on a sunny day

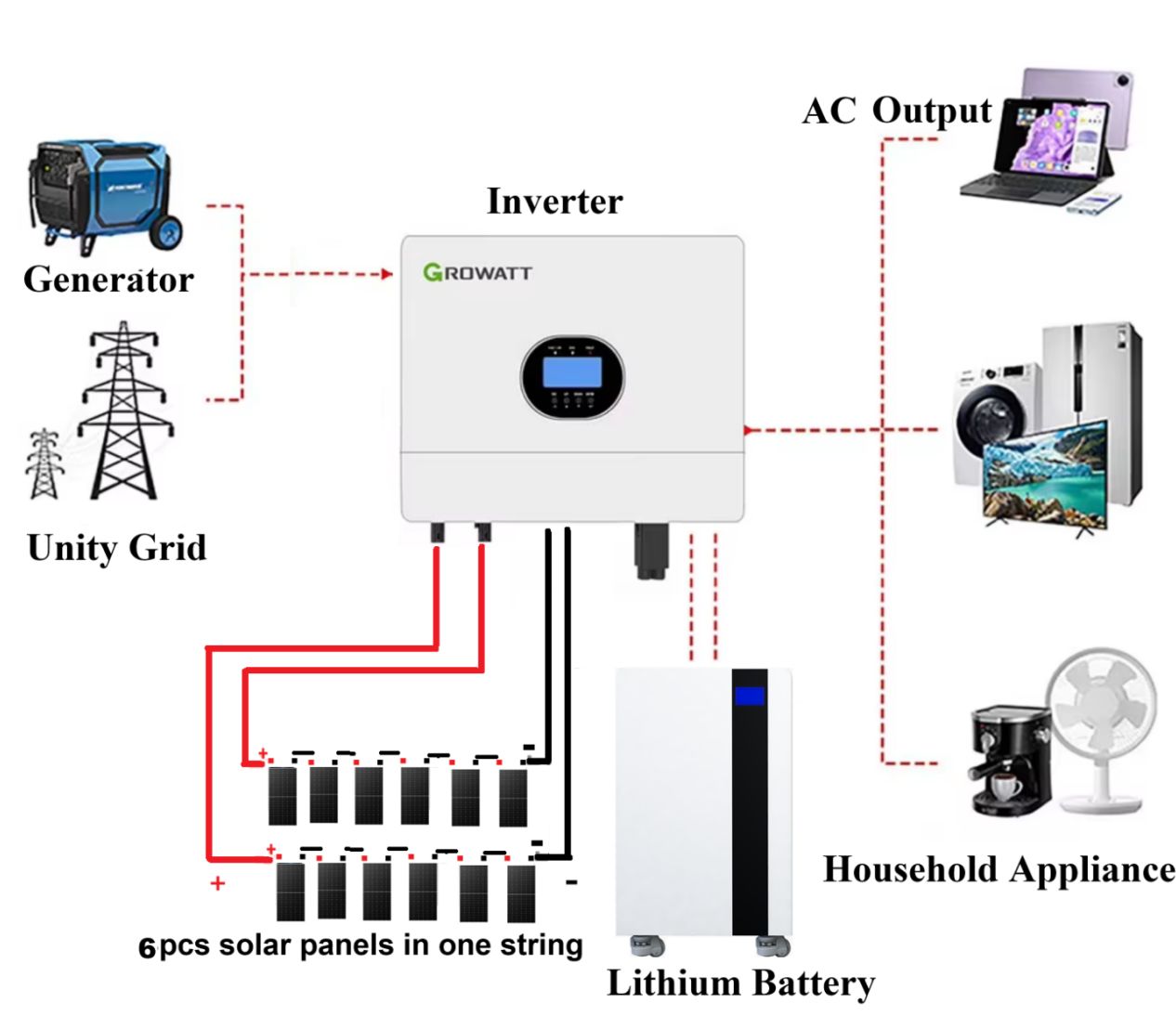

8KW Solar System
Produces up to 25 to 30 KWH on a sunny day

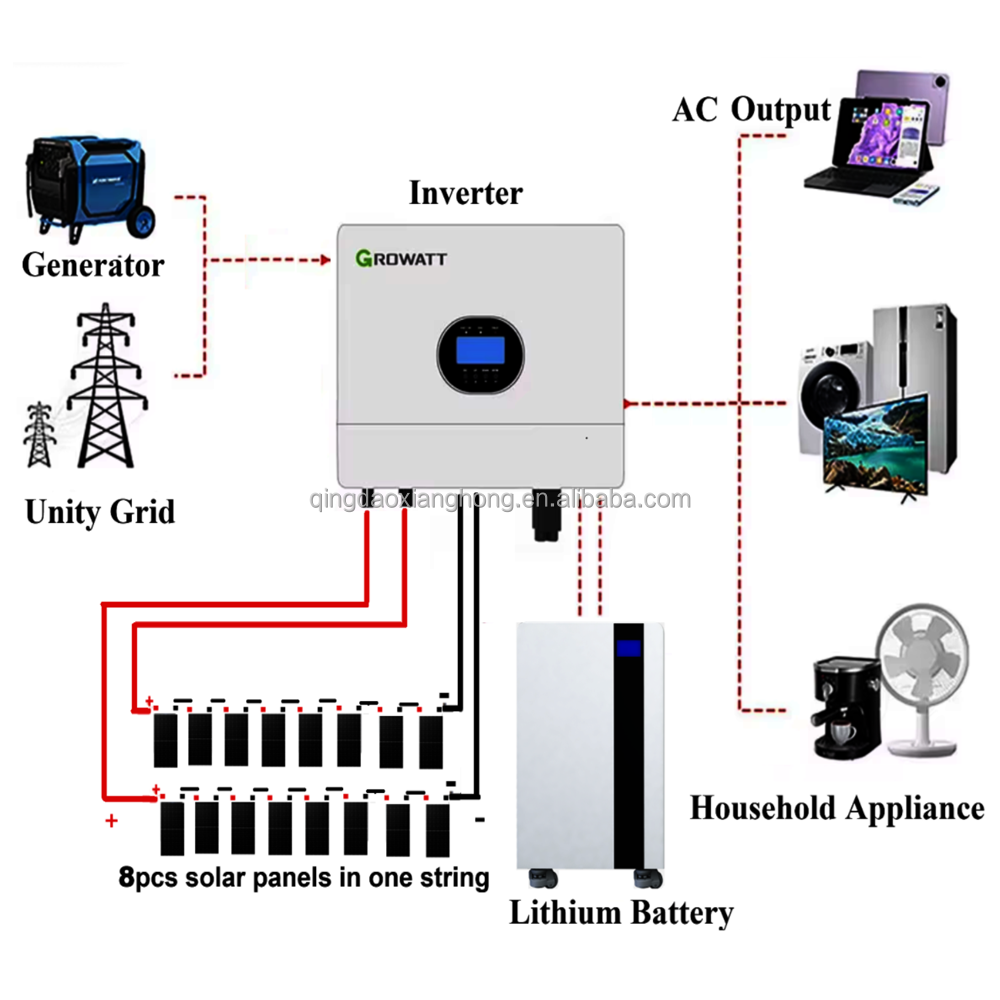

10KW Solar System
Produces up to 30 to 40 KWH on a sunny day
High-End Inverter Technology
Growatt Inverter Highlights: Smart and intelligent control, high performance, high efficiency, low noise, and stable operations offering a long lifetime. Supports WiFi APP connectivity to view real-time system data on mobile devices.

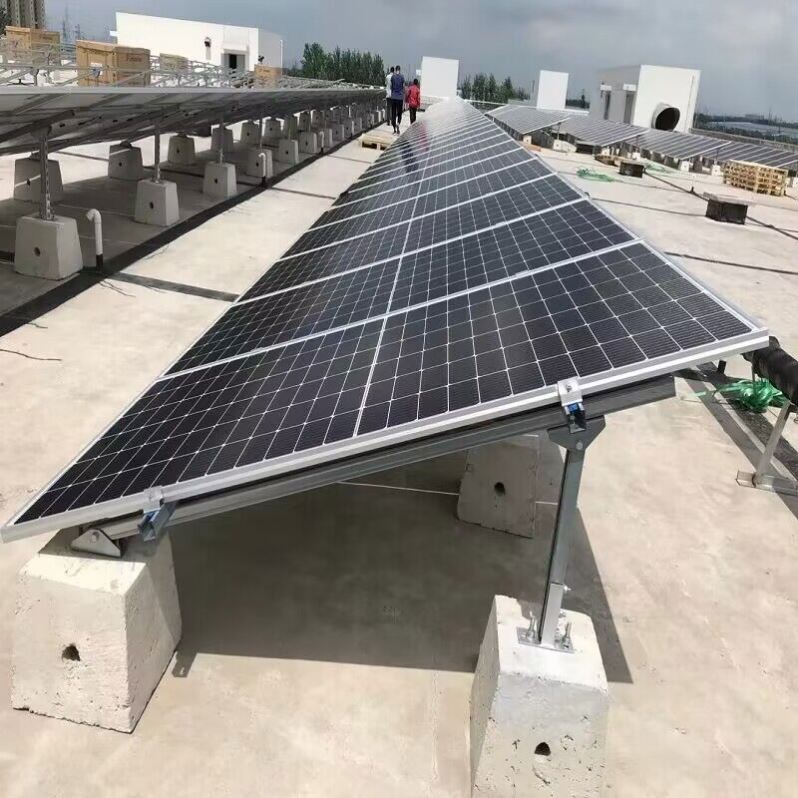

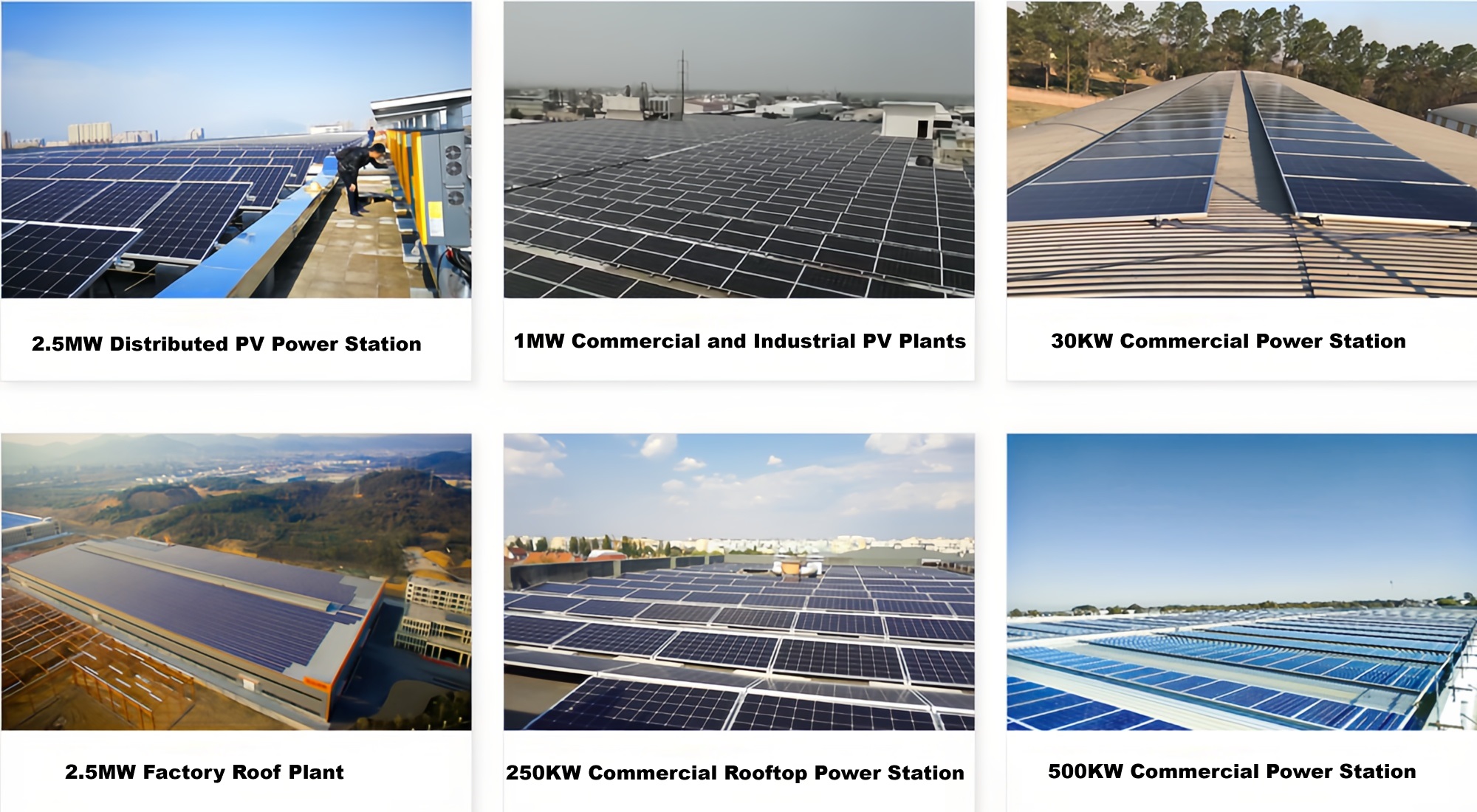

Our Projects

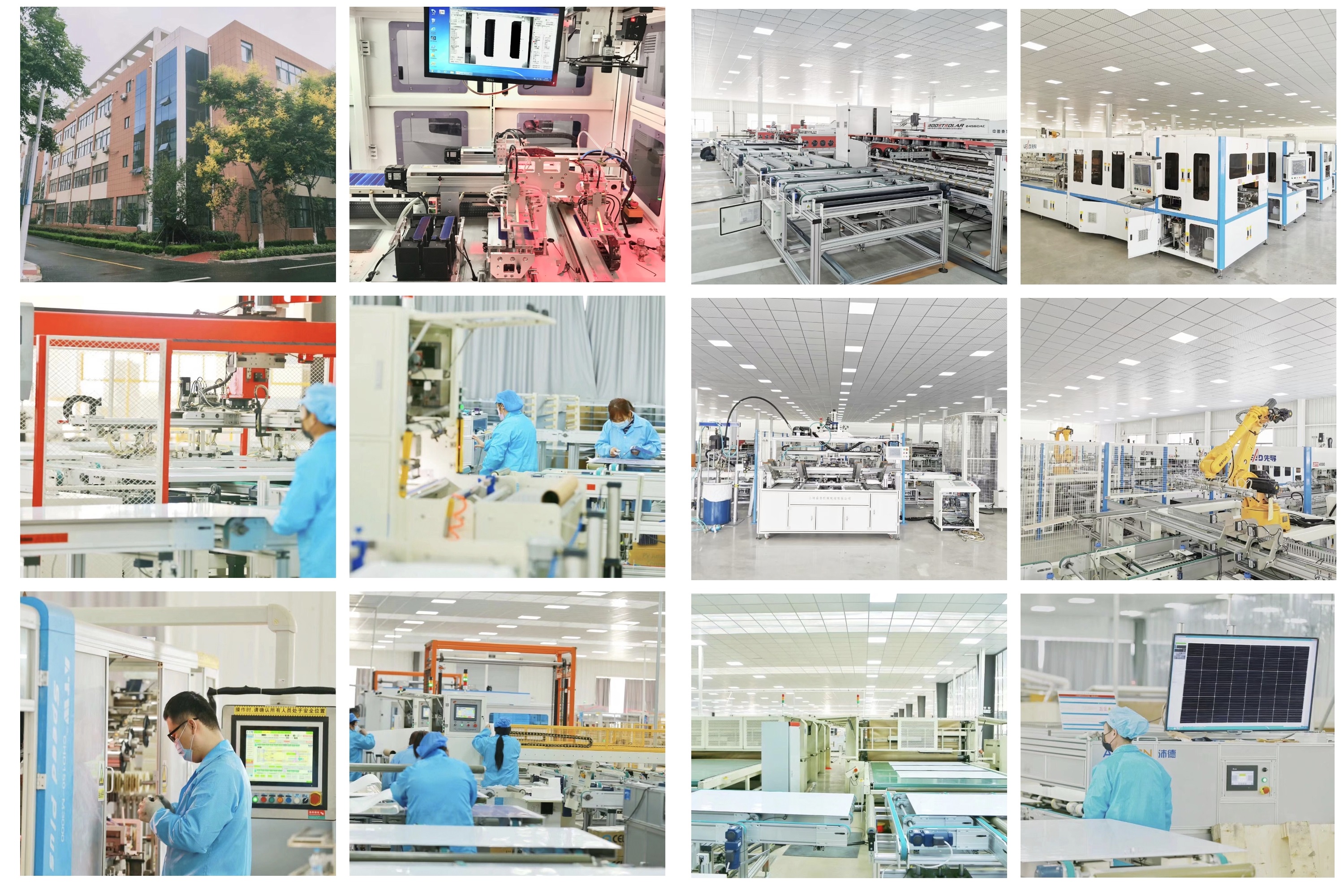

Manufacturing Technique
Warranty Policy
Standard Warranties: Solar Panels: 25 years | Lithium Battery: 5 years | Inverter: 5 years | Mounting Brackets: 25 years
- During Warranty Period: We provide components free of charge for replacements caused by defects in materials.
- After Warranty Period: We provide components at cost price for repairs.
- Note: We are not responsible for damage caused by improper use.
Frequently Asked Questions
Are you a factory or trading company?
We have our own factory to produce lithium batteries and solar panels since 2003, featuring a modern and highly automated workshop.
What are your product and system advantages?
- More than 20 years of professional experience in solar manufacturing.
- A Grade quality solar panels, lithium batteries, and famous brand inverters.
- Favorable shipping costs and DDP options available.
- Competitive pricing with outstanding support and service.
What is the standard payment method?
Usually, we accept T/T payments with 100% upfront for small orders to ensure fast delivery. Payment terms for larger orders are negotiable.
What is the expected lead time?
Typically, we can finish the production of standard systems in 7 to 14 working days.
How is the solar system installed?
We provide detailed installation drawings and a user manual. Customers can easily set up and install the system using these resources.
Can the hybrid system work without a battery?
Yes, our system can operate with or without a battery. You can configure grid power or solar input priority, and grid power can charge the battery when necessary.
