Critical engineering aspects of solar combiner boxes in utility-scale, commercial, and industrial photovoltaic assets.
In modern utility-scale and large commercial solar arrays, the DC combiner box acts as the central nerve center for power distribution. Its primary role is to aggregate multiple DC currents from photovoltaic (PV) modules into a singular, unified output that feeds directly into the grid-tied inverter. This integration requires precision engineering, robust electrical components, and heavy thermal insulation to handle elevated system voltages—often scaling up to 1500V DC.
Reliable safety metrics require the insertion of dedicated overcurrent protection devices (DC fuses) on both positive and negative poles of the PV string, paired with high-performance Surge Protective Devices (SPDs) to shield downstream inversion hardware from transient lightning impulses. Working with certified Solar Combiner Box Factories & Exporters ensures that the physical configuration aligns perfectly with local safety ordinances, including NEC rules in North America or IEC directives in Europe.
Operating conditions for combiners are inherently hostile. Whether installed in hyper-arid desert basins or near saline coastlines, internal temperatures within polycarbonate, ABS, or powder-coated sheet metal enclosures can spike dramatically. Proper thermal management—utilizing breathability valves, industrial-grade seals, and optimized heat dissipation structures—is paramount to prevent premature component fatigue.
An ideal layout incorporates high-integrity engineering plastics with robust ultraviolet protection (UV-stabilization rating: UL 746C) to maintain physical shape under relentless solar radiation. In corrosive industrial zones, marine-grade stainless steel (SUS304 or SUS316) enclosures serve as the industry standard, providing decades of trouble-free operations and sealing integrity rated up to IP65/IP66.
Why international EPC contractors and solar system distributors choose China for high-volume solar combiner box sourcing.
China stands as the undisputed global epicenter for solar technology manufacturing, supplying over 80% of the world's solar components. The manufacturing hub of Xiamen and adjacent industrial clusters in Fujian and Zhejiang provinces offer an unparalleled ecosystem for sourcing components, developing custom designs, and achieving economies of scale.
By consolidating raw materials (e.g., performance-grade polycarbonate, refined copper busbars) and electrical equipment factories within regional clusters, Chinese manufacturers optimize production lead times. The capability to custom-engineer high-volume requests for bespoke distribution setups allows global buyers to drastically compress their time-to-market.
Furthermore, manufacturing houses like Xiamen Jonas Energy Co., Ltd. leverage this deep supply chain integration to deliver cost-effective, custom-engineered products. By cooperating with top-tier terminal switch manufacturers (e.g., CHNT, BENY) and utilizing high-precision automated testing, they balance low manufacturing overheads with absolute adherence to international safety metrics.
The resulting cost savings directly translate into highly competitive pricing for global project developers, boosting project margins without sacrificing structural integrity, system uptime, or safety certifications.
| Enclosure Material | Pros & Best Applications | Typical Longevity |
|---|---|---|
| Polycarbonate / ABS | Lightweight, rustproof, cost-efficient; ideal for residential & C&I projects. | 15 - 20 Years |
| SMC / Fiberglass | Extreme chemical & UV resistance, superior impact strength; ideal for industrial zones. | 25+ Years |
| Powder-Coated Steel | Heavy-duty structural protection, high heat dissipation; ideal for dry desert installations. | 20+ Years |
| Stainless Steel (304/316) | Salt-spray and chemical corrosion immune; perfect for offshore, coastal, and marine environments. | 30+ Years |
Exploring the transition toward intelligent monitoring, higher operating voltages, and smart protection systems.
The industry pivot from 1000V DC to 1500V DC system architecture reduces total system balance (BOS) costs by minimizing cable requirements, voltage drop, and combiner counts while maximizing inverter throughput.
Equipped with smart current and voltage measurement modules, advanced combiner boxes monitor individual solar strings in real-time, sending data via RS485 (Modbus-RTU) protocols for immediate error diagnostic.
Integrated Arc Fault Circuit Interrupters (AFCI) and rapid shutdown controls isolate individual strings in milliseconds, mitigating fire hazards and complying with strict safety standards such as NEC 2020.
Meeting the strict demands of target markets through global standardization and tailored product testing.
When exporting solar junction boxes to different global markets, compliance is the ultimate gatekeeper. In the European Union, combiner box assemblies must meet IEC/EN 61439-2 standards, which mandate stringent checks on internal clearances, creepage distances, and insulation properties. For the North American market, manufacturers target certification under UL 1741, requiring specific ratings for enclosure construction and internal trace separations.
Beyond electrical compliance, physical resistance to regional climate extremes is necessary. In desert installations, combiners must withstand dust ingress and extreme temperature swings. Conversely, near maritime zones, the challenge is salt-spray corrosion. Proper selection of sealing materials (e.g., silicone or EPDM gaskets) and cabinet materials ensures that the IP65 rating is maintained throughout the solar asset's 25-year service life.
A typical premium combiner design includes components certified by independent testing authorities like TUV Rheinland and CE. Critical elements include:
Xiamen Jonas Energy Co., Ltd. is a professional provider of renewable energy solutions, headquartered in Xiamen, Fujian Province, China. Since its establishment, the company has been dedicated to the research, development, manufacturing, and global distribution of advanced photovoltaic and energy storage products.
With a strong commitment to innovation and sustainability, Jonas Energy offers a comprehensive portfolio of solar energy solutions, including solar panels, inverters, energy storage batteries, mounting systems, and complete solar power generation systems. Our products are designed to meet the diverse needs of residential, commercial, industrial, and utility-scale projects worldwide.
We work closely with internationally recognized manufacturers and technology partners to provide a wide range of reliable energy storage solutions, including wall-mounted batteries, all-in-one storage systems, rack-mounted batteries, and containerized energy storage systems (ESS). Through continuous innovation and strategic partnerships, we help customers achieve greater energy independence and efficiency.
As a high-tech enterprise, Jonas Energy operates modern production facilities equipped with advanced manufacturing and testing equipment. Our annual production capacity reaches several gigawatts, enabling us to efficiently serve customers across global markets.
Our experienced R&D team consists of highly qualified engineers and technical specialists who continuously focus on product innovation, performance optimization, and technological advancement in the renewable energy sector. By integrating cutting-edge technologies, we ensure that our solutions remain competitive, efficient, and future-ready.
From raw component inspections to specialized functional verification, we ensure every solar combiner box meets the highest manufacturing standards. All products undergo rigorous testing and strict quality control procedures to ensure long-term reliability and performance.
Inside Jonas Energy's advanced solar equipment manufacturing facility, showcasing our quality-first production processes.
Plate making
UV coating
Test
Aging test
Weld
Assembly
Assembly line
Finished product
Plate making line
UV coating line
Box opening machine
Packaging line
Dip welder
Production line
Assembly line
Technical advice and purchasing tips for industrial PV combiner box systems.
The combiner box aggregates multiple DC current strings from the PV modules into a single DC output. It protects the solar system components by housing the DC fuses, surge protection devices (SPDs), and isolation disconnect switches, ensuring a safe connection point to the downstream central or string inverter.
For large utility and commercial & industrial (C&I) projects, a 1500V system is highly recommended. It reduces the overall number of combiners and runs shorter copper cables, saving up to 20-30% on Balance of System (BOS) cabling costs. It also minimizes voltage drop across long wire spans.
An IP65 rating guarantees complete protection against dust ingress and low-pressure water jets from any direction. Outdoor combiner boxes face harsh weather, rain, snow, and sand. The high ingress rating ensures that the internal electrical components remain dry and isolated from environmental hazards.
Smart current monitoring allows operators to detect underperforming strings caused by localized shading, dirty panels, or wiring faults. Real-time diagnostic data transmitted via RS485 communication protocols enables fast maintenance response, maximizing the annual output efficiency of the solar array.
Yes, customized boxes (often called AC/DC combiner boxes or hybrid boxes) can combine AC and DC connections into a unified enclosure. This configuration is widely used in smaller distributed systems or hybrid solar battery setups where string division and sub-combiner functions are needed in a single, compact footprint.

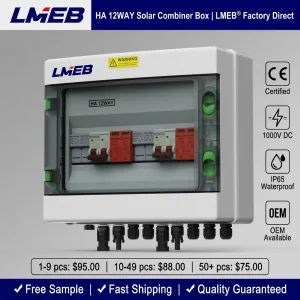

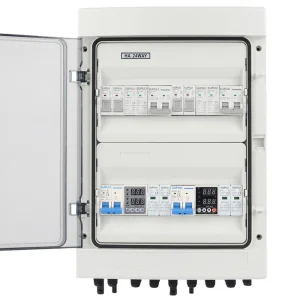

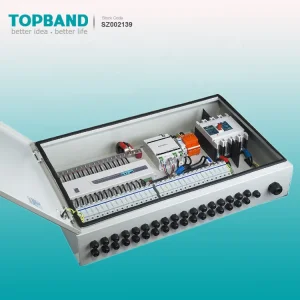

Explore additional specialized solar combiner boxes, safety switch disconnects, and distribution panels.

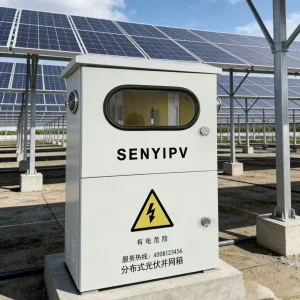

CHNT Circuit Breakers Distributed PV Grid-Connected Box Solar Combiner IP66 380V 100A Combined Box Distribution Box
View Details
Solar Photovoltaic DC 500V PV Combiner Box With Lightning Protection 2 Input 1 Out Fuse MCB SPD Waterproof Box IP65
View Details

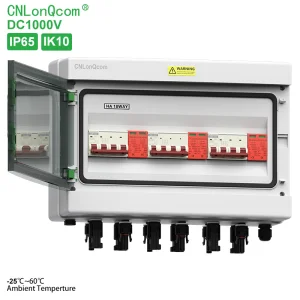

CNLonQcom IP65 DC1000V PV Combiner Box 3-String Solar Panel Combiner Circuit Breaker Surge Protector DC1000V DC IP65 Waterproof
View Details

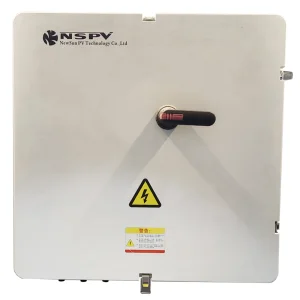

NSPV Solar Photovoltaic Array Combiner Box for Efficient Solar Power System Combiner Box Customize
