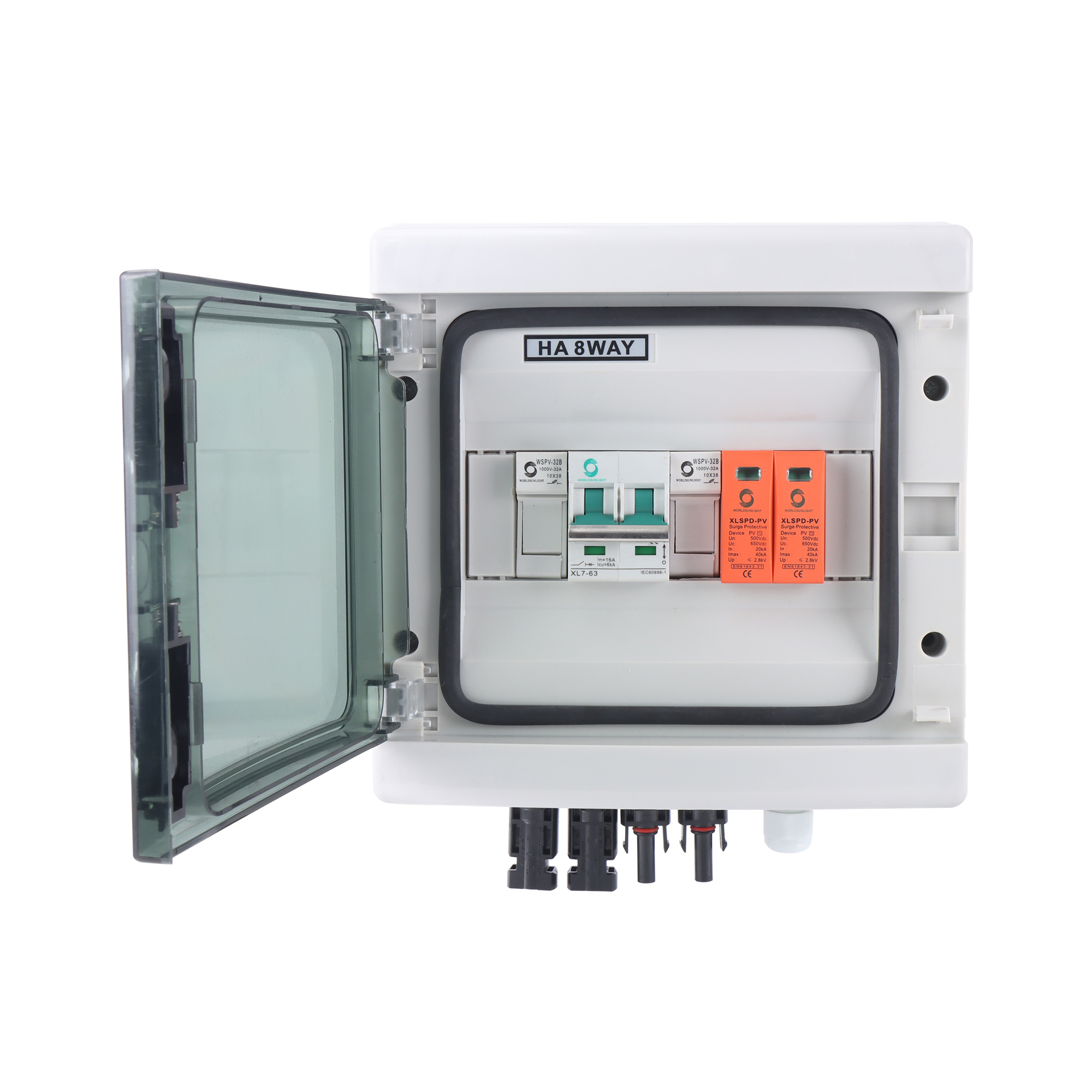

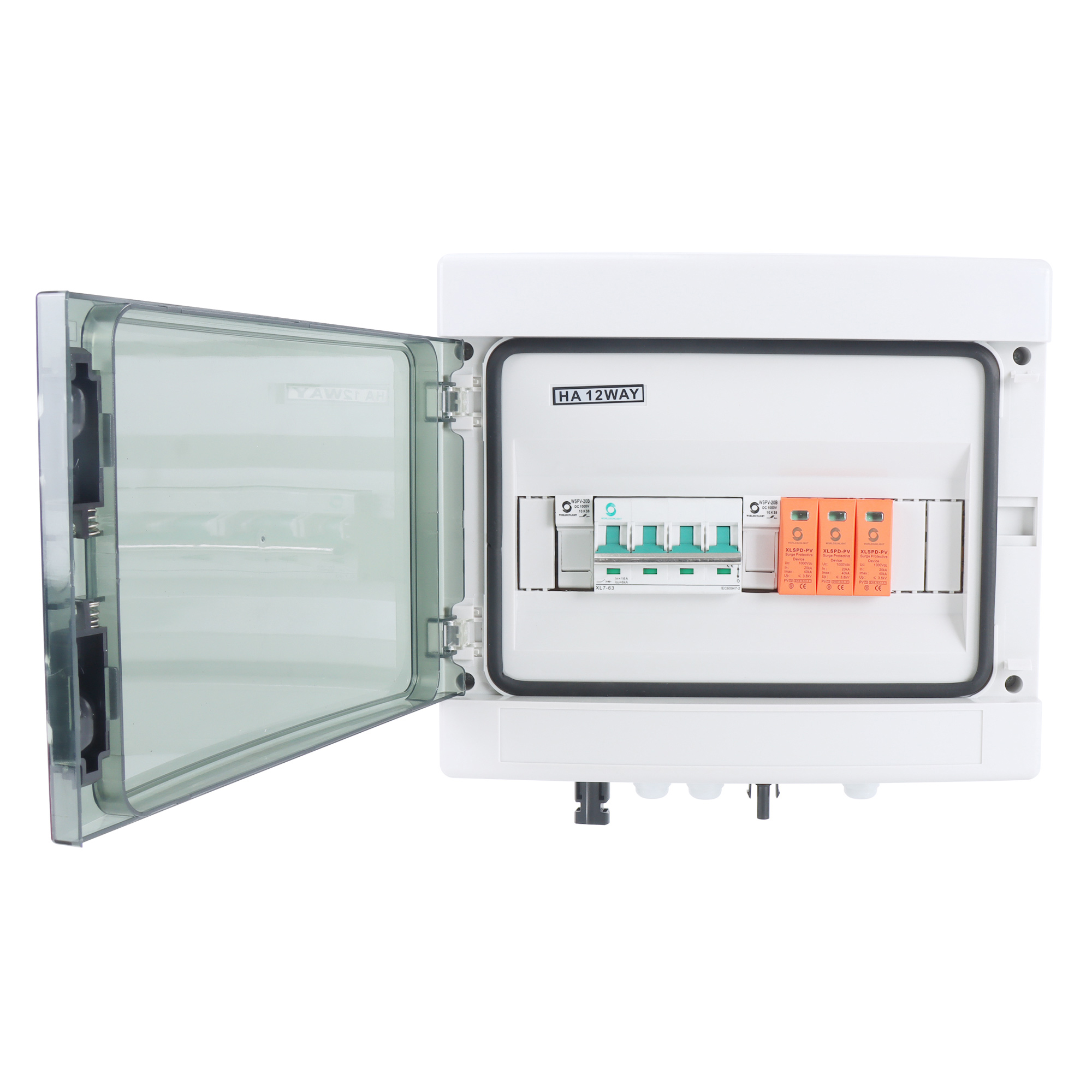

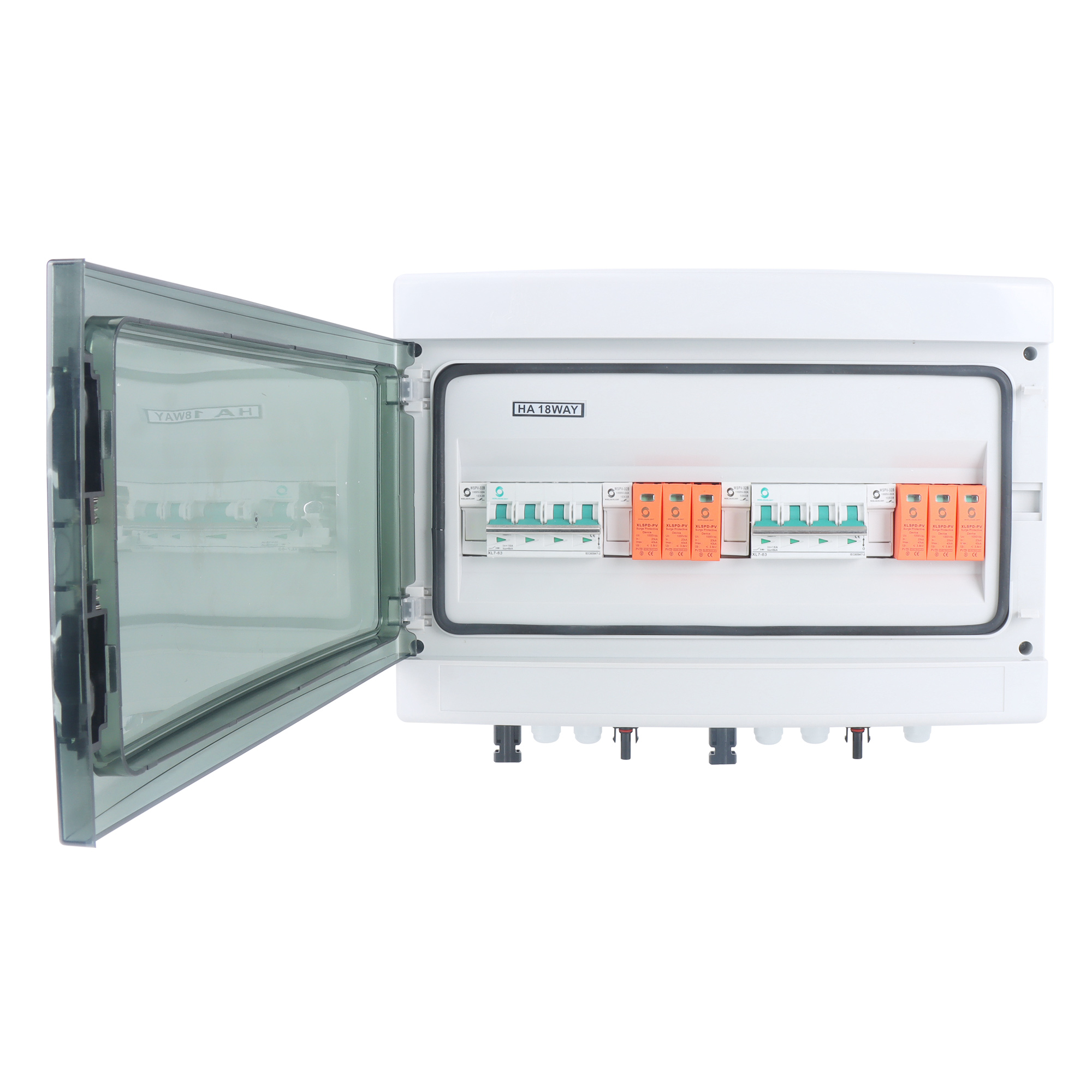

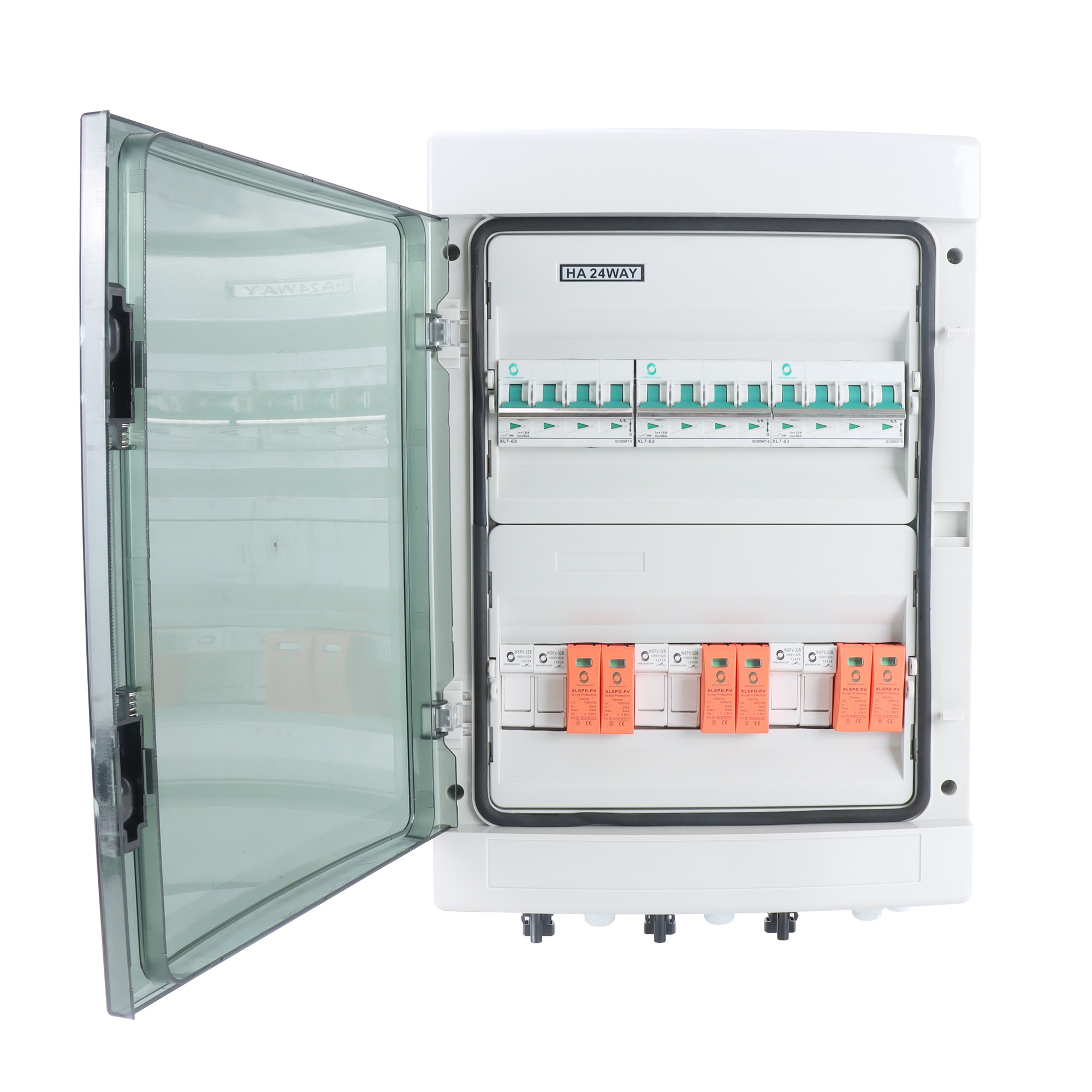

WSDB-PV1/1 IP65 1/2/3/4/ in 1/2/3/4/ OUT 1/2/3/4 Strings Array 16A 500V 1000V 1500V DC Solar PV Combiner Box for Solar System

SOLAR BOX Application

Combiner Box provides a means of combining multiple source circuits from a PV array into a single DC output. Each source circuit is fused separately using a touch-safe fuse holder. The combiner box allows for fail-safe operation of the system in the unlikely event that a problem with a source circuit leads to abnormally high current. In addition, the combiner box provides a convenient means of accessing the DC portion of a PV system for routine maintenance and troubleshooting.

Why Choose Our Combiner Box

Feature Details
Every single component is manufactured in-house.	Product quality is stable and controllable.
Fuse/MCB/SPD Certificate	TUV CB IEC CE ISO9001
Test	Every component and finished product is tested.
Production capacity	20000PCS/MONTH
Manufacture Experience	Experience in manufacturing over a thousand styles of combiner boxes
Market Experience	We can recommend the most popular boxes in this market for you.
High cost performance	Each component and process is manufactured in-house.
String customization	Any string (Common 1-48 string)
Optional Enclosure	IP30-IP67 14 series, 152 types of enclosure
Fuse optional parameters	1000V-1500V/10A-630A
SPD optional parameters	275V-1500V
MCB optional parameters	230V-1000V/10A-1250A
Annual sales of combiner boxes	More than 30,000,000 RMB
Customer reviews	This is the supplier I've seen with the most reliable quality and the most punctual delivery.

🔶 Every component inside the combiner box is manufactured in-house, ensuring its quality.

11532㎡ Factory

We have a 11,532㎡ factory and annual exports exceeding 20 million US dollars.

31 injection molding machines and 605 sets of molds

Guarantee of high-performance products

Surge protector housing injection molding

30 surge molds, covering every tiny component.

Injection molding of fuse housing

28 sets of fuse molds, covering a variety of fuse housings from 15A to 960A and 500V to 1500V.

Distribution box casing injection molding

408 sets of molds, covering 15 series and 153 types of distribution boxes

Solar connector housing injection molding

36 molds, covering various types of connector components such as male and female solar panel heads, nuts, and claws.

High-quality parts warehouse

Made with high-quality precious metals such as copper and pure silver

Surge production line

Production capacity of 50,000 per week

Connector Automated Production Line

300,000 produced per day

Fuse and overvoltage protector line

50,000 fuses produced per week

Circuit breaker production line

100,000 units per week

Distribution box & junction box line

100,000 plastic boxes produced per month

Surge Lightning Strike Laboratory

Ensure that the manufactured products meet the requirements for lightning protection.

Fuse testing

Test fuse performance to ensure compliance with standards.

Circuit breaker testing

The product features overload and short-circuit protection.

Distribution Box Waterproof test

IP65-IP67 waterproof test

Flame retardant test

Ensure the product meets the V0 flame retardant rating.

Solar connector testing

Comprehensive testing including resistance, tensile strength, weight, and anti-aging properties.

4200㎡ inventory warehouse

Quickly allocate the necessary parts for your order

Standardized process assembly

Assembly can be performed quickly and efficiently.

Combiner Box production line

More than 20,000 combiner boxes are produced per month.

Enclosure Optional

IP40 WSMF Distribution Box

Dustproof but not waterproof, mainly used for indoor AC combiner boxes.

IP65 WSHT Distribution Box

IP65 compact case, with top and bottom opening mechanism.

IP65 WSPN Distribution Box

Compact row, opens left and right with frosted window box

IP65 WSHA Distribution Box

The large internal volume opens to the left and right.

IP65 WSHAN Distribution Box

New styles of boxes on the market

IP66 WSKG Distribution Box

Plastic buckle, opens to the left and right, IP66 waterproof.

IP66 WSBG Distribution Box

Metal buckle, opens to the left and right, IP66 waterproof.

IP67 WSAG Distribution Box

Plastic screw closure, highly waterproof, available in both transparent and opaque versions.

IP65 Metal Distribution Box

Metal box, highly impact-resistant, suitable for use in harsh sandy environments.

Type Optional

MCCB protective box

When you purchase our circuit breakers, if you require protection for the circuit breakers, you can purchase our circuit breaker boxes together.

Isolator switch protective box

Individual isolating cores and protection boxes are available as separate products. When multiple isolating switches are placed in one protection box, our distribution box is required.

FUSE+MCB+SPD Combiner Box

Fuse+MCB+SPD is the most common style on the market, providing double protection.

FUSE+SPD Combiner BOX

The fuse+SPD provides overcurrent protection, and the SPD provides surge protection. This combination is relatively economical.

MCB+SPD Combiner Box

MCB+SPD: The MCB provides overload and short-circuit protection, while the SPD provides surge protection.

Fuse+Isolator+SPD Combiner Box

Fuse + isolation + surge protection: fuse overcurrent protection, isolating switch for easy system disconnection and maintenance, and surge protector for surge protection.

AC Combiner Box

Inverter output protection

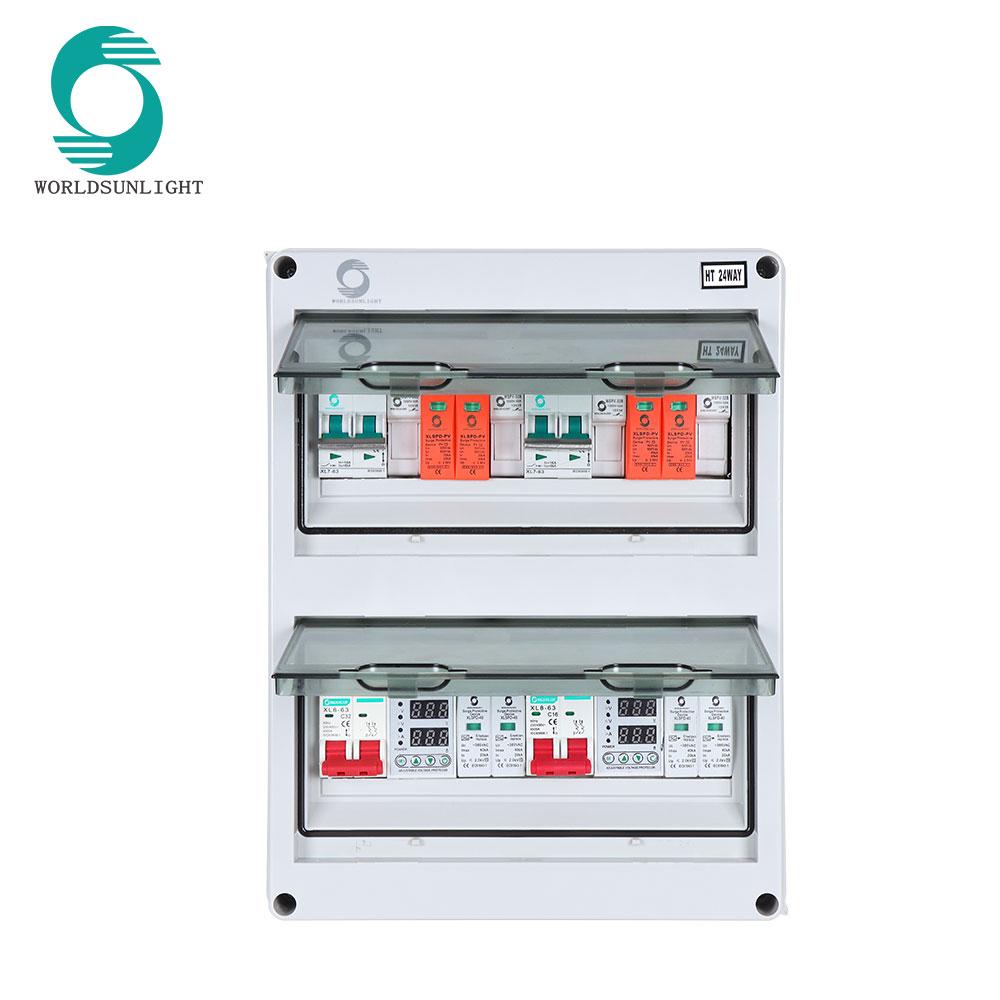

DC+AC Combiner Box

DC protection between the PV panel and the inverter; AC protection between the inverter and the load.

500V Combiner Box

Suitable for systems below 500V,

1000V Combiner Box

Suitable for systems below 1000V

1500V Combiner Box

Suitable for systems below 1500V

1 string combiner box

There are 3 types available: 1/1, 500V, 1000V, and 1500V

2 strings combiner box

There are six types available: 2/1, 2/2, 500V, 1000V, and 1500V

3 strings combiner box

There are six types available: 3/1, 3/3, 500V, 1000V, and 1500V.

4 strings combiner box

There are 9 types available: 4/1, 4/2, 4/4, 500V, 1000V, and 1500V.

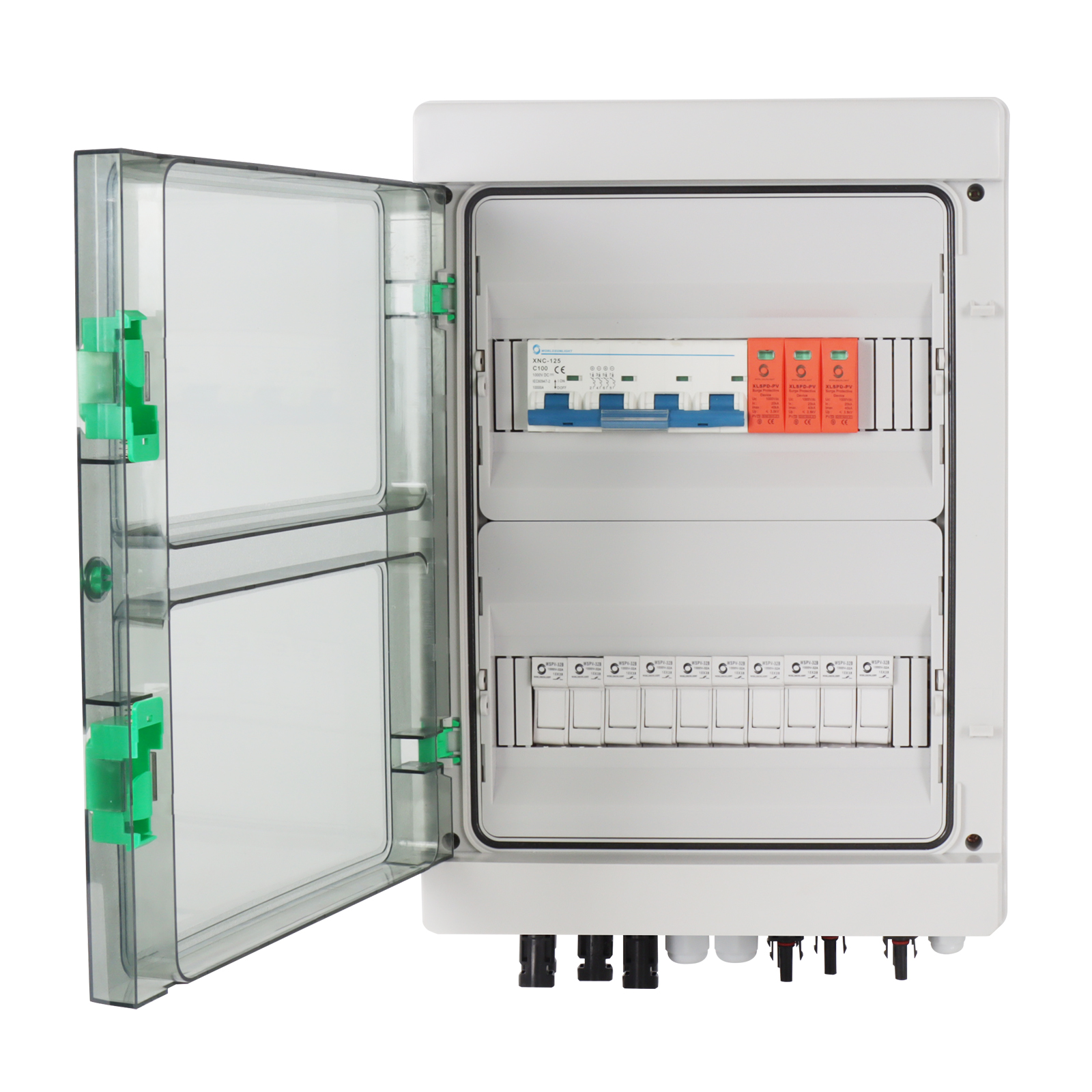

5 strings combiner box

There are six types available: 5/1, 6/6, 500V, 1000V, and 1500V.

6 strings combiner box

There are 12 types available: 6/1, 6/2, 6/3, and 6/6, in 500V, 1000V, and 1500V versions.

7-48 strings combiner box OEM/ODM

We've made all sorts of A and V numbers, various strings, and all types of combiners. Just tell us what you want, and we can make it for you.

Certifications

ISO9001 Certificate

FUSE TUV Certificate

FUSE CB Certificate

FUSE CE Certificate

MCB CB Certificate

MCB TUV Certificate

MCB CE Certificate

SPD TUV Certificate

SPD CE Certificate

Solar Connector CE Certificate

Distribution Box CE Certificate

Juntion Box CE Certificate

Certification certificates for other products

Each of our main products is certified, and we apply for new certifications every year. If you have a large order and require new certifications, we will actively work on obtaining them.

Exhibition

🌐 Global exhibitions: We participate in about 6-7 exhibitions every year. If you are our city agent, we may also participate in exhibitions in your country. However, all customer information obtained from the exhibitions will be given to the corresponding city agent.

Our Service

🎥 Free videos and pictures

We will provide product certificates, introductory videos, product images, detailed product photos, and product catalogs for the products you order, to facilitate your sales.

🧪 Free sample service

We will provide you with free samples for testing, so you can see just how excellent our product quality is.

🏷️ Free OEM service

If you need your own logo printed on the product, we can provide you with an image of your logo for detailed confirmation before we begin production.

🛠️ Prices customized by materials

We can offer lower prices for products of the same quality. You can provide the products you need with customized materials, or your supplier's products, or your target price, and we can customize them for you.

⚡ 24/7 online & rapid response

We're online 24/7. Unless we're sleeping, we respond within 5 minutes. Our experienced sales staff, with over 10 years of experience and a high level of English (level 8), will quickly communicate with you and resolve your needs.

🛡️ Up to 20-year warranty

Our connectors come with a 20-year warranty, while other products have a 2-5 year warranty. We will resolve any after-sales issues for you as soon as possible.

One-Stop Shopping

We manufacture all DC protectors for photovoltaic systems ourselves. You can purchase them with a single click at our factory, ensuring more stable quality and lower prices. If you need boxes, we have 15 series and 152 types of distribution boxes ranging from IP30 to IP67, covering all customer needs in the market and all enclosure sizes. This saves you money and effort, while increasing market coverage and share.

Frequently Asked Questions

❓ When can I receive a quotation and detailed info after sending an inquiry?

We will reply within 5 minutes during the day, and as soon as we get to work the next day while sleeping. We will definitely reply within 12 hours.

❓ Do you provide samples? Is it free or extra?

Yes, we could offer the sample for free charge but do not pay the cost of freight.

❓ How is the delivery timeline for orders?

Samples take 1-3 days. Orders less than 1,000pcs take less than 7 days, 1,000-5,000pcs take 7-15 days, and orders more than 10,000pcs take 15-30 days.

❓ What is the difference between you and other suppliers?

Our products are all made of new materials, while some manufacturers use recycled old materials.

❓ How do you control the quality of the products?

Our procedures are according to IEC standards. We control quality through 4 key links: 1. Raw material testing, 2. Production process supervision records, 3. Finished product performance testing, and 4. Finished product factory testing.

❓ Do you provide OEM & ODM services?

Yes, we support OEM & ODM. For some items we have MOQ. We can customize the mold for you and produce it quickly.
