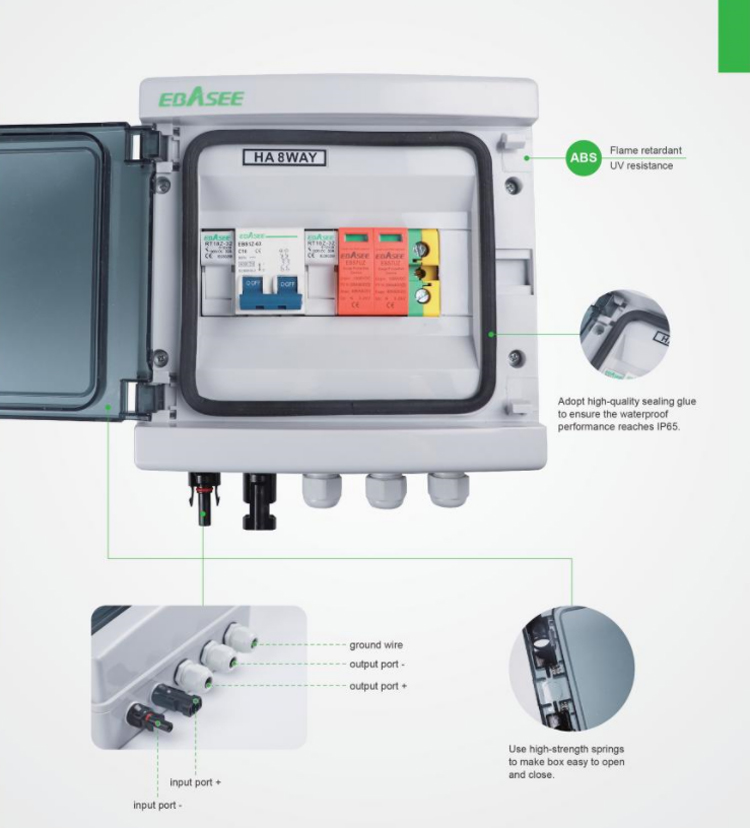

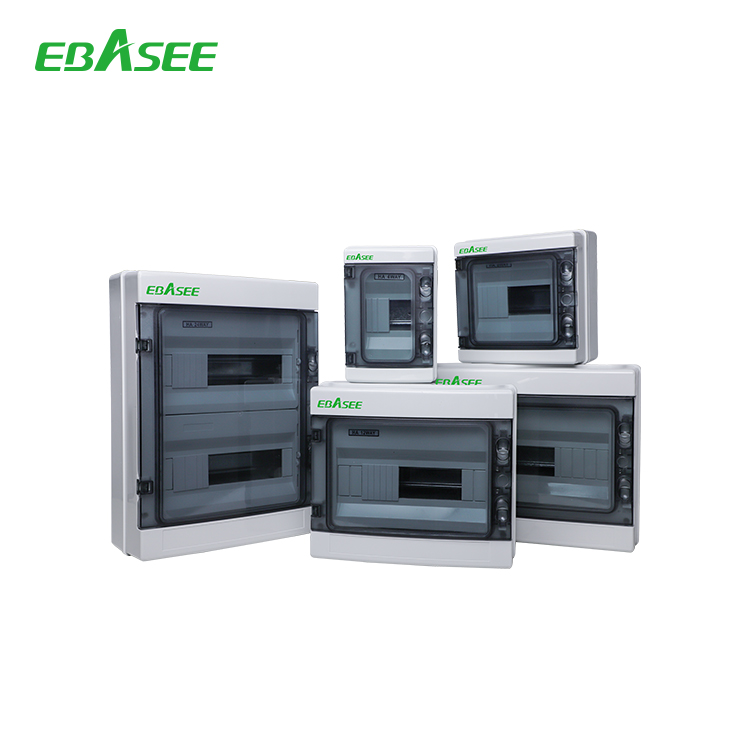

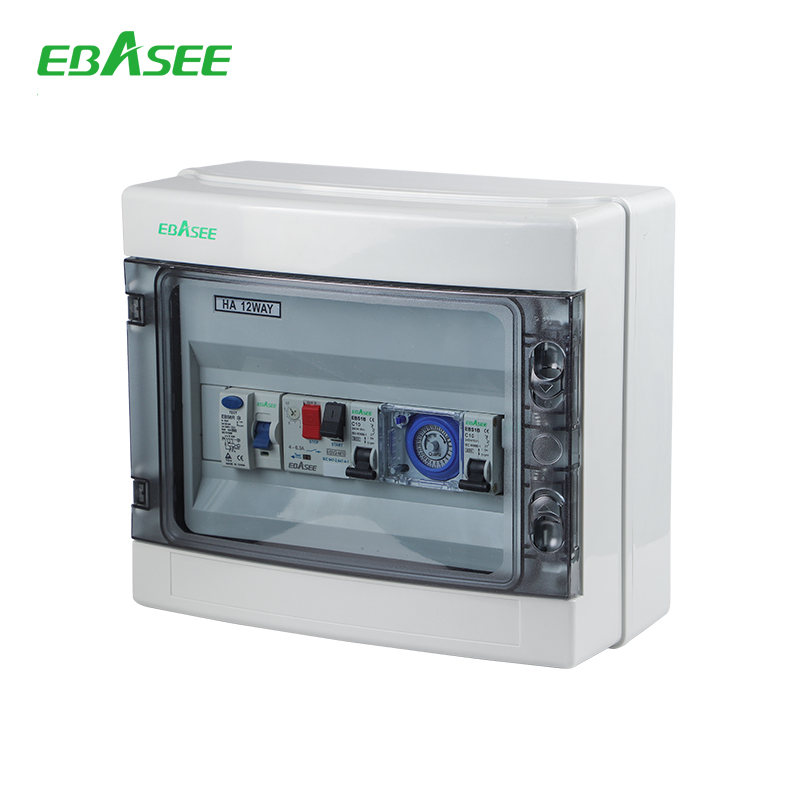

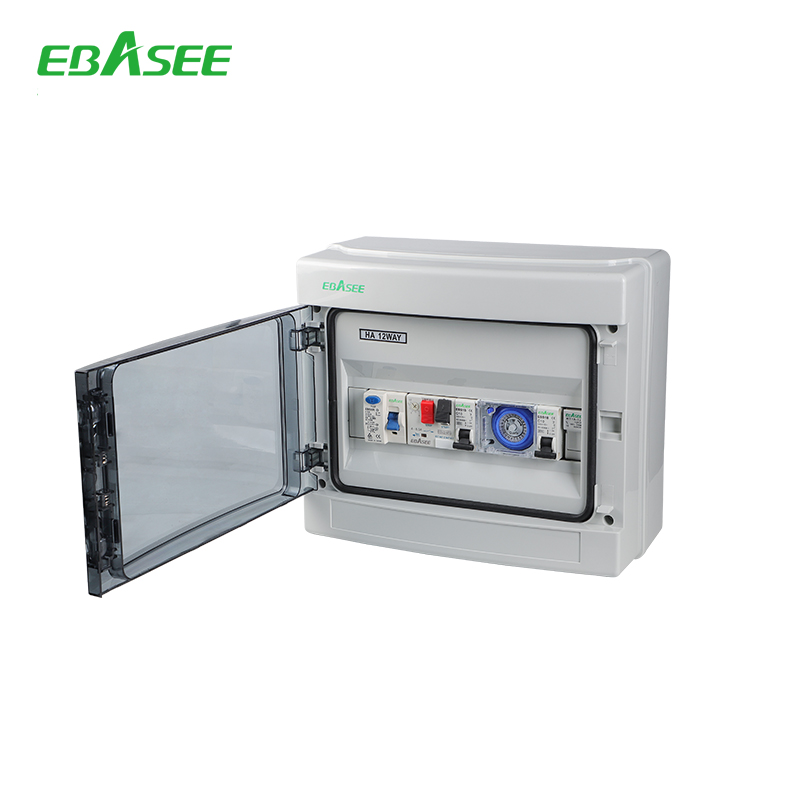

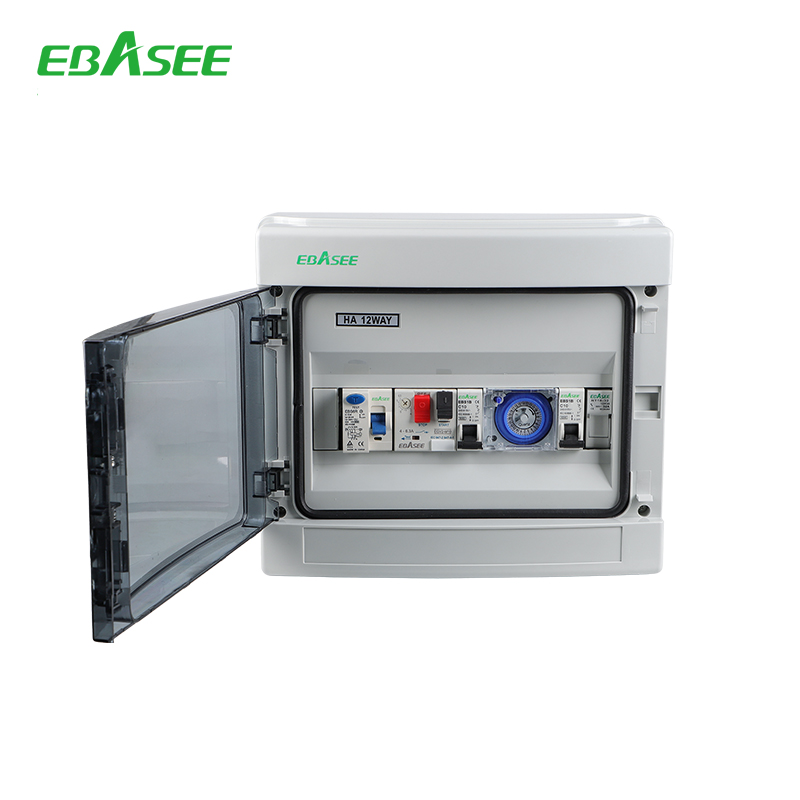

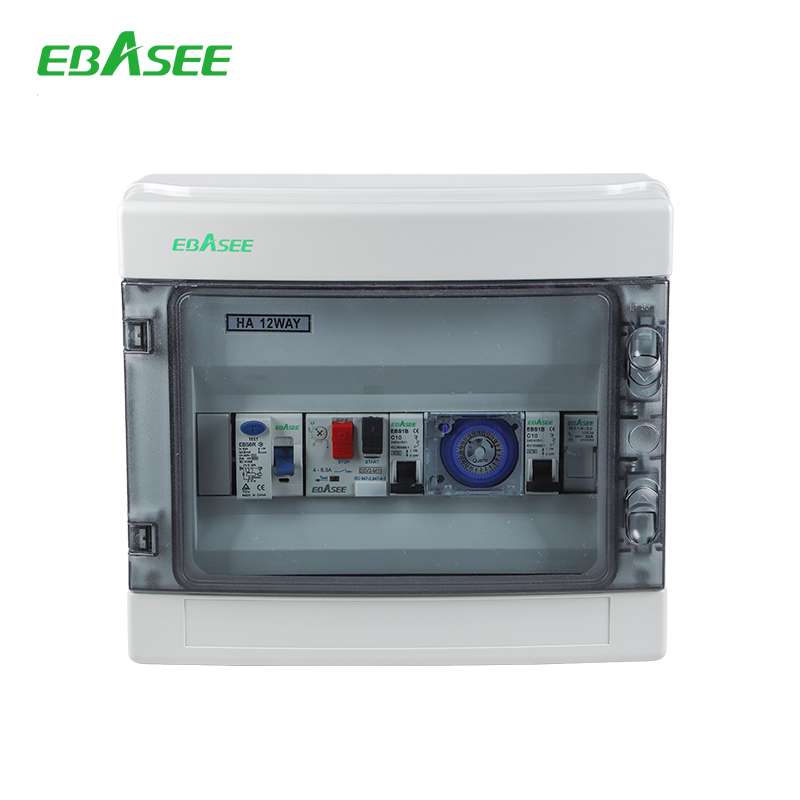

BX-P-03 series PV combiner box can be organized as 1 to 6 input and is designed for providing overcurrent and overvoltage protection to enhance the protection and reliability of the inverter operating in MAX input voltage DC550V and DC1000V solar system.
The design and configuration of the BX-P-03 series PV combiner box strictly comply with CGC/GF 037:2014 standard, is made of ABS bottom & PVC cover, waterproof grade up to IP65, and features flame retardant, temperature rise, impact resistance, UV resistance properties, which will be strictly tested before delivery.
Can be specially customized according to user requirements.
| Model | 1/1 2/1 4/1 4/2 6/1 |
| Number of Inputs strings | 1 string, 2 string, 4 string, 6 string |
| Max.Rated Voltage DC | 500V, 1000V |
| Material of Box | ABS / PVC |
| Voltage protection level Up | 2.8kV, 3.8kV |
| Protection grade | IP65 |
| Installation method | Surface mounting type |
| Ambient temperature range | -25°C ~ +55°C |
What is the main function of this PV combiner box?
The primary function is to bring the output of several solar strings together. It provides essential overcurrent and overvoltage protection to enhance the safety and reliability of the inverter operating in DC550V and DC1000V solar systems.
What is the waterproof rating and can it be installed outdoors?
Yes, it features an IP65 waterproof grade. The enclosure is designed with an ABS bottom and PVC cover that offers excellent UV resistance, impact resistance, and weather protection, making it ideal for outdoor installation.
How many input strings does the BX-P-03 series support?
The BX-P-03 series PV combiner box is flexible and can be organized to support 1 to 6 input strings depending on your specific solar system configuration.
What safety standards does this combiner box comply with?
The design and configuration of the BX-P-03 series strictly comply with the CGC/GF 037:2014 standard. All units undergo rigorous testing for temperature rise, impact resistance, and flame retardancy before delivery.
Can I customize the combiner box for my specific project?
Yes, we support special customization. The internal configuration, protection components, and the number of inputs can be customized according to your system requirements.
