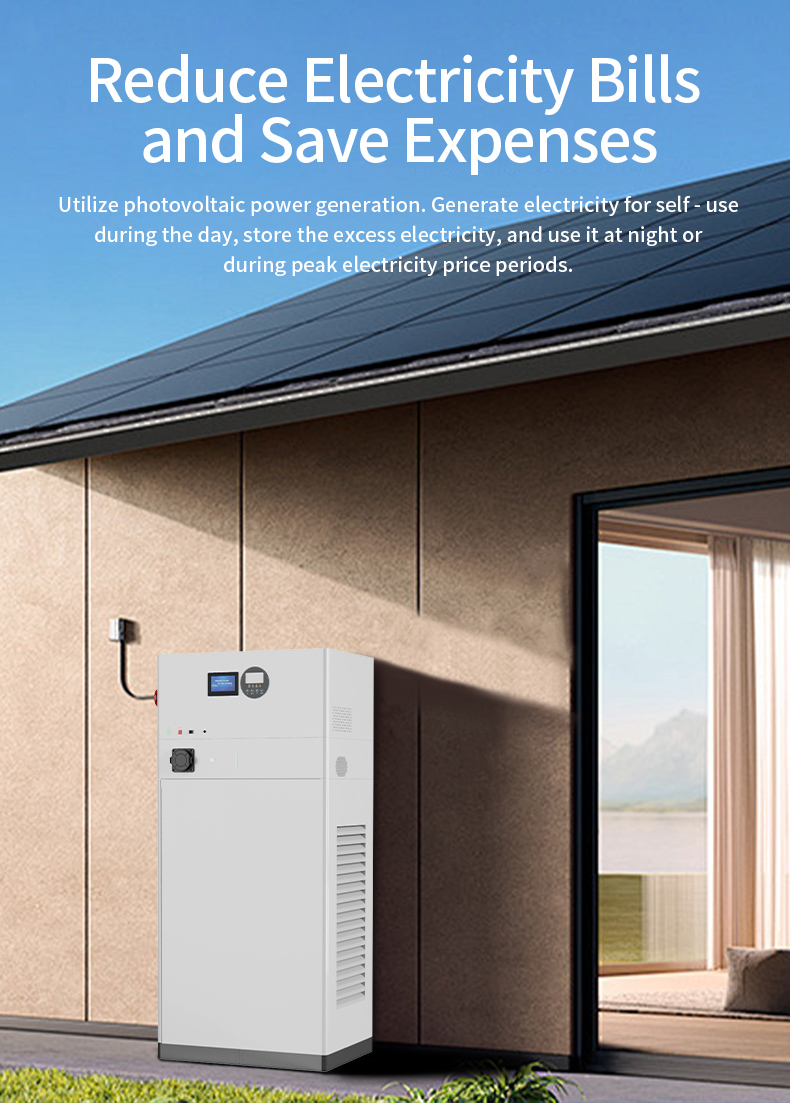

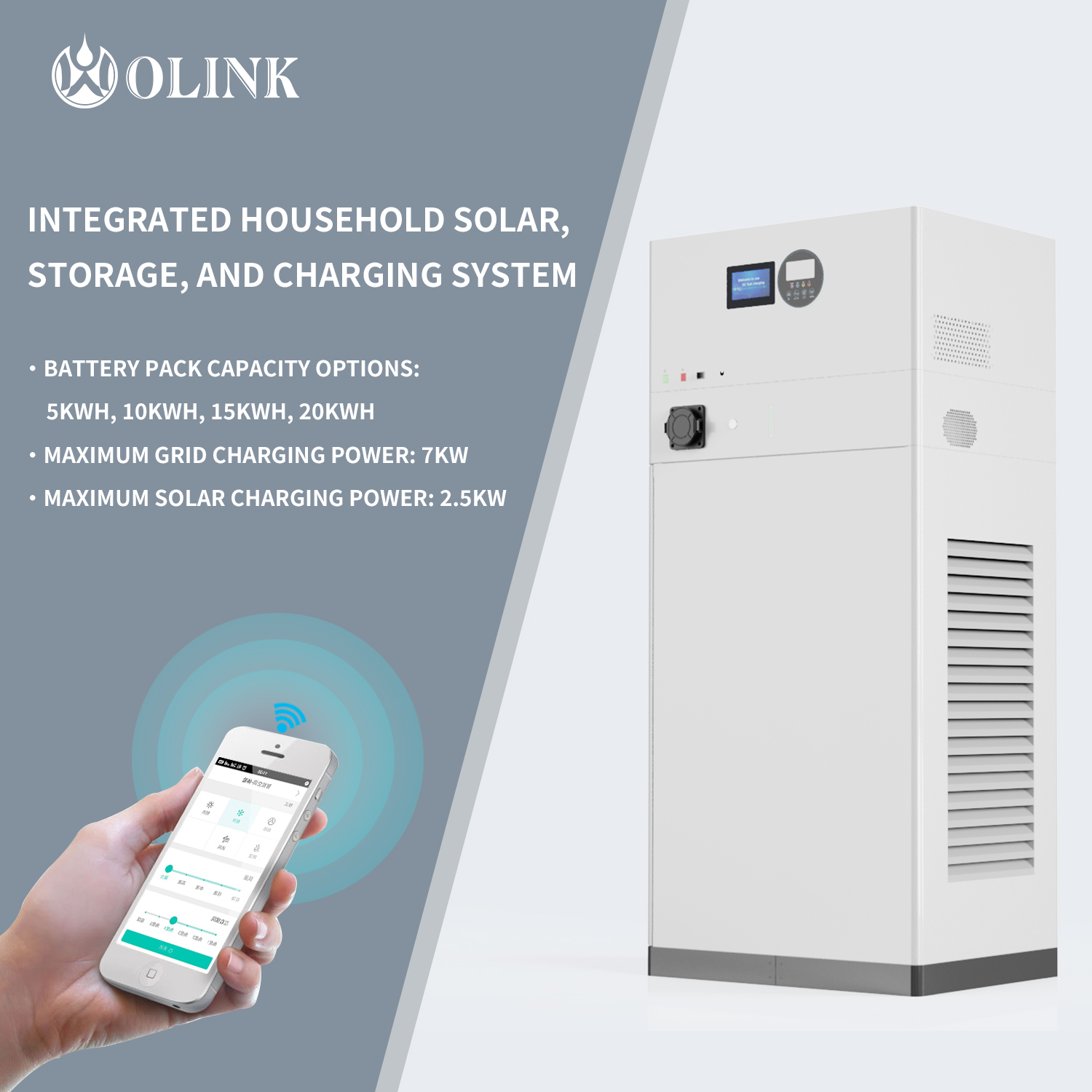

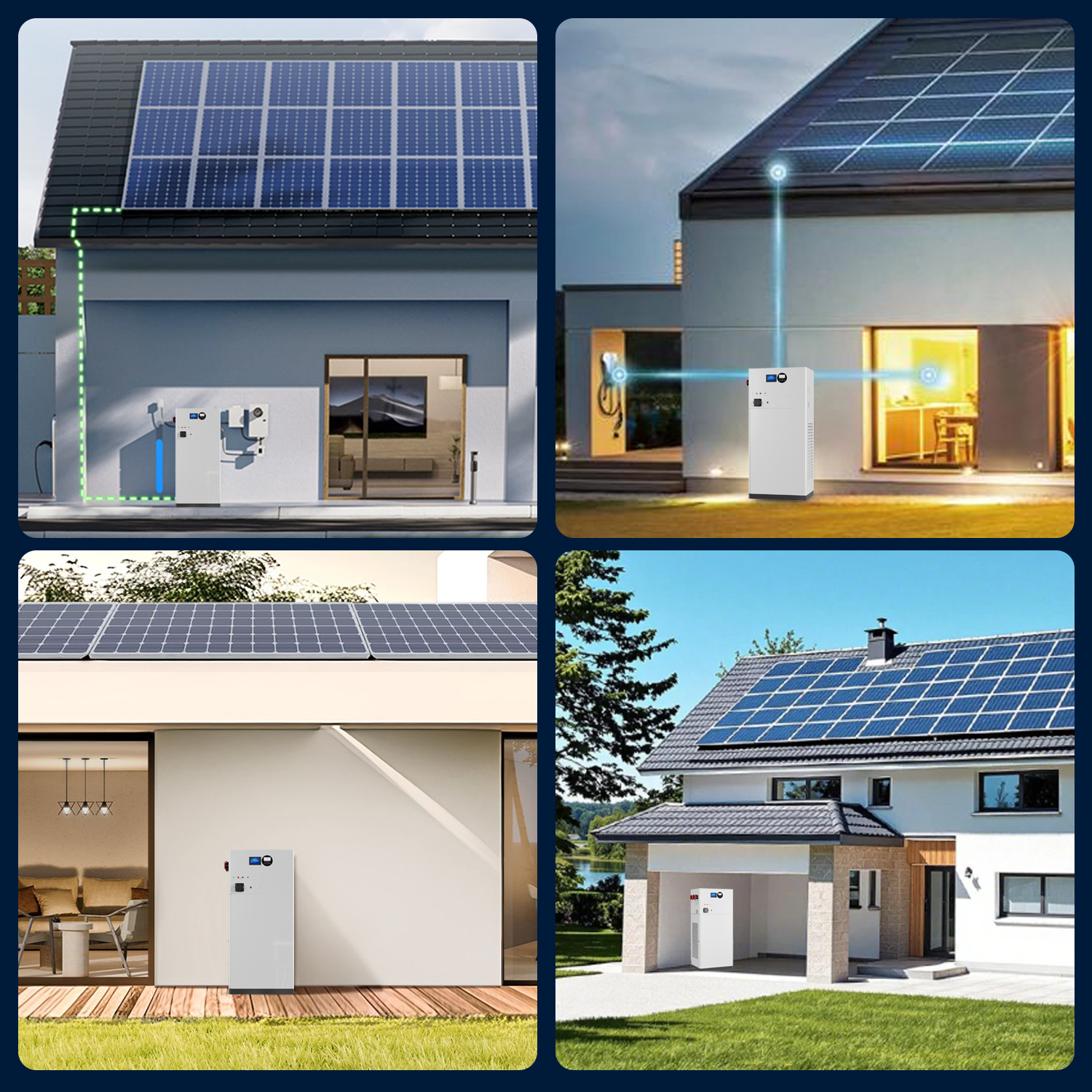

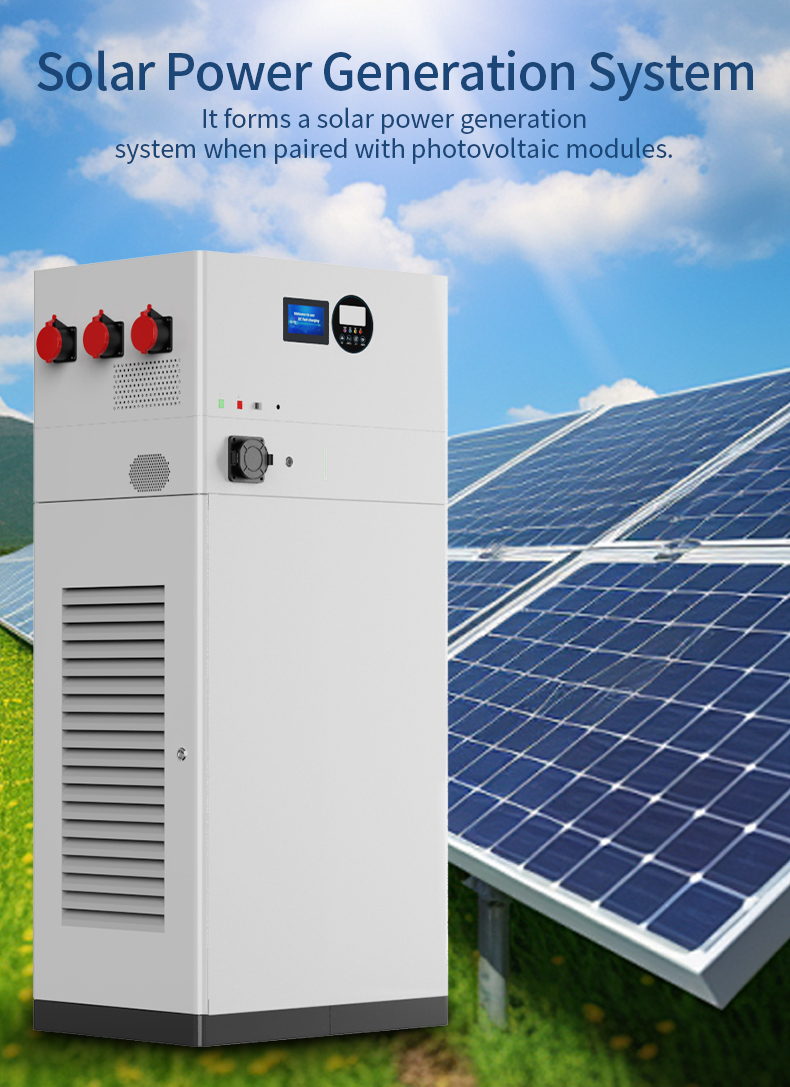

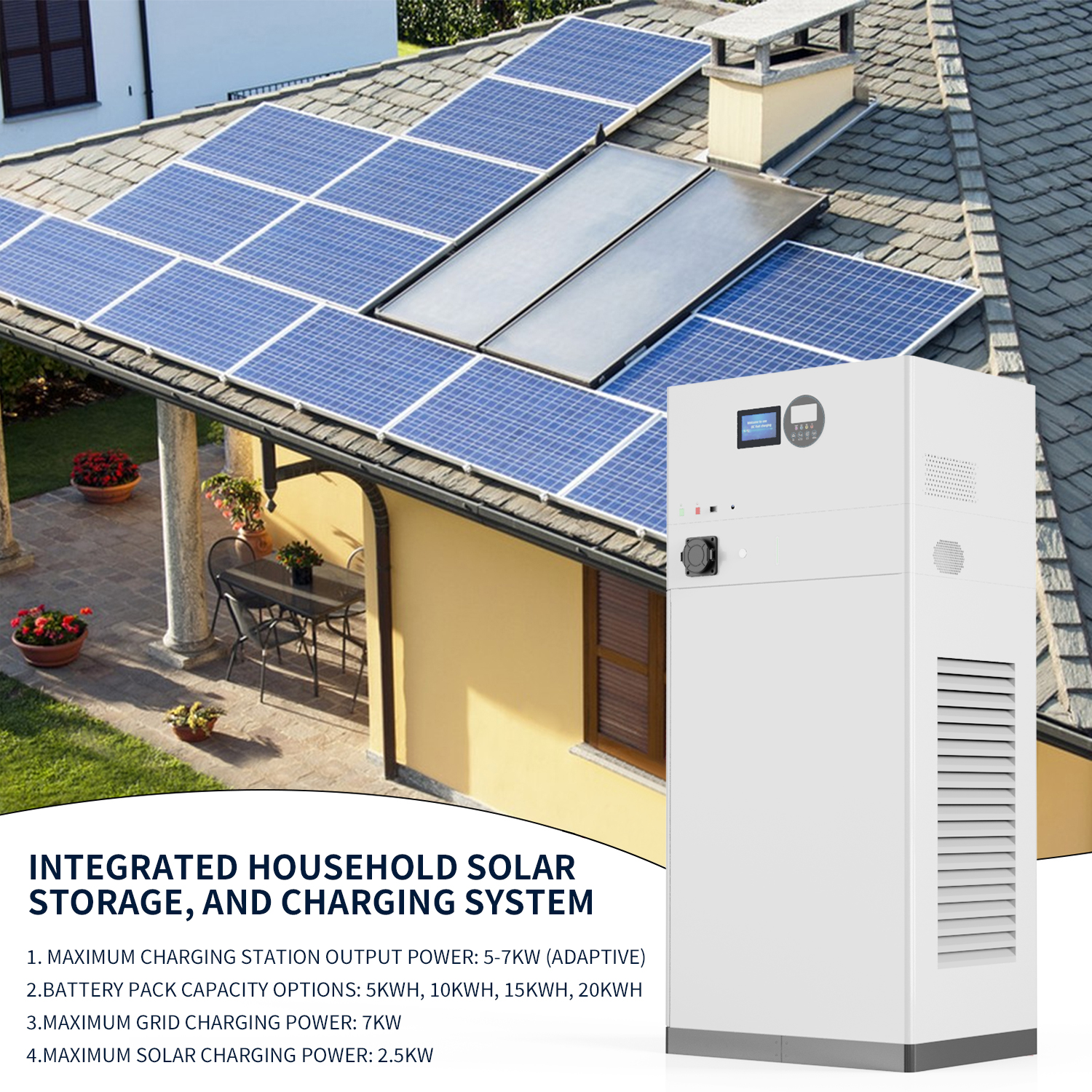

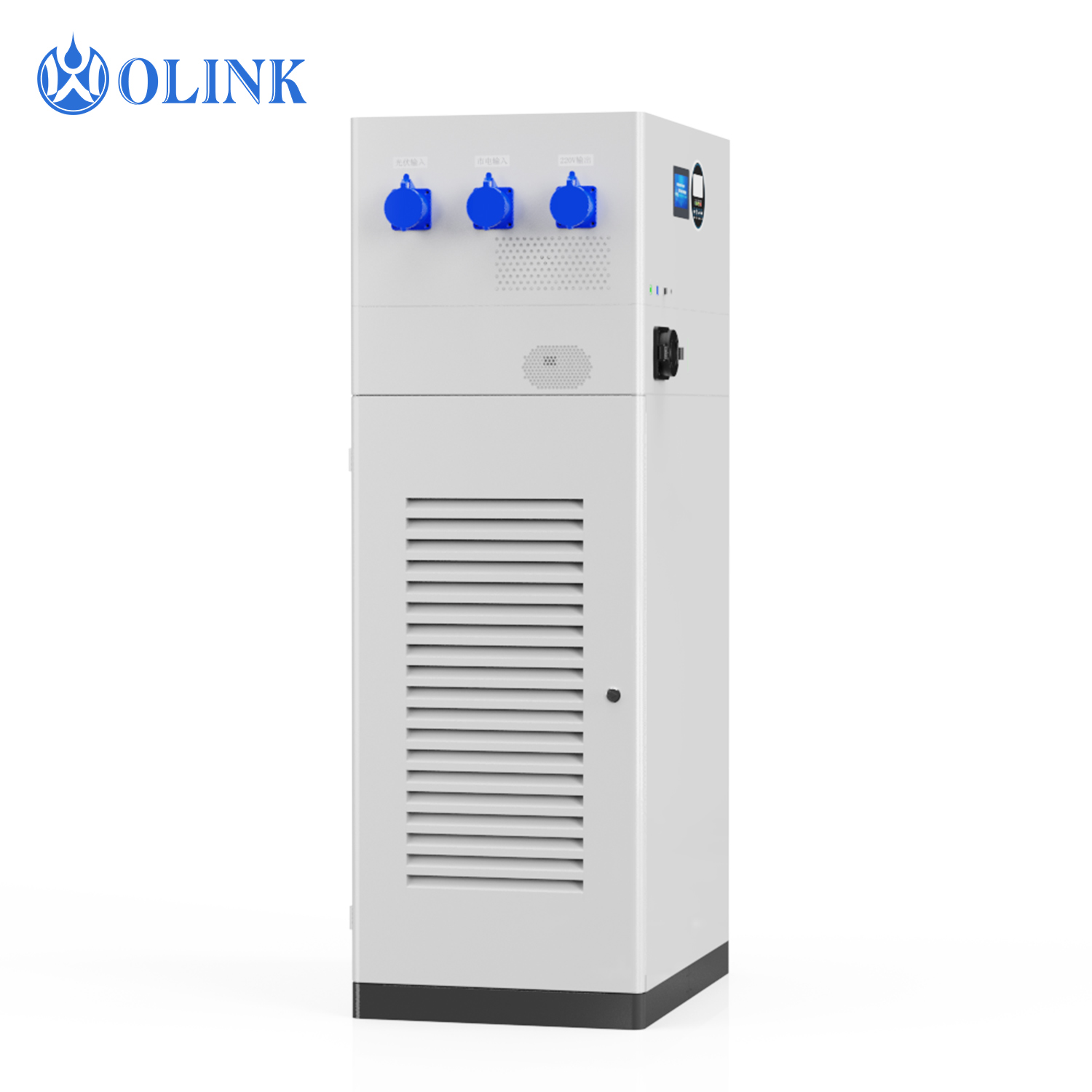

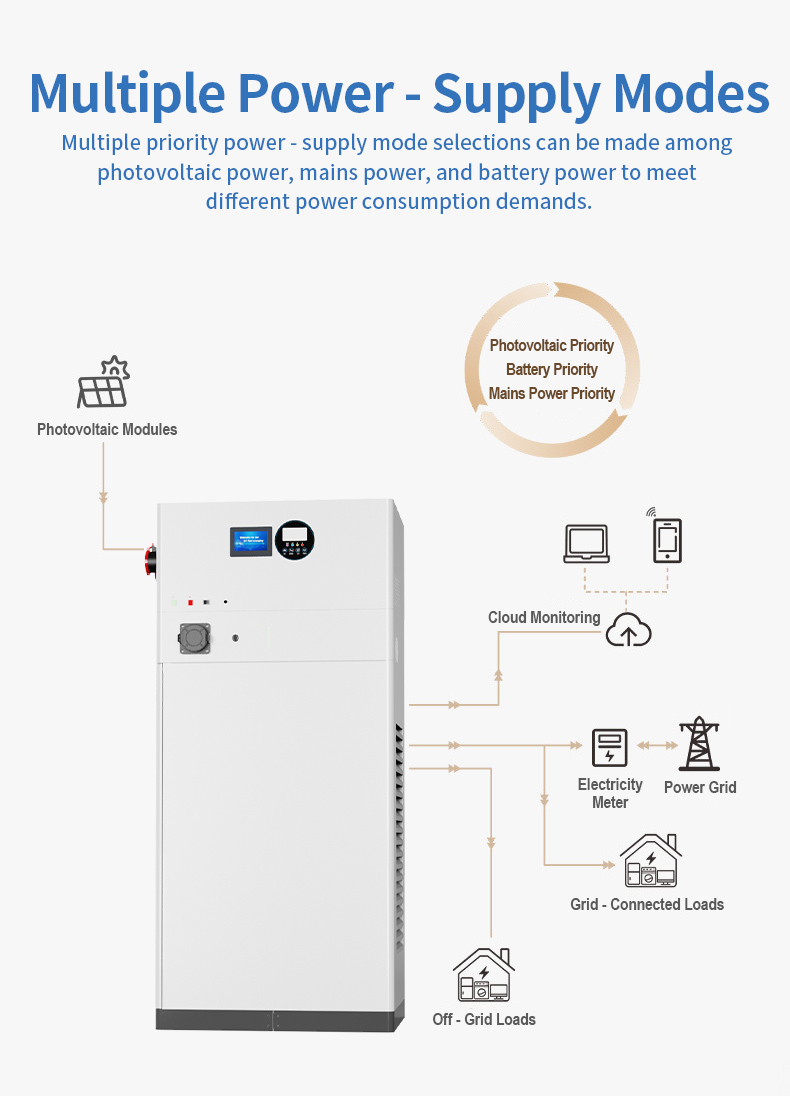

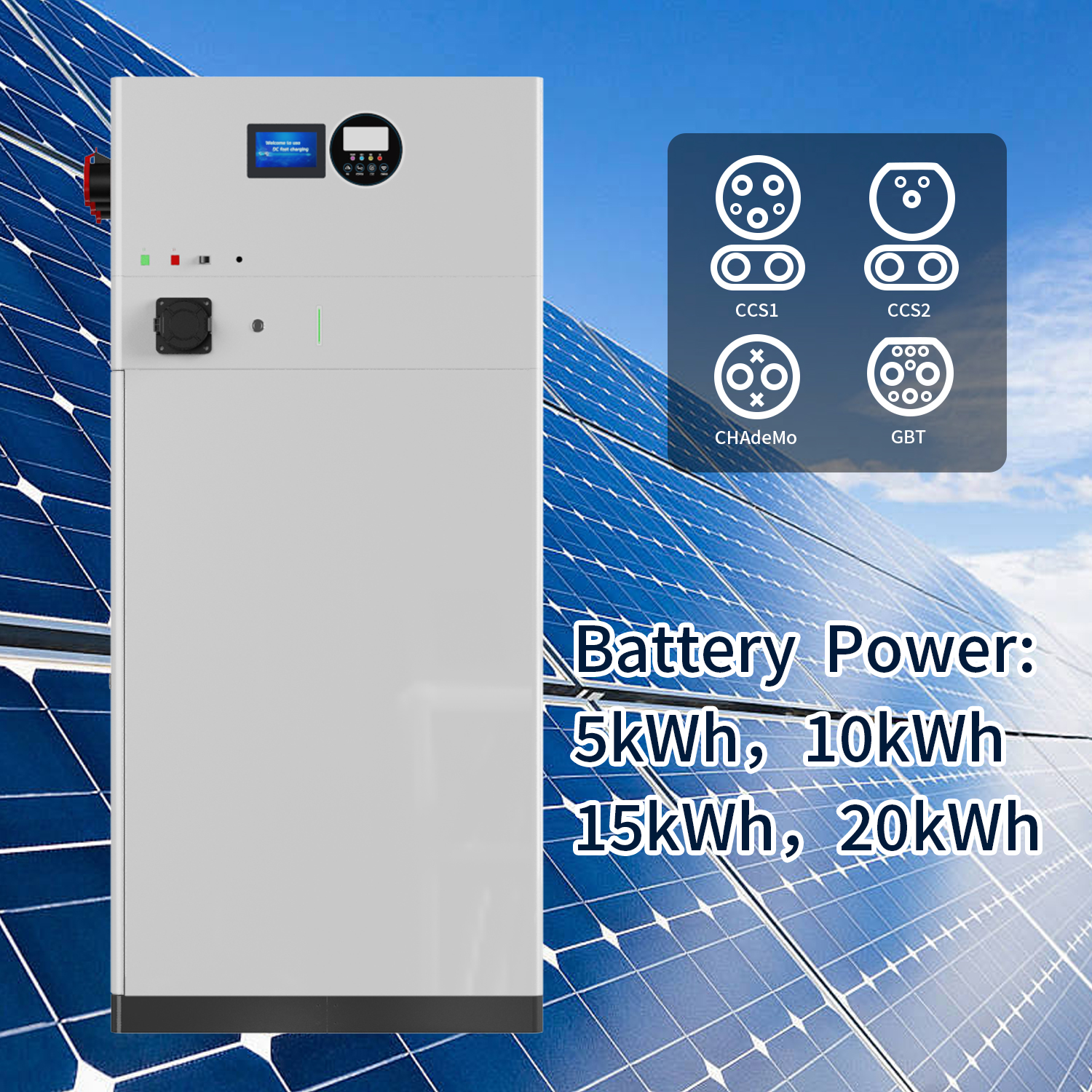

New Energy Integrated Charging Station is combined with PV, energy storage battery, bidirectional converter and charging facilities. It uses a modular and standardized design concept; this standard integrated charging overall solution achieves rapid and flexible deployment.
| System Parameters | |
|---|---|
| Battery Module | |
| Battery energy: | 5KWh / 10KWh / 15KWh / 20KWh |
| Maximum output power: | 5KW / 10KW / 15KW / 20KW |
| Photovoltaic Input | |
| Photovoltaic input maximum power: | 2KW / 4KW / 4.5KW |
| Input voltage: | 60-400V |
| Maximum current: | 20-30A |
| AC Power Input | |
| AC input rated power: | 2.2KW / 4.4KW / 5KW / 7KW |
| Rated voltage: | 220V |
| Rated current: | 10A / 20A / 22.7A |
| Output Module | |
| AC output rated power: | 5KW / 8KW / 10KW |
| Rated voltage: | 220V |
| Rated current: | 23A / 36.4A / 45.5A |

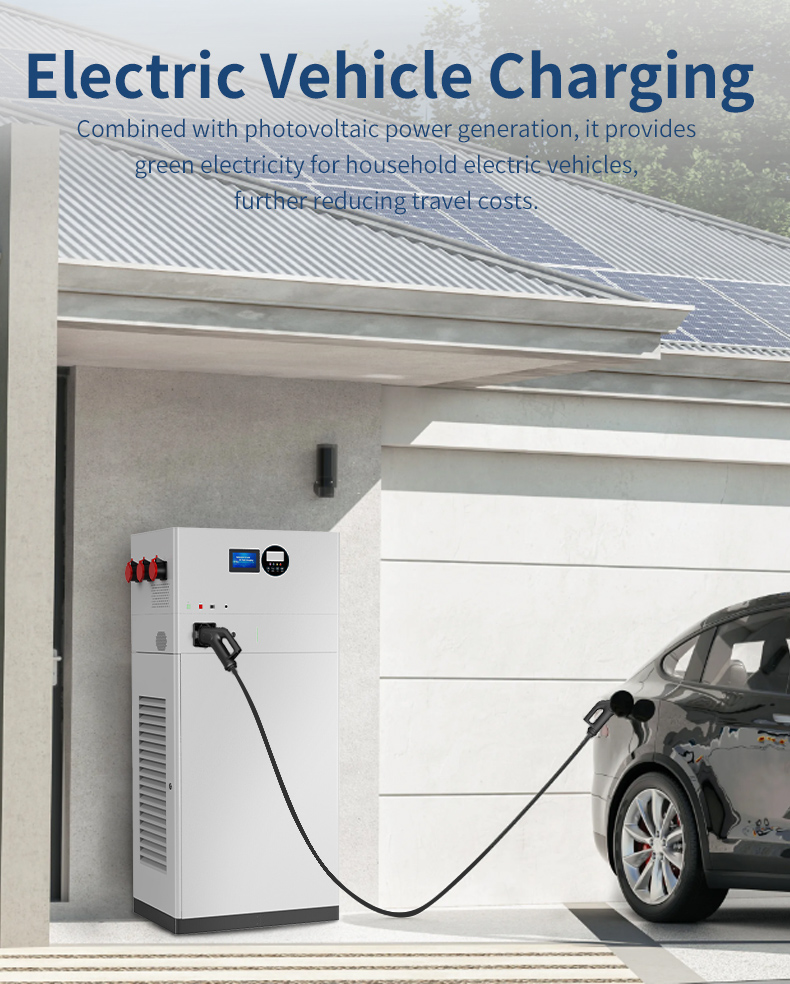

| DC charging gun output rated power: | 5KW / 7KW (Customizable) |
We have overseas warehouses in the USA, UK, and many other countries to support flexible storage solutions.
Orders can be placed for delivery in as little as 7 days. Logistics and transportation include both sea freight and air freight.
