1 / 5

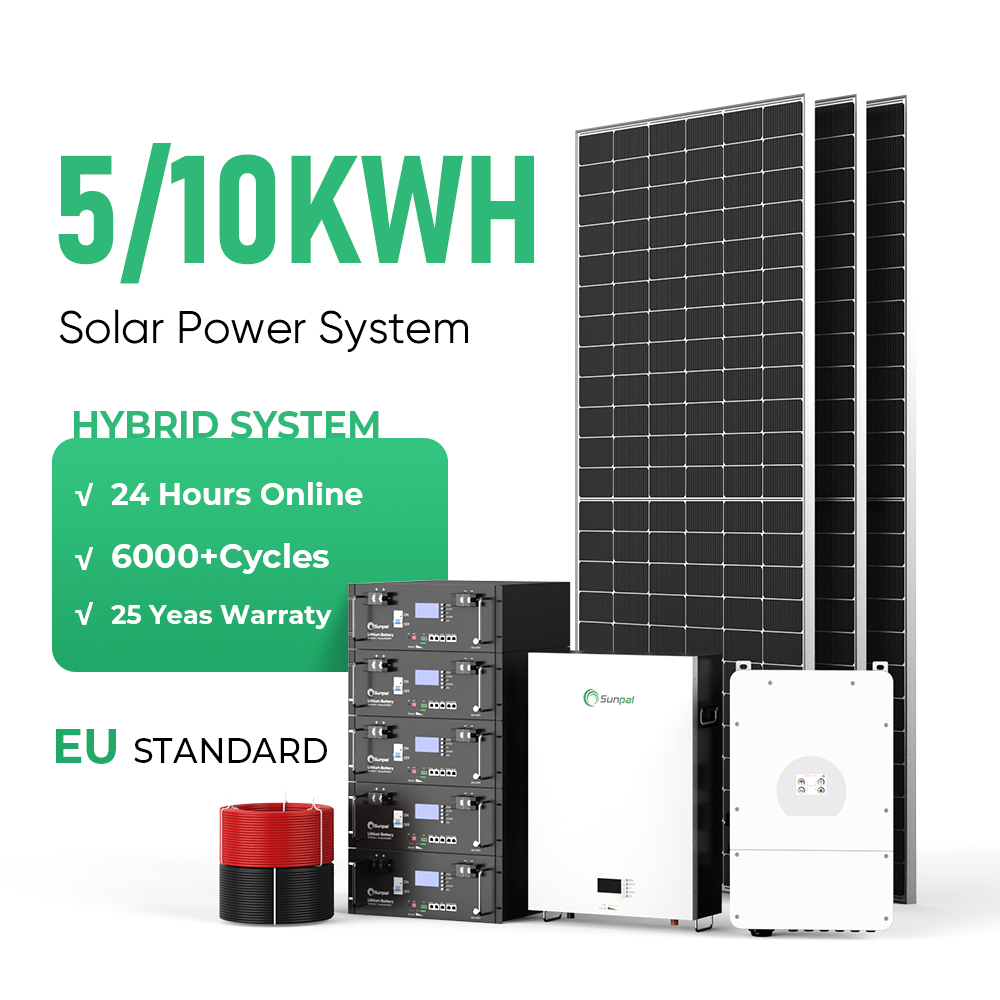

| System Model | SP5KW-HY | SP8KW-HY | SP10KW3-HY | SP12KW3-HY |
|---|---|---|---|---|
| PV System Size Nominal (kWp) | 5.5 | 8.8 | 11 | 13.2 |

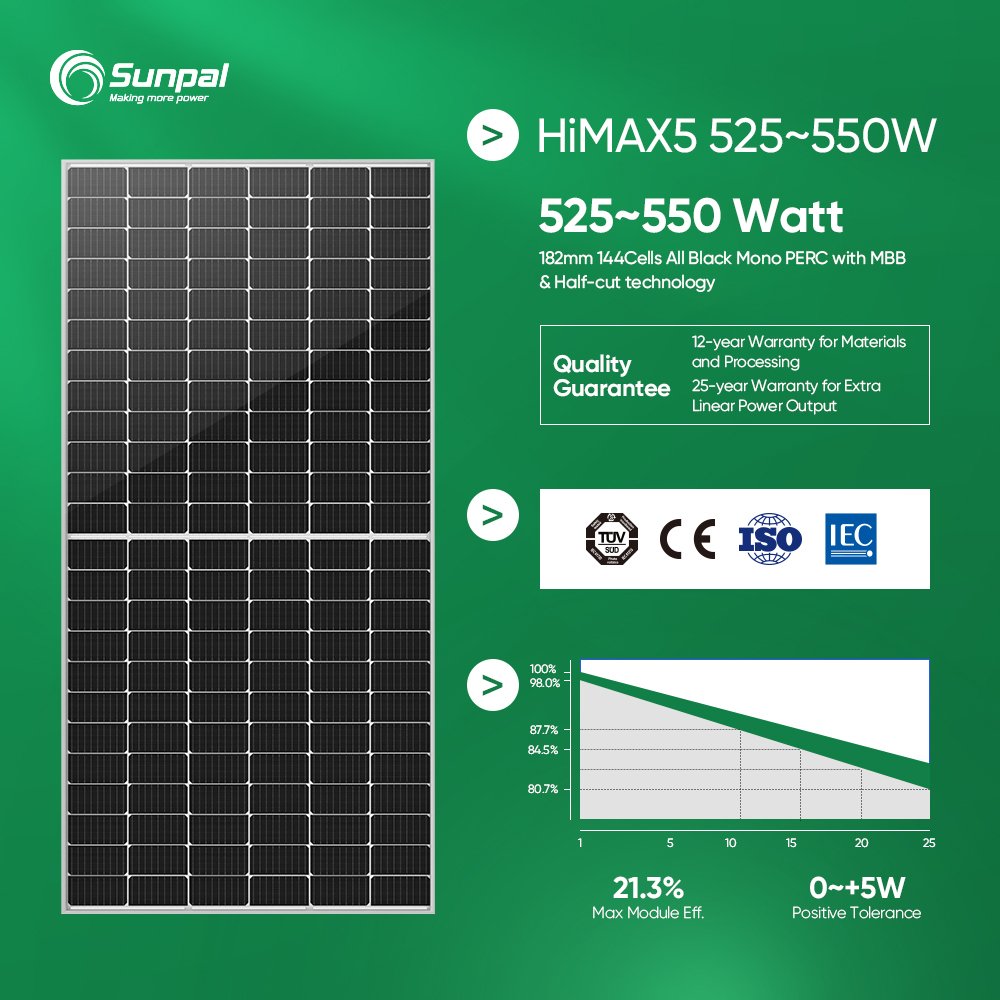

| PV Module Specifications (*half cell mono) | ||||
| Power (W) | 550 | |||
| Vmp (V) | 41.96 | |||
| Dimensions (L x W x H) (mm) | 2279*1134x35 | |||
| Certifications | CE / TUV (IEC 61215 & IEC 61730) | |||

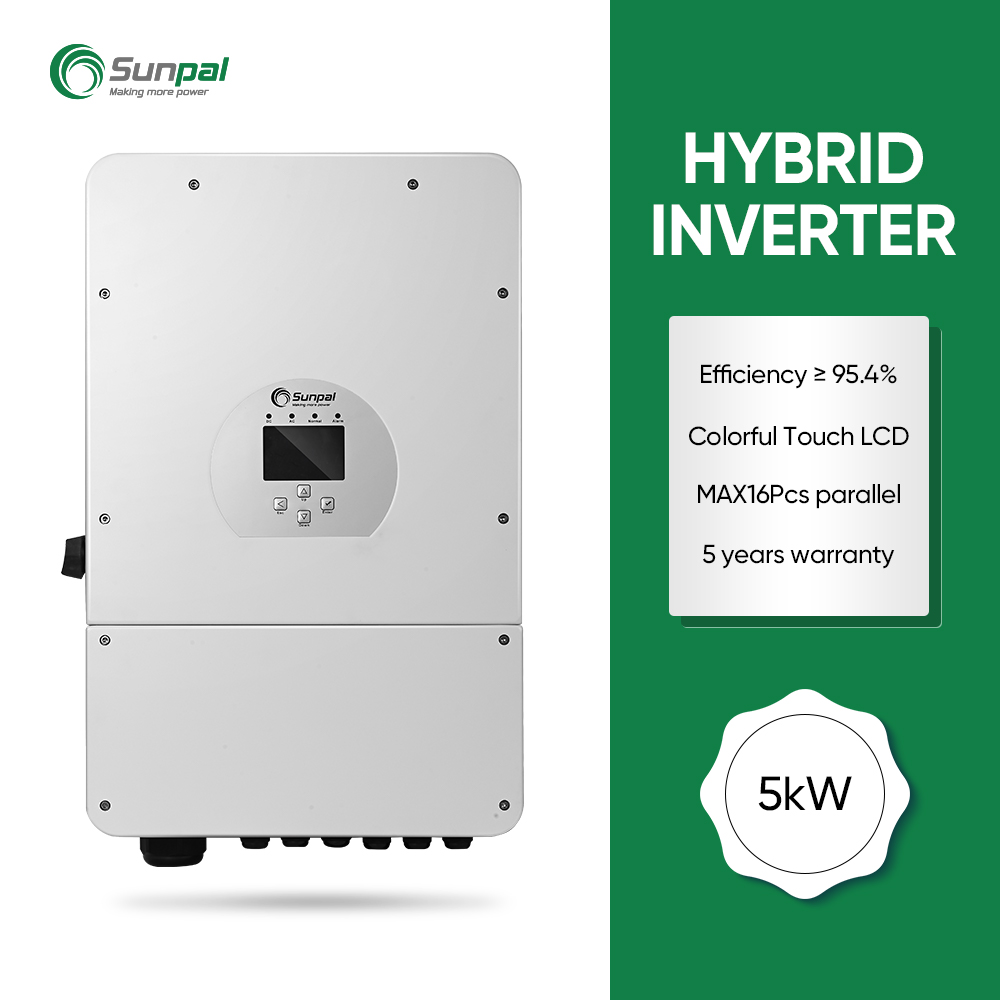

| Inverter Specifications | ||||
| Inverter Size (kW) | 5 | 8 | 10 | 12 |
| Max DC Power (W) | 6500 | 10400 | 13000 | 15600 |
| Max DC Voltage (V) | 500 | 1000 | ||
| MPPT Voltage Range(V) | 150-425 | 125-425 | 200-650 | 200-650 |
| Output Voltage | 220, 230Vac | 220/380, 230/400Vac | ||
| UPS (Off Grid Model with Battery) | ||||
| Rated Power (VA) | 5000 | 8000 | 10000 | 12000 |
| Max DC Charge/Discharge Current(A) | 120 | 190 | 210 | 240 |
| Max Power(W) for 10 Seconds | 7500 | 12000 | 12000 | 18000 |

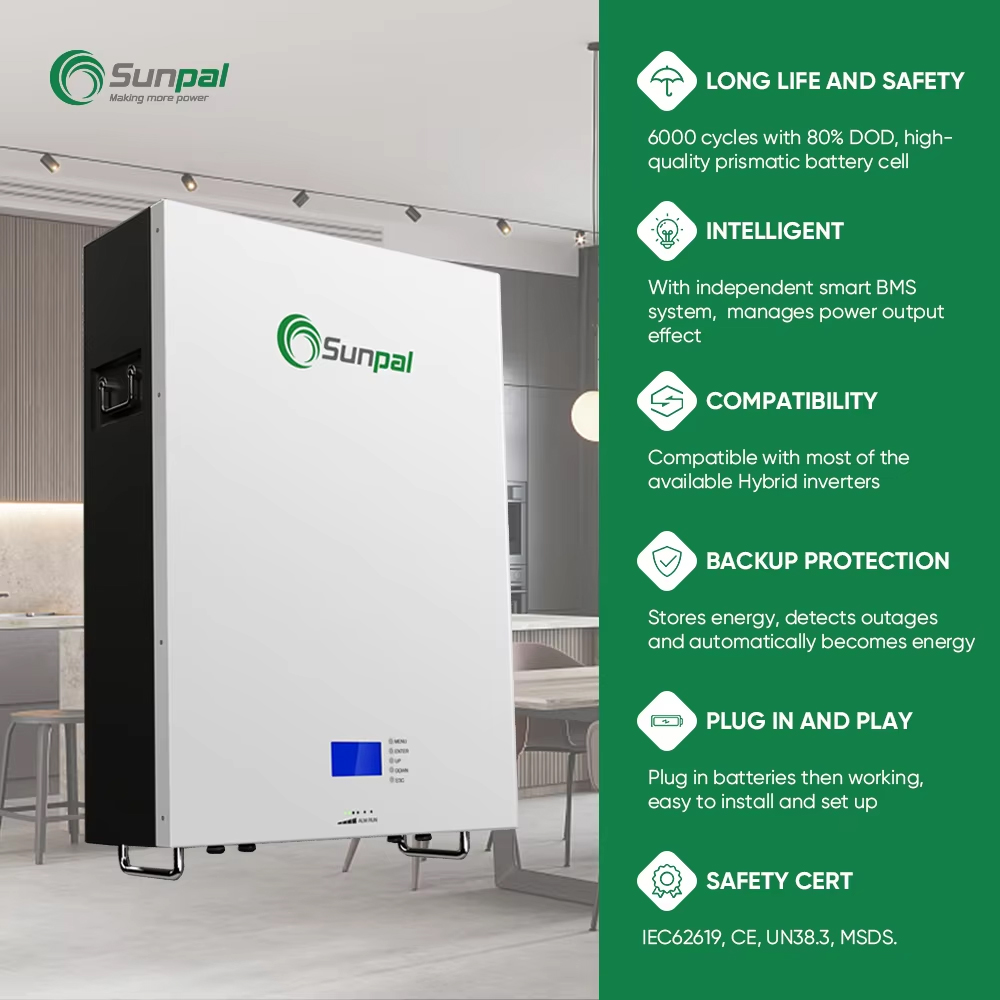

| Battery Bank Specifications | ||||
| Battery Type | Li-Ion (LiFePO4) | |||
| Total Batteries | 1 | 2 | 3 | 4 |
| Battery Bank Power(kWh) | 4.8 | 9.6 | 14.4 | 19.2 |
| Battery Voltage (V) | 48 | |||
| Battery Current(Ah) | 100 | |||
| Number of PV Modules | 10 | 16 | 20 | 24 |
As a world-class solar products manufacturer, we specialize in the research, development, production, and sales of solar PV products and solar panels.
We have focused on the research and manufacture of all-black solar panels since the year 1998, exporting our various kinds of full-black solar panels to 86 countries and establishing a strong reputation for high quality. With over 10 years of consistent development, our factory area now covers 150,000 square meters, supported by 600 experienced employees.
