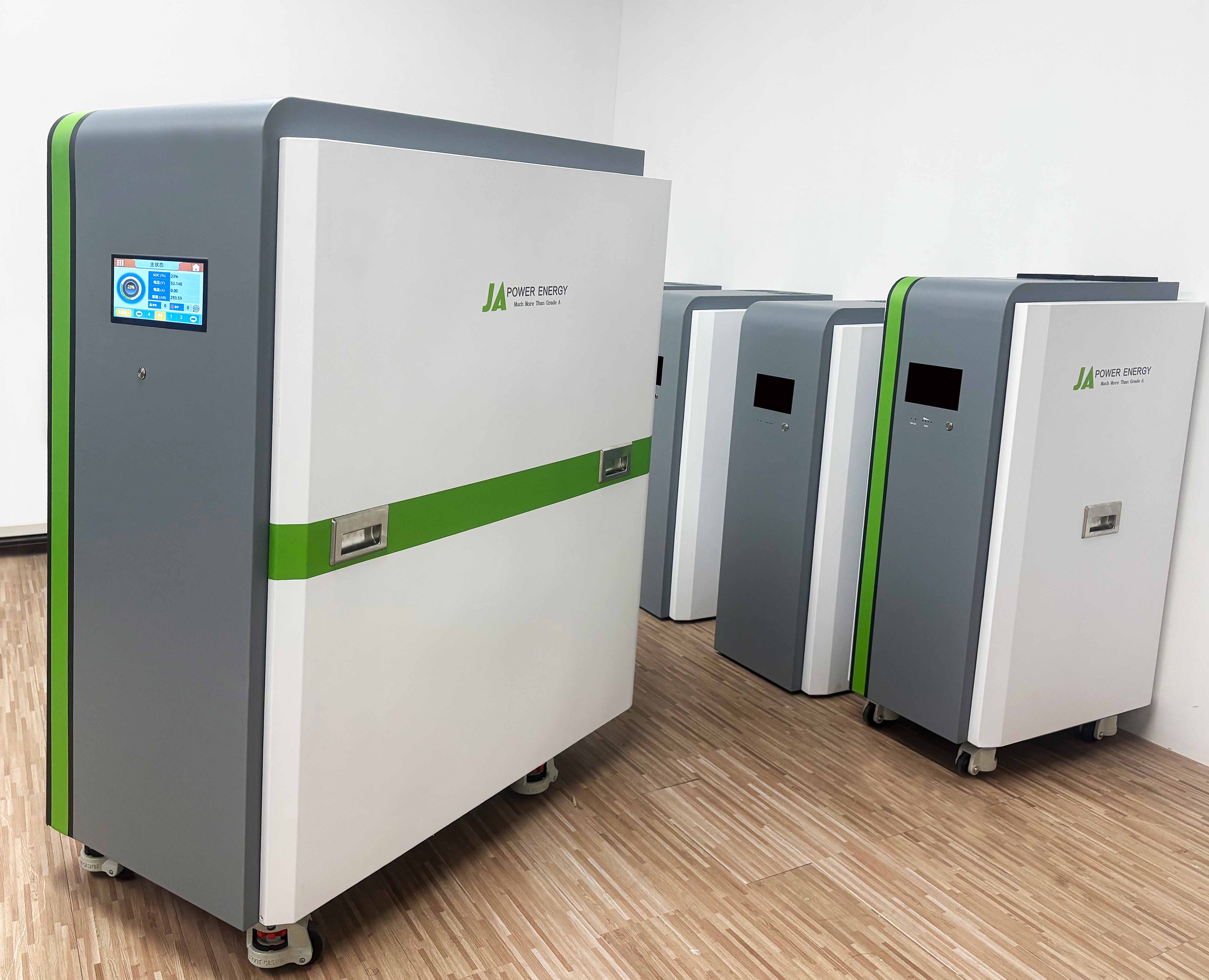

Japower 57kwh 60kwh All in One Complete Kit Hybrid Home Solar Energy System Battery and Inverter 10kw 16kw with Solar Panel
Japower 57kwh 60kwh All in One Complete Kit Hybrid Home Solar Energy System Battery and Inverter 10kw 16kw with Solar Panel
Japower 57kwh 60kwh All in One Complete Kit Hybrid Home Solar Energy System Battery and Inverter 10kw 16kw with Solar Panel
Japower 57kwh 60kwh All in One Complete Kit Hybrid Home Solar Energy System Battery and Inverter 10kw 16kw with Solar Panel
Japower 57kwh 60kwh All in One Complete Kit Hybrid Home Solar Energy System Battery and Inverter 10kw 16kw with Solar Panel
1 / 5
Japower 57kwh 60kwh All in One Complete Kit Hybrid Home Solar Energy System Battery and Inverter 10kw 16kw with Solar Panel
Japower 57kwh 60kwh All in One Complete Kit Hybrid Home Solar Energy System Battery and Inverter 10kw 16kw with Solar Panel
Japower 57kwh 60kwh All in One Complete Kit Hybrid Home Solar Energy System Battery and Inverter 10kw 16kw with Solar Panel
Japower 57kwh 60kwh All in One Complete Kit Hybrid Home Solar Energy System Battery and Inverter 10kw 16kw with Solar Panel
Japower 57kwh 60kwh All in One Complete Kit Hybrid Home Solar Energy System Battery and Inverter 10kw 16kw with Solar Panel

Japower 57kwh 60kwh All in One Complete Kit Hybrid Home Solar Energy System Battery and Inverter 10kw 16kw with Solar Panel

Send Inquiry

Product Description

Main Products

Main Product Showcase
Product Specification Diagram
Product Engineering Highlights
Product Storage View
Product Quality Standards
We can ship from 30+ overseas branches in the United States, the European Union, Nigeria, South Africa, the Philippines, Myanmar, Dubai, Mali... and provide fast transportation services.

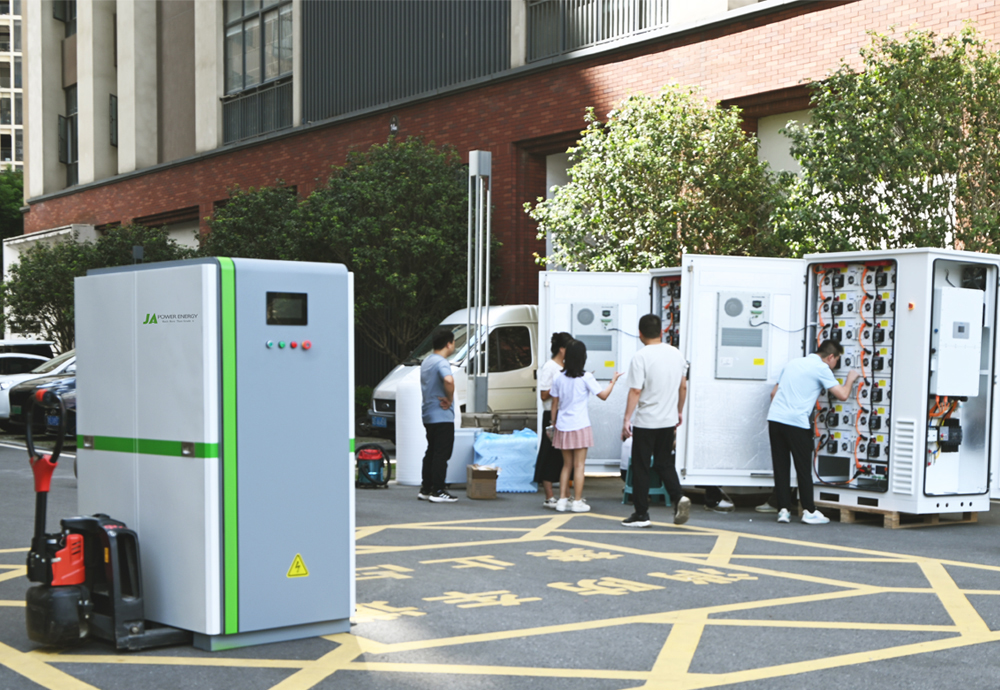

Shipping Logistics Details

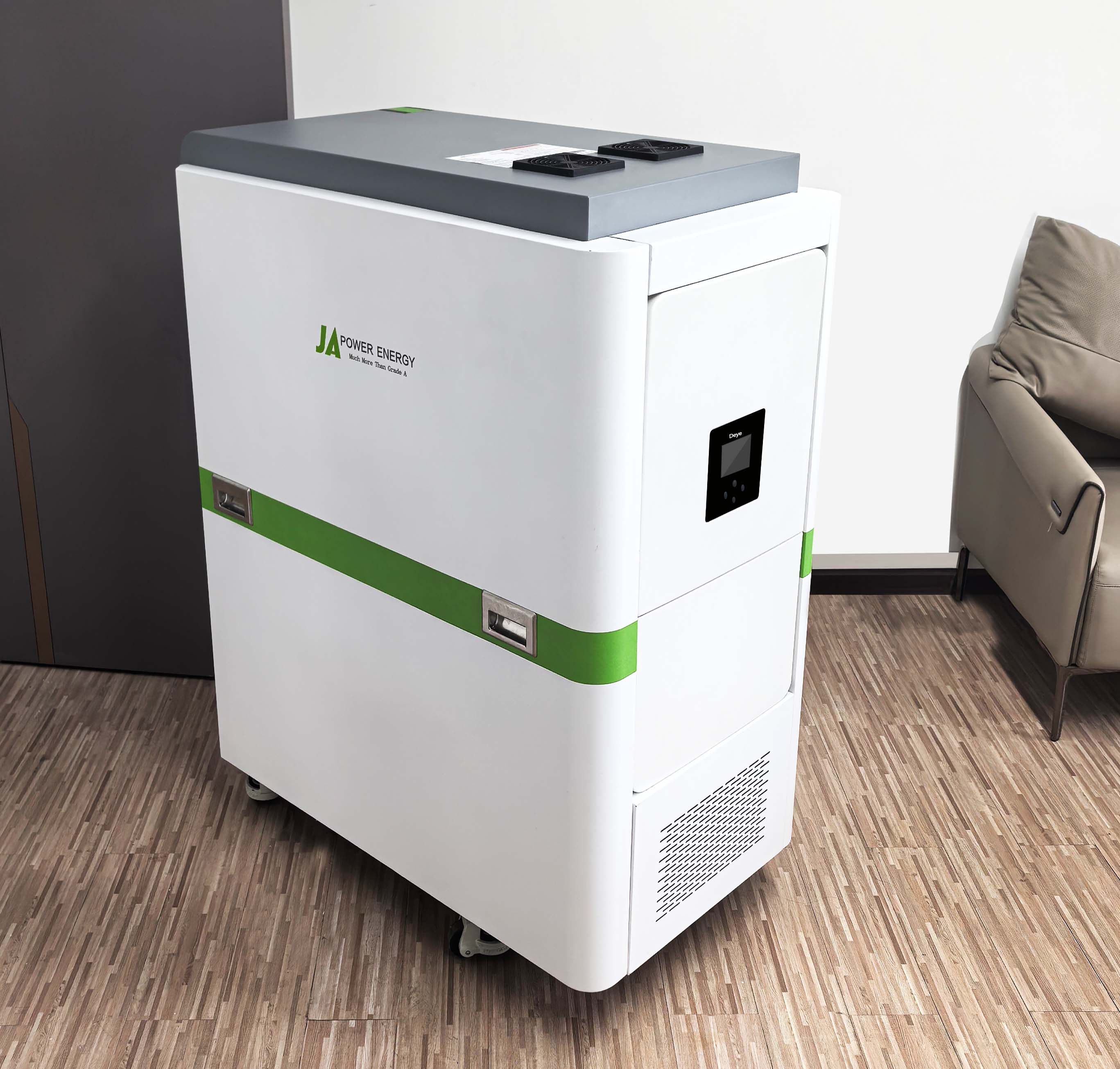

Product Application Area A
Product Application Area B

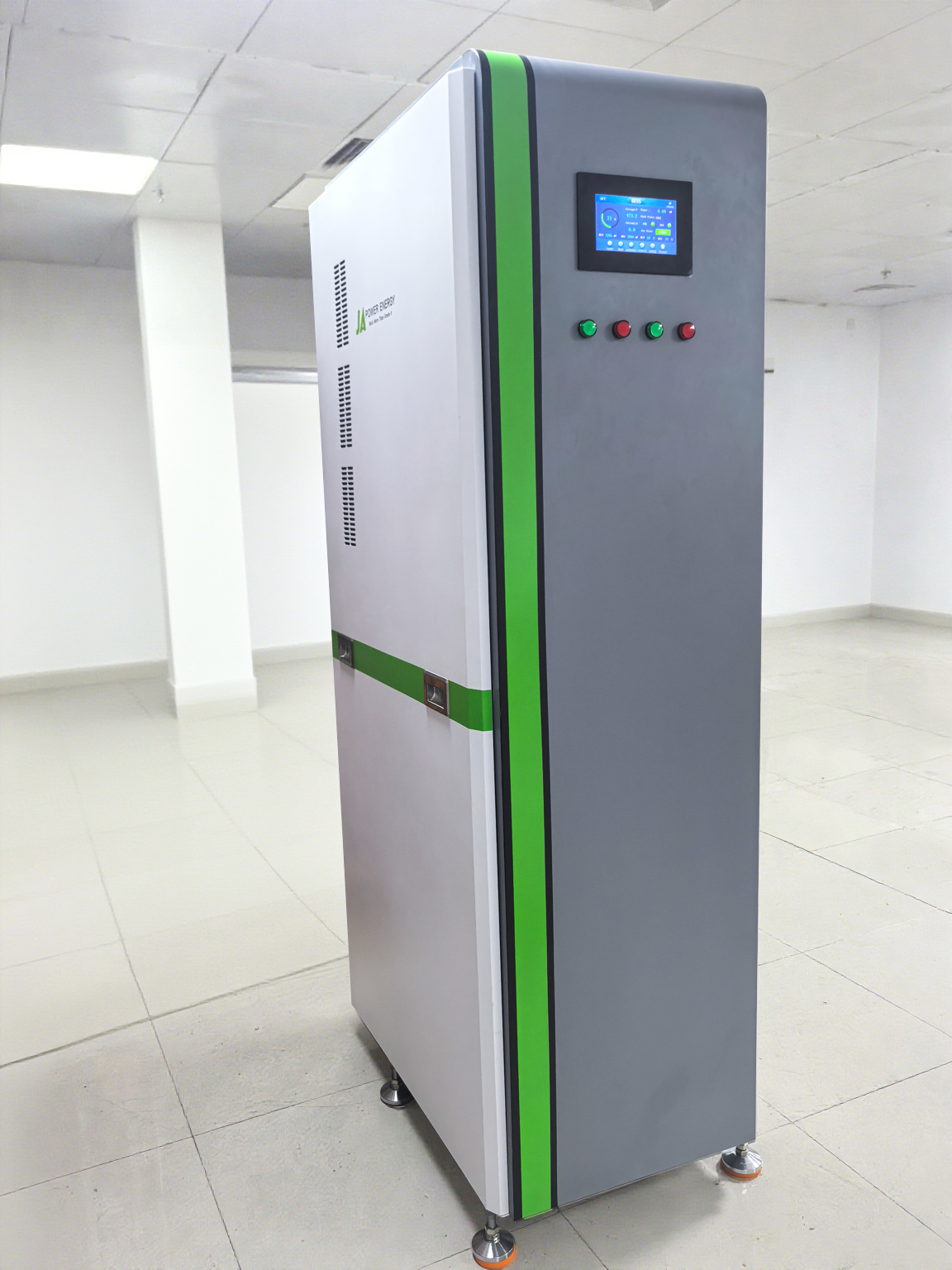

Product Internal View

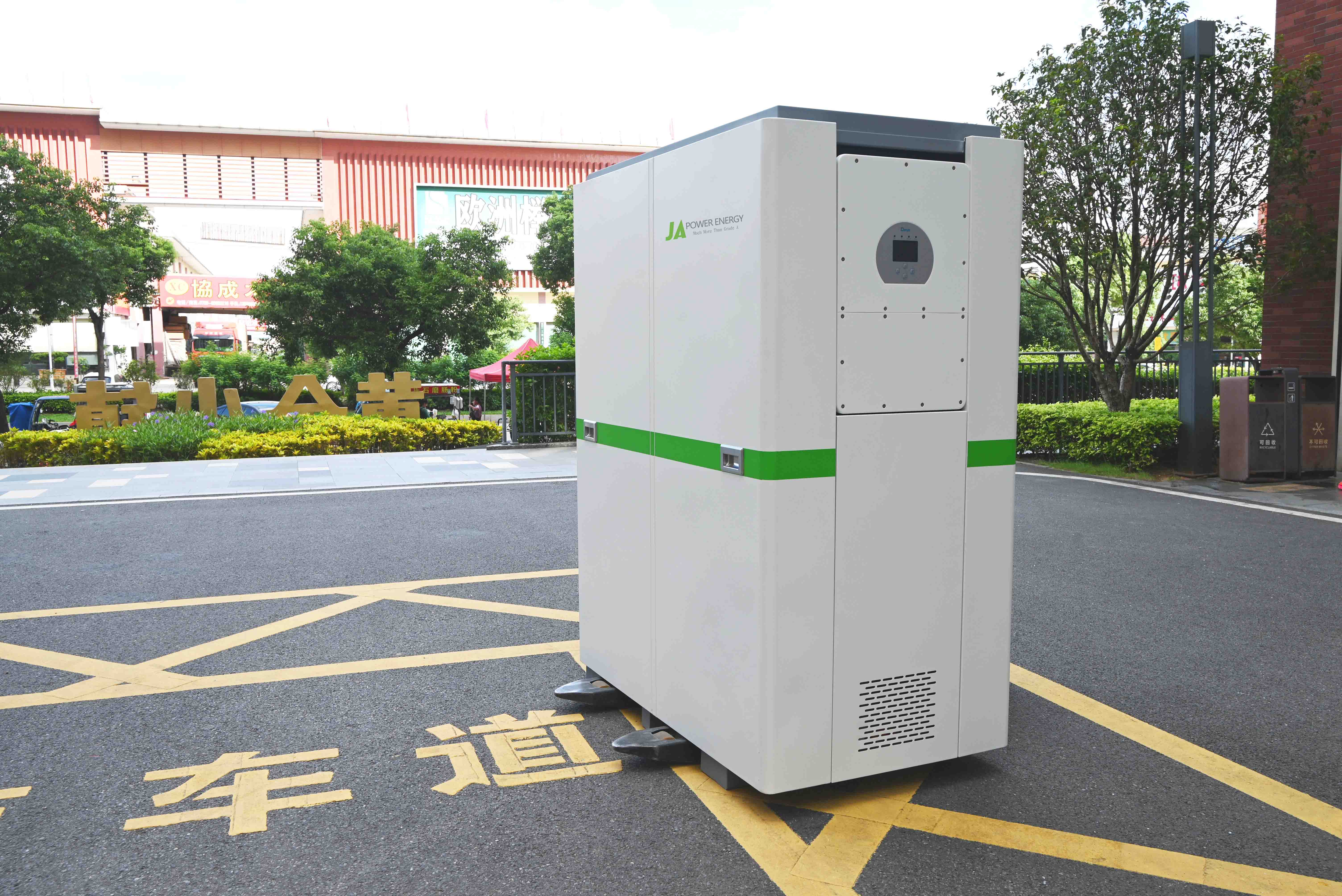

Product Control Unit
Safety Certifications Overview
Component 1
Component 2
Component 3

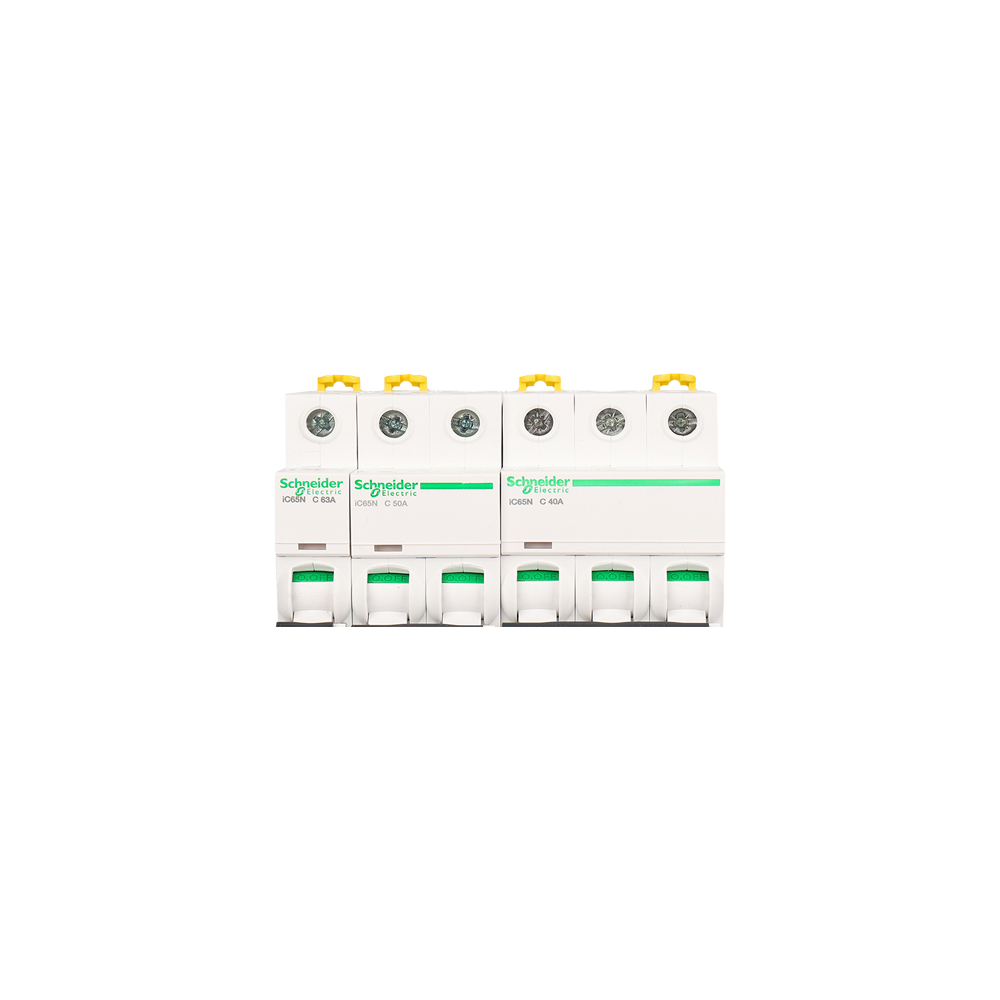

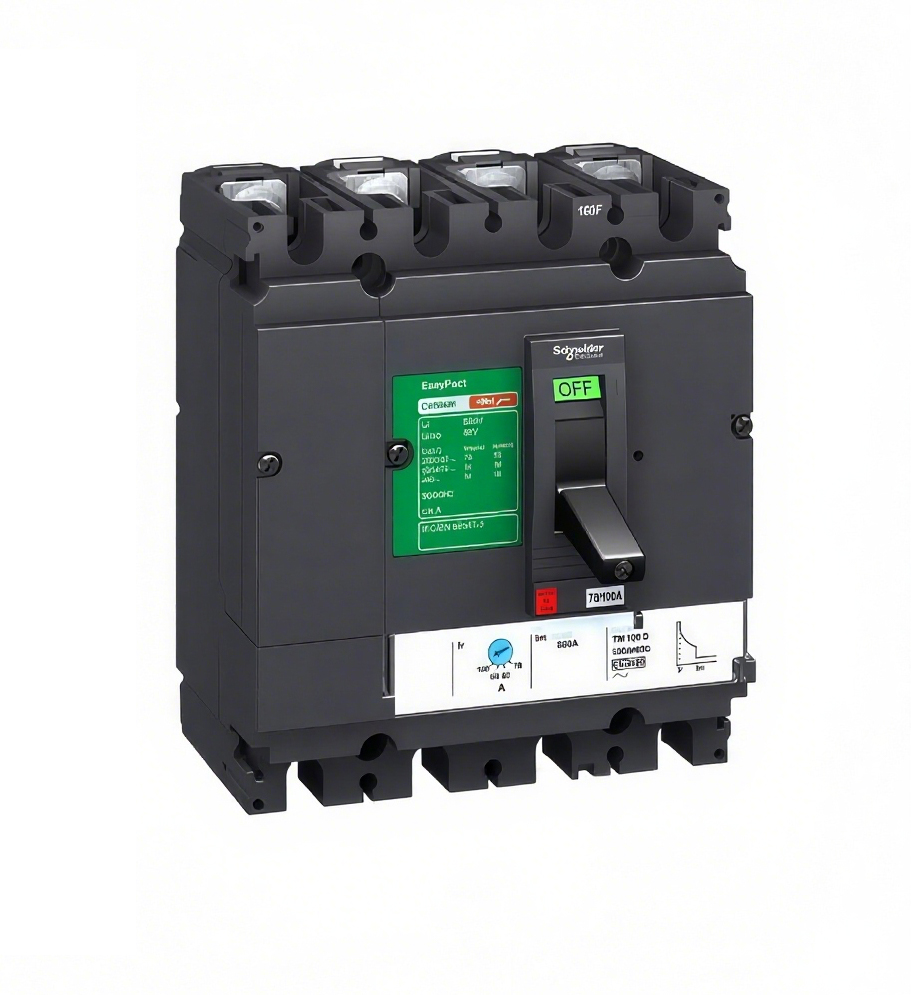

Schneider 300A DC
Molded Case Circuit Breaker
Schneider Grid Input
Output ports for seamless connection

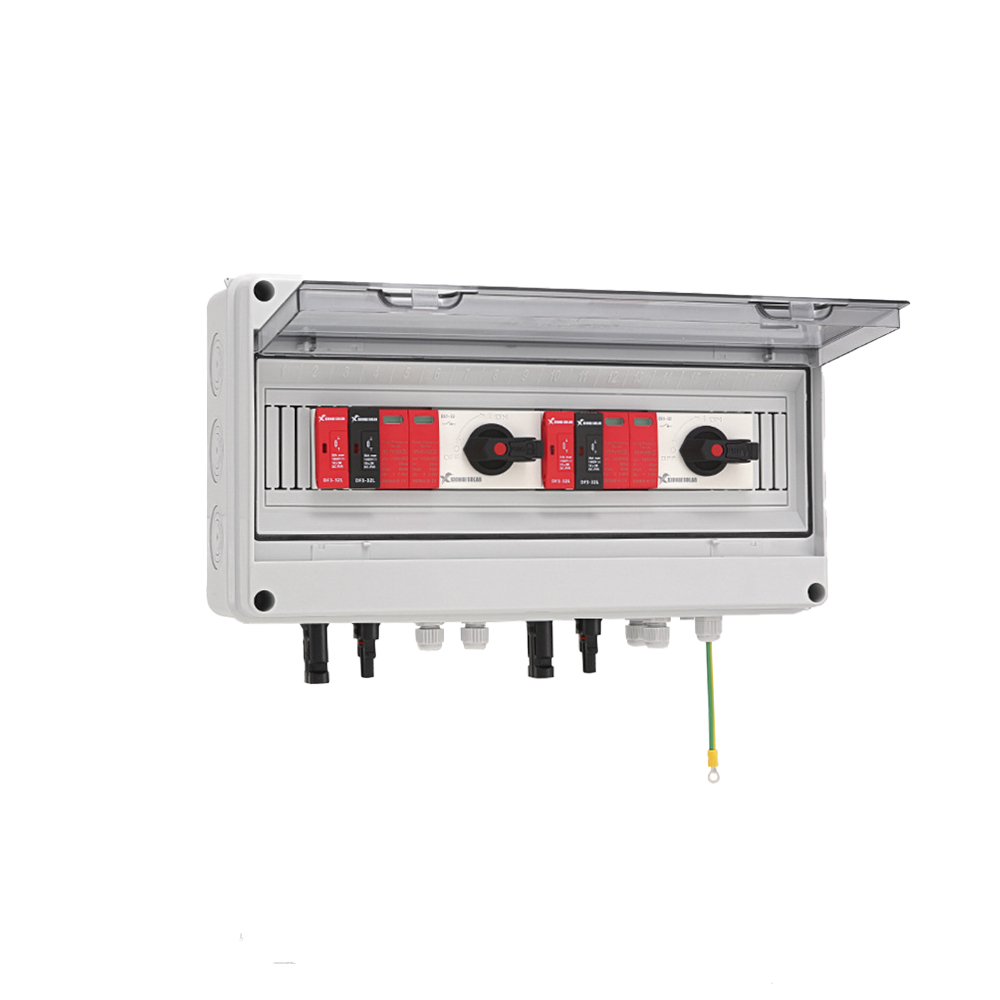

PV Lightning Protection
Circuit breaker technology

Product Features

Battery cells: Equipped with REPT high-quality battery cells

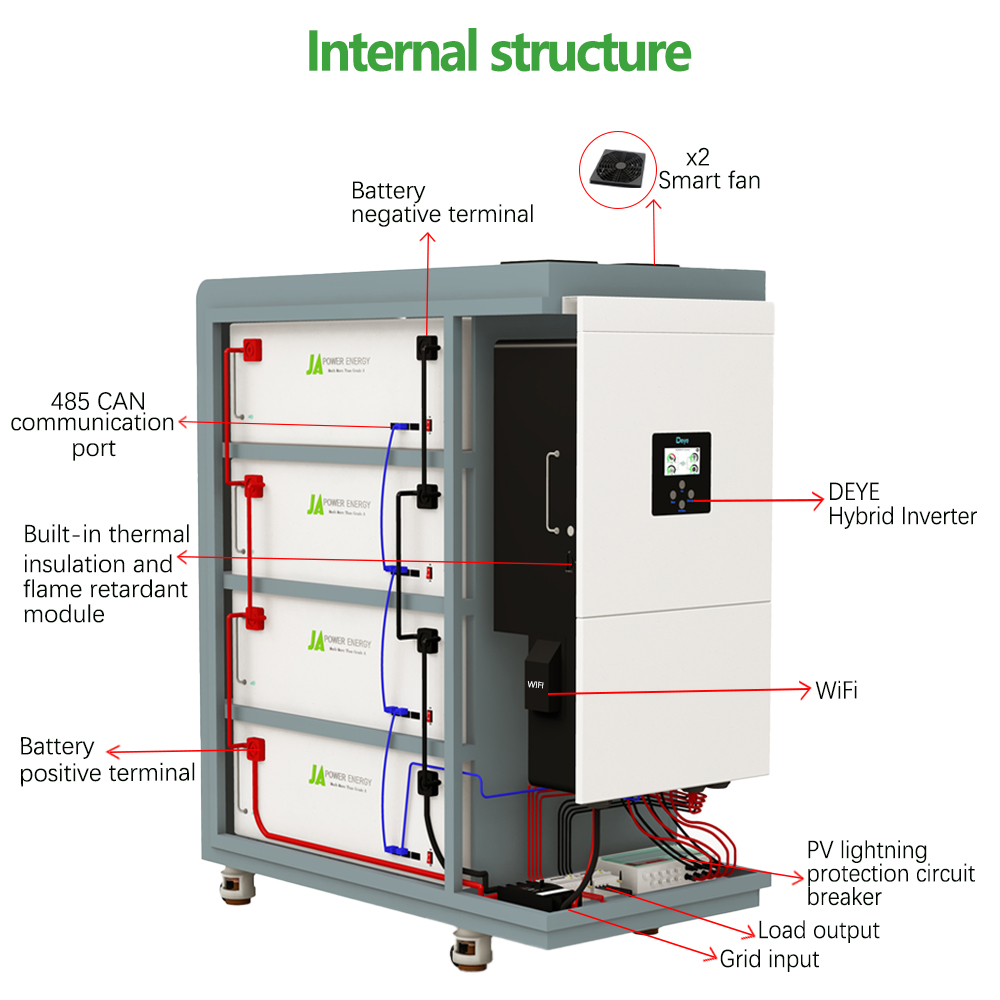

Technology Integration: Integrated technology EMS, hybrid inverter and BMS integrated technology, power redundancy design, support black start function, off-grid operation
Safety protection: Comprehensive protection Combustible gas, smoke and temperature detection, active exhaust system Fire alarm
App Smart Monitoring: Smart APP monitors data in real time and supports remote control

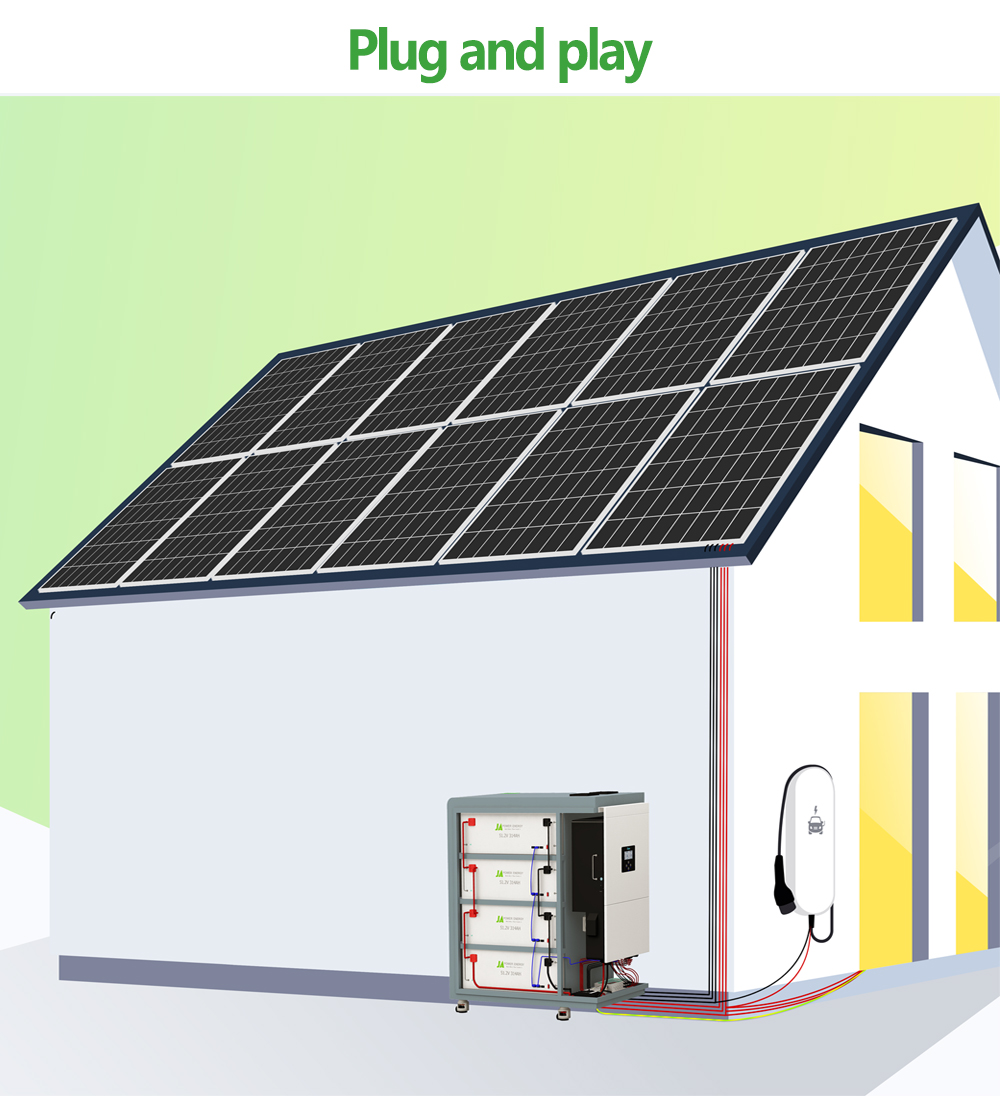

Feature Graphic Design
Production Process Stage 1
Production Process Stage 2
Product Quality Verification
Product Testing
Control Board Panel
System Wiring Architecture

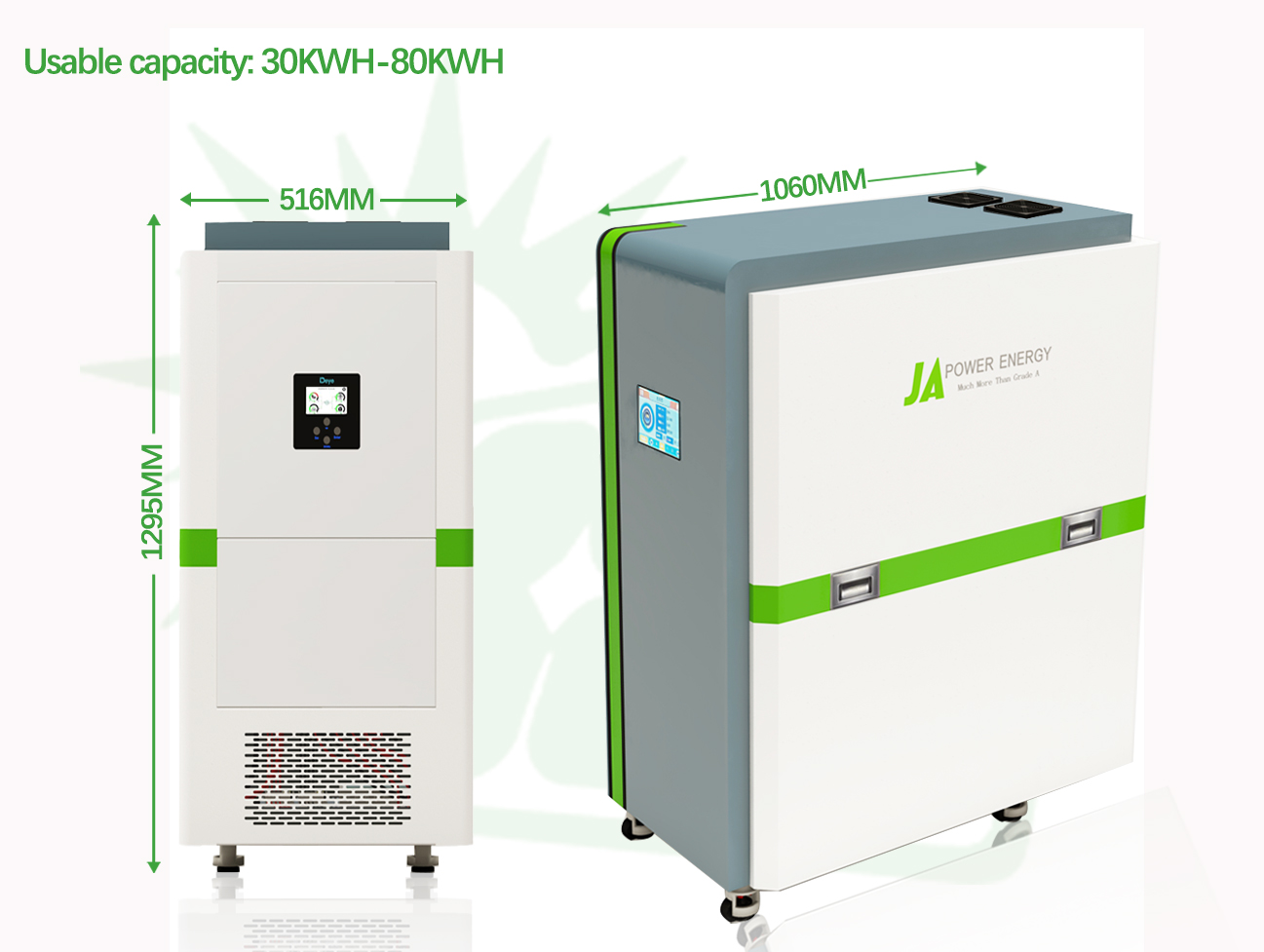

Product Dimension Information

Technical Specifications

Model ESS-EU12K43kWh ESS-EU-16K57kWh ESS-EU-20K64kWh ESS-EU-20K80kWh
Nominal Output Power / UPS Power (W) 12000 16000 20000 20000
AC Output Frequency and Voltage 50/60Hz; 3L/N/PE 220/380, 230/400Vac (0.85Un - 1.1Un)
Dimension (contain inverter) (W×D×H, mm) 1060*516*1100 1060*516*1295 1060*516*1578
Weight Appr. (kg) (contain inverter) 472 590 / 550 700
Rated AC Input/Output Current (A) 18.2 / 17.4 24.3 / 23.2 30.4 / 29
Battery Chemistry LiFePO4
IP Rating of Enclosure IP21 ~ IP65
System Certification UN38.3, IEC62619, CE, CEI 0-21, VDE-AR-N 4105, IEC 62109
Rated AC Input/Output Active Power (W) 12000 16000 20000
Max AC Input/Output Apparent Power (VA) 13200 17600 22000
Warranty 10 years / 15 years
Inverter Technical Specification
Max. PV Access Power (W) 24000 32000 40000
Max. PV Input Power (W) 18000 25600 32000
Max. Operating PV Input Current (A) 26+13 36+36
Rated PV Input Voltage (Vdc) 550
Start Up DC Voltage (Vdc) 160
MPPT Voltage Range (Vdc) 200-650 160-650
Max. Input Short-Circuit Current (A) 34+17 54+54
No. of MPPT Trackers / No. of Sting Per MPPT Tracker 2 / 2+1 2 / 2+2
Peak Power (off grid) 1.5 times of rated power, 10s
Power Factor 0.8 leading to 0.8 lagging
Total Current Harmonic Distortion THDi <3% (of nominal power)
DC Injection Current (mA) <0.5% In
Display LCD
Operating Temperature Range (°C) -40 ~ 60°C (>45°C derating)
Relative Humidity 0% ~ 100% (No Condensing)
Max. Continuous AC Passthrough (grid to load) (A) 45
Inverter Communication CAN, RS485, WIFI, ETH
Safety EMC / Standard IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 61000-6-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4
Grid Regulation VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0-21, EN50549-1, G98, G99, C10/11, UNE217002, NBR16149/NBR16150
Max. Efficiency 97.6%
Max. Charging/Discharging Efficiency 95%
Max Parallel Connection Sets 10
Battery Technical Specification
Battery Module Nominal Voltage (V) 40-60
Battery Capacity (Ah) 280 314
Battery Energy (kWh) 43.00 57.32 64.28 80.35
BMS Communication Self-adaption to BMS
BMS Parallel Support Connection Modular design, scalable up to 10 units
Max Charge & Discharge Current (A) 200
Operating Temperature Range Charge: 0~55°C / Discharge: -30~55°C
Cycle Life >8000 (@25°C±2°C, 0.5C/0.5C, 70% EOL)

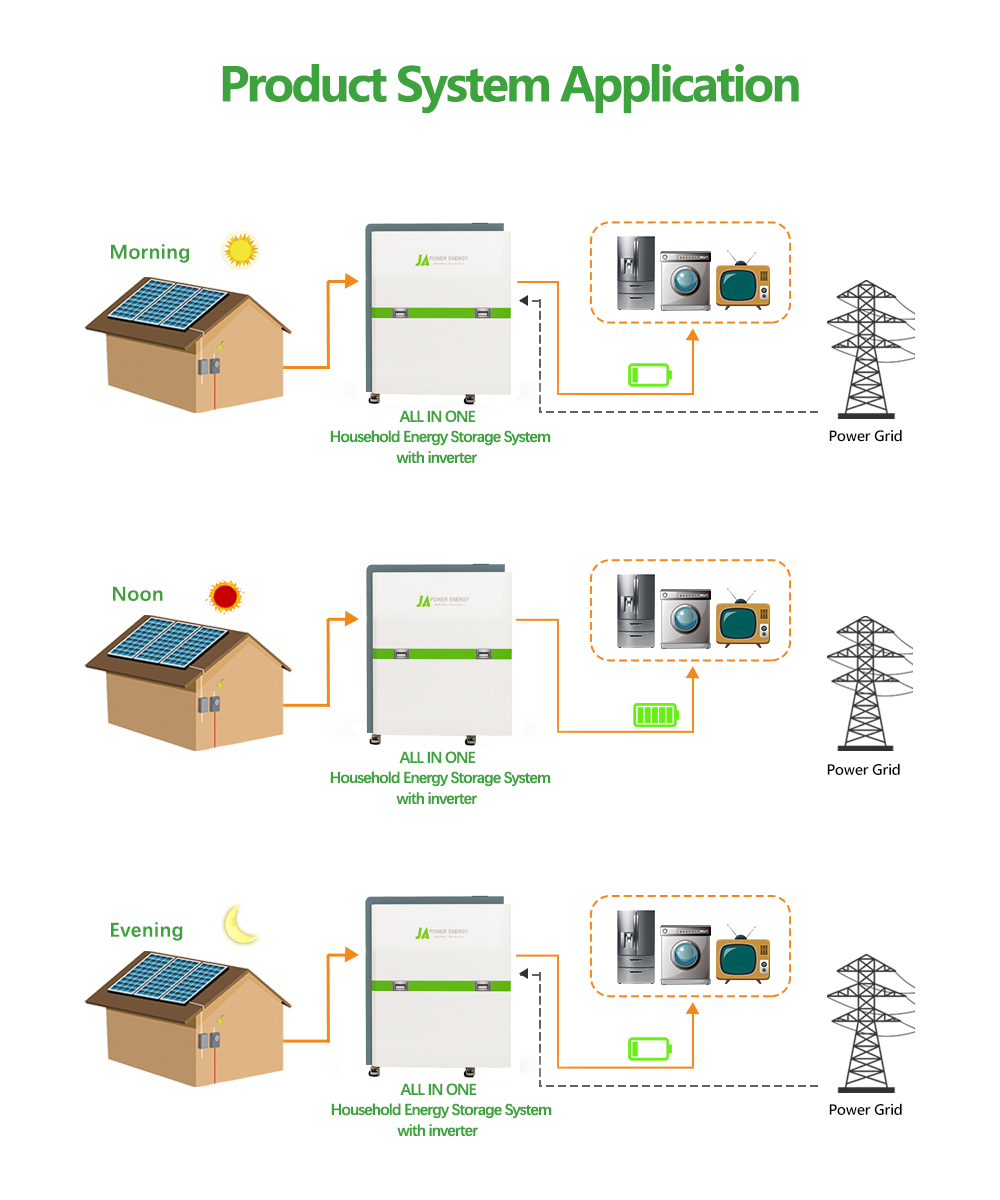

Detail Schematic Graphic

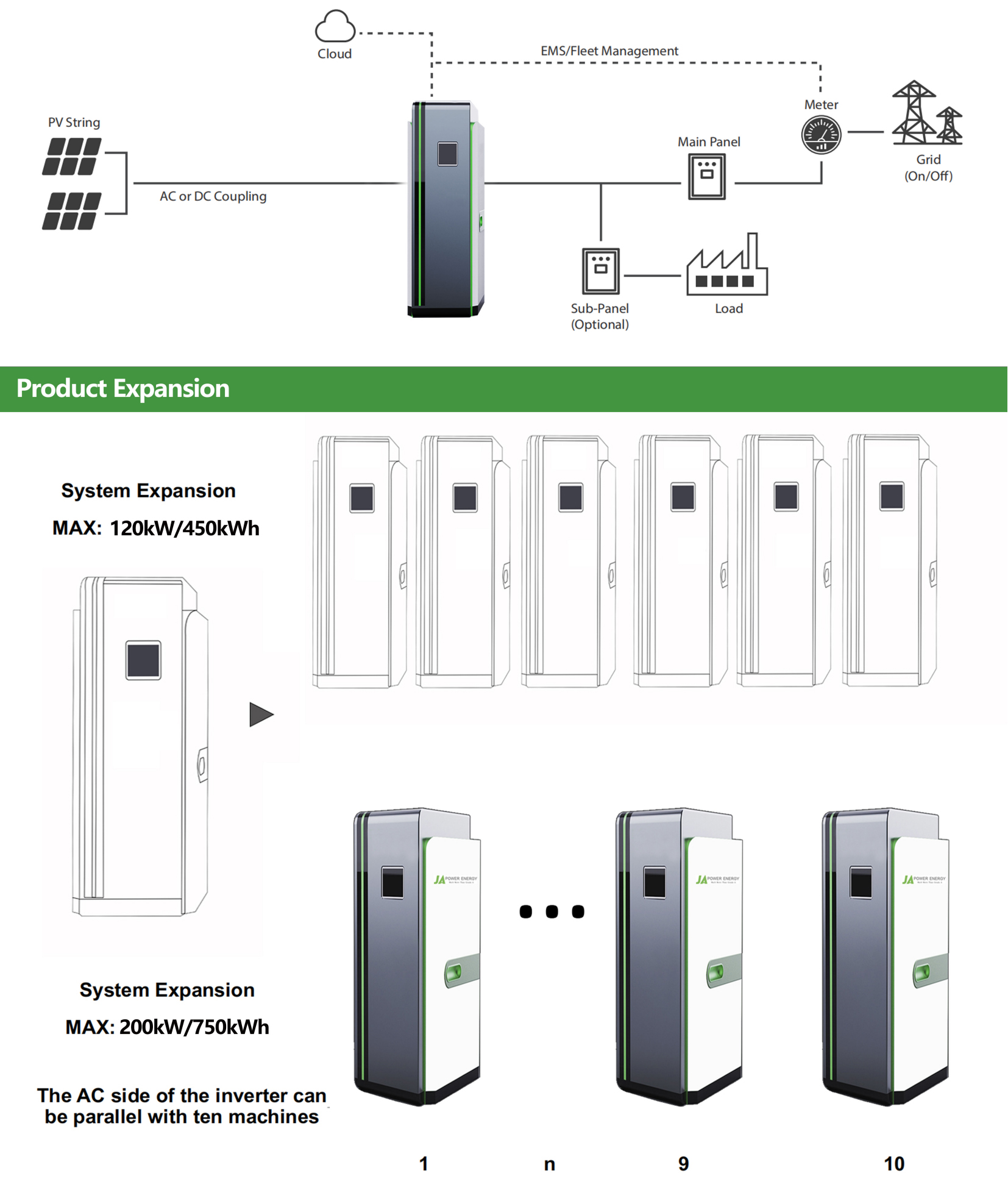

System Connections Diagram
Technical Specifications Matrix

Product Packaging

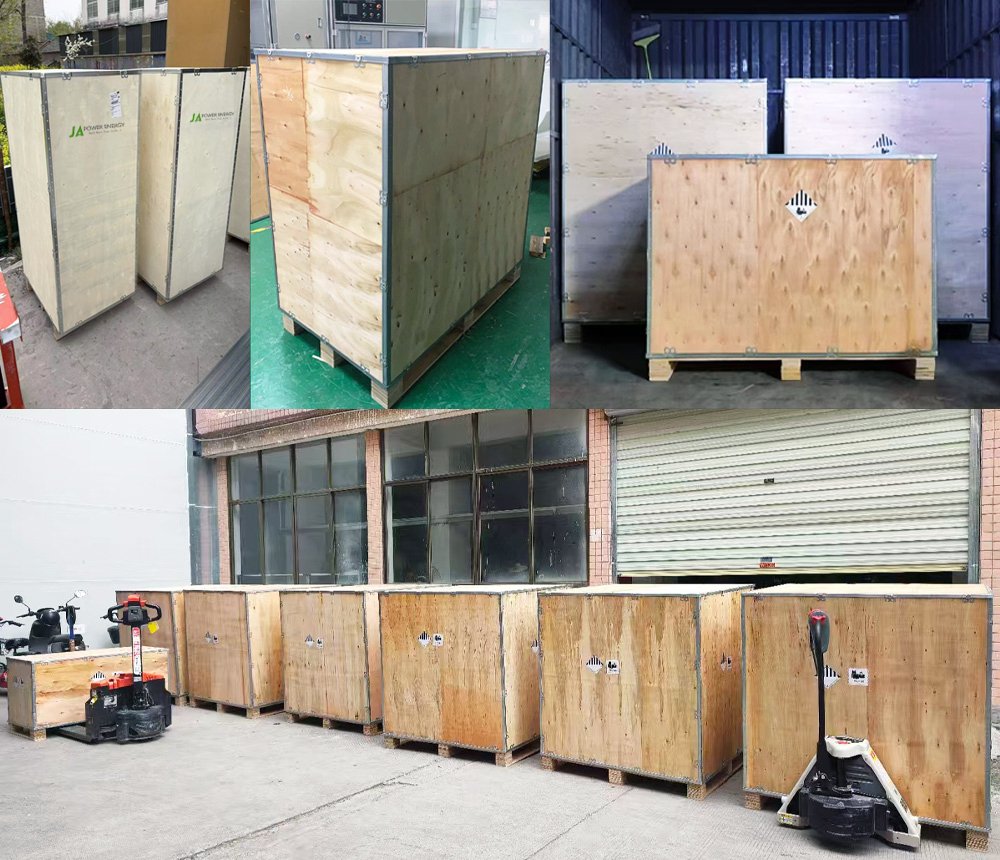

Product Packaging standards

Exhibition Plan

Exhibition Map Layout
Exhibition Poster design
Exhibition Location details

Frequently Asked Questions

Q What types of battery cells are utilized in this Energy Storage System?
The system is equipped with REPT high-quality LiFePO4 battery cells, known for their thermal stability, safety, and long lifecycle performance.
Q Does this system support off-grid operation and black starts?
Yes. The integrated technology combines EMS, a hybrid inverter, and BMS to support black start functionality, power redundancy, and continuous off-grid operation.
Q What safety protection measures are built into the design?
The system offers comprehensive protection, including combustible gas detection, smoke and temperature sensors, an active exhaust system, a fire alarm system, and PV lightning protection.
Q How many units can be connected in parallel for system expansion?
The modular system design allows scaling up to 10 sets in parallel connection for both inverter and battery setups, accommodating high-capacity industrial demands.
Q What is the estimated lifecycle and warranty for the battery?
The battery modules have a cycle life of over 8,000 cycles (at 25°C±2°C, 0.5C/0.5C charge/discharge, 70% EOL) and come with a standard warranty coverage of 10 to 15 years.
Q Can the system be monitored and controlled remotely?
Yes, the system features Smart APP compatibility, allowing operators to monitor system metrics in real time and execute remote operations securely.
