OEM ODM Customized Integrated and off Grid Hybrid Solar Cell Outdoor Cabinet Energy Storage System Solution

1 / 5

OEM ODM Customized Integrated and off Grid Hybrid Solar Cell Outdoor Cabinet Energy Storage System Solution

Customization:	Available
Nominal Voltage:	832V
Warranty:	2 Year

Send Inquiry

Product Description

Basic Specifications

Model NO. Smart PV-ESS All-in-One Unit-a-A

Nominal Capacity 314ah

Cycle Life 6000

Rated Power 125kw

Overload Capacity 110% Long-Term

Maximum Photovoltaic Power 125kw

MPPT Operating Voltage Range 438-900V

Battery Type 3.2V/314ah/LFP

Rated Voltage 832V

Nominal Capacity of Battery 261kwh

Battery Operating Voltage Range 728-936V

Maximum Charge/Discharge Rate 0.5p

Cooling System Intelligent Liquid Cooling

Weight 3000 kg

Protection Level IP54

Fire Protection System Perfluorohexane/Aerosol (Optional)

Transport Package Standard Packaging or Customized

Specification Standard Specifications or Customized

HS Code 8537109090

Production Capacity 500pieces/Year

Packaging & Delivery

Package Size 170.00cm * 130.00cm * 225.00cm

Package Gross Weight 3000.000kg

Product Gallery

Product Parameters

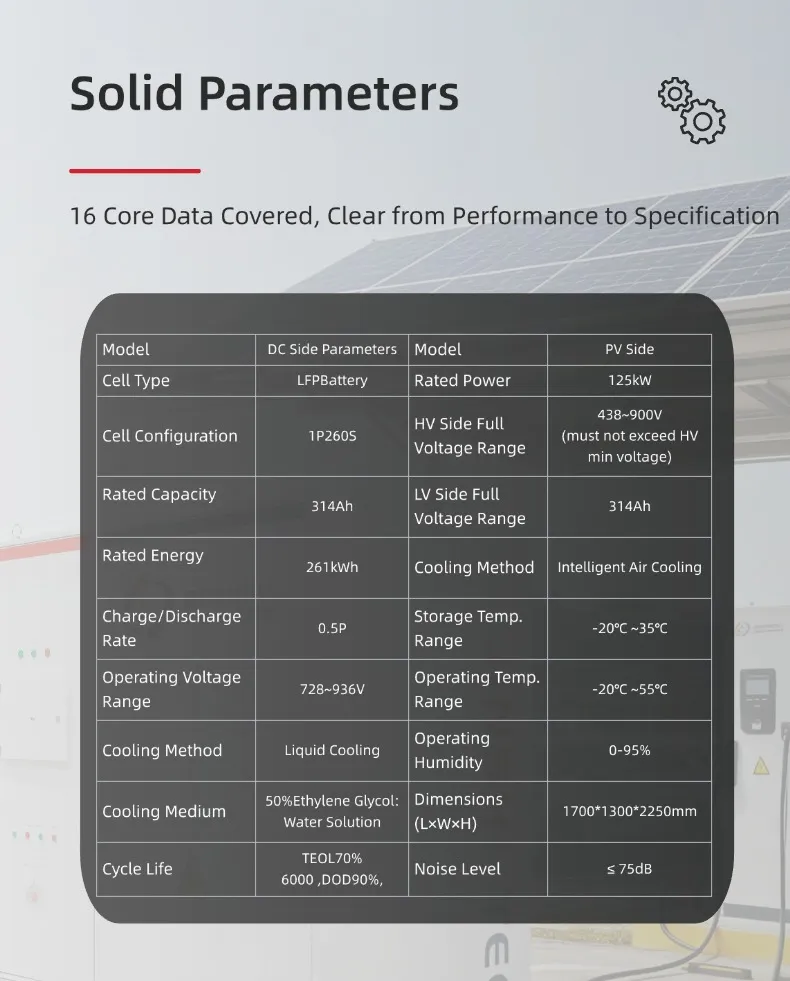

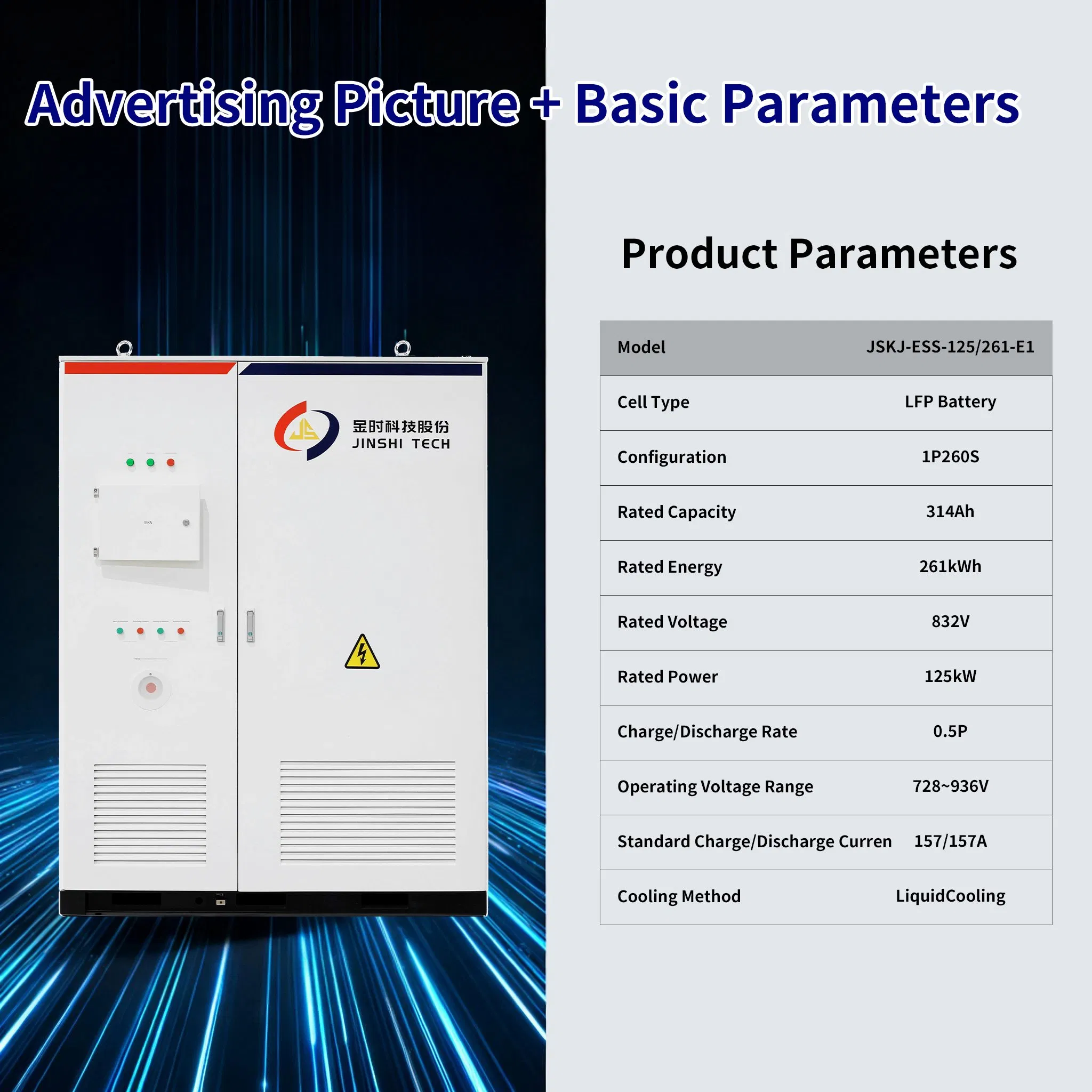

Technical Specifications
Cell Type	LFP Battery
Configuration	1P260S
Rated Capacity	314Ah
Rated Energy	261kWh
Rated Voltage	832V
Rated Power	125kW
Charge/Discharge Rate	0.5P
Operating Voltage Range	728~936V
Standard Charge/Discharge Current	157/157A
Cooling Method	Liquid Cooling
Maximum Efficiency	99%

Frequently Asked Questions

What is the battery type and nominal capacity of this system?

The system utilizes high-quality LFP (Lithium Iron Phosphate) battery cells (3.2V/314Ah) with a system configuration of 1P260S. It features a nominal capacity of 314Ah and a total rated energy of 261kWh.

How long is the expected cycle life of the battery?

The battery is engineered for high durability, offering an outstanding cycle life of up to 6000 cycles under standard operating conditions.

What kind of cooling system does the unit use?

The unit is integrated with an Intelligent Liquid Cooling system, which effectively regulates temperature uniformities, enhances performance efficiency, and prevents thermal degradation.

What safety and fire protection measures are included?

The energy storage cabinet features an optional Perfluorohexane/Aerosol fire protection system, providing rapid and reliable suppression in case of a thermal event to ensure site safety.

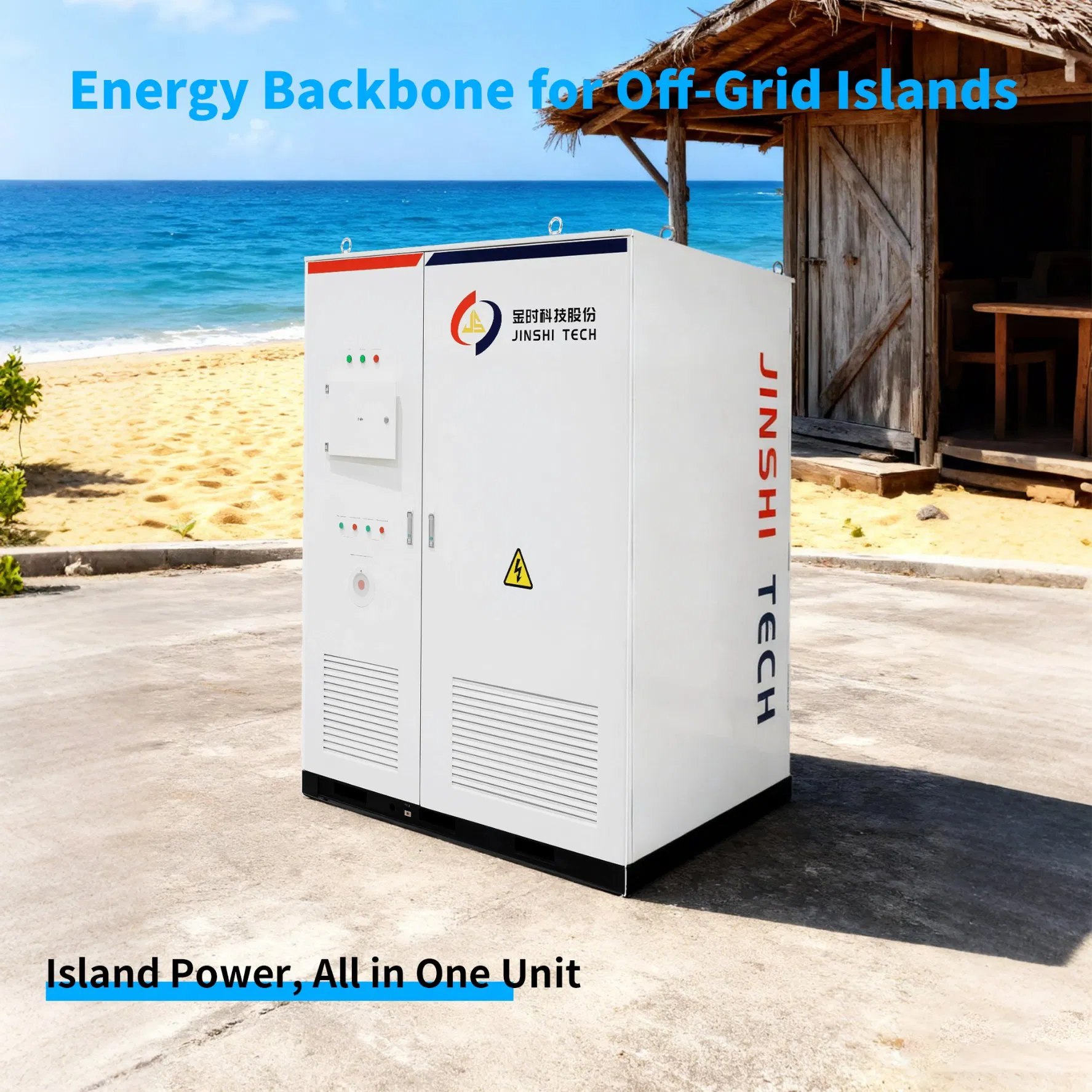

Can this system be installed outdoors?

Yes, the system is designed with an IP54 protection rating, ensuring robust resistance to water and dust ingress, making it highly suitable for outdoor cabinet installations.
