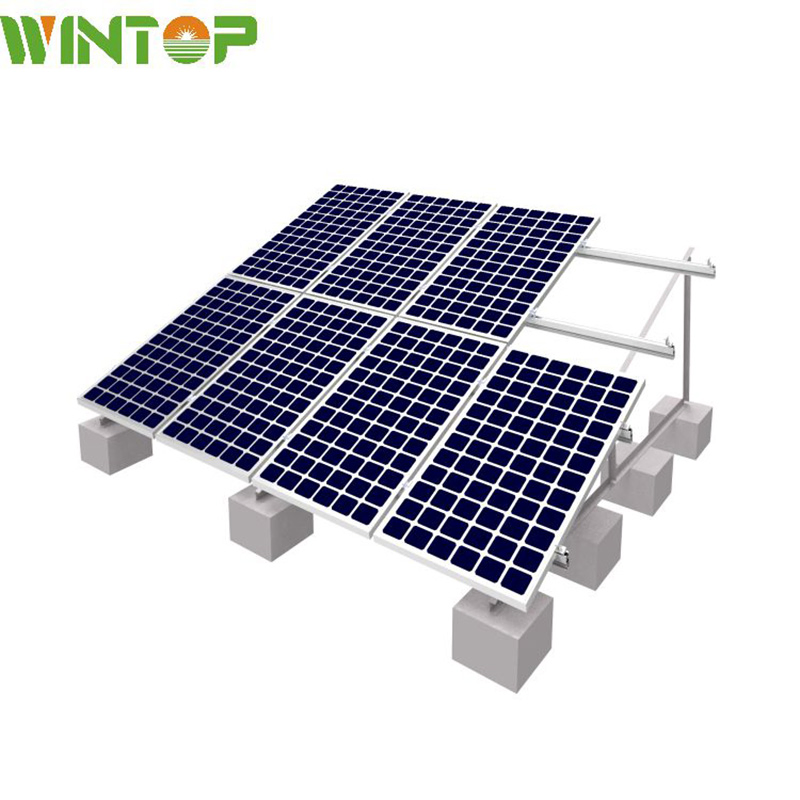

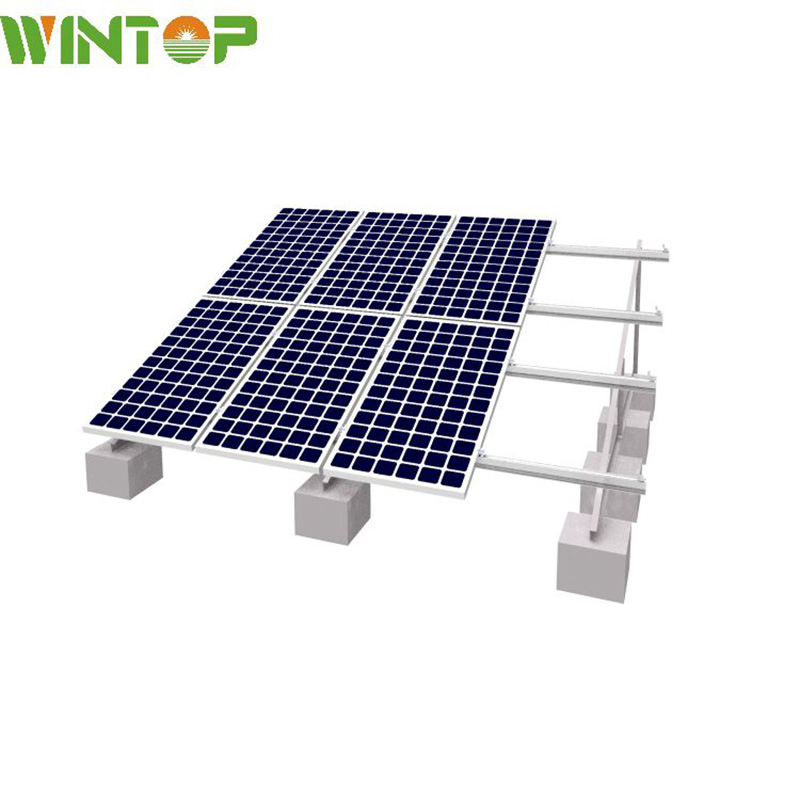

| Installation location | Low angle rooftop or outdoor |
| Installation foundation | Concrete foundation |
| Installation angle | 0°-60° |
| Wind load | 60m/s(216kmh/133mph) |
| Snow load | 1.4KN/m² |
| Distance from module lowest point to the ground | Roof height |
| Applicable module type | Mono-crystalline, Poly-crystalline, Double wave and Thin film |
| Module Orientation | Horizontal, Vertical |
| Design standard | AS/NZS1170,JIS C 8955-2017 |
| Bracket material | AL6005-T5(Anodized Oxidation) |

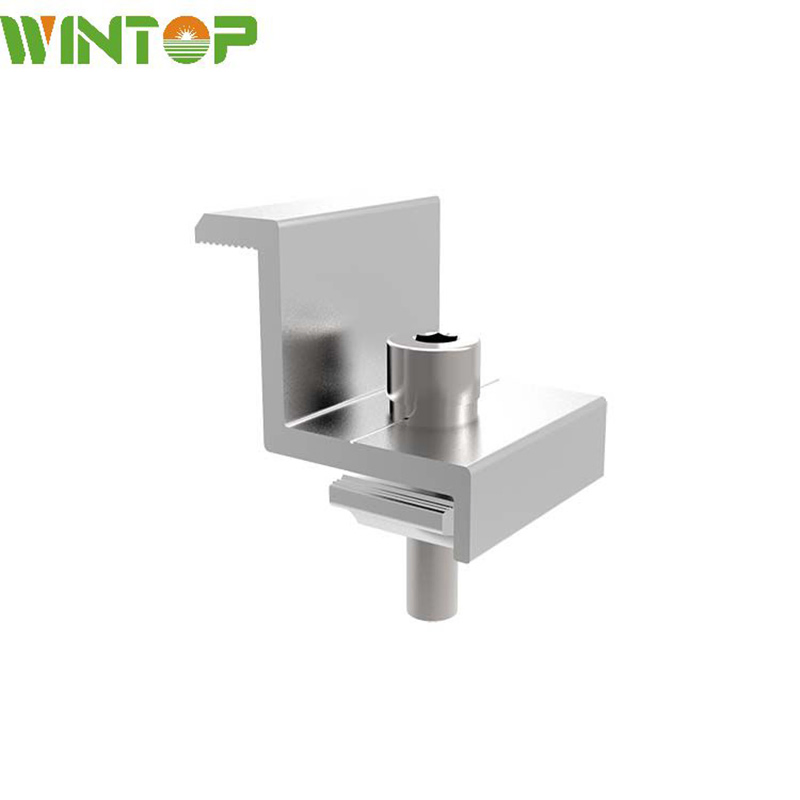

| Fastener Material | Stainless steel SUS304 |
| Warranty&Duration | 10 years&More than 20 years |
No, all of our mounting solutions are professionally engineered, guaranteed to ensure the integrity of your roof. To prevent water intrusion on shingled roofs, we use metal flashing kits that create a watertight seal every time.

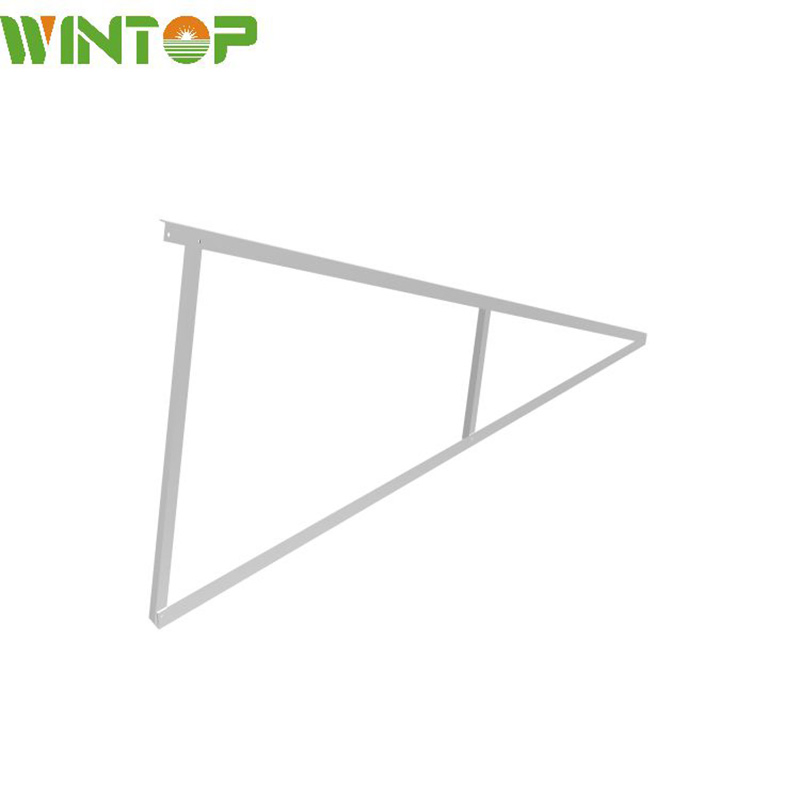

The brackets are mainly constructed from AL6005-T5 Aluminum Alloy with an Anodized Oxidation finish, and all fasteners are made of SUS304 Stainless Steel for excellent corrosion resistance.
Our structure is built to withstand extreme weather conditions, certified for a maximum wind load of 60m/s (216km/h or 133mph) and a maximum snow load of 1.4 KN/m².

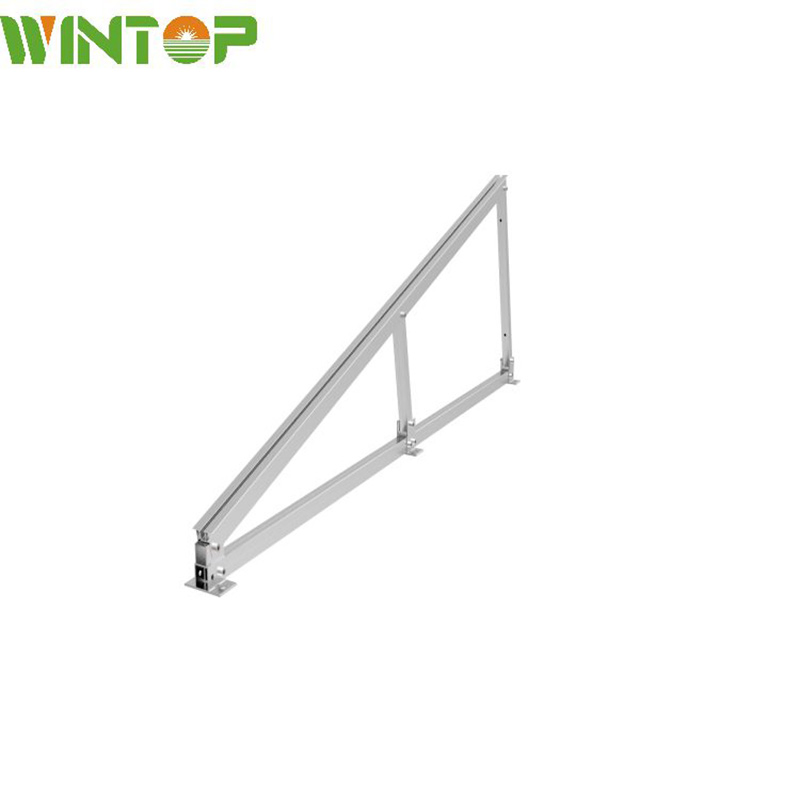

Yes. The installation angle can be adjusted from 0° to 60° to fit your project requirements, and it supports both landscape (horizontal) and portrait (vertical) module orientations.
Our minimum order quantity (MOQ) is 1 set. We can provide samples for quality evaluation upon request; you would only need to cover the shipping cost.
We offer a 10-year product warranty. Thanks to high corrosion resistance materials, the structural duration is designed to last more than 20 years.
