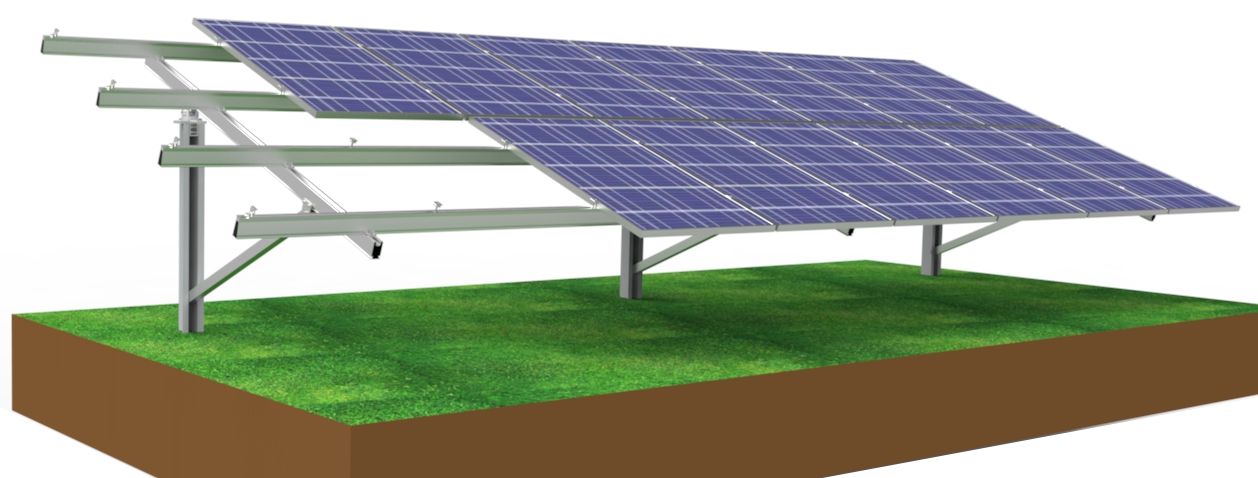

Wholesale Commercial Single Pole Solar Mounting System Factory-Priced Ground Mount Racking For Home Solar Bracket

Product Description

Solar Mounting System
Wholesale Commercial Single Pole Solar Mounting System Factory-Priced Ground Mount Racking for Home Solar Bracket
Technical Parameters
Installation Site Ground Module Orientation Portrait/Landscape
Tilt Angle 0°-60° Terrain Clearance Above 300mm
Wind Load 60m/s Snow Load 1.5KN/m²
Material AL6005-T5(Anodized) Standard AS/NZS 1170, JISC8955, Euro Code 8, DIN 1055, IBC2006
Warranty 10 years
Quick Installation:

Quickly assemble with minimal components and highly pre-assembled design, greatly save the installation time, and don't need on-site cutting or drilling.

Flexible and adjustable:

Fully considering of the construction error, the design of base support is more flexible , it can be adjusted in up and down, left and right, and front and back directions, reducing the construction difficulty.

Safe and reliable:

The structure has been rigorously calculated and tested to against the harshest weather conditions, to ensure safety and reliability.

Products Description

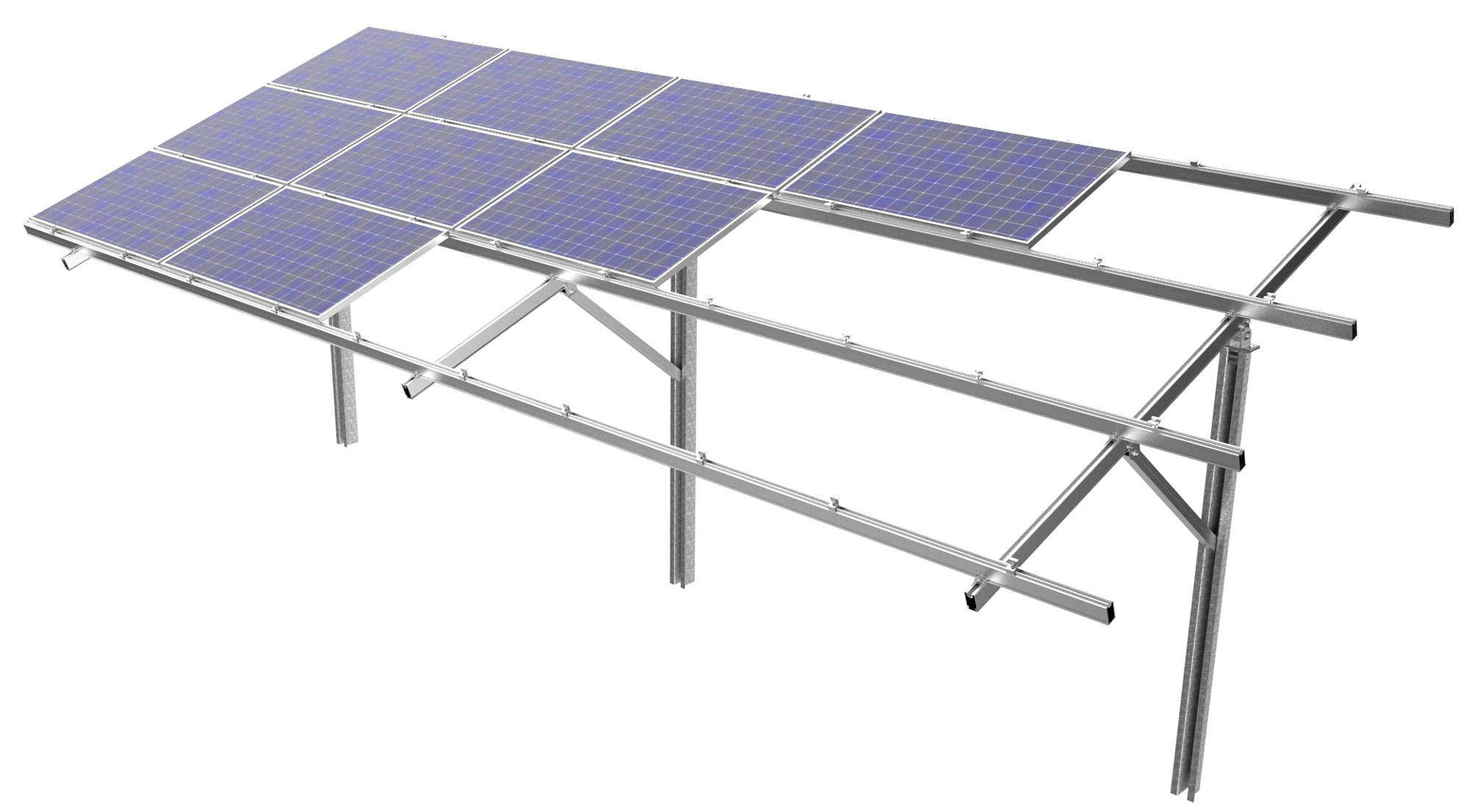

Product Layout
Engineering Diagram
Technical Drawing

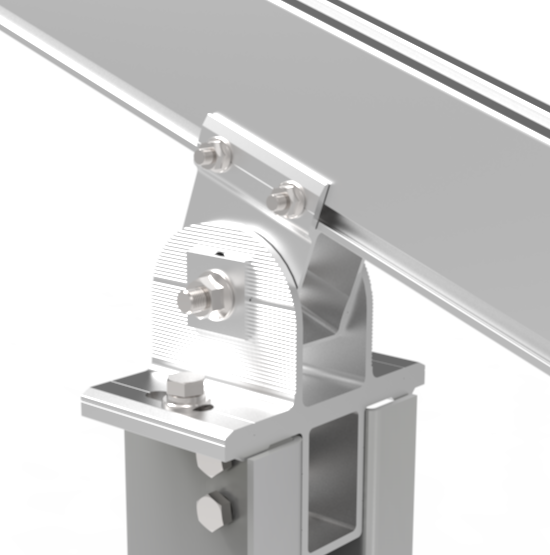

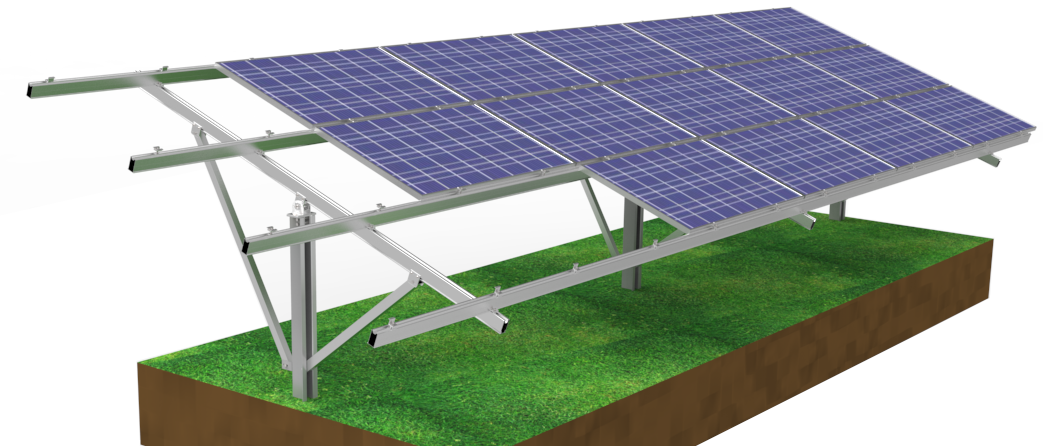

Single Pole Mounting System
Mounting Rails

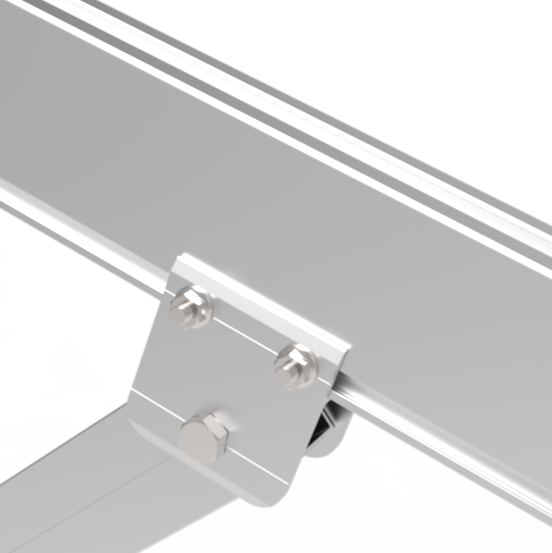

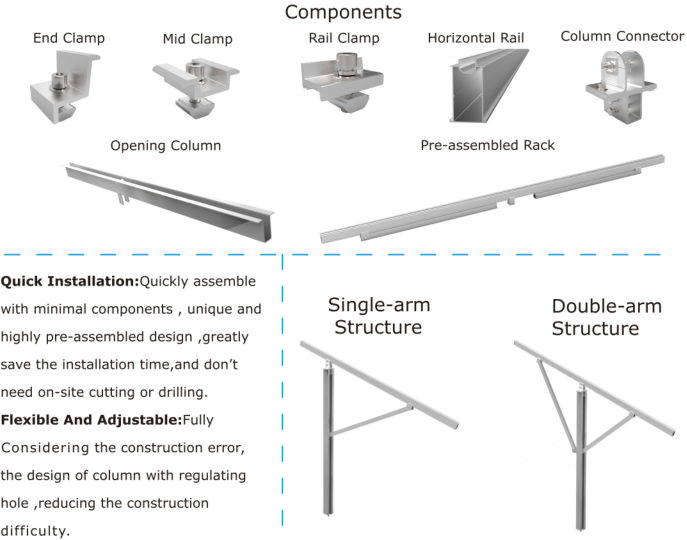

Solar Clamps
Ground Screws

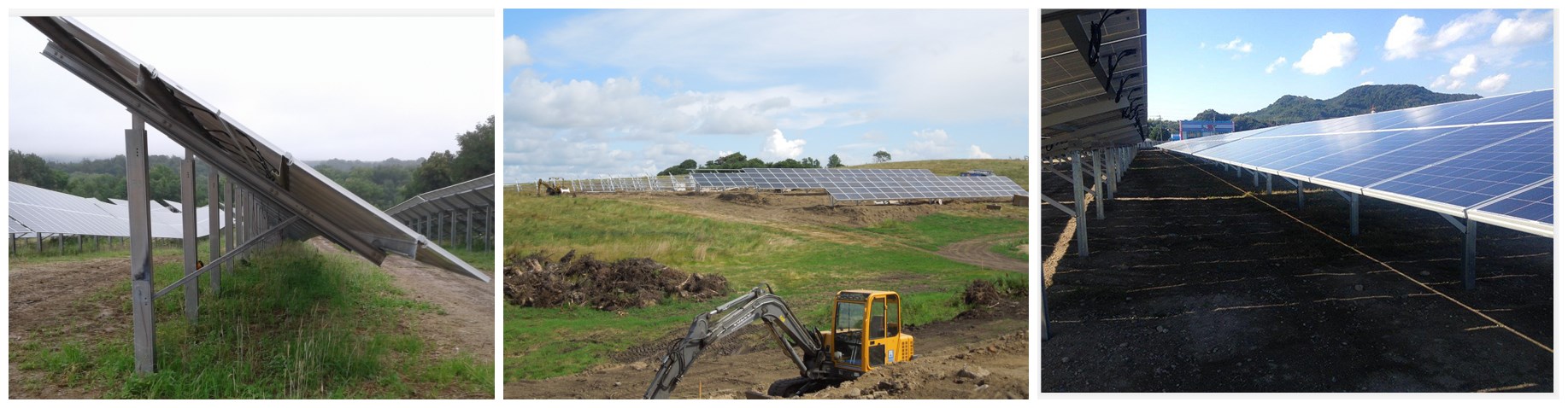

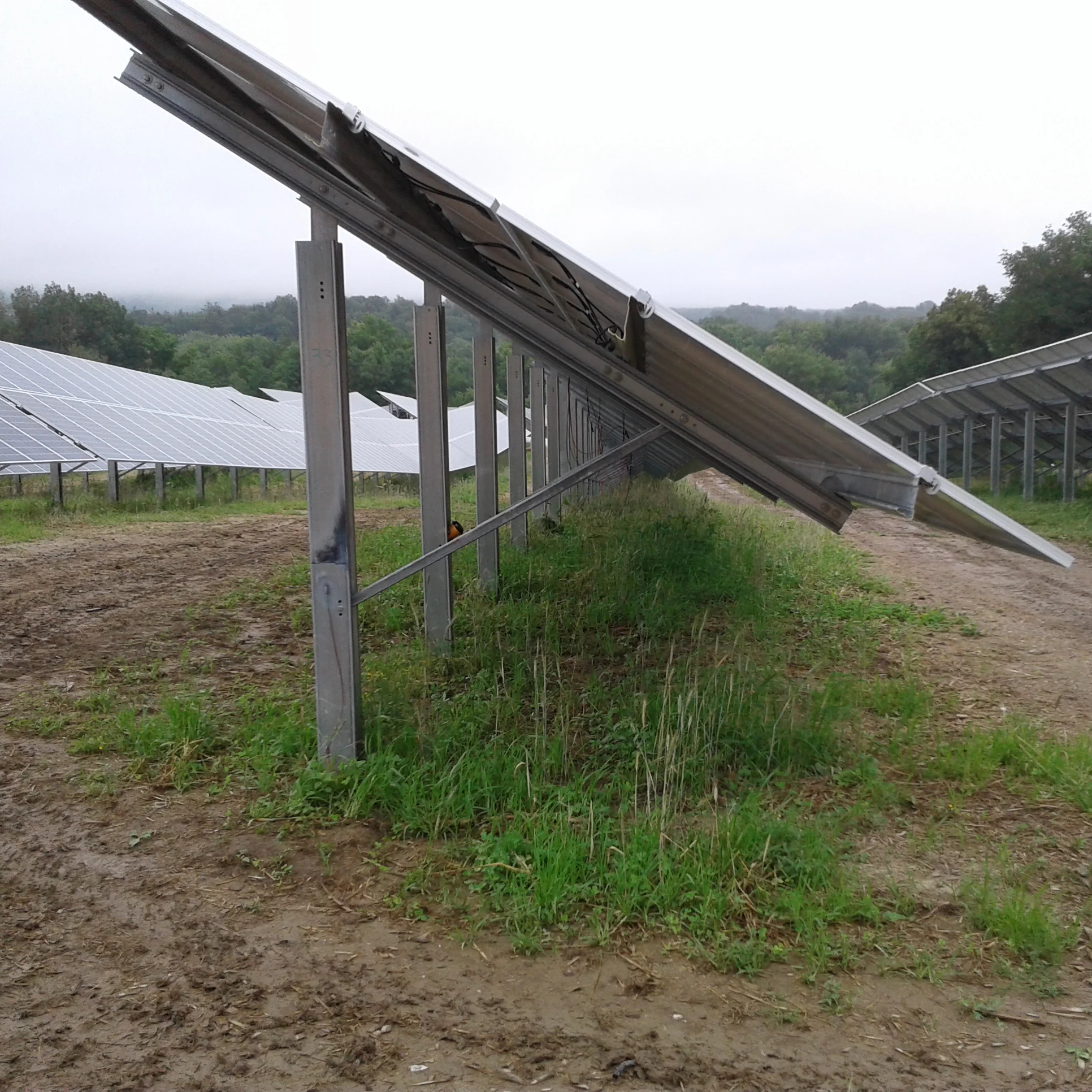

Solar Bracket Installation
Profile
We are a high-tech enterprise specializing in the research, production, sales and service of Solar PV mounting system in new energy industry. Our products have passed the rigorous mechanical testing, obtained the ISO9001:2000 Quality System approval and conformed to the requirements of AS/NZS 117, JISC8955, SGS etc. With the mature technology, stable structure and perfect design solutions, we achieve the goal of reducing the cost for our customers since establishment. Our self-developed solar mounting system and solar products are applicable to residential, commercial and large-scale photovoltaic power station.

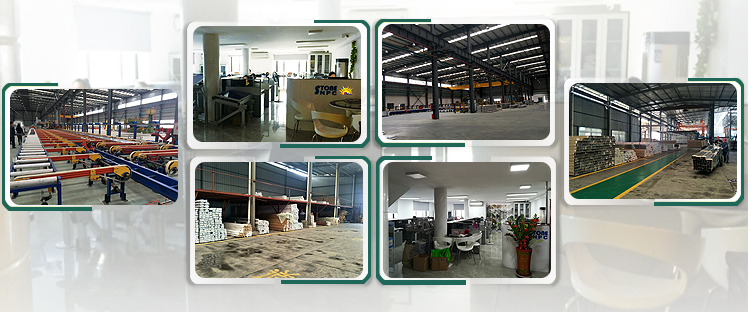

Factory Overview
Products have been sold to more than 100 countries and regions, such as Australia, the Middle East, South Africa, Japan and the Southeast Asia, and gained a large share of domestic and international markets. Providing the products of high quality and cost-effectiveness and excellent after-sale service for our customers are our mission, and it's also our promise to customers.
Production Facility
Warehouse and Stock

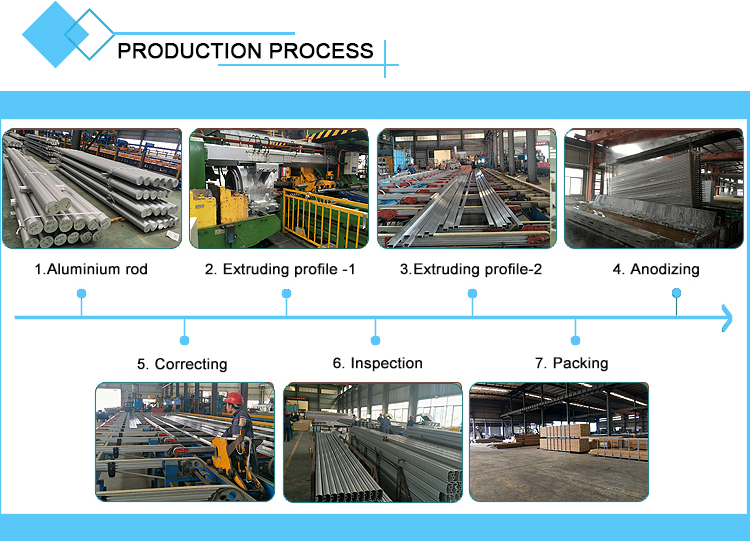

Quality Control
Loading and Shipment
FAQ
Are you a factory or trading company?
We are the factory which is specialized in producing all kinds of solar mounting systems for residential, commercial and utility.
May I get the samples?
Yes, we can offer you samples for your evaluation.
What is the warranty for the solar mounting system?
We offer a 10-year warranty for our solar mounting systems.
What materials are used for the ground mounting system?
The system is constructed using AL6005-T5 (Anodized) to ensure durability, strength, and corrosion resistance.
What standards do your solar brackets comply with?
Our products conform to major international design standards including AS/NZS 1170, JISC8955, Euro Code 8, DIN 1055, and IBC2006.
What detailed information do I need to give before quoting?
Please provide the following project details:
  1. The dimension of the solar panel? (Length*Width*Thickness)
  2. How many solar panels do you plan to install for the project? (pcs)
  3. What is the tilt angle for the solar panel? (degree)
  4. The layout of the solar panel array, or the size (Length and Width) of your installation site?
  5. How tall is the lowest height from the solar panel to the ground? (mm)
  6. What installation orientation for the solar panel? (Horizontal or Vertical)
  7. What is the wind speed (m/s) and snow load (KN/m²)?
  8. Which foundation do you need? (ground screw / concrete / pile / pole)
  9. Latitude and longitude of your installation site (if available).
