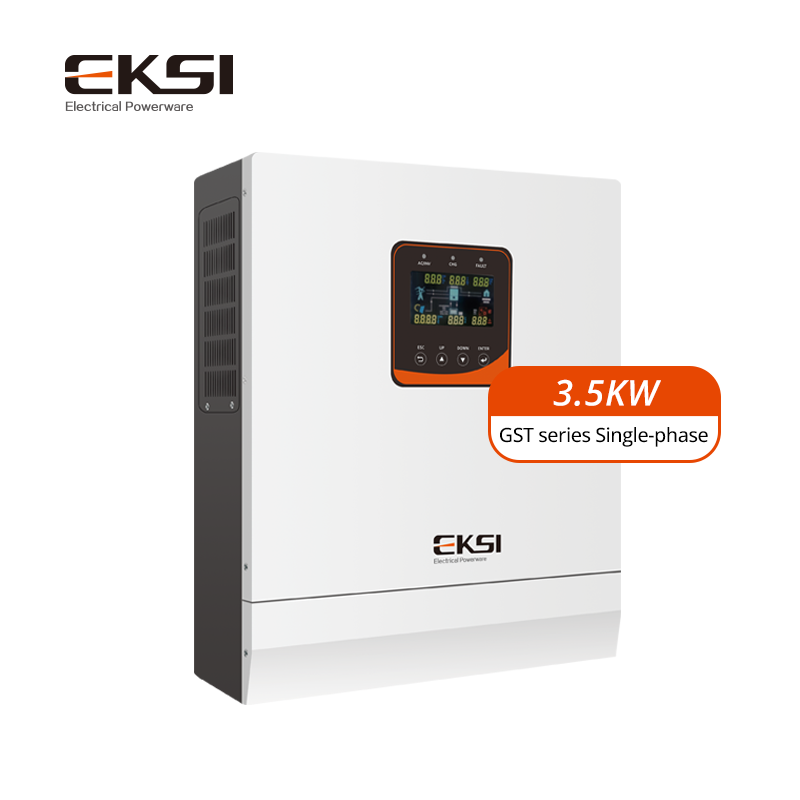

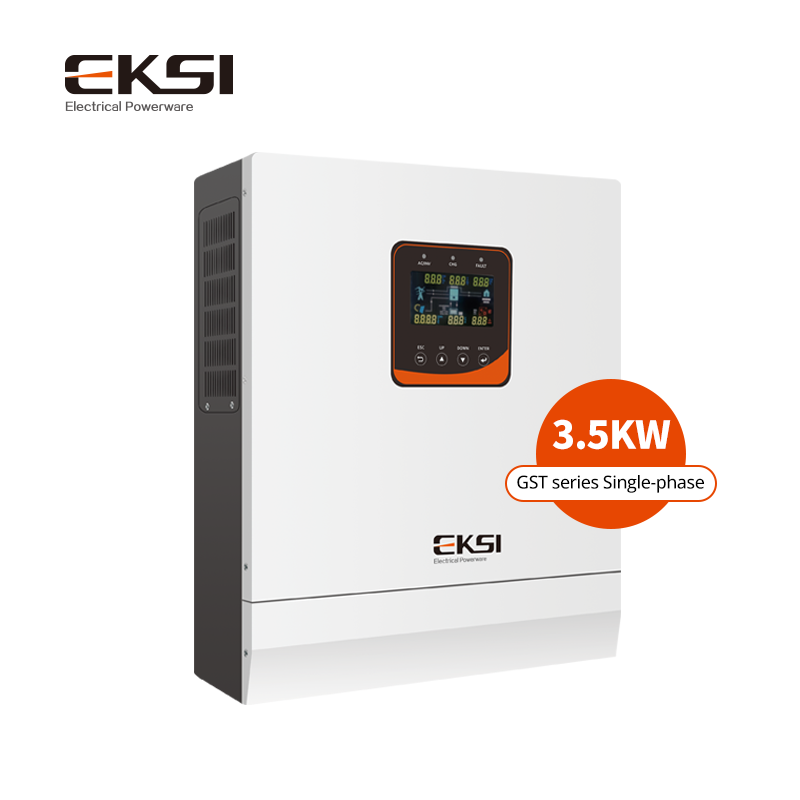

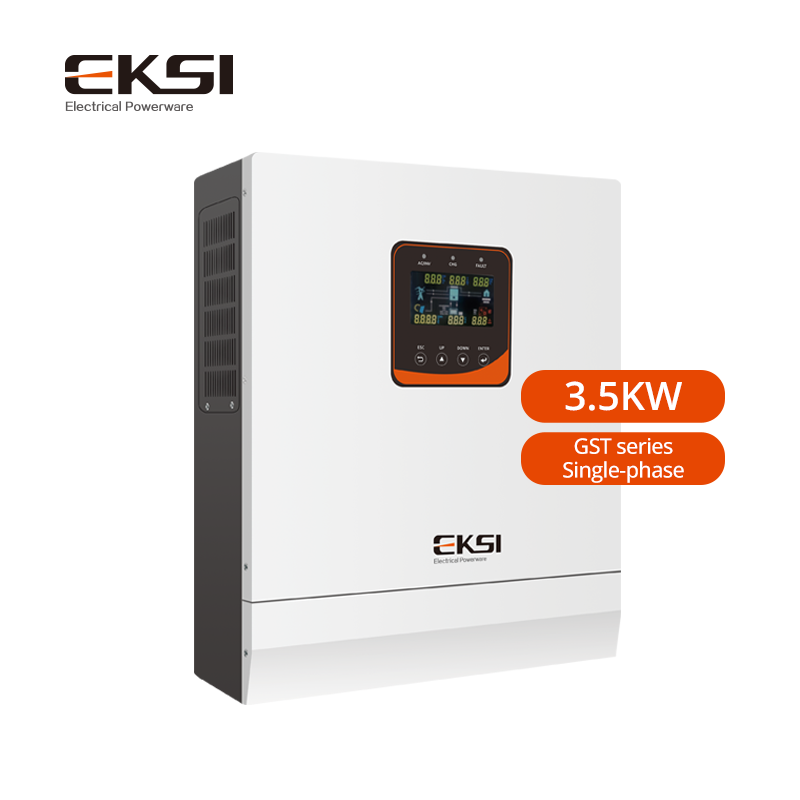

3.5kw Solar Inverter Hybrid 3.5kva Off Grid Power Inverter With Parallel Function

1 / 5

3.5kw Solar Inverter Hybrid 3.5kva Off Grid Power Inverter With Parallel Function

Send Inquiry

Product Description

Products Description

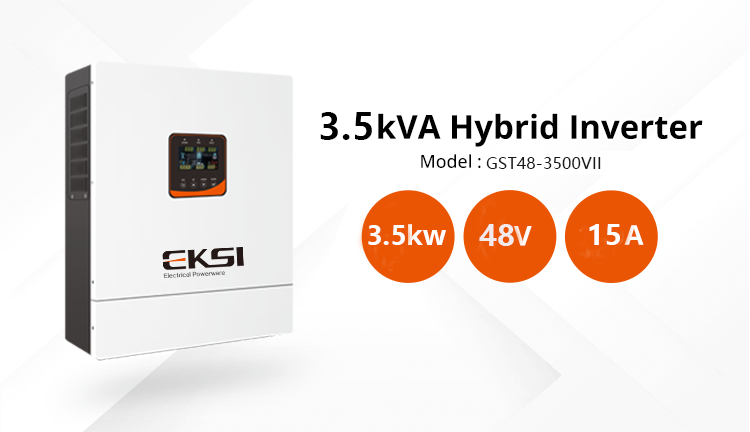

3.5kva Hybrid Inverter

GST series is a new all-in-one solar charge inverter, which integrates solar energy storage & utility charging energy storage and AC sine wave output.

Support battery-free output and only PV start and load, with battery activation function.

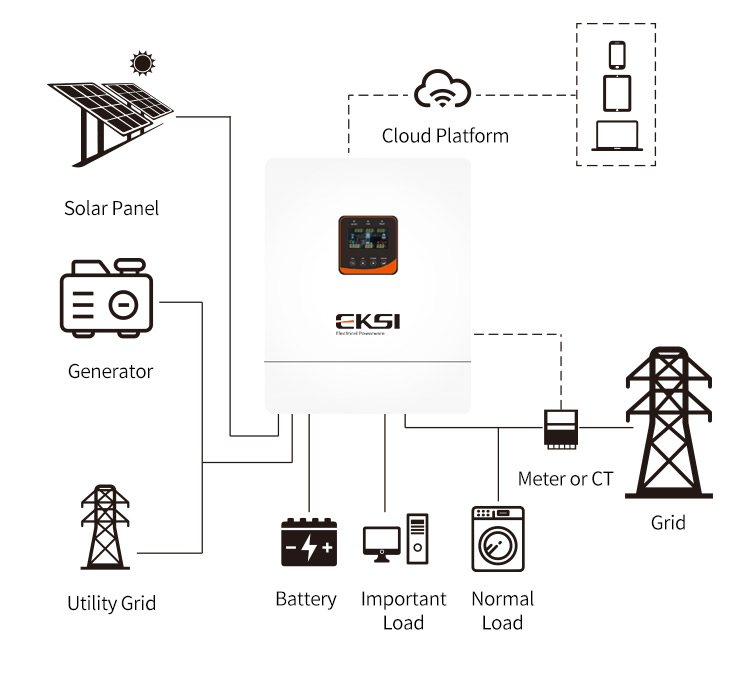

Three Output Modes

When the grid-connected function is enabled.
Grid-connected power generation or anti-reverse-current can be set.
It can also be set to off-grid output mode.

Four Charging Modes

Mains priority charging
Solar priority charging
Mains solar hybrid charging
Solar only charging

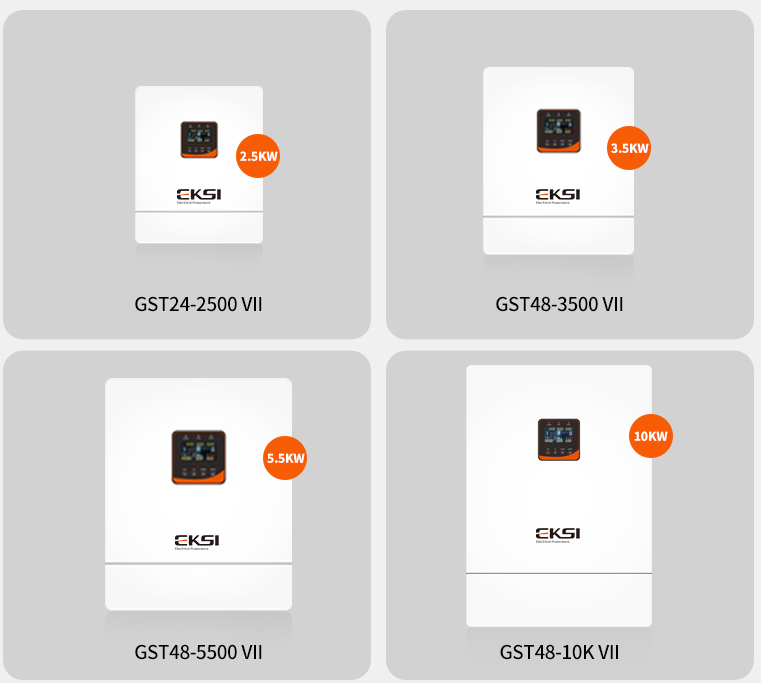

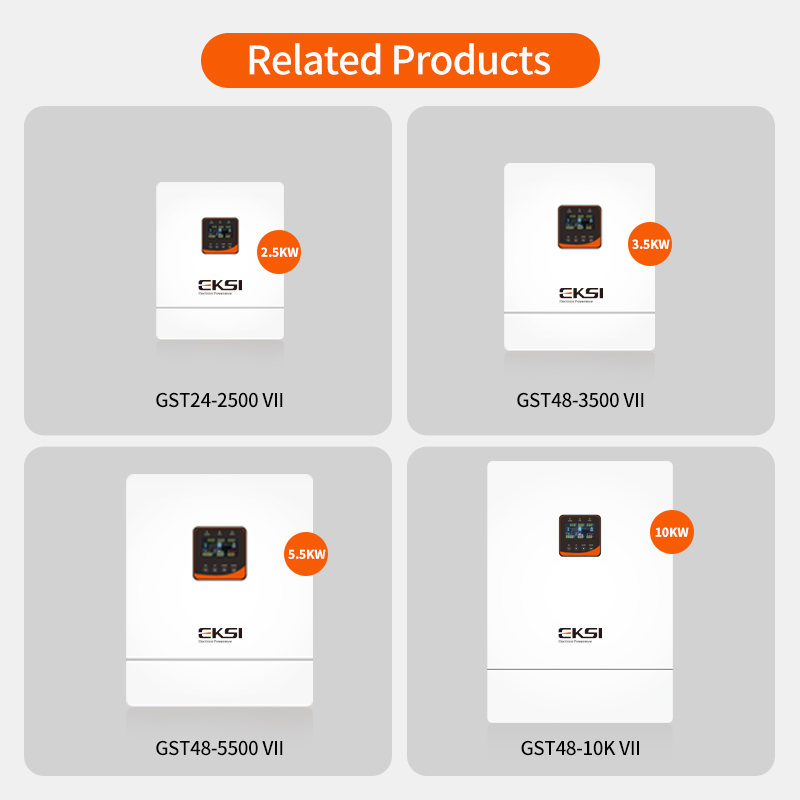

Related Products

Specifications

MODEL	GST24-2500 VII	GST48-3500 VII	GST48-5500 VII	GST48-10K VII
INVERTER OUTPUT
Rated output power	2500W	3500W	5500W	10000W
Rated output power (VA)	2500VA	3500VA	5500VA	10000VA
Maximum Peak Power	5000W	6000W	10000W	15000W
Load Capacity with Motors	2HP	2HP	4HP	6HP
Rated AC Output	230 Vac (200 / 208 / 220 / 240 Vac), 50 / 60Hz
Output Voltage Waveform	Pure Sine Wave
Inverter and Bypass Switching Time	10ms (typical)
Parallel Capacity	9 units max
Maximum Battery Inverter Efficiency	93%
BATTERY
Battery Type	Lithium / Lead-acid / User Defined
Rated Battery Voltage	24Vdc	48Vdc
Battery Voltage Range	20-33Vdc	40-60Vdc
Max.MPPT Charging Current	60A	60A	100A	200A
Max.Mains Charging Current	60A	60A	60A	120A
Max.Hybrid Charging Current	120A	120A	100A	-
Charging current error	±3Adc
Charging Short Circuit protection	Blown Fuse
PV CHARGING
PV MPPT Trackers	1	1	1	2
Max. PV array power	1700W	3400W	5500W	5500W+5500W
Max. PV input current	50A	50A	22A	22A+22A
Max. Open Circuit Voltage	100Vdc	145Vdc	500Vdc	500Vdc+500Vdc
MPPT Voltage Range	30-85Vdc	60-115Vdc	120-450Vdc
MPPT Tracking Efficiency	99.9%
MAINS INPUT
Input Voltage Range	90-280Vac / 170-280Vac
Frequency Range	50/60Hz ± 0.3Hz
Output Short Circuit Protection	Circuit breaker
Bypass Overload Current	24A	30A	40A	63A

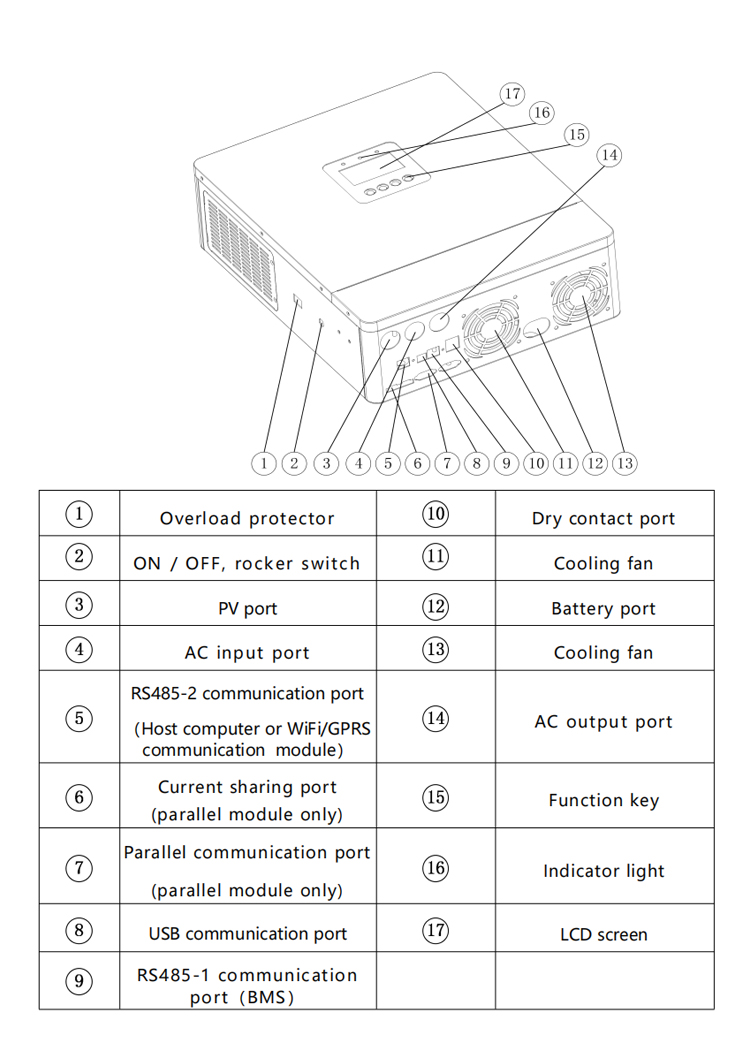

Product Details

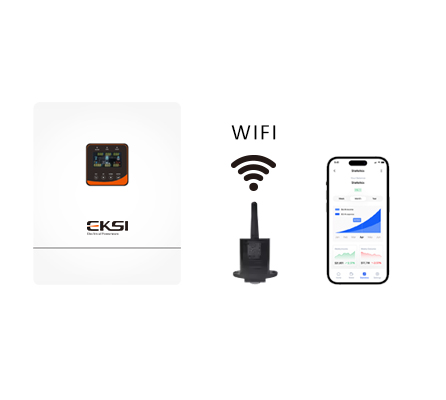

WIFI/GPRS

Remote Wifi/GPRS option to realize working status monitoring anytime and anywhere.

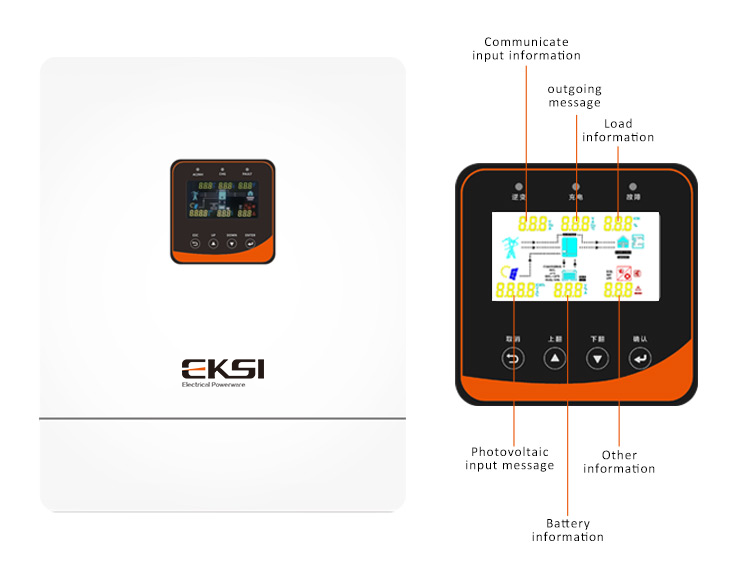

LCD SCREEN

Divided into three functional areas: LCD screen, LED display area, and key input area.

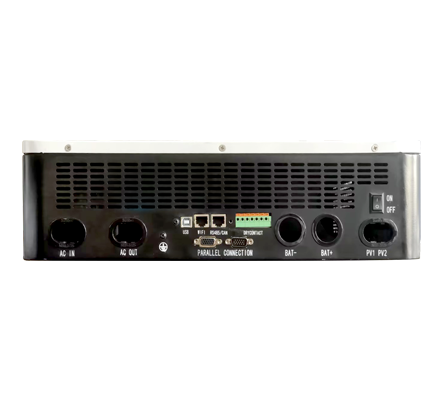

COOLING SYSTEM

Double cooling fans for excellent heat dissipation. Forced air cooling with variable fan speed.

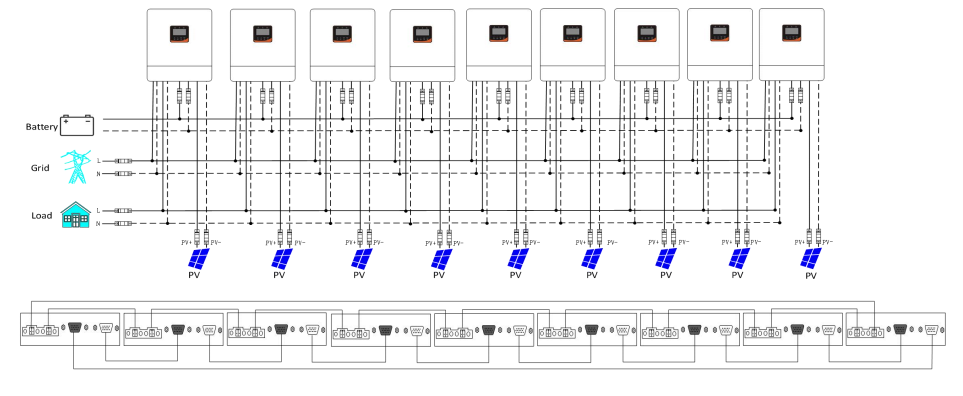

Parallel Function

Scalable Parallel Function

It can be flexibly combined to achieve up to 9 parallel machines.

The parallel system can output single-phase and three-phase AC voltage according to system requirements.

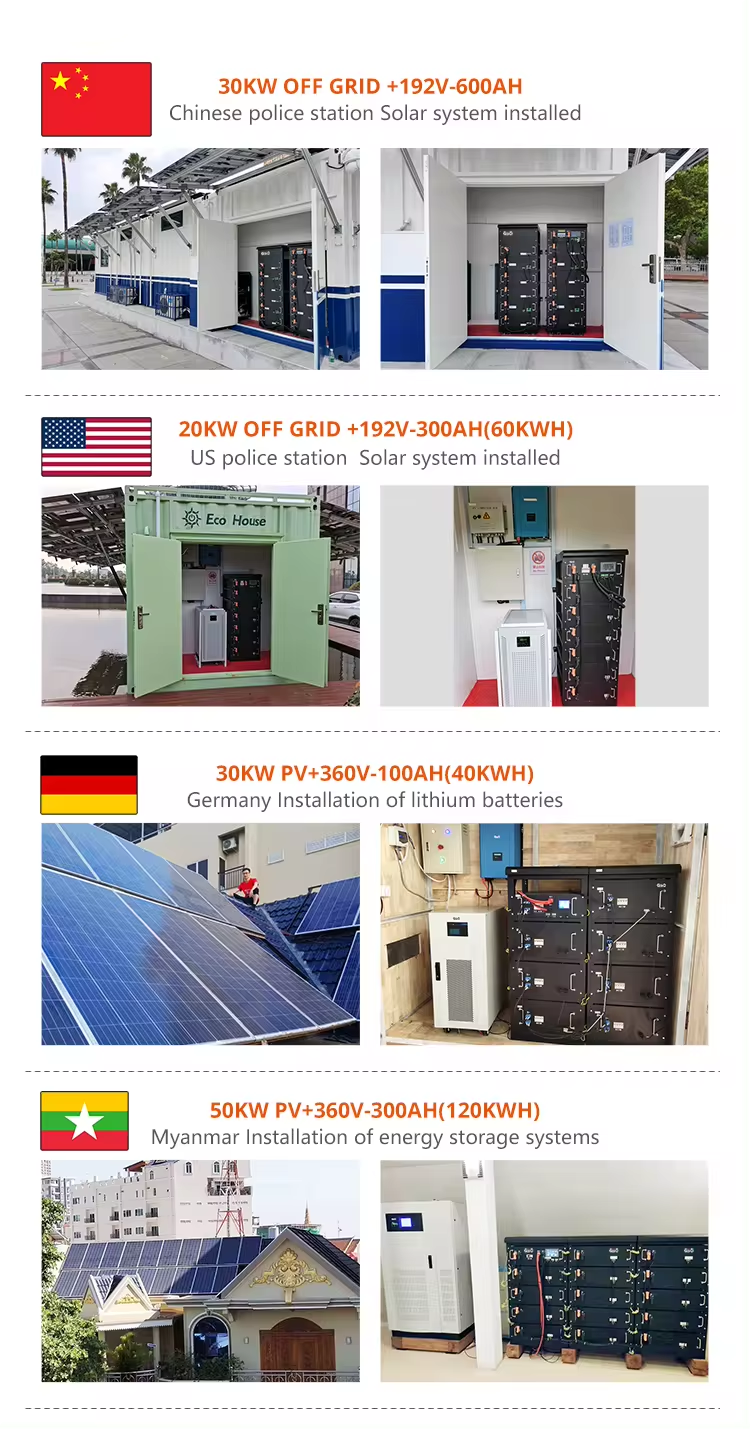

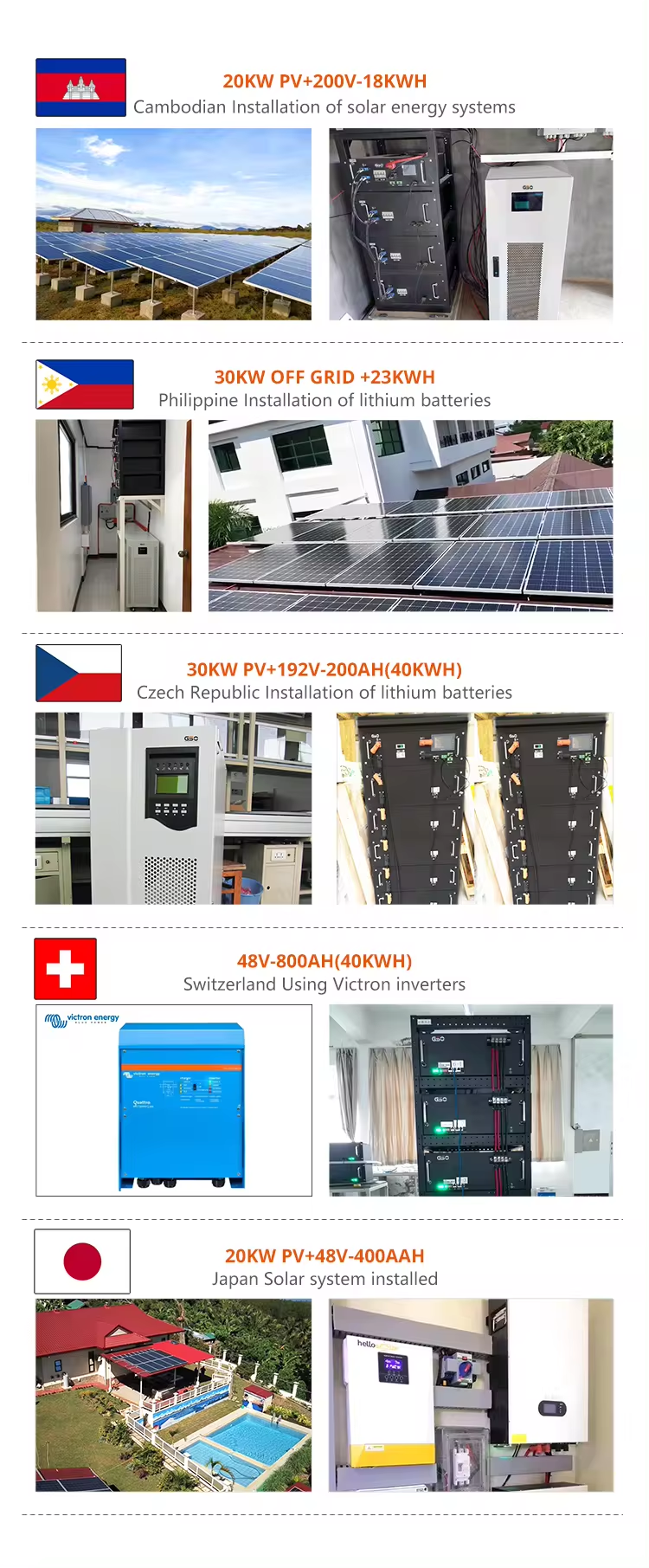

Project Cases

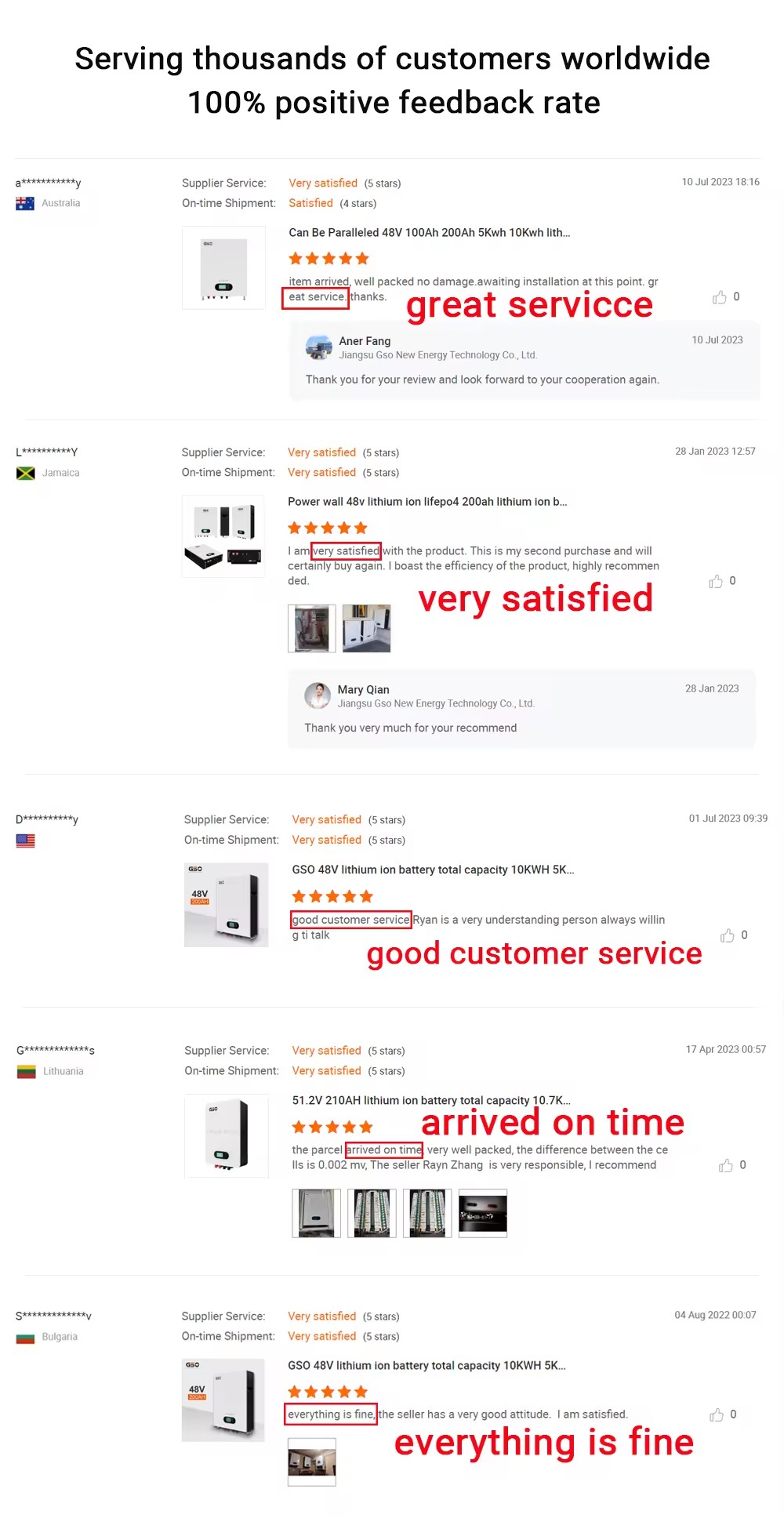

Customer Feedback

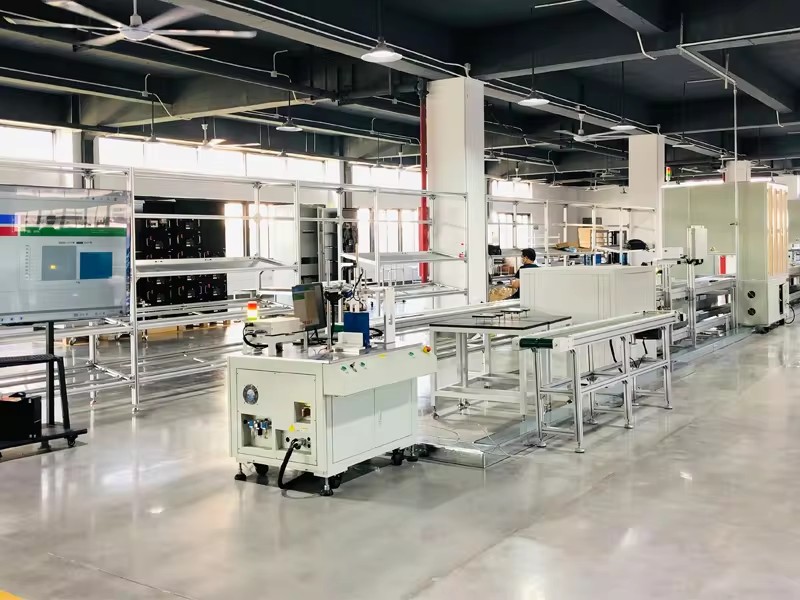

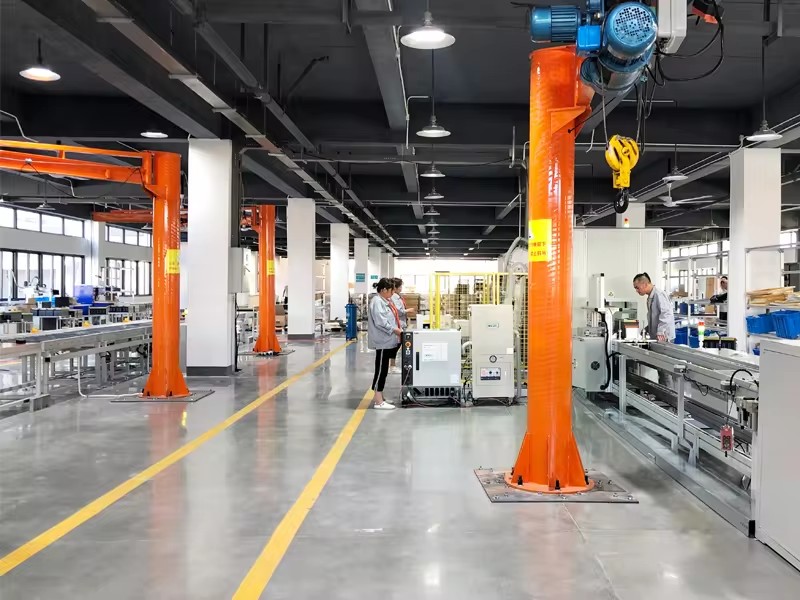

Company Profile

Exhibitions

2023 SNEC Exhibitions

2023 Canton Fair

2023 CESC Exhibitions

2023 EESA Exhibitions

Hello, partner!

If you can see here, it means that you are interested in our products, you may want to give us a chance to cooperate. Click the button below to learn more about our products through our professional customer service.

Send Inquiry

Frequently Asked Questions (FAQ)

What are the charging and output modes supported by the GST hybrid inverter?

The GST series supports four charging modes: Mains priority charging, Solar priority charging, Mains solar hybrid charging, and Solar only charging. It also features three output modes: grid-connected mode, off-grid mode, and bypass mode, giving you complete flexibility for power management.

Can this hybrid inverter work without a battery connection?

Yes, the GST series supports battery-free output. It can start up and run connected loads using only PV (solar power) input. It also features a battery activation function for activating sleeping lithium batteries.

Does the GST inverter support parallel connection for higher power capacity?

Yes, the GST series is highly scalable. You can combine up to 9 units in parallel configuration to increase the power capacity. The parallel system can support both single-phase and three-phase AC outputs.

What types of batteries are compatible with the GST inverter?

The inverter is fully compatible with Lithium batteries, Lead-acid batteries, and customizable user-defined batteries, giving you the flexibility to choose the best storage chemistry for your project.

Is remote monitoring supported?

Yes, an optional remote WiFi/GPRS module can be configured with the inverter. This allows you to check the system's real-time working status and parameters remotely from any location.
