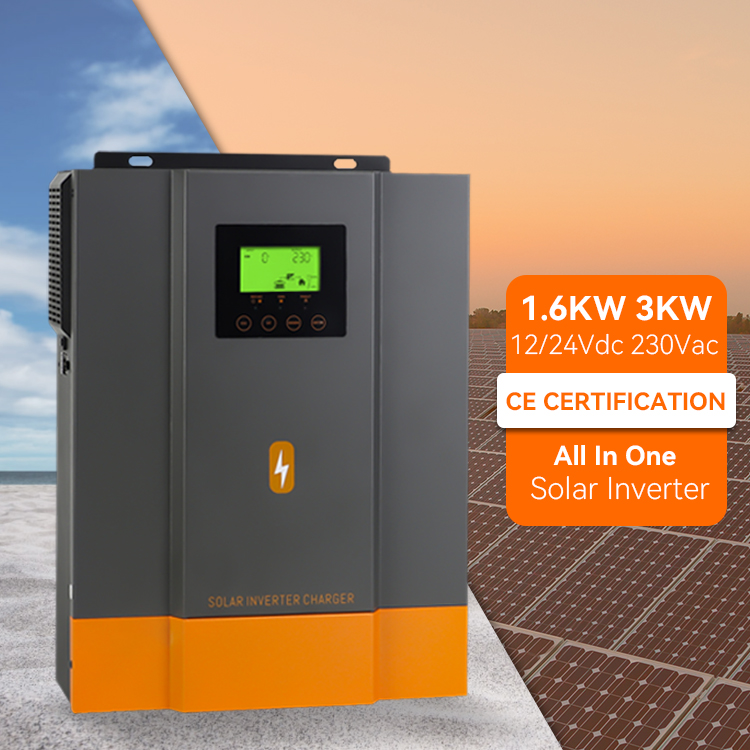

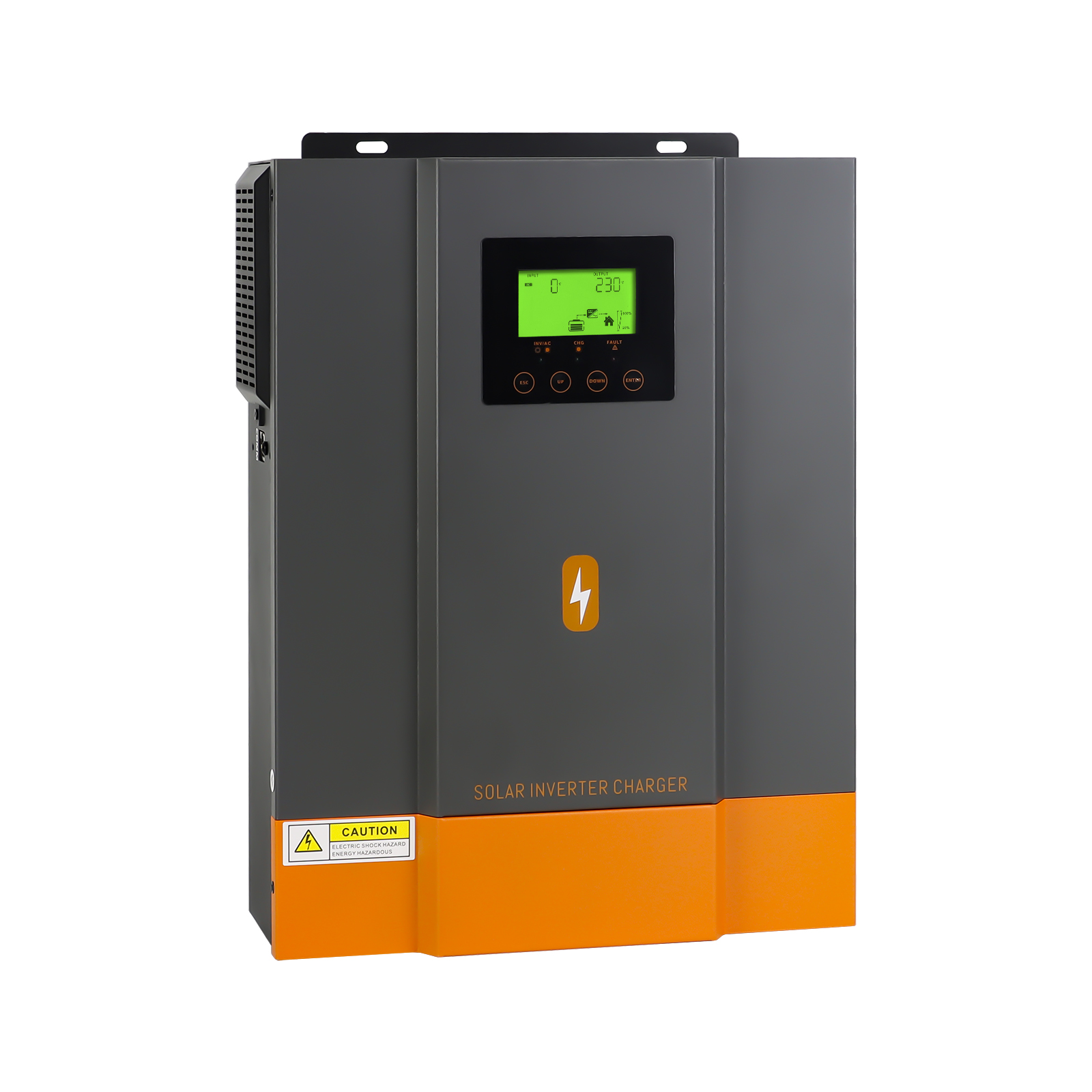

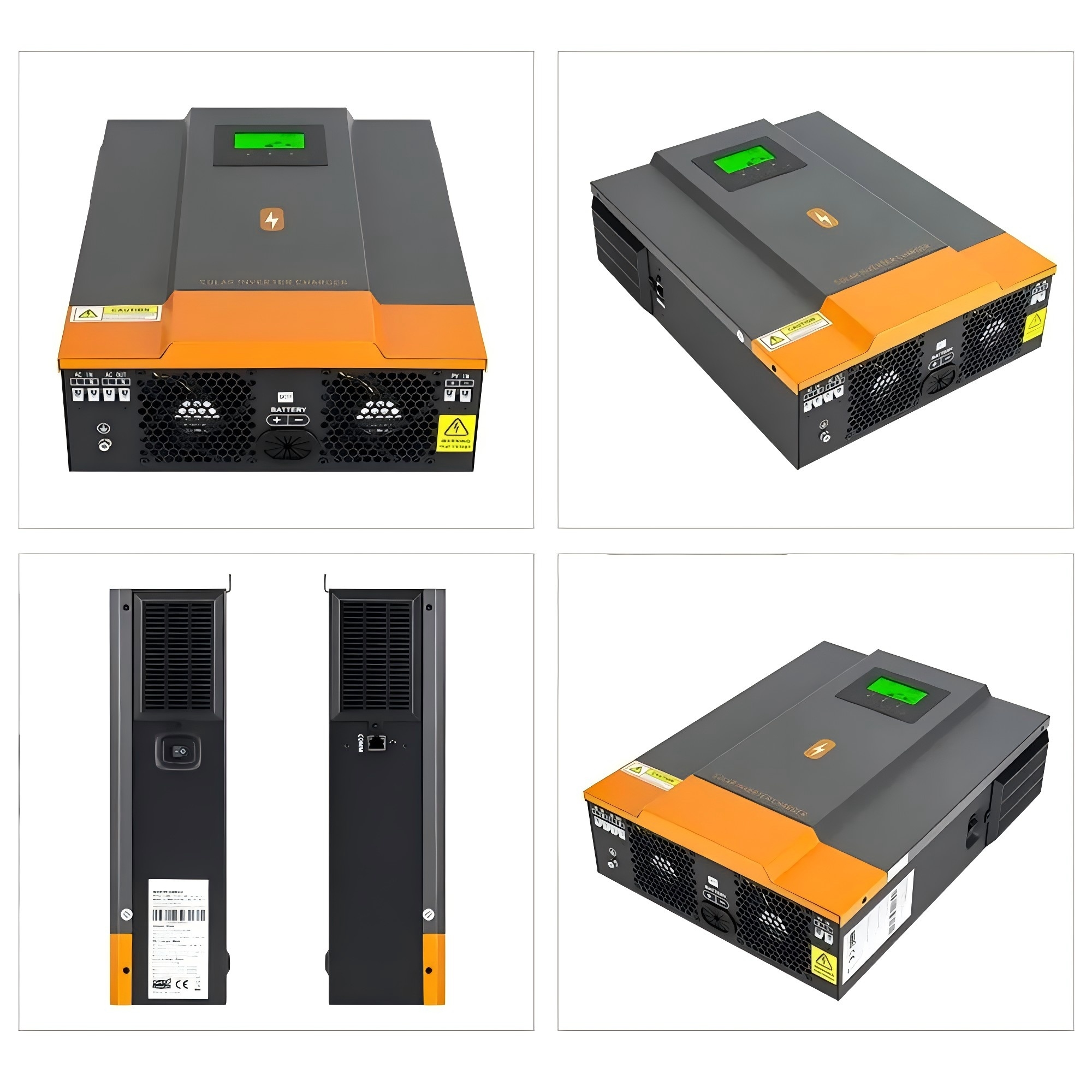

Power your life with the Solar Pure Sine Wave Inverter Charger - reliable, efficient, and versatile. Experience uninterrupted power with its 1600W/3000W capacity, 220VAC output, and 12VDC/24VDC input. Keep your devices running smoothly, anywhere and anytime.
This is a multi-function inverter/charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

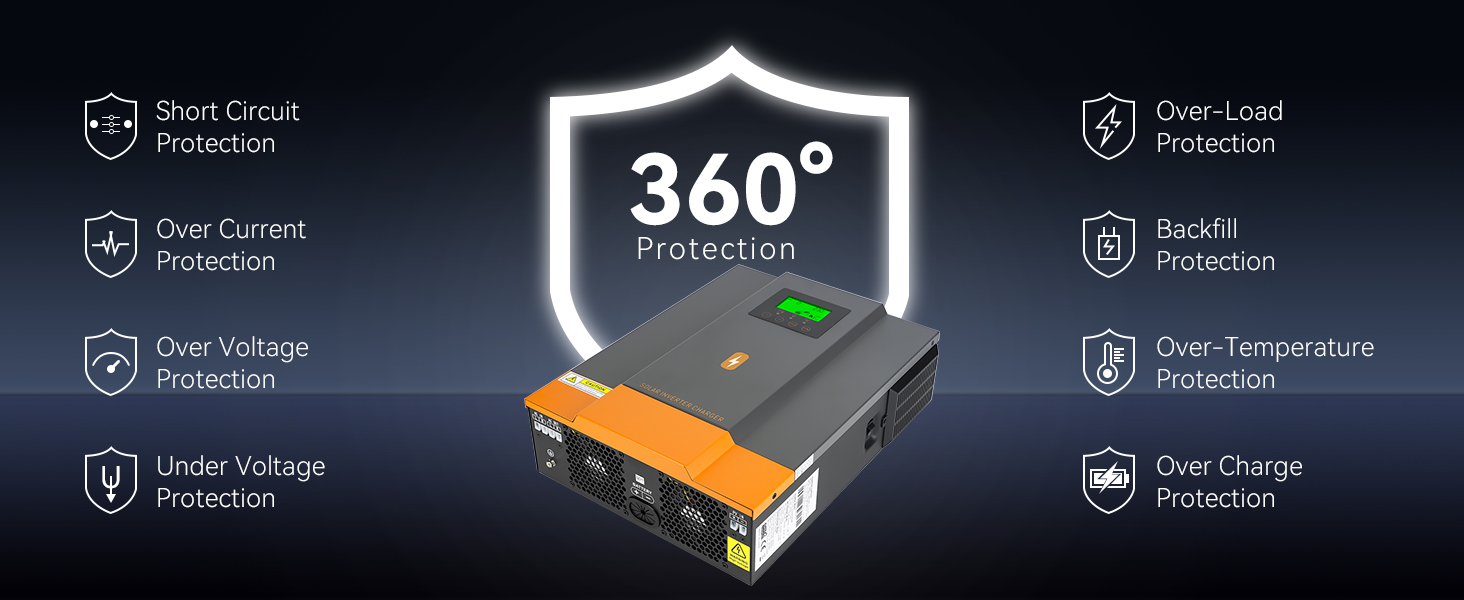

The system offers comprehensive protections. Enjoy the benefits of overload, over-temperature, and short circuit protection, ensuring the safety of your system. Additionally, the smart battery charger optimizes performance, prolonging the lifespan of your batteries.

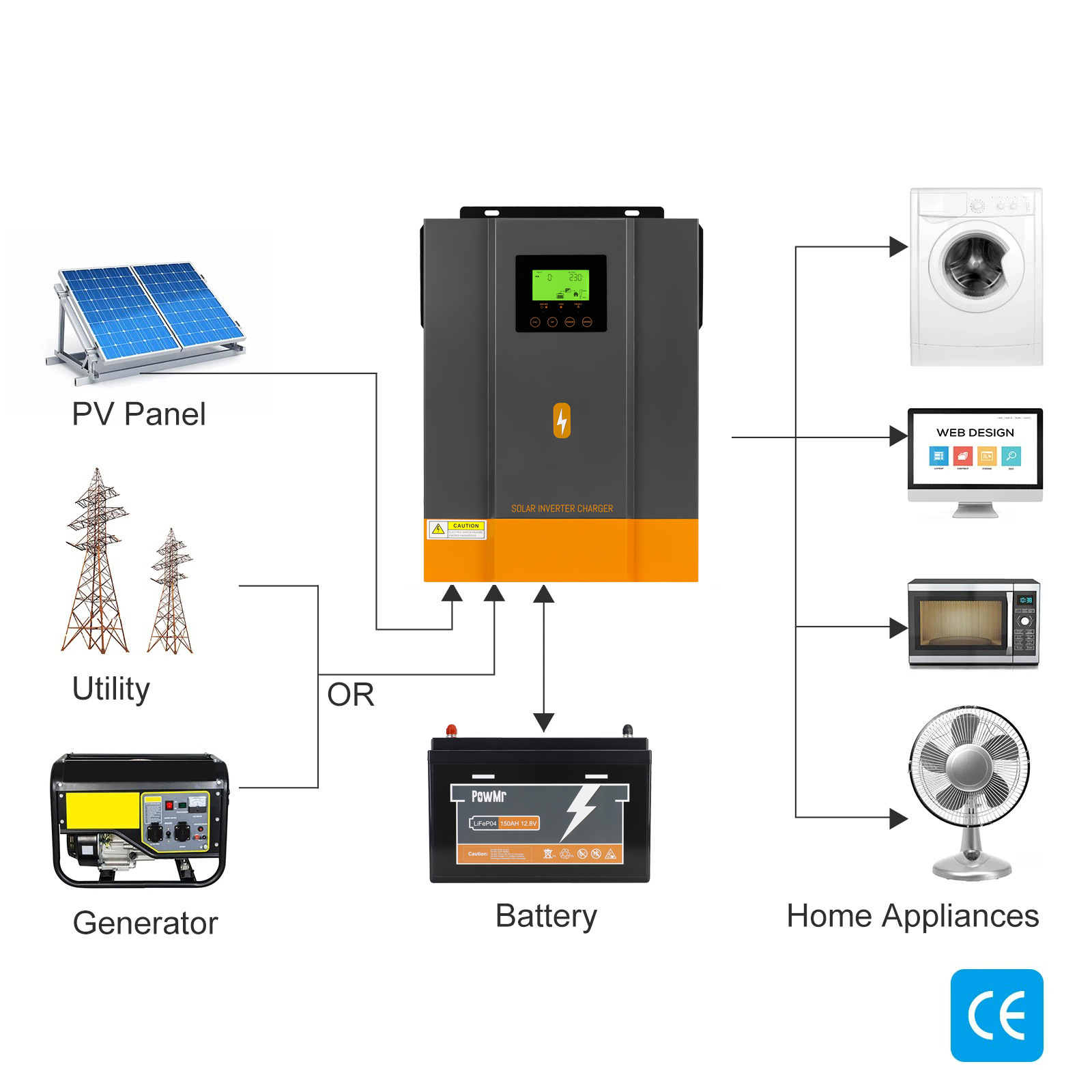

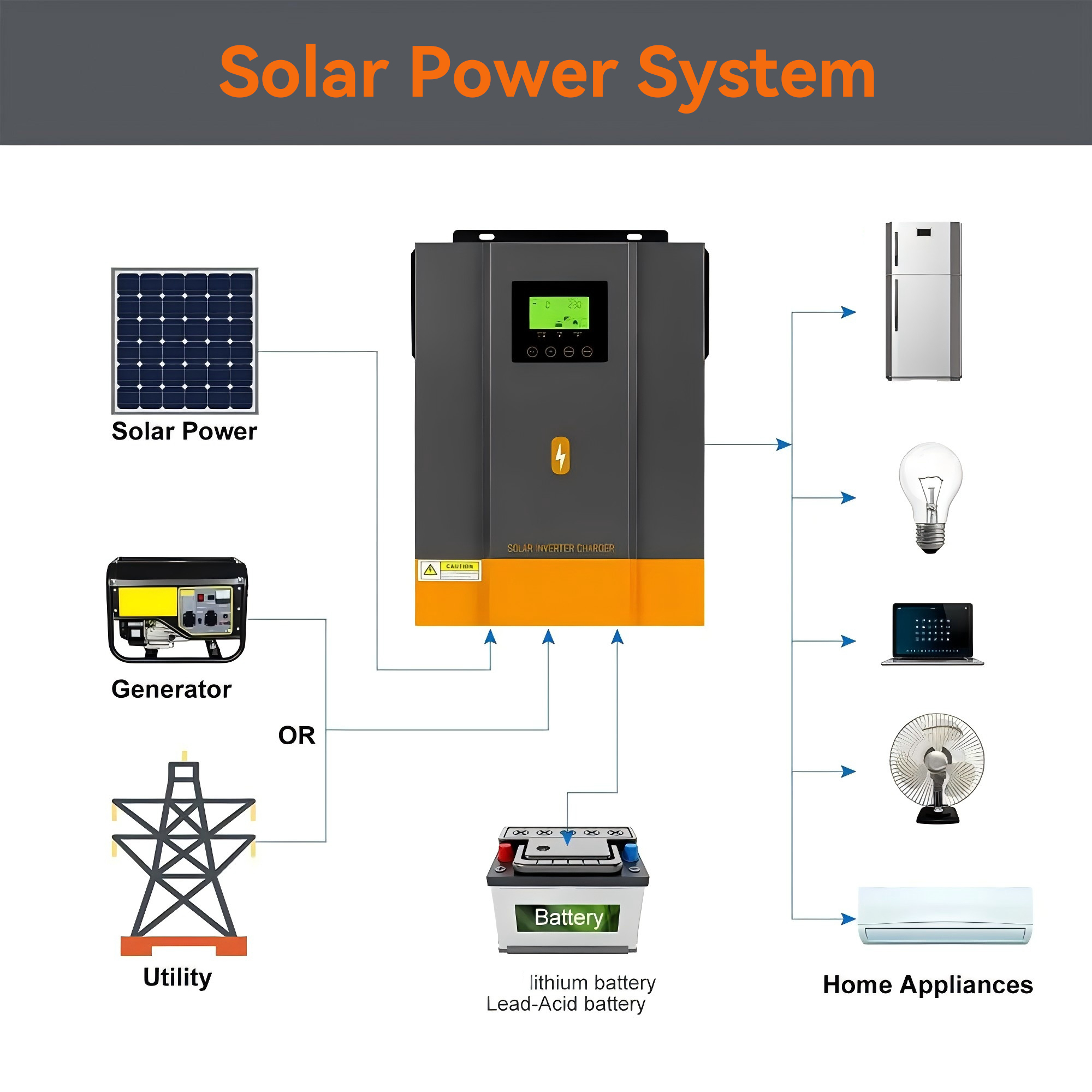

Equipped with an integrated MPPT charge controller (voltage range: 30-400V), this device charges 12V/24V batteries, including lead-acid (flooded, AGM, sealed lead-acid, gel), LiFePO4 batteries, and lithium batteries (user mode). It also accepts energy from solar panels, the electrical grid, or a generator for optimal versatility.
| Inverter Model | POW-HVM2H-12V-N | POW-HVM3.2H-24V-N |
|---|---|---|
| AC Input | ||
| Input Voltage Waveform | Sinusoidal (Utility or generator) | |
| Nominal Input Voltage | 230Vac | |
| Nominal Input Frequency | 50/60Hz (Auto detection) | |
| Efficiency | >95% (Rated R load, battery full charged) | |
| Transfer Time | 10ms typical (UPS); 20ms typical (Appliances) | |
| AC Output (Back-Up) | ||
| Rated Output Power | 2000VA/1600W | 3200VA/3000W |
| Output Voltage Regulation | 230Vac±5% Single phase | |
| Output Frequency | 50Hz | |
| Peak Efficiency | 94% | |
| Battery Specification | ||
| Battery Type | Lithium and Lead Acid Battery, support user define | |
| System Voltage | 12V | 24V |
| AC Charge & PV Charge Mode | ||
| Charging Algorithm | 3-Stages | |
| PV Array MPPT Voltage Range | 30~400Vdc | |
| Max Charging Current (AC+PV) | 80Amp | |
| General Specification | ||
| Operation Temperature Range | -10℃ ~ 50℃ | |
| Storage Temperature | -15℃ ~ 60℃ | |
| Dimension | 357x273x95mm | |
| Net Weight | 4.6kg | 4.8kg |
A1: We provide comprehensive English user manuals and step-by-step instructional videos detailing assembly, operation, and disassembly processes.
A2: Shipping can be arranged by sea, air, or express delivery directly to your destination. We assist in determining the most suitable transport method based on your needs.

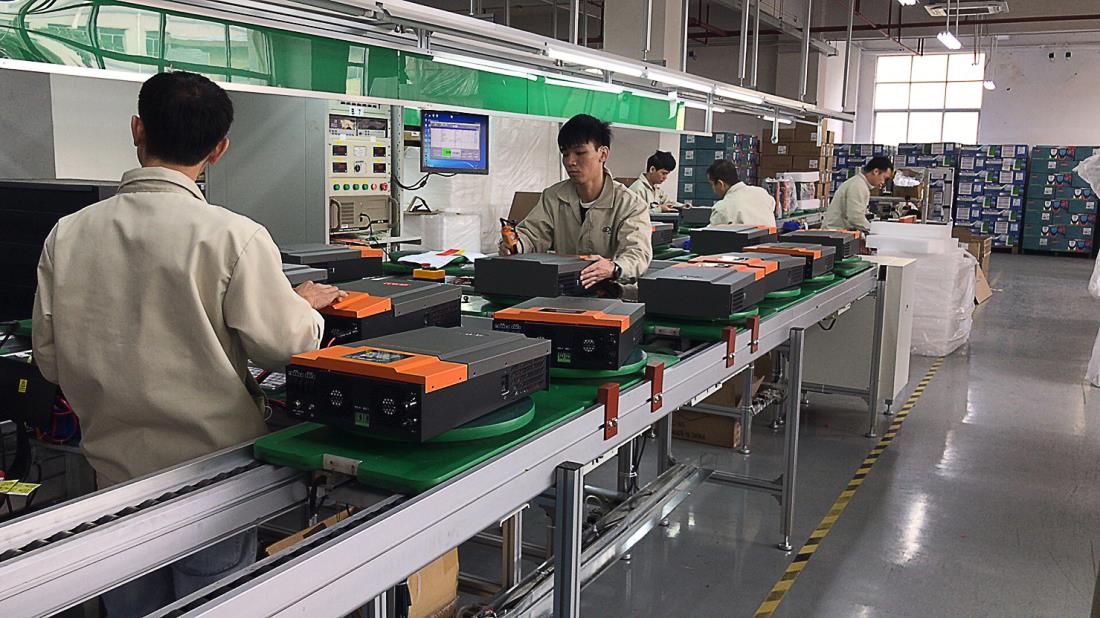

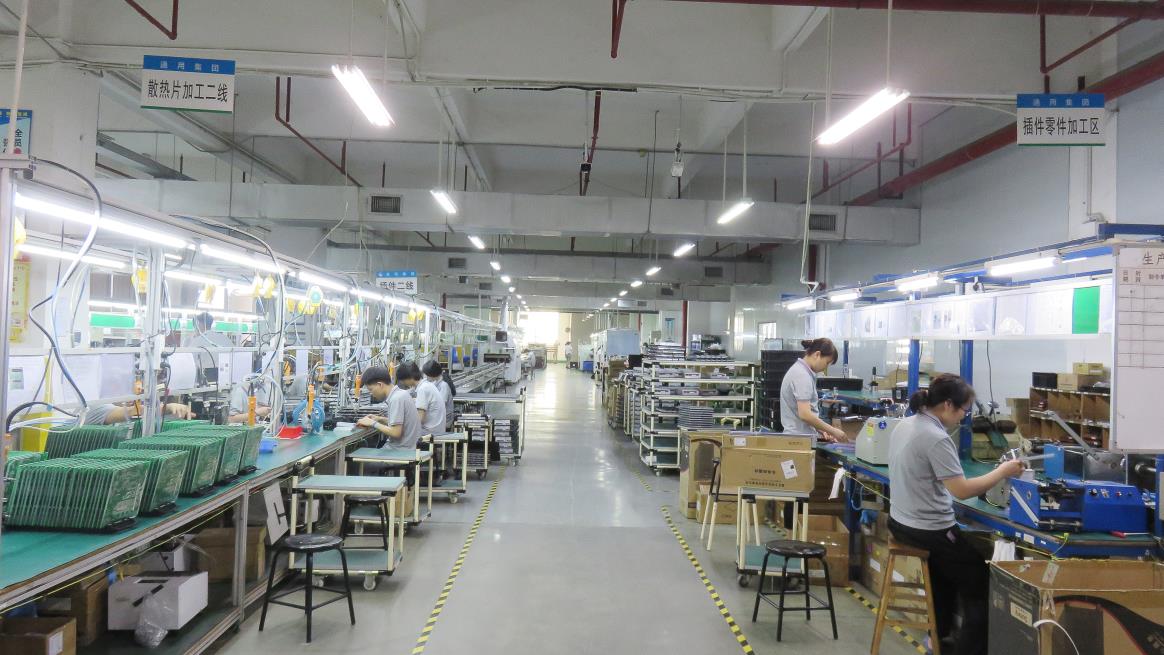

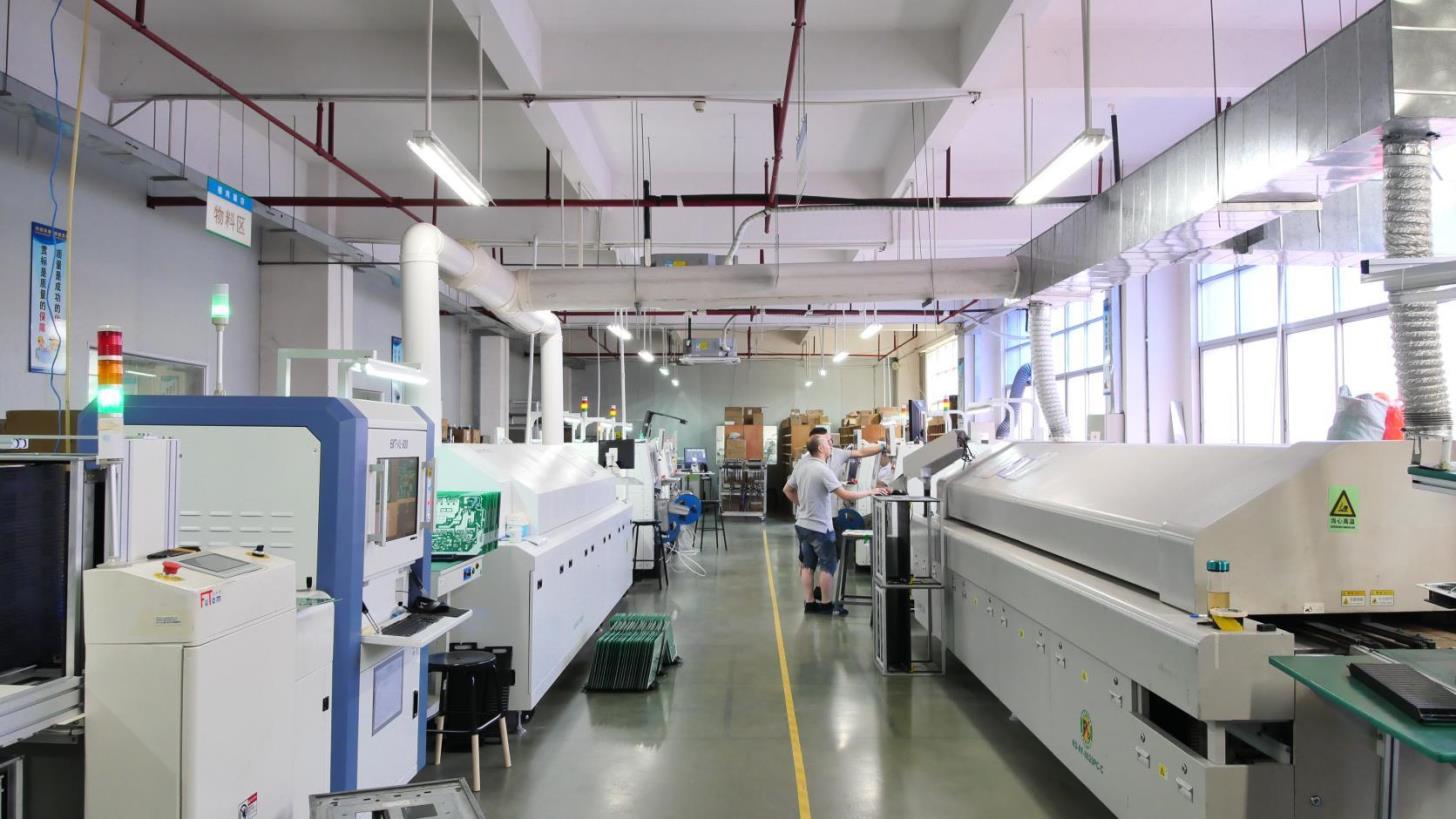

A3: The production output capacity ranges from 20,000 to 30,000 units per month.
A4: We offer lifetime online technical support. In case of any technical queries or issues, online assistance and video consultations are available.
A5: Transactions are processed through verified secure platforms that hold payments safely and protect buyer interests until order delivery is confirmed.
A6: Yes, custom configurations including specific brand logos, color options, and unique outer pattern designs can be tailored to request.
