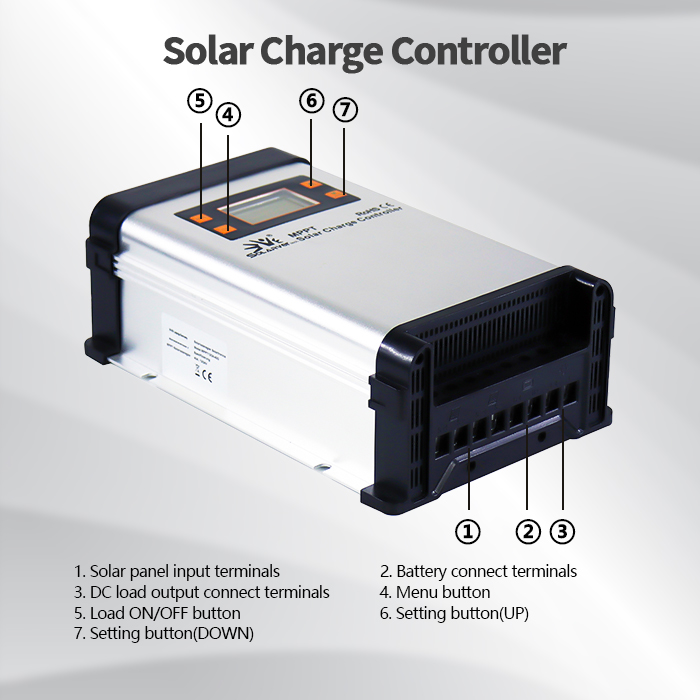

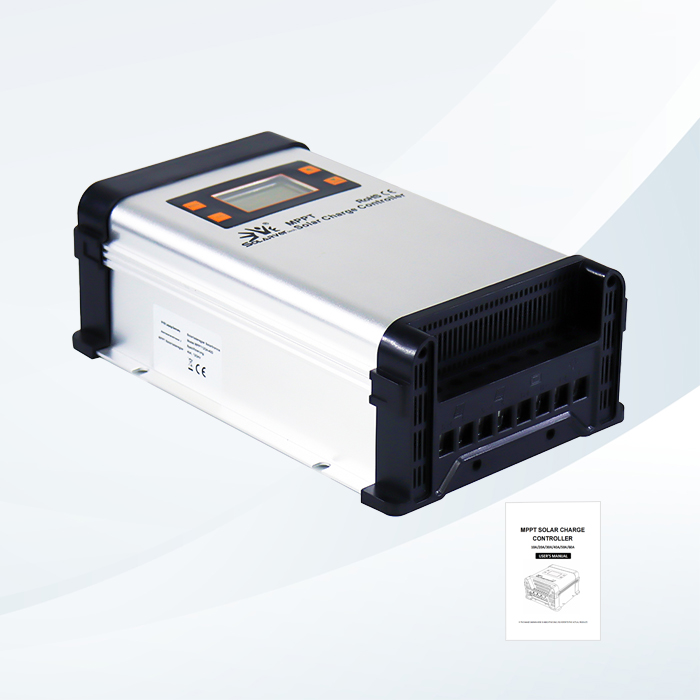

60A MPPT Solar Charge Controller 12V/24V/48V Auto Adapt with 5V2.1A USB Output and LCD Display Function

10A 20A 30A 40A 50A 60A MPPT Solar Charge Controller 12V 24V 48V MPPT Solar Charger Controller With LCD Display

Ideal for Home and Office appliances
Perfect for Portable Power Equipment
Optimized for Off-Grid Solar power systems

Products Description

Technical Parameters

Model	MPPT 12/24-10A	MPPT 12/24-20A	MPPT 12/24-30A	MPPT 12/24/48-40A	MPPT 12/24/48-50A	MPPT 12/24/48-60A
Solar system voltage	12/24V auto.work			12/24V/48V auto.work
pv operating voltage	12V 17-120V DC; 24V 34-120V DC; 48V 68-120V DC
Max.PV input power	12V 130W 24V 260W	12V 260W 24V 520W	12V 390W 24V 780W	12V 520W 24V 1040W	12V 650W 24V 1300W	12V 780W 24V 1560W
Rated output current	10A	20A	30A	40A	50A	60A
Rated DC load current	10A	20A	30A	40A	50A	60A
Max.conversion efficiency	0.997
Protection	PV array short circuit, over charging, battery reverse polarity, output short circuit
Battery type	Sealed, Gel, AGM, Flooded, Lithium battery
Charging algorithm	3 stage: Bulk, Absorption, Float
Bulk charge voltage	Sealed 14.4V, AGM 14.2V, GEL 14.2V, Flooded 14.6V
Float charge voltage	Sealed/Gel/AGM: 13.8V, Flooded 13.7V
Equalize charge voltage	Sealed 14.6V, AGM 14.8V, Flooded 14.9V

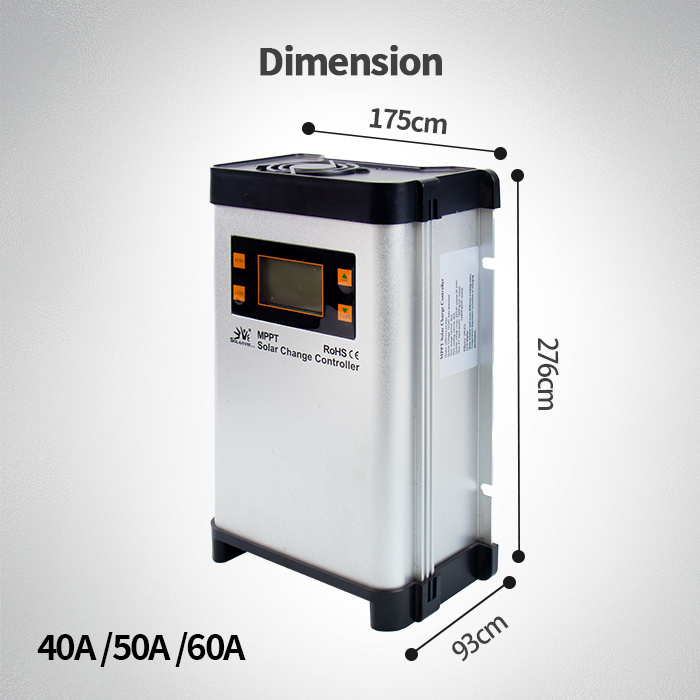

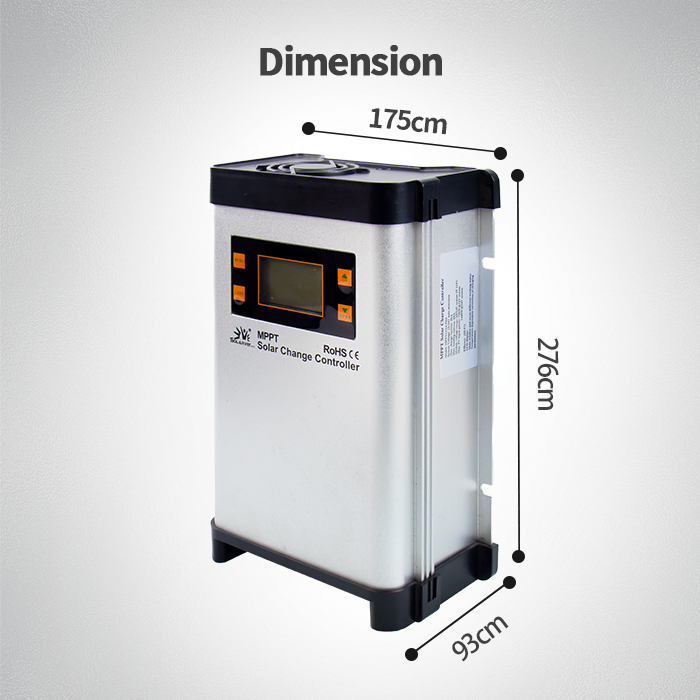

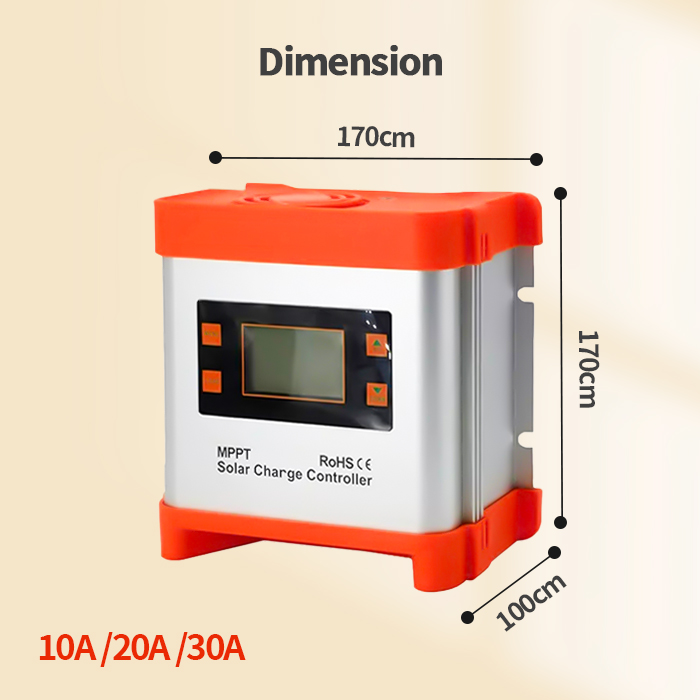

Dimension (LWH)	170170100mm			27617593mm
Net weight	1.3kg			2.2kg	2.3kg
Gross weight	1.5kg			2.4kg	2.5kg
Warranty	two years

Certifications

Why Choose Us

Payment & Shipping

Frequently Asked Questions (FAQ)

What is the advantage of using an MPPT controller over a PWM controller?

An MPPT (Maximum Power Point Tracking) controller tracks the optimal operating voltage and current of the PV panels to extract maximum available power, yielding up to 30% higher efficiency than traditional PWM controllers.

Does this solar charge controller support auto-voltage detection?

Yes, it automatically detects 12V/24V system configurations for the 10A, 20A, and 30A models, and 12V/24V/48V system configurations for the 40A, 50A, and 60A models.

What battery types can be charged with this controller?

This controller is highly versatile and supports Sealed, Gel, AGM, Flooded, and Lithium battery types.

What safety protection functions are built into the controller?

It features multiple protective systems, including protection against PV array short circuits, battery overcharging, battery reverse polarity, and output load short circuits.

What is the conversion efficiency of this MPPT controller?

The controller achieves an industry-leading maximum conversion efficiency of 99.7%, ensuring minimal power loss during the conversion process.
