Srne Gen4 SR-DM Series Ce Certified 60w/12v Adjustable Mppt Solar Charge Controller 10a Smart IP67 Waterproof IP Grade
Srne Gen4 SR-DM Series Ce Certified 60w/12v Adjustable Mppt Solar Charge Controller 10a Smart IP67 Waterproof IP Grade
Srne Gen4 SR-DM Series Ce Certified 60w/12v Adjustable Mppt Solar Charge Controller 10a Smart IP67 Waterproof IP Grade
Srne Gen4 SR-DM Series Ce Certified 60w/12v Adjustable Mppt Solar Charge Controller 10a Smart IP67 Waterproof IP Grade
Srne Gen4 SR-DM Series Ce Certified 60w/12v Adjustable Mppt Solar Charge Controller 10a Smart IP67 Waterproof IP Grade
1 / 5
Srne Gen4 SR-DM Series Ce Certified 60w/12v Adjustable Mppt Solar Charge Controller 10a Smart IP67 Waterproof IP Grade
Srne Gen4 SR-DM Series Ce Certified 60w/12v Adjustable Mppt Solar Charge Controller 10a Smart IP67 Waterproof IP Grade
Srne Gen4 SR-DM Series Ce Certified 60w/12v Adjustable Mppt Solar Charge Controller 10a Smart IP67 Waterproof IP Grade
Srne Gen4 SR-DM Series Ce Certified 60w/12v Adjustable Mppt Solar Charge Controller 10a Smart IP67 Waterproof IP Grade
Srne Gen4 SR-DM Series Ce Certified 60w/12v Adjustable Mppt Solar Charge Controller 10a Smart IP67 Waterproof IP Grade

Srne Gen4 SR-DM Series Ce Certified 60w/12v Adjustable Mppt Solar Charge Controller 10a Smart IP67 Waterproof IP Grade

Send Inquiry

Product Description

About Us
As a professional supplier
Support OEM / ODM

We can provide services such as:

  • Logo Printing
  • Packaging Customization
  • Marketing Support
  • High-Definition Pictures & Videos
  • Agent Product Training
Product Overview

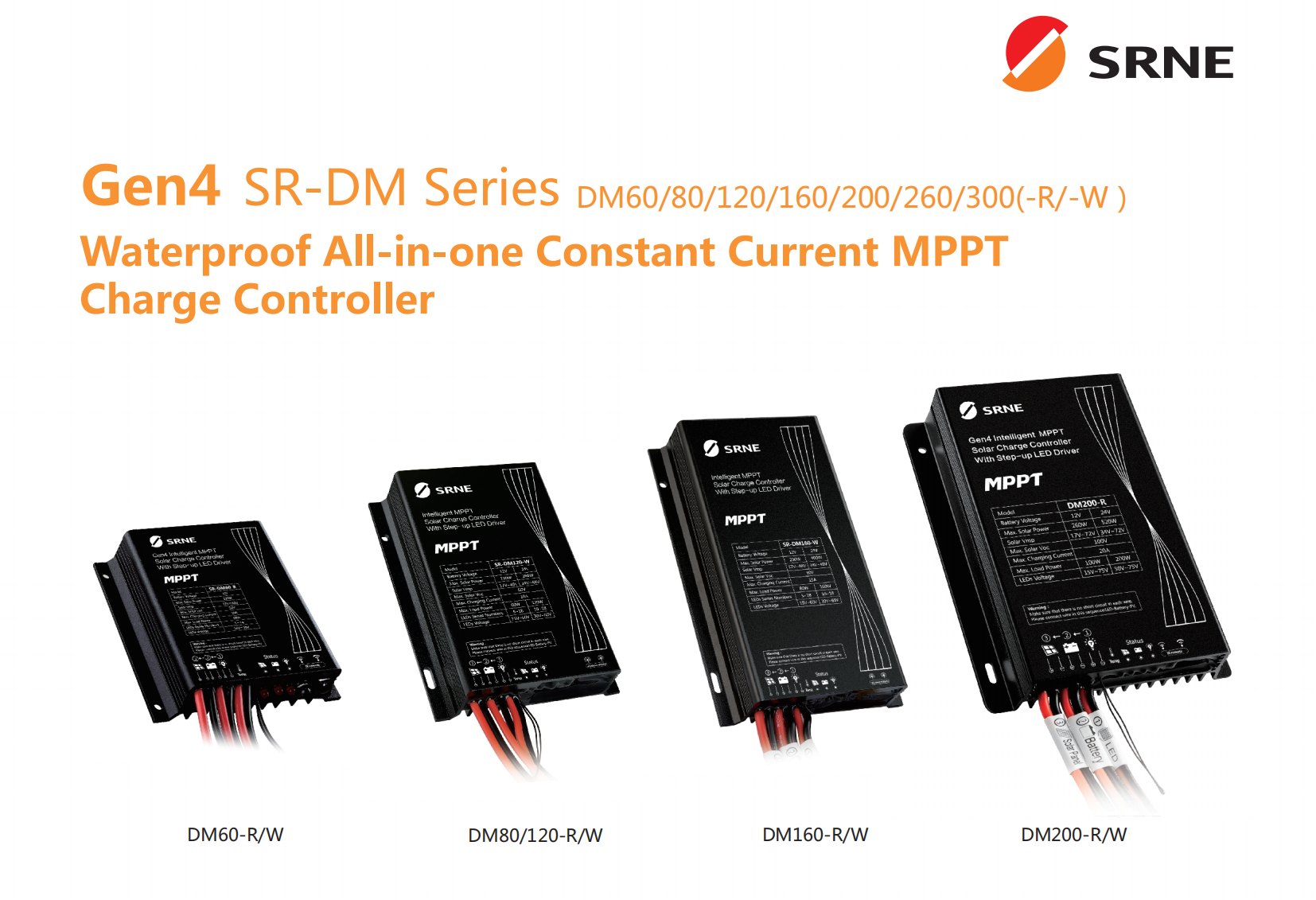

Product Overview Image
Gen4 SR-DM Series DM60/80/120/160/200/260/300(-R/-W)
Waterproof All-in-one Constant Current MPPT Charge Controller
  • Using MovingTrack MPPT maximum power tracking technology
  • Both lead-acid battery and lithium battery are applicable
  • 10-period programmable load power/time control
  • Multiple protections
  • Full aluminum housing, IP67 waterproof rating
Model DM60 DM80 DM120 DM160 DM200 DM260 DM300
System voltage 12V 12V 12V/24V 12V/24V 12V/24V 12V/24V 12V/24V
Maximum load power 60W/12V 80W/12V 60W/12V
120W/24V		 80W/12V
160W/24V		 100W/12V
200W/24V		 130W/12V
260W/24V		 150W/12V
300W/24V
Maximum solar input power 130W/12V 200W/12V 130W/12V
260W/24V		 200W/12V
400W/24V		 260W/12V
520W/24V		 400W/12V
800W/24V		 550W/12V
1100W/24V
Maximum charge current 10A 15A 10A 15A 20A 30A 40A
Controller dimensions (mm) 80*82*22.6 114*88.3*24.5 114*88.3*24.5 142*88.3*24.5 142*88.3*24.5 142*88.3*24.5 155*114.4*34
IP rating IP67
Product Size

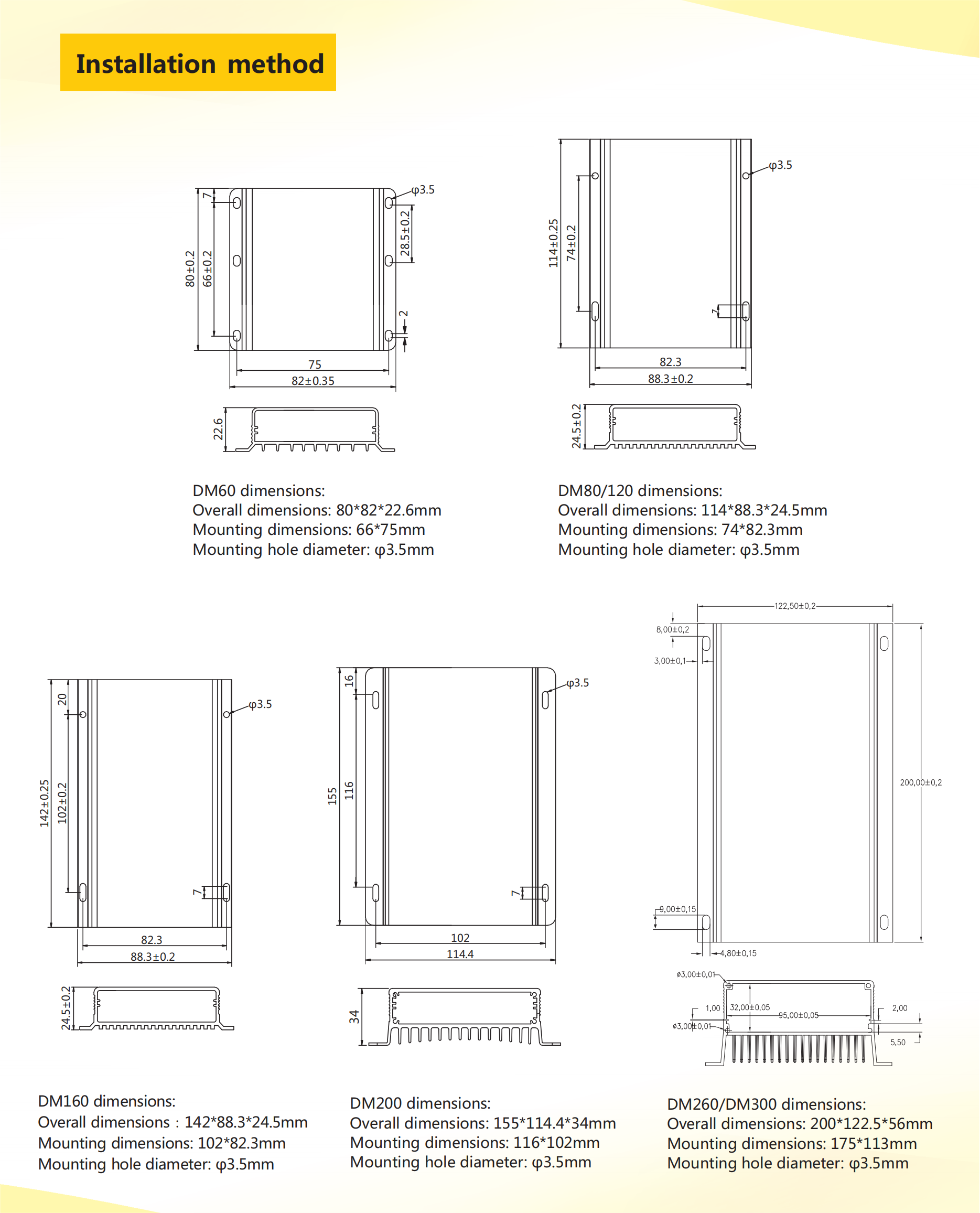

Product Dimensions Chart

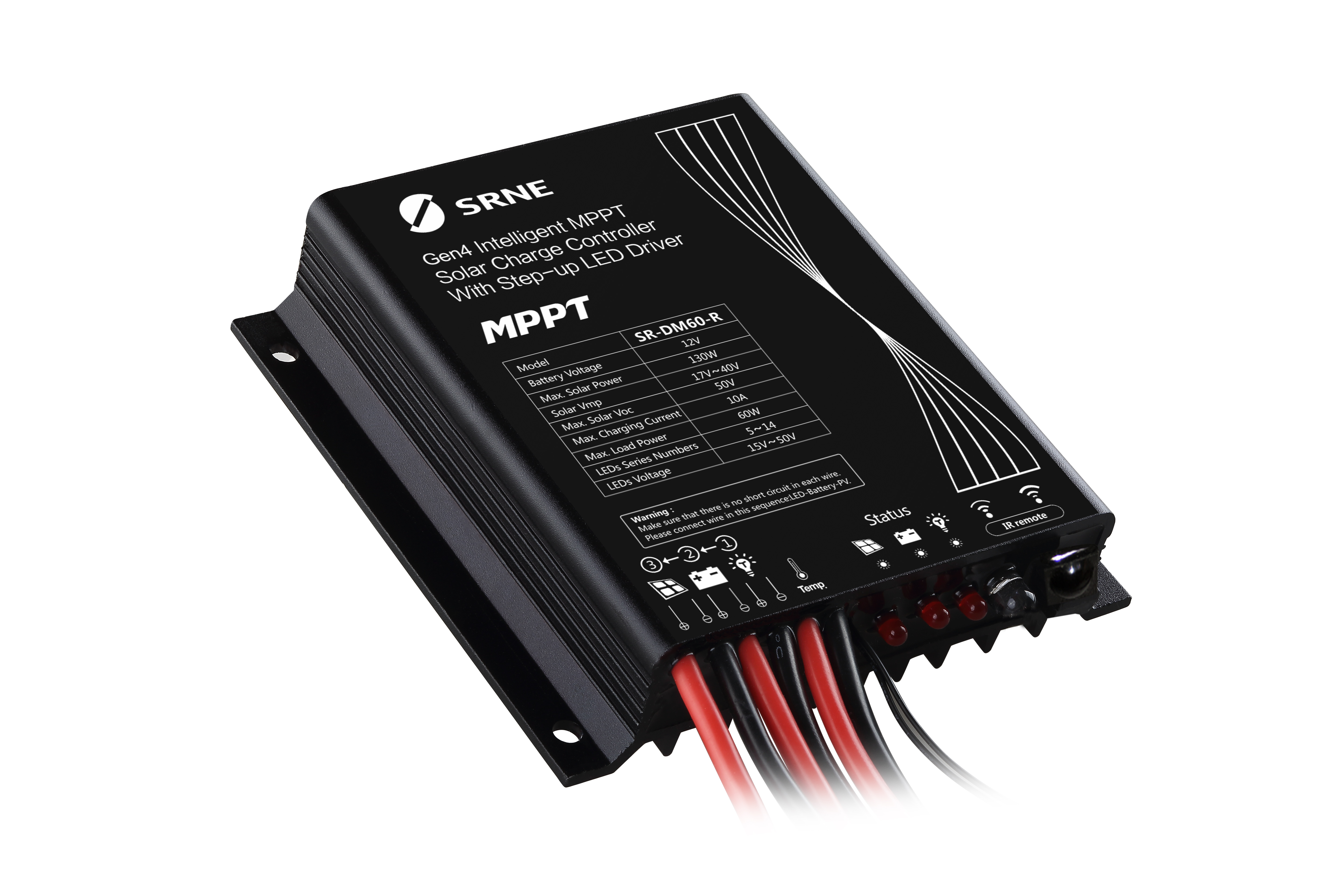

Product View 1

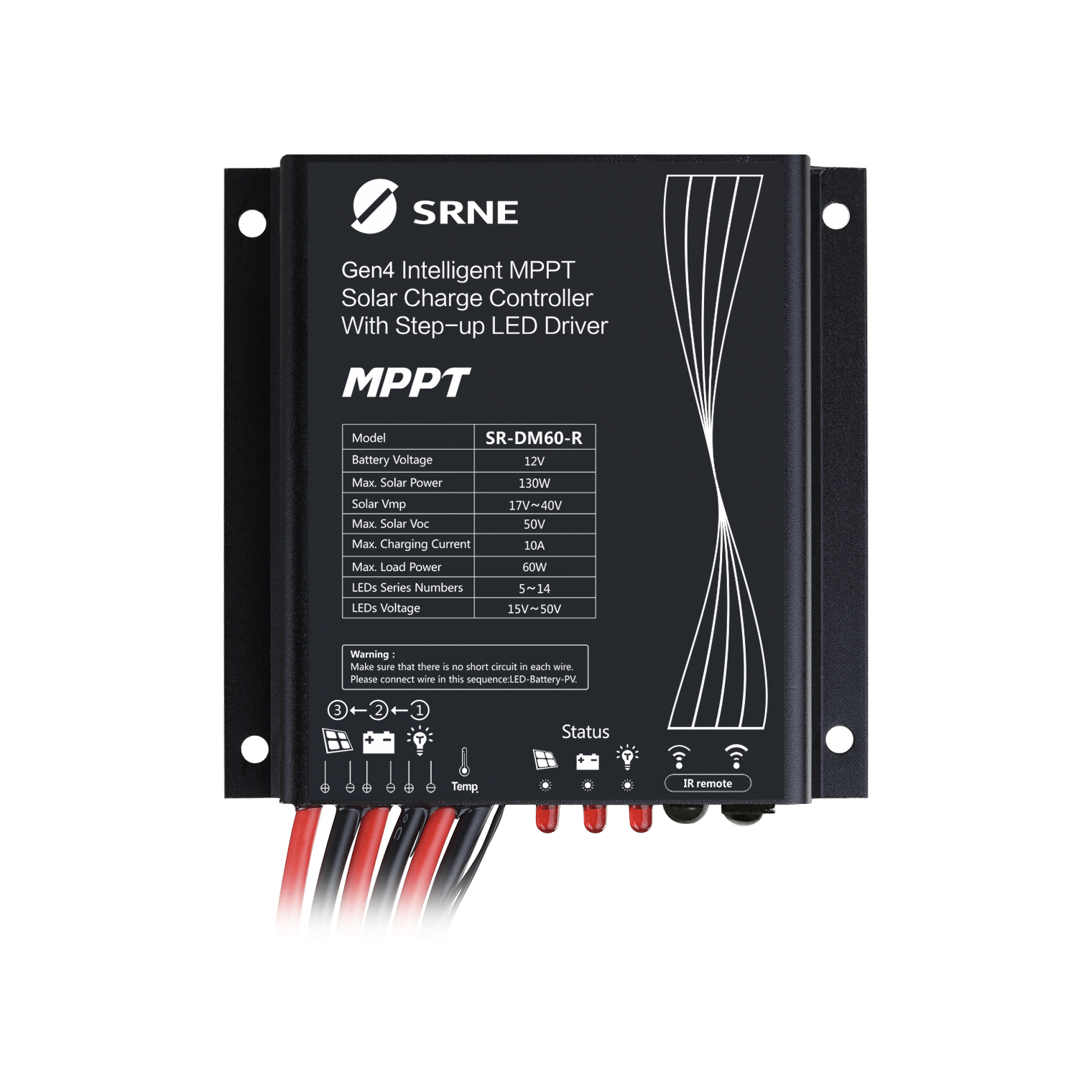

Product View 2

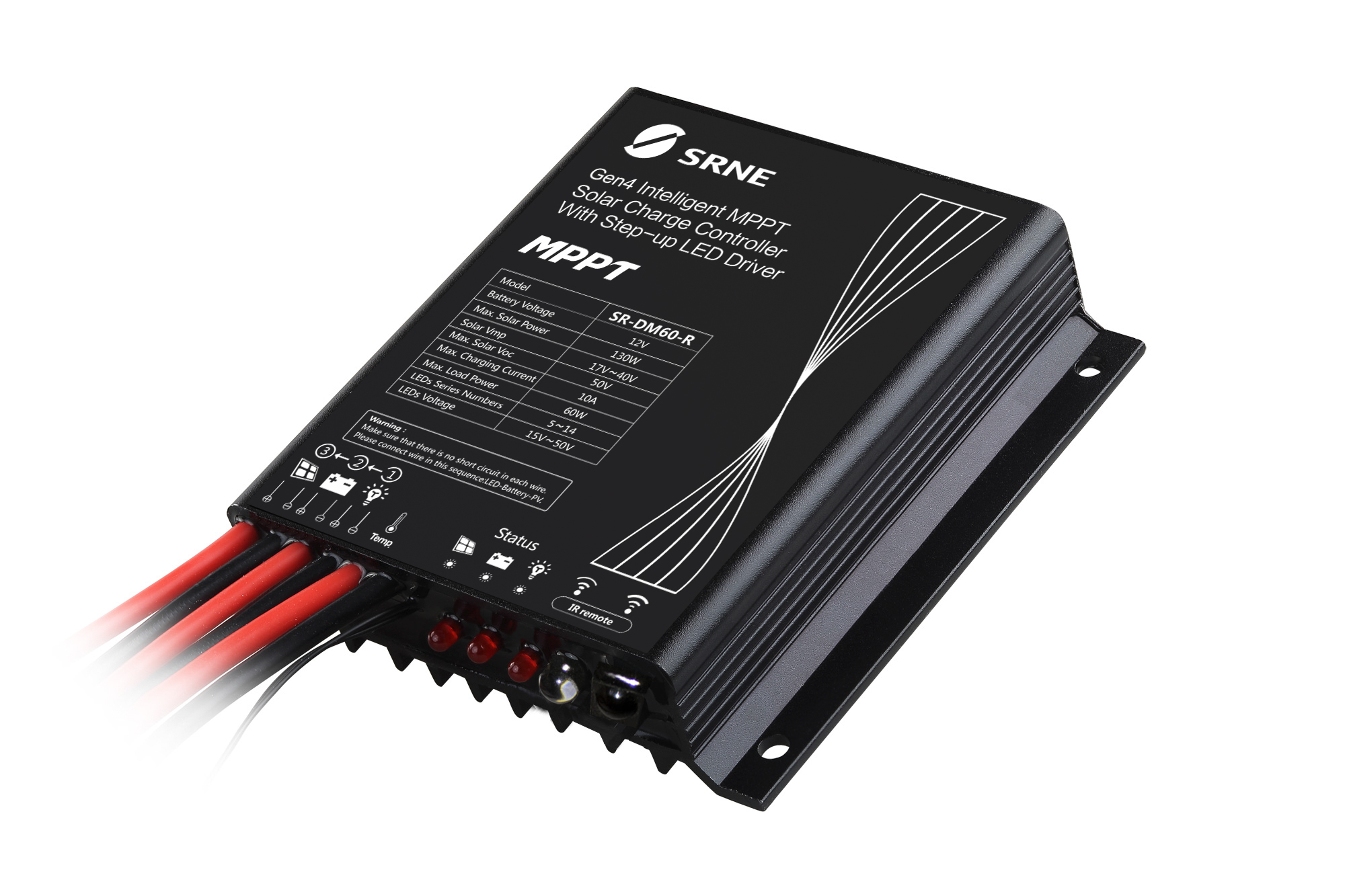

Product View 3
Why Choose Us
Factory Facilities

Factory building / Incoming material / Production line

Advanced Machinery

UV flat printer / Automatic soldering machine / Laser engraving machine

Quality Testing

Vibration test / Drop test / Aging test

Logistics and Reviews

Automatic packaging machine / Warehouse / Our reviews

Certificates
JP PSE Certificate

JP PSE

IP65 EN50549 Certificate

IP65 EN50549

IP65 8-12KW G99 Certificate

IP65 8~12KW G99

CE Certificate

CE

HF SAA IEC-62109 Certificate

HF SAA IEC-62109

RoHS Certificate

RoHS

Project Cases
Project Case Application
FAQ
What warranty do you offer?
Each product comes with our manufacturer's warranty and can range from 1 year up to 10 years depending on the specific product you are interested in. For example:
• IP20 inverter has a 2-year warranty
• IP65 inverter has a 5-year warranty
• IP65 battery has a 10-year warranty
• Accessories have a 1-year warranty.
Is it ok to print my logo on the product?
Yes. We support adding your logo to the product (sticker logo MOQ is 50 units).
When will you ship goods?
Regular products are usually shipped within three working days. Customized product shipment time varies according to the specific product model and requirements.
What about the shipping methods and lead times?
We offer shipping by sea, air, and courier services. Shipping times vary depending on the mode of transportation:
• Sea freight: 20-30 working days
• Air freight: 6-10 days
• Express: 6-10 days
Please note that these are estimated times and may vary depending on destination location and other logistical factors.
What OEM/ODM customization services can you provide?
We can provide a wide range of services including logo printing, packaging customization, marketing support, high-definition pictures and videos, as well as agent product training.
What battery types are applicable with the MPPT Charge Controller?
Our waterproof all-in-one constant current MPPT charge controller is compatible with both lead-acid batteries and lithium batteries.
