Why Choose Us
One-Stop Turnkey Service
Why Choose Us?

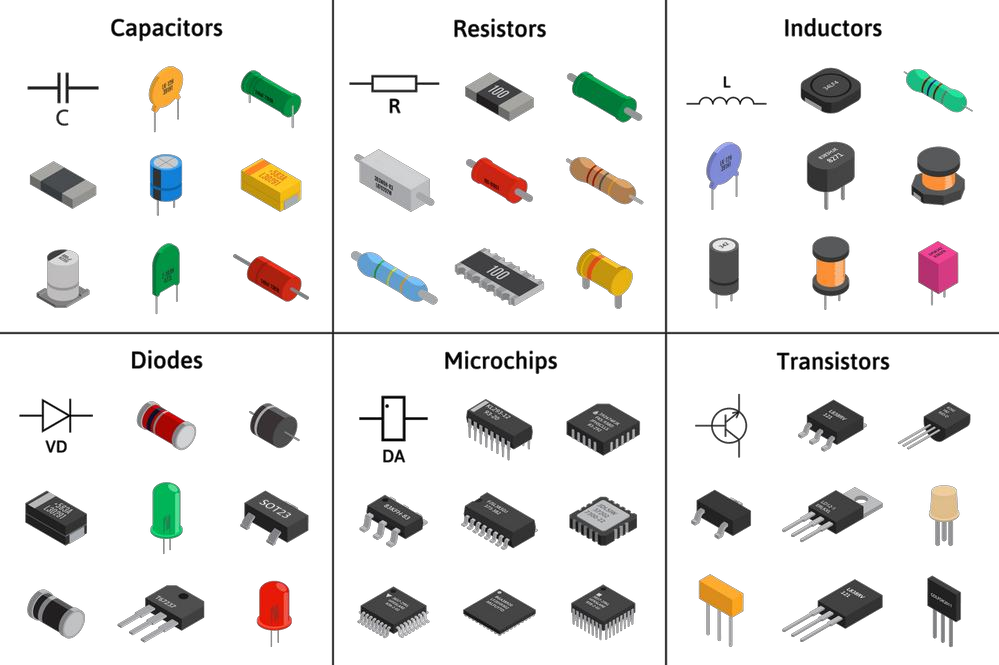

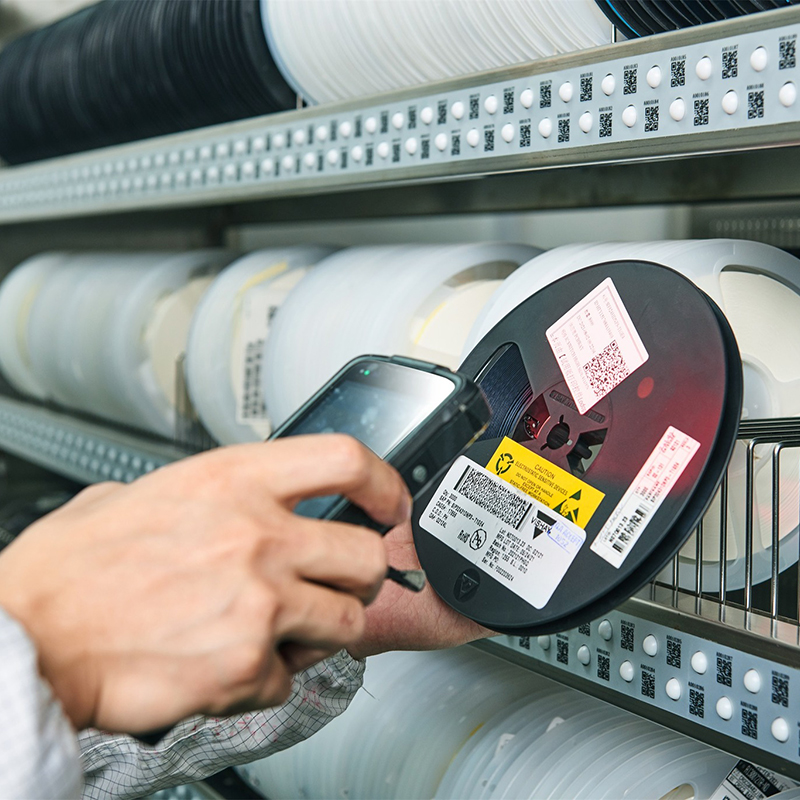

- Components sourcing
- Software programming
- SMT & Through holes assembly
- Functional Test
- Cable assembly
- Enclosure assembly
- Conformal coating
- Customized packaging
Our manufacturing facility was established in 2014, mainly involved in the operation and sales of monitoring equipment and media player. In 2014, we began to independently develop PC and PC peripheral products. In 2015, we cooperated to build a factory and establish a strategic partnership. We are committed to the development and sales of PC products, while our production facility is responsible for production, forming an integrated production management model from product development to product production.
Products Description
| Parameter |
Specifications |
| Product |
Custom pcb & pcba & Original IC Electronic components |
| Brand Name |
Custom PCB & PCBA |
| Base Material |
FR1~FR4/Aluminum/PI/CU |
| Board Thickness |
according to customer's requirements, 0.4mm-3.2mm |
| Copper Thickness |
0.5oz, 1oz, 2oz, 3oz, 4oz |
| Layer |
according to customer's requirements, 1~58 Layers |
| Certificate |
ISO9001/RoHS/CE |
| Surface Finishing |
LeadFree HASL/Immersion Silver/ENIG |
| Solder mask color |
according to customer's requirements, Green Black Red Blue |
| Silkscreen |
according to customer's requirements, Black White |
| Note |
Please provide Gerber file and Bom List for quoting |
| Surface Finishing |
0.2 |
| Board Size |
0.1 |
| Type |
Pcb Board |
| Material |
FR-4 |
Our Market Sectors
We offer electronic contract assembly services for a broad range of electrical products. Our list of customers is long, and we have completed thousands of projects for different sectors in the past years. Our customers tend to come back for their next project. We see that as a sign of satisfaction and trust in us.
What Can We Do For You

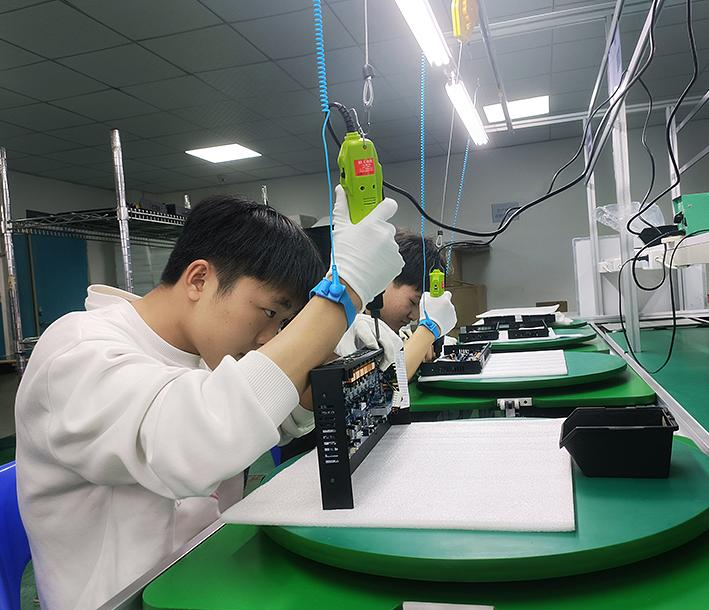

Customers highly appreciate our full turnkey services which include material sourcing, SMT & THT assembly, Test Assembly, box build assembly and final packing, as well as dropship and logistics support. We are continuously striving to create value for our partners in both traditional industry and new technology fields.
Product Reliability Verification

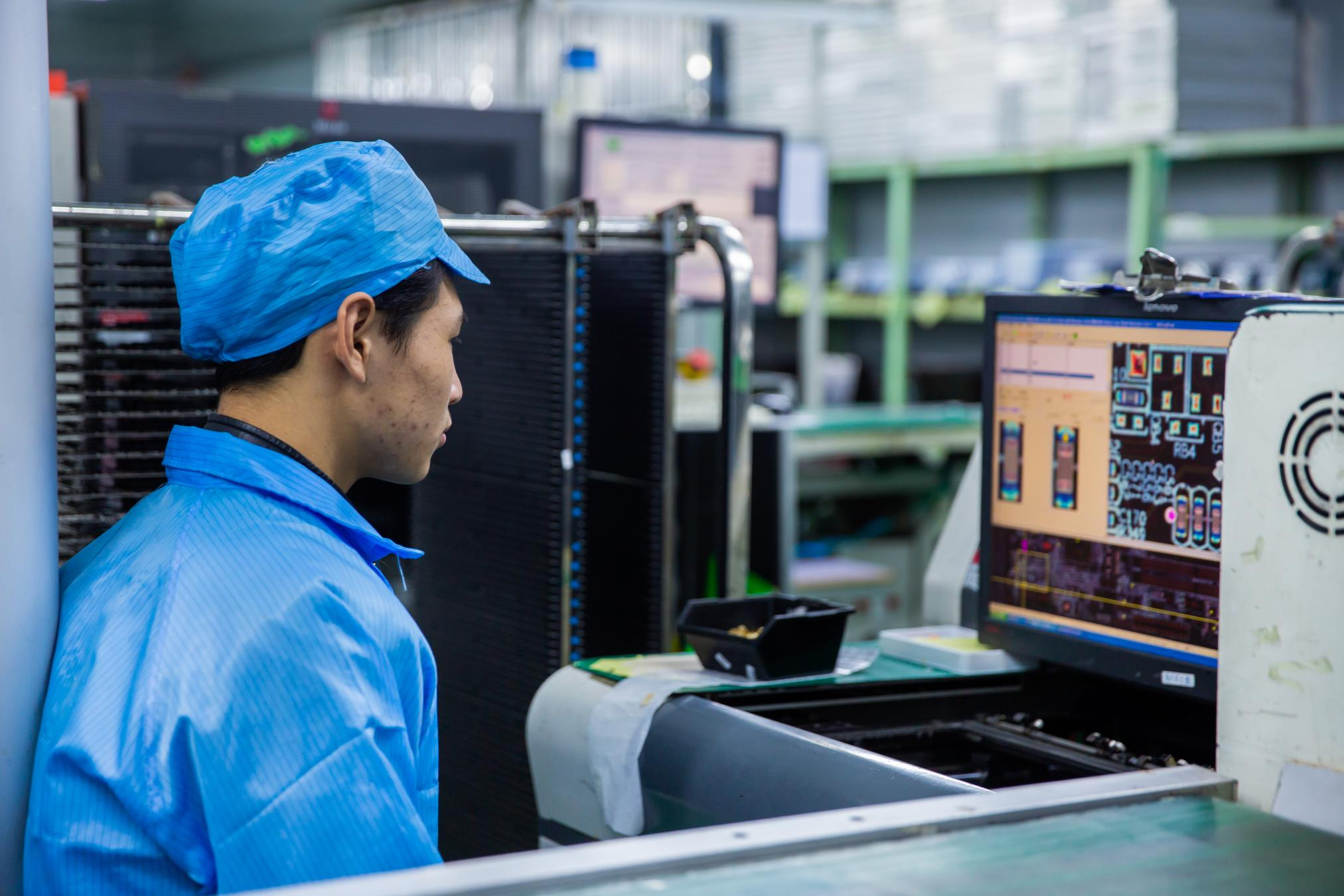

AOI Testing 100% for each board
1. Checks for solder paste conditions.
2. Checks for components down to 0201 package.
3. Checks for missing components, offset, incorrect parts, polarity, warp, bent pins...

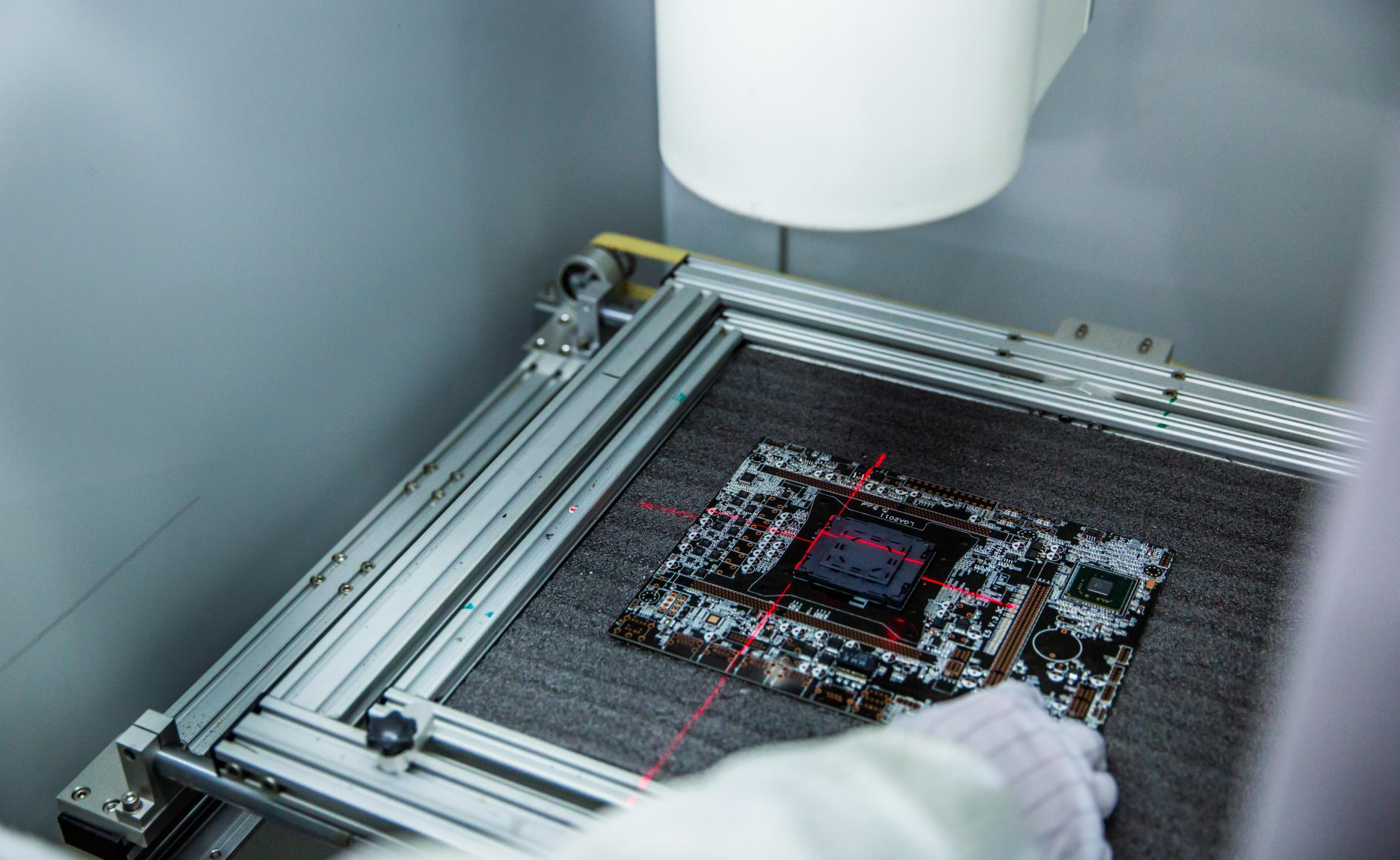

X-RAY Inspection
1. Defect inspection in IC encapsulation, e.g.: layer separation, cracking, void, and line integrity.
2. Possible defects in PCBA manufacturing processes, e.g.: misalignment, solder bridge and open. Especially for BGA and QFN components.
3. SMT solder short, cold solder, component shifted, solder insufficient, solder void inspection and measurement.

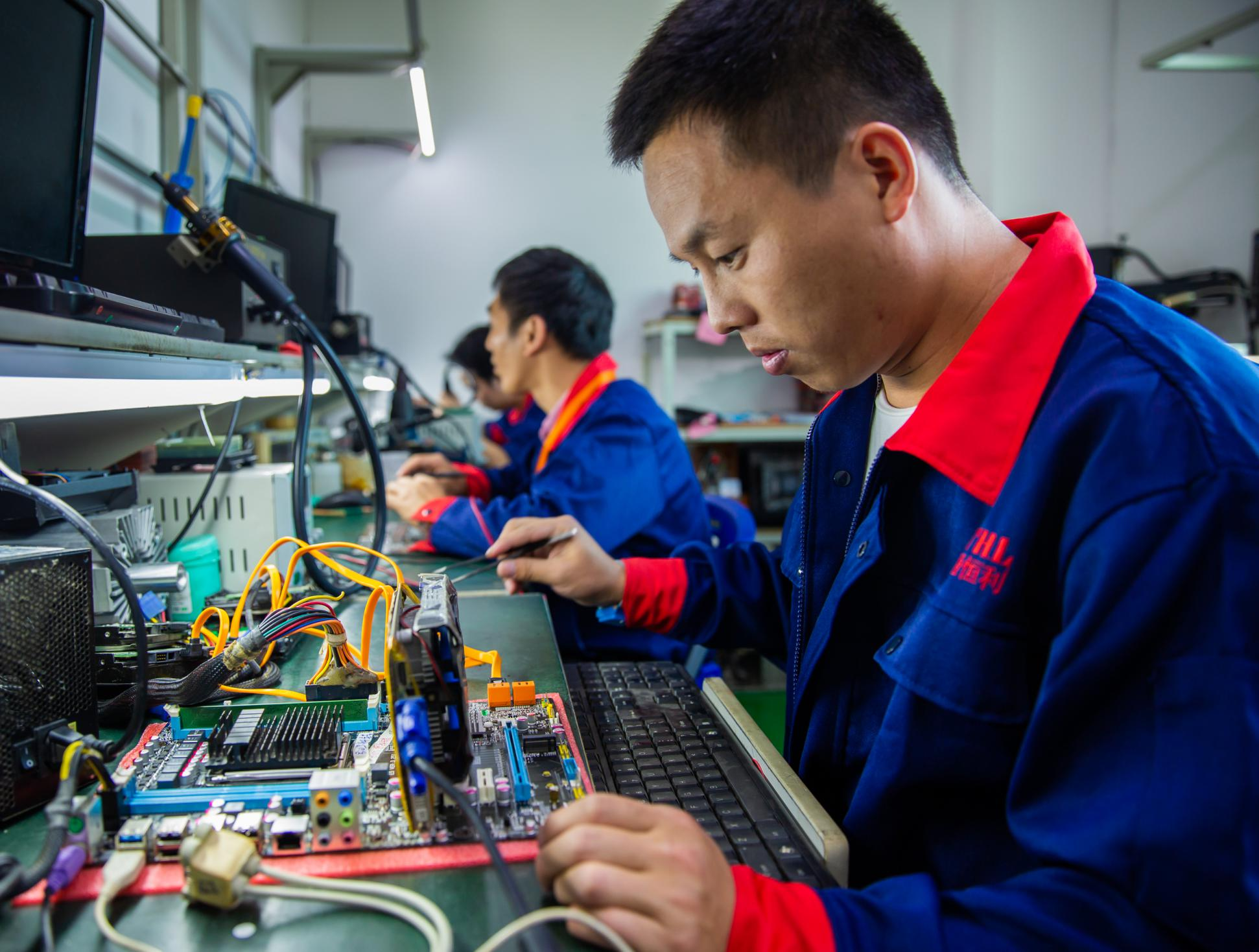

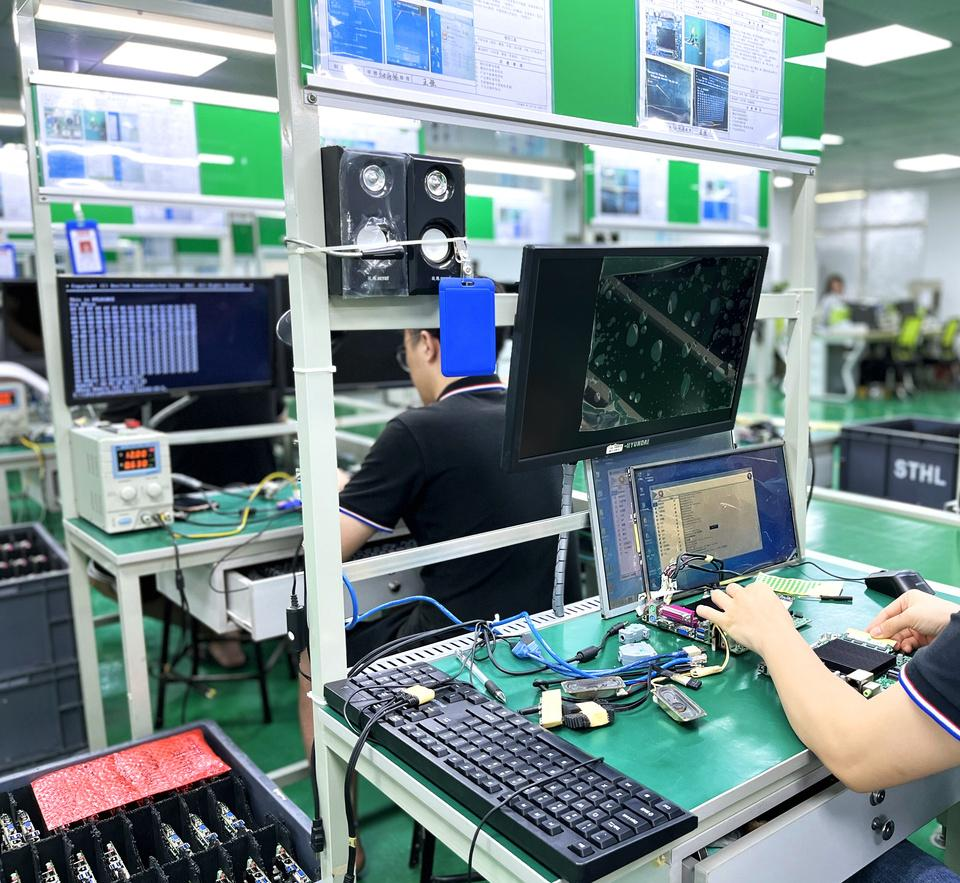

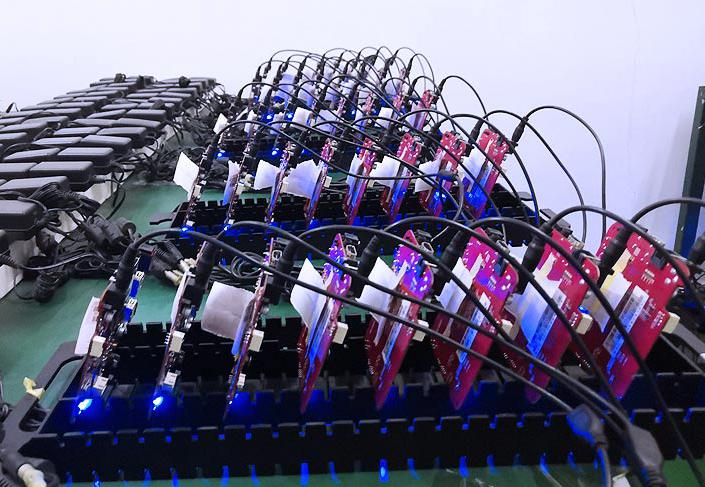

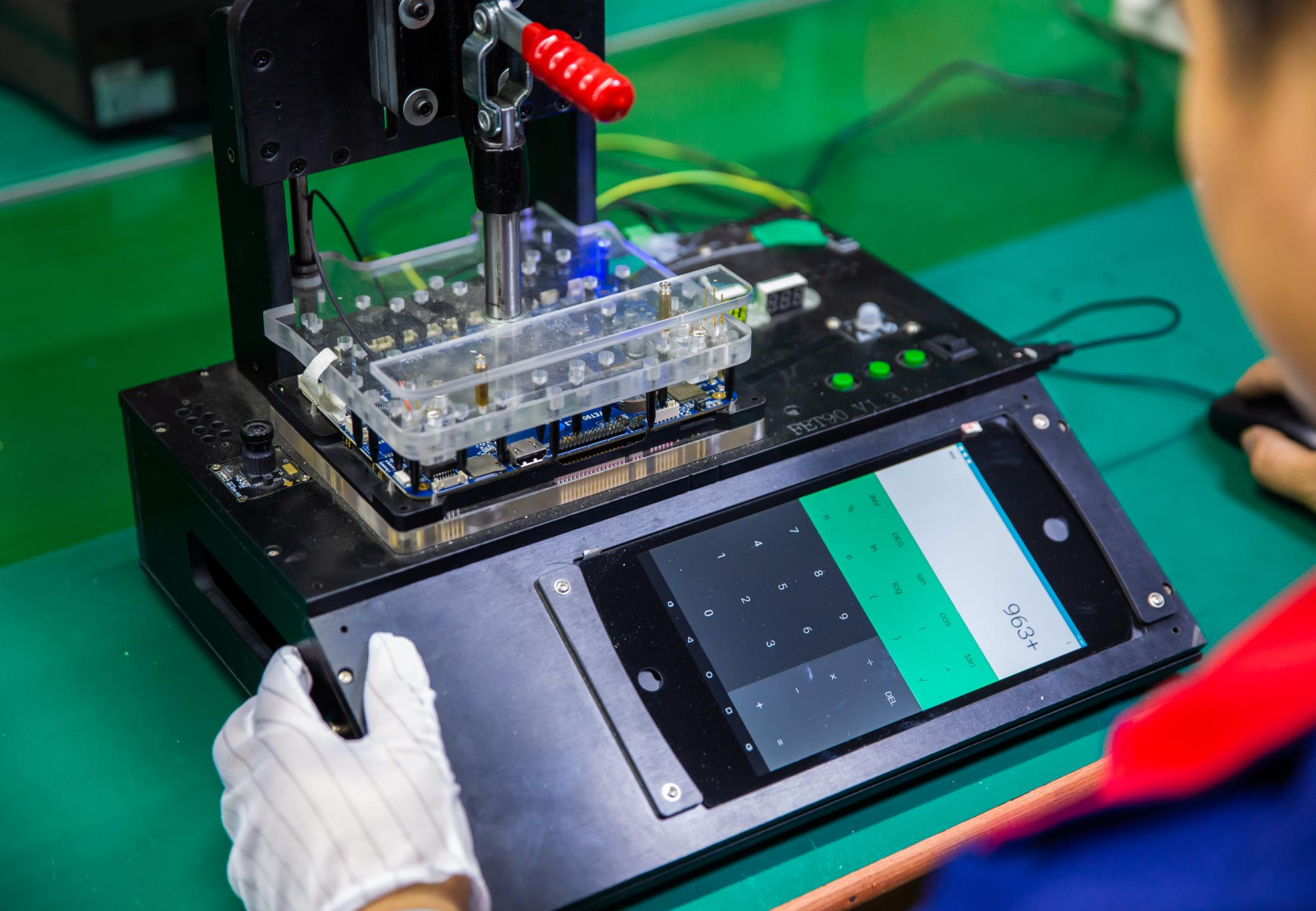

Function test for each board
To have function testing depends on our customers requirement, we will work together with your engineer to implement functional testing details such as test scope and instructions, test jig design. Our engineer will analyze your PCBA projects and offer some suggestion if you have no idea how to make effective function testing. Normally the testing result can be collected by a computer or recorded manually. If the PCBA board does not pass the testing, repair engineer will check the failure cause and fix it.

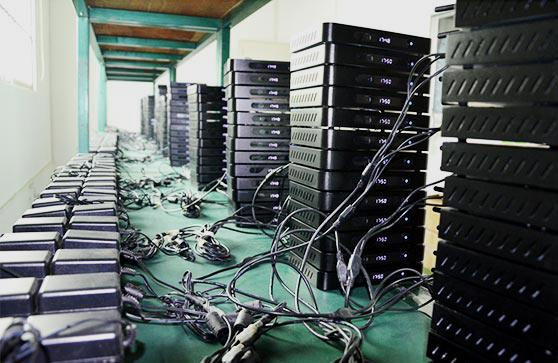

Aging Testing
To ensure the finished product's performance and stability of quality, aging test becomes vital. We provide 8-12 Hours and 12-24 Hours Ageing Test.

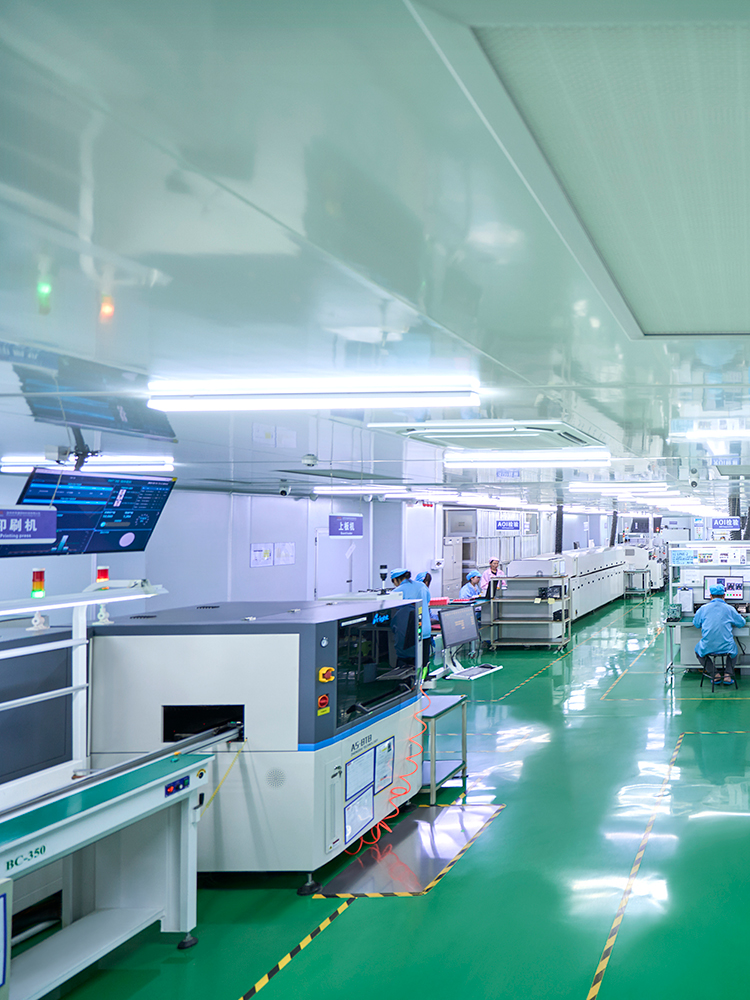

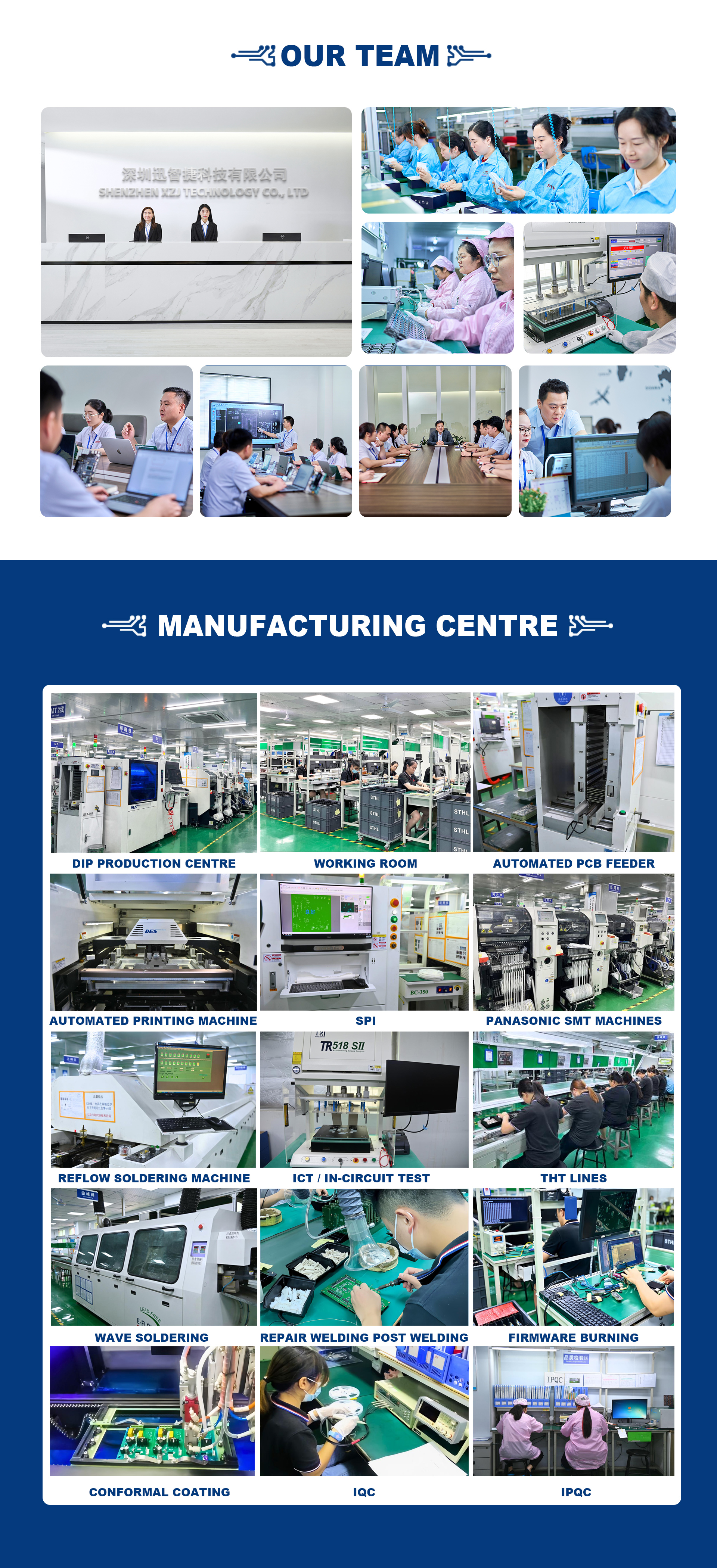

Manufacturing Centre

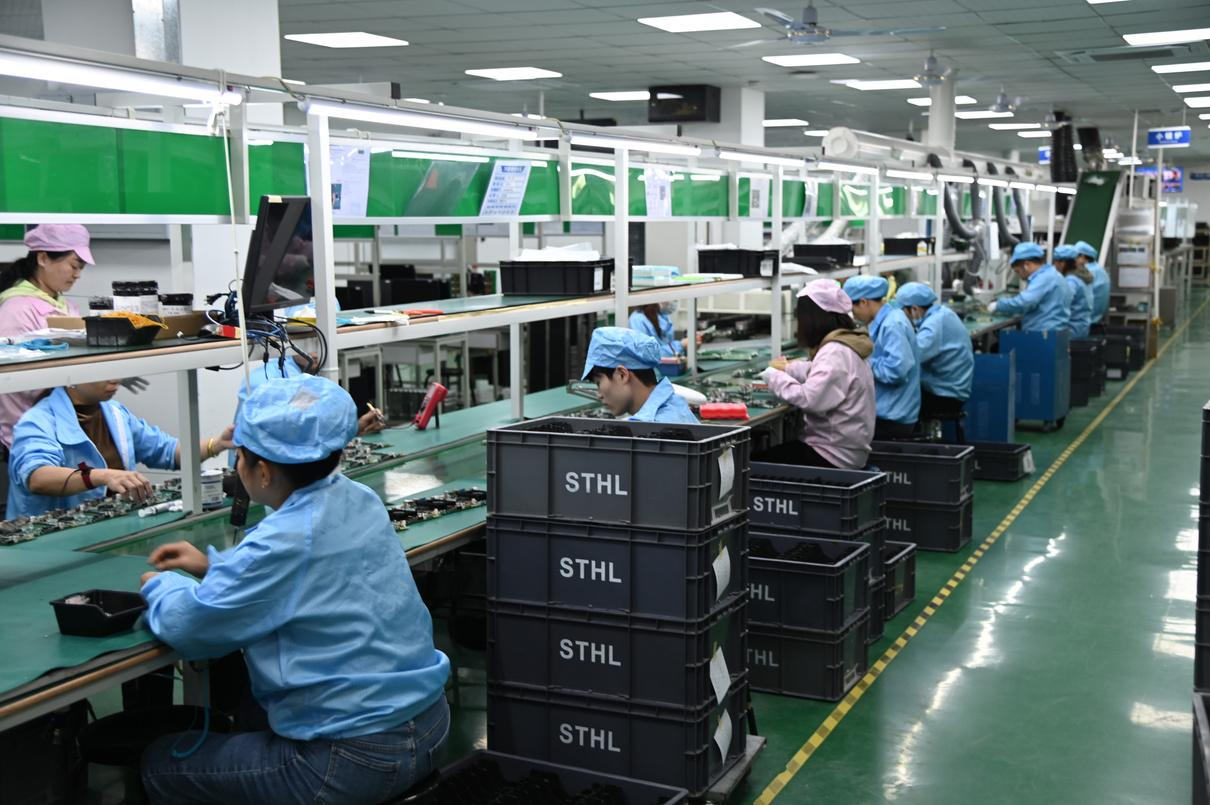

There are 6,000 square meters and more than 150 employees. We have 5 SMT production lines, 2 DIP production lines, 2 functional testing production lines, 2 finished product assembly lines, and many advanced testing instruments include Automatic air shower, X-RAY inspection, Oven, Reflow Soldering, Test Tools.
Our Company
Established in 2014, we have revolutionized PC and PC peripheral products through our innovative product development and sales methods. In 2015, we established a strategic manufacturing partnership, creating a high-tech comprehensive production enterprise integrating development, production, and sales, achieving a high degree of integration from product development to the manufacturing process.

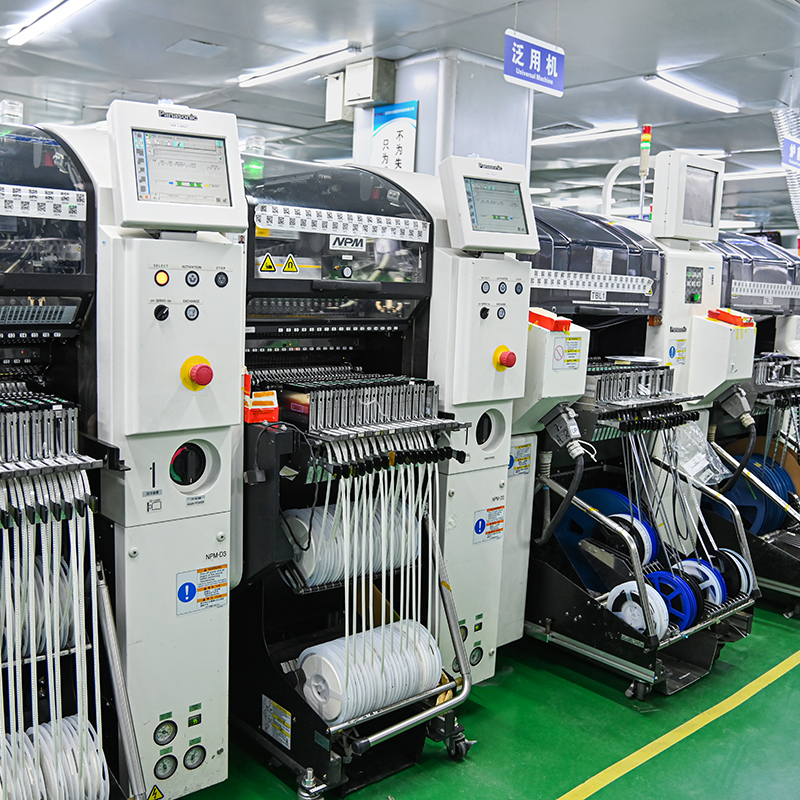

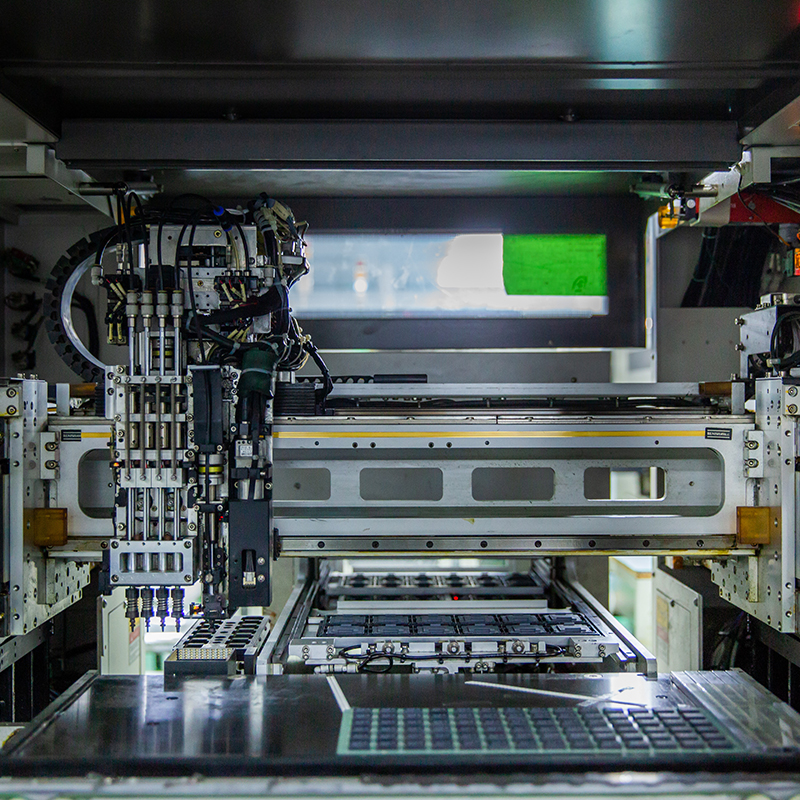

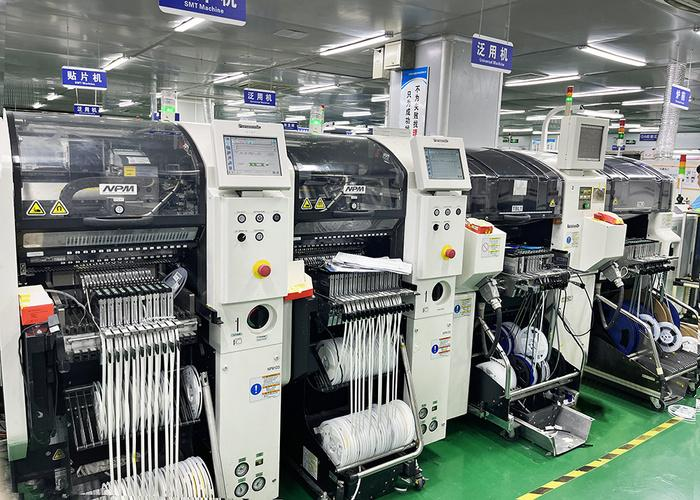

SMT Equipment and Capability
| Line Order |
Equipment |
Min Component |
Max Component |
Min PCB Size |
Max PCB Size |
Packing Type |
CHIP (H) |
| Panasonic Line 1 |
DESEN Classic-1008 + SINIC-TEK + NPM-D3 + NPM-D3 + NPM-D3 + NPM-TT2 + JT NS-1000II + AOI (double track LI-3000DP) |
01005 |
100×90mm Pitch=0.2mm |
50×50mm |
510×590mm |
290 Tape (reel) 20 Tray |
272,000 |
| Panasonic Line 2 |
DESEN Classic-1008 + SINIC-TEK + NPM-D3 + NPM-D3 + CM212 + JT JTR-1203D-N(12 temp zone nitrogen furnace) + 3D AOI (double track EDgeD) |
01005 |
100×90mm Pitch=0.2mm |
50×50mm |
340×250mm |
256 Tape(reel) 20 Tray |
206,000 |
| Panasonic Line 3 |
DESEN Classic-1008 + SINIC-TEKNPM-D3+ NPM-D3 + CM212M + RH-500B + JT JTR-1203D-N(12 temp zone nitrogen furnace) + 3D AOI |
01005 |
100×90mm Pitch=0.2mm |
50×50mm |
340×250mm |
256 Tape(reel) 22 Tray |
206,000 |
| Panasonic Line 4 |
DESEN DPS-1008 + CM402L + CM212M + JT NS-1000 + AOI(JTA-320-2M) |
0201 |
100×90mm Pitch=0.2mm |
50×50mm |
510×460mm |
336 Tape(reel) 20 Tray |
100,000 |
| Mirae Line 5 |
DSP-1008 + MX400 + MX200 + MX200 + MX200P + JT NS1000 + AOI (JTA-315-2M) |
0603 |
45×150mm |
50×50mm |
400×340mm |
280 Tape(reel) 20 Tray |
79,000 |
| Mirae Line 6 |
DSP-1008 + MX200 + MX200 + MX200P |
0603 |
45×150mm |
50×50mm |
400×340mm |
120 Tape(reel) 22 Tray |
30,000 |
| Total chips per hour |
893,000 |
Our team consists of 200 employees, including several engineers, and the company covers an area of 6,000 square meters, equipped with comprehensive facilities including 5 SMT high-speed production lines, 2 DIP production lines, 2 finished product assembly lines, and 2 functional testing production lines. Global influence is a testament to our quality and capabilities.
Frequently Asked Questions
Are you the manufacturer of the product?
Yes, of course we are. We have our own manufacturing facility.
Can you provide OEM or ODM services?
Yes, we are willing to provide our customers with OEM and ODM services.
Can you print my logo on the product?
Yes, we support printing customized logos.
What is the product warranty?
We offer a 3-year warranty on our products.
If the product is out of warranty, what should I do?
We will repair it for free (excluding specific replacement parts or shipping costs if applicable).
Where can I place an order?
You can place an order directly on our website or get in touch with our sales team via direct message or email.
