Product Description

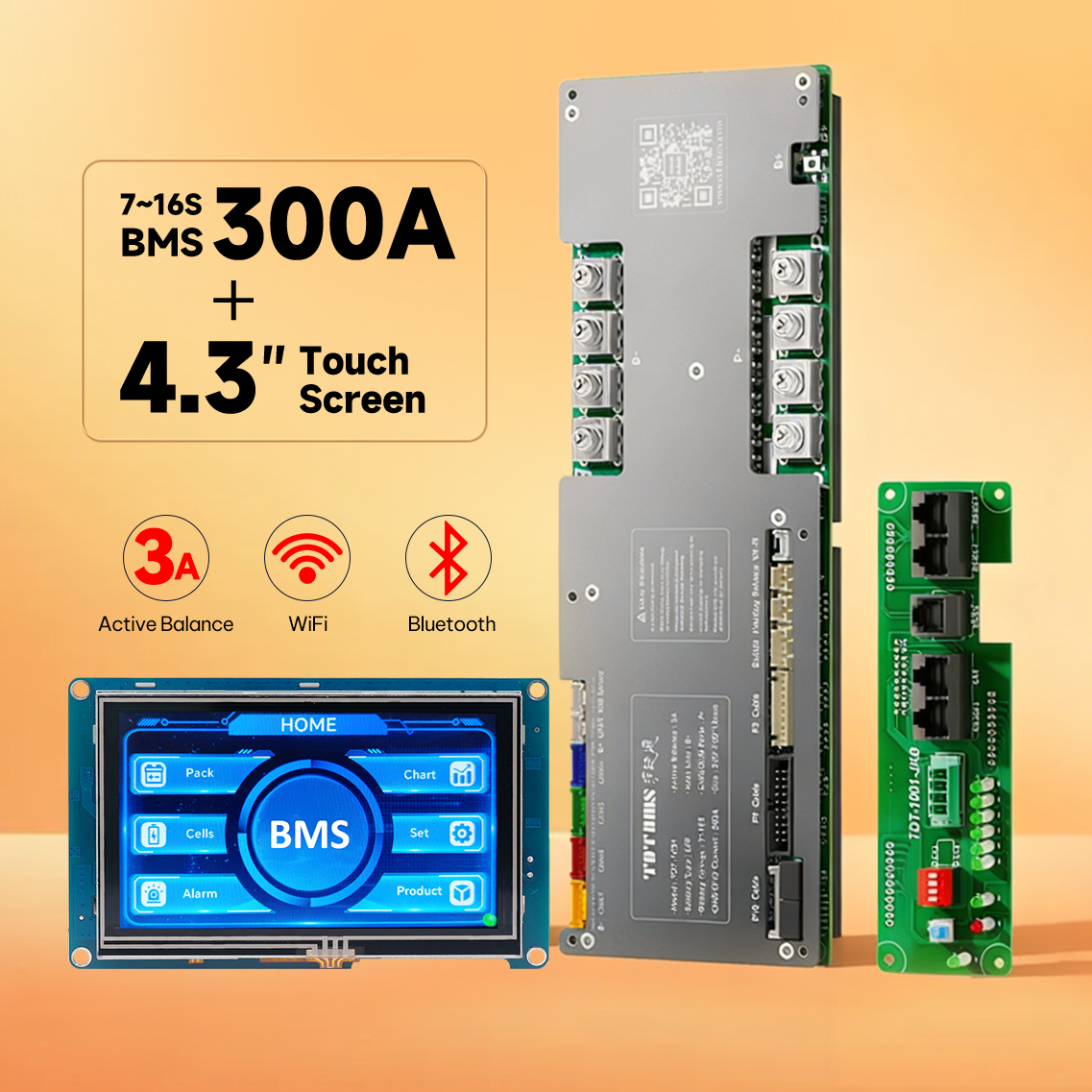

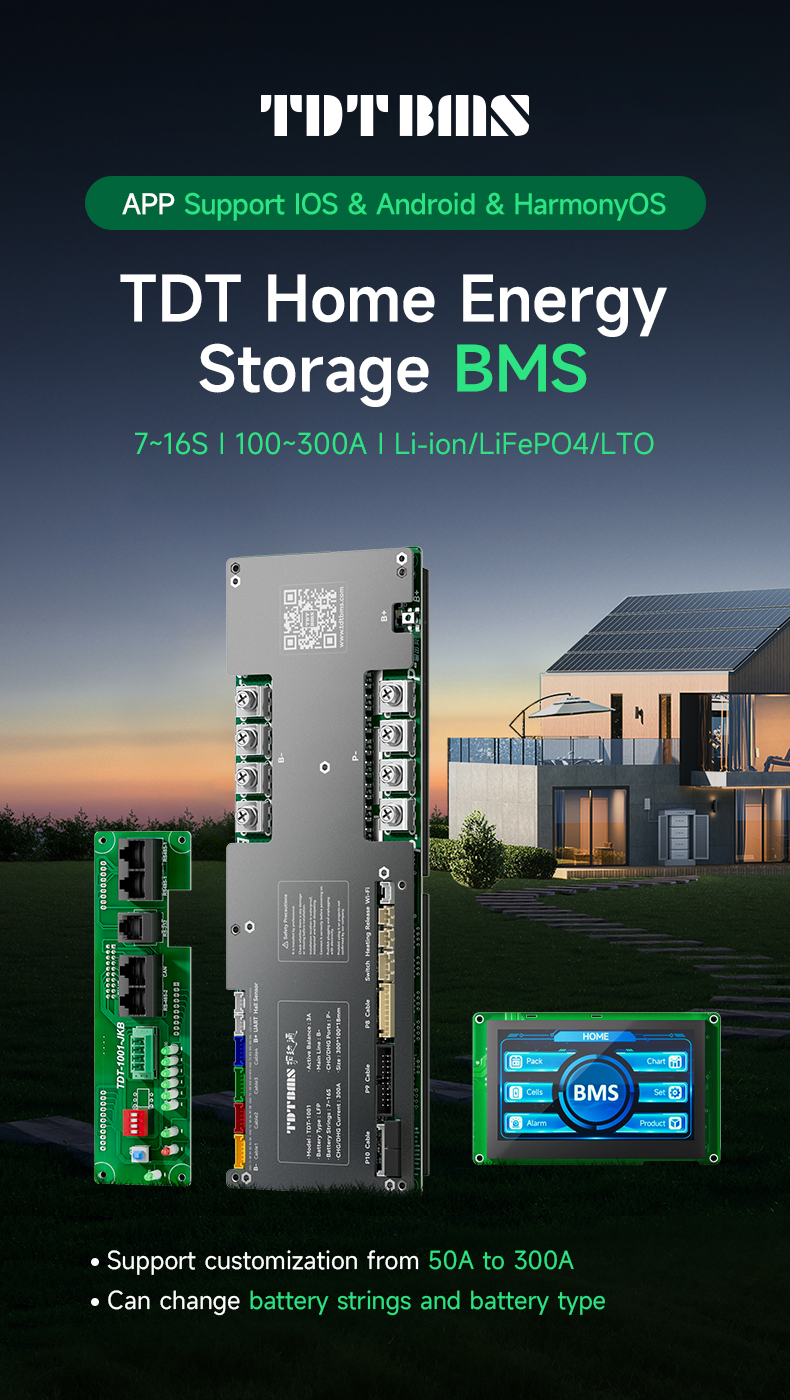

Smart Active Balance BMS – a professional battery management solution compatible with both LiFePO4 and lithium-ion batteries. This advanced BMS supports flexible 7S to 16S cell configurations, handles current ranges from 100A to 300A, and features a 3A smart active balancing function to ensure consistent cell performance. Equipped with multi-channel monitoring capabilities, it enables real-time data tracking and management via Bluetooth, WiFi, and IoT Cloud platforms. Designed for versatility, it seamlessly works with 24V, 36V, 48V, 60V, and 72V battery systems, making it ideal for various energy storage and power supply applications.
Main Application Scenarios:
- Solar home energy storage systems
- Inverter-integrated energy storage setups
- Lithium-ion battery packs (24V, 36V, 48V, 60V, 72V) for various energy storage needs

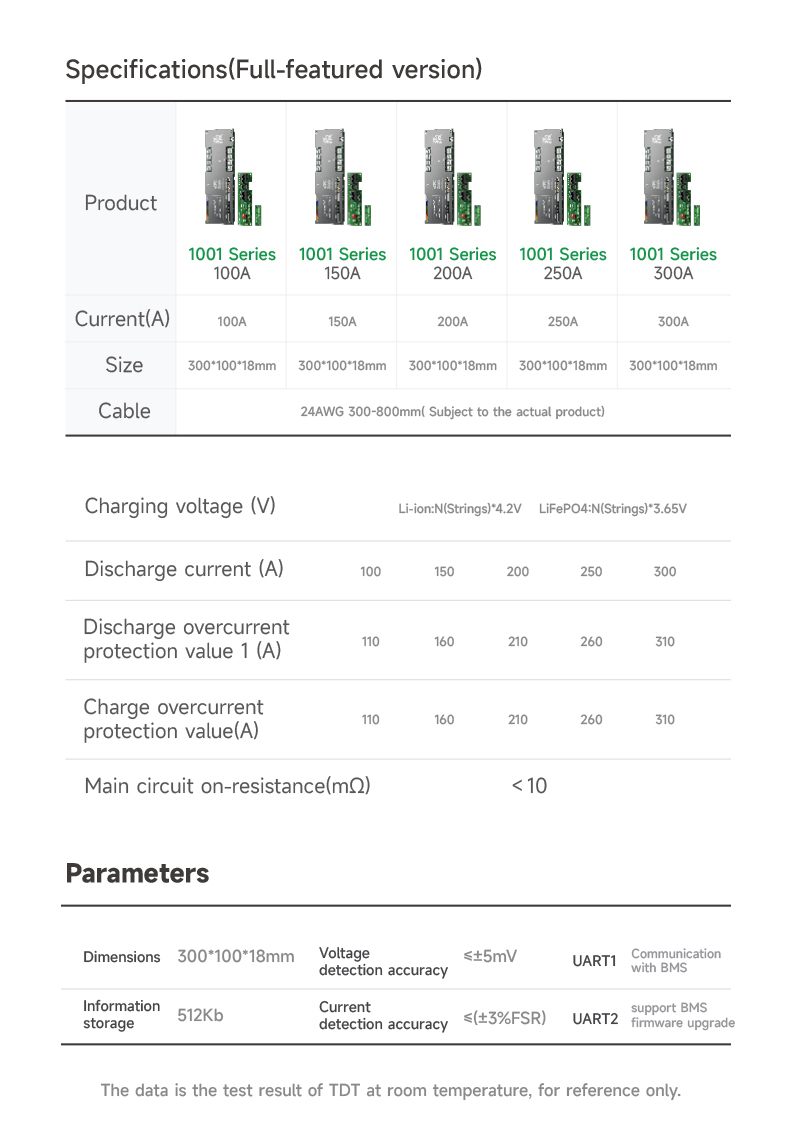

Product Parameters
| Parameter |
Specification Details |
| Battery Type |
Lithium-ion(NMC) / LiFePO4(LFP) |
| Battery Cell |
Intelligent strings 7S-16S [universal version] |
| Voltage |
24V ~ 60V |
| CHG/DHG Current |
100A ~ 150A ~ 200A ~ 250A ~ 300A |
| Active Current |
Built-in 3A active balance |
| Delivery Time |
1-7 working days |
| Packaging |
Bubble bag / box |
Product Spotlights
- Wide Compatibility: Supports 8S-17S configurations and 100A-300A current, compatible with multiple voltages (24V/36V/48V/60V/72V).
- Smart Balancing: Equipped with 3A smart active balancing to ensure optimal battery performance.
- Advanced Monitoring: Enables real-time data tracking via BT, WiFi, or IoT Cloud.
- Versatile Use: Suitable for both LiFePO4 and general lithium-ion battery packs.
- Various protection functions for charging and discharging.
- With SOC SOH automatic learning function, it can store 400 pieces of historical information with unlimited traceability.

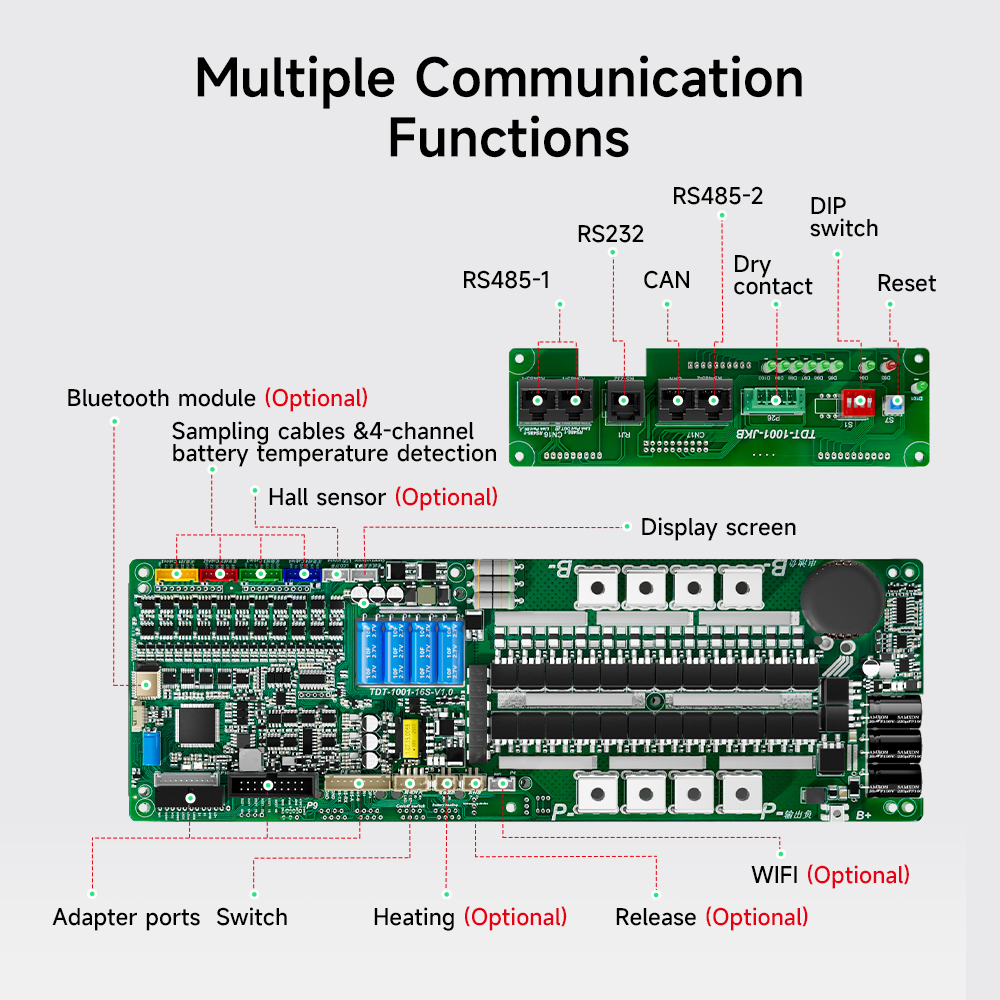

- RS485/RS232/BT/CAN communication function can read all battery data in real time and upgrade online.

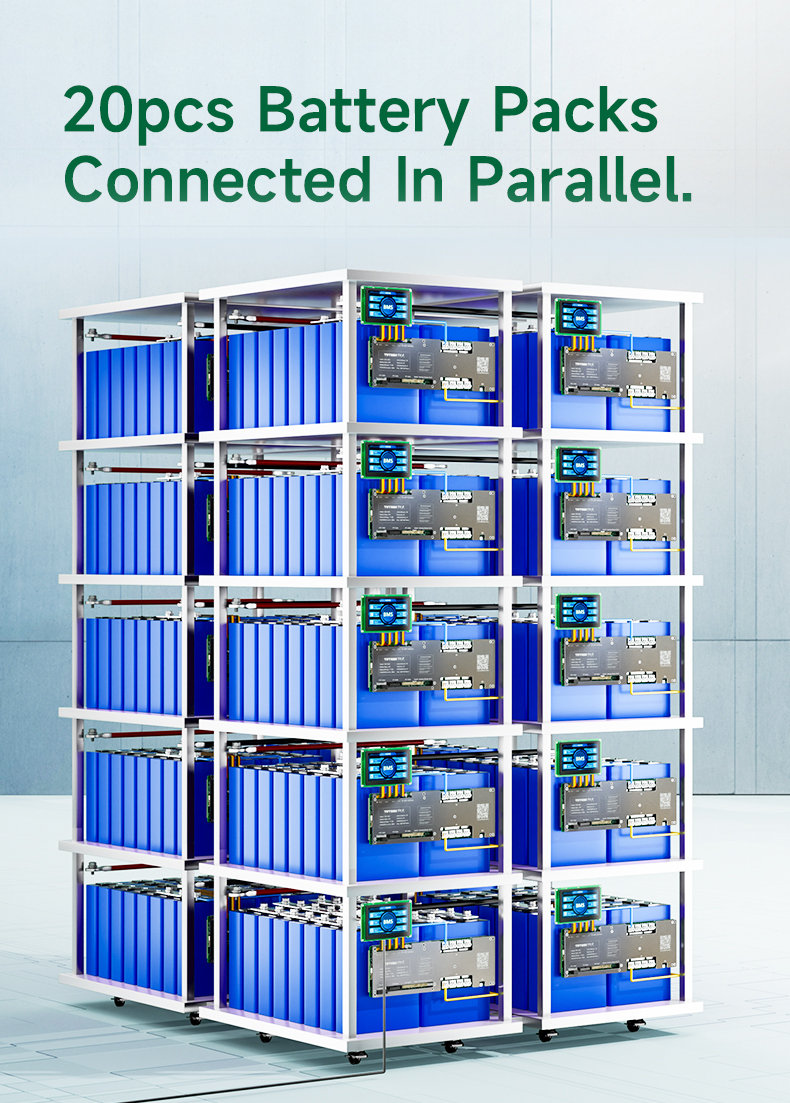

- Support parallel connection and parallel communication of 20 battery packs.
- Communication with mainstream inverters (such as PYLONTECH, GOODWE, Growatt, Victron Energy, etc.).

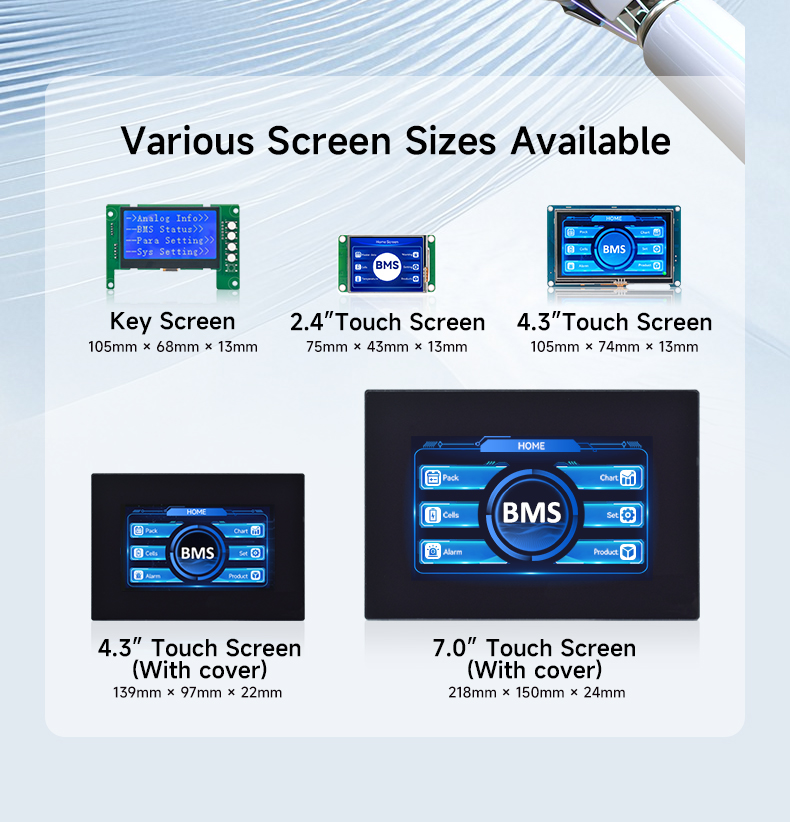

- Support fast intelligent pre-charging, mobile phone APP / color touch screen / computer upper computer and other multi-screen free adaptation.

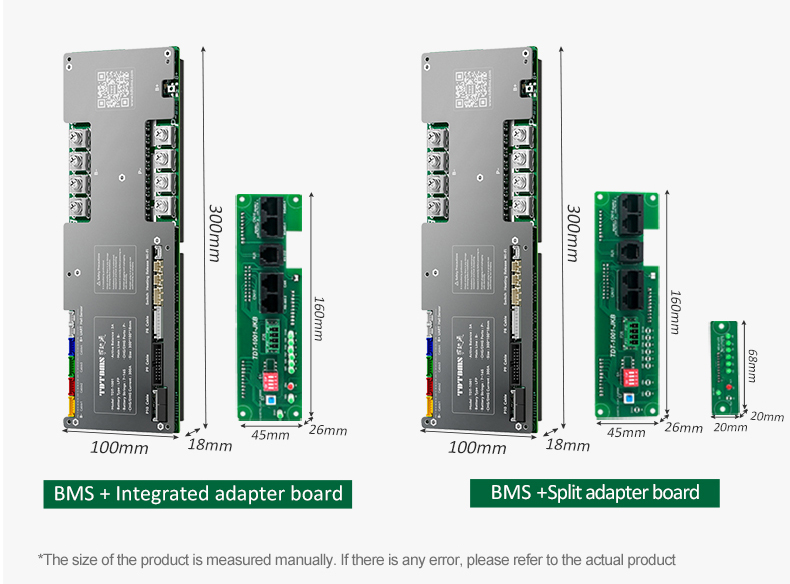

More Choices Give You What You Want
Support customization of structures, software, etc. Meet personalized needs.

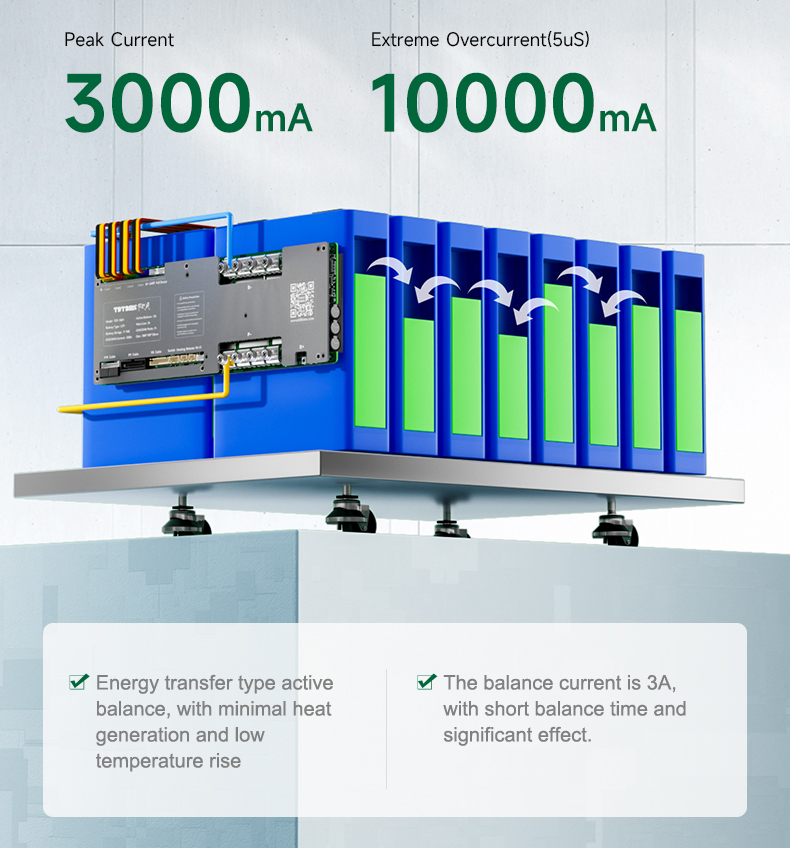

Built-in 3A Active Balance
High sampling accuracy and high balancing accuracy. The minimum voltage difference is 1~3mV.
All-in-One Control One-Touch Operation
The intelligent hub for battery systems, simplifying management.
Powerful Functionality & Simple Operation
Powerful Functionality: Master BMS monitors global data; Manage slave BMS data easily.
Simple Operation: One-touch start/stop · One-touch firmware upgrade · One-touch automatic dial code

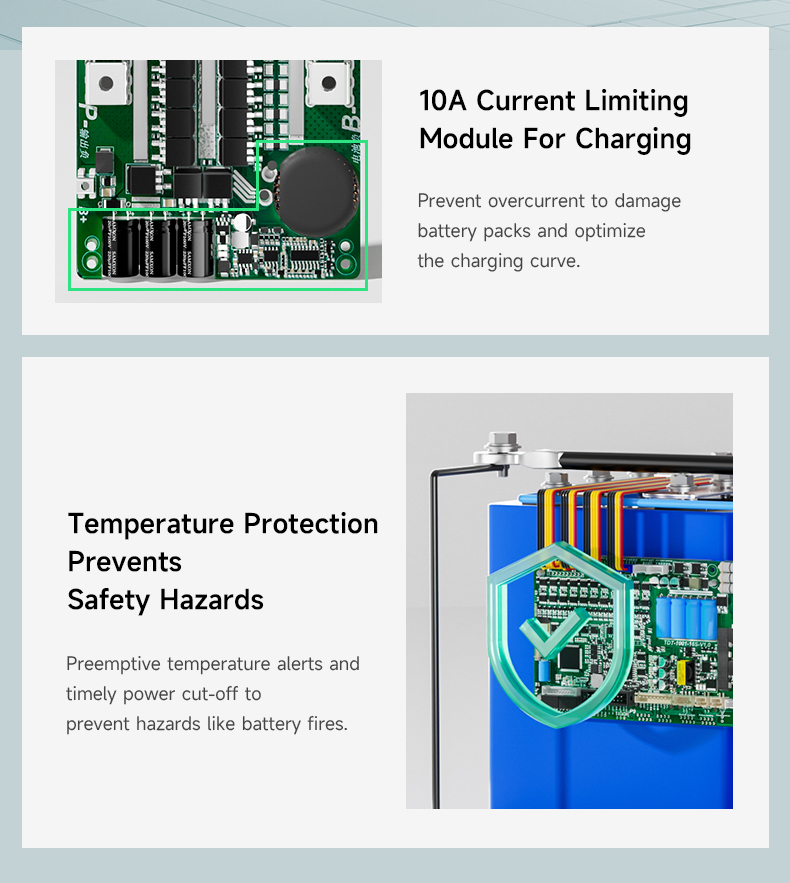

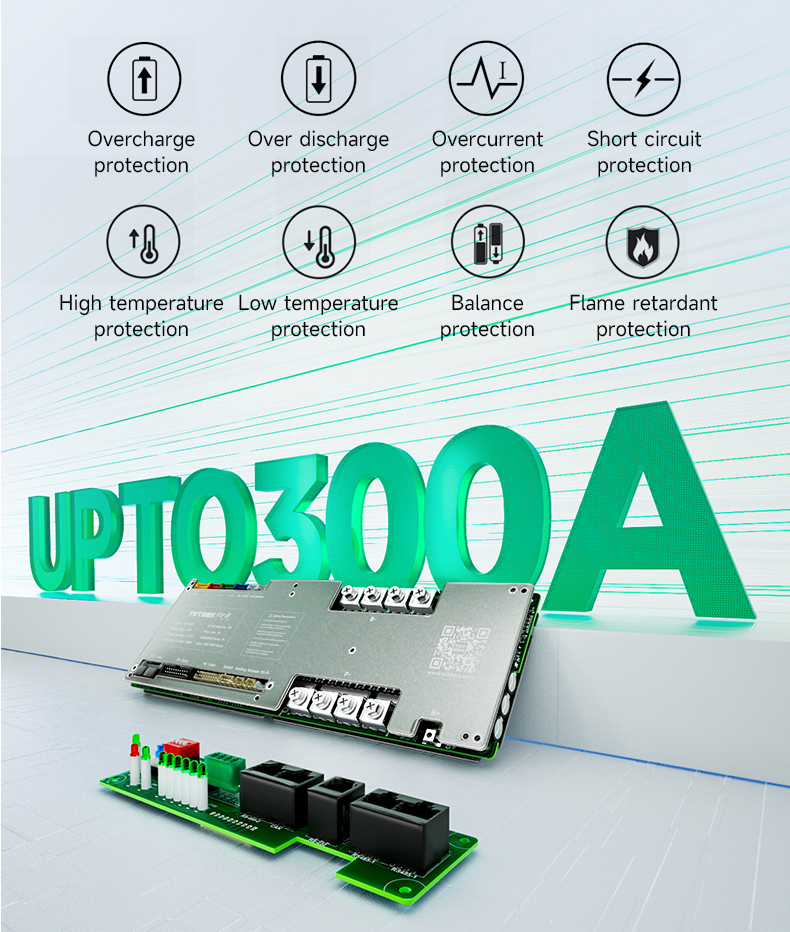

Multiple Protections Can Withstand Current Up To 300A
Strong overcurrent capability & efficient heat dissipation, operate stable under long-term high power load.

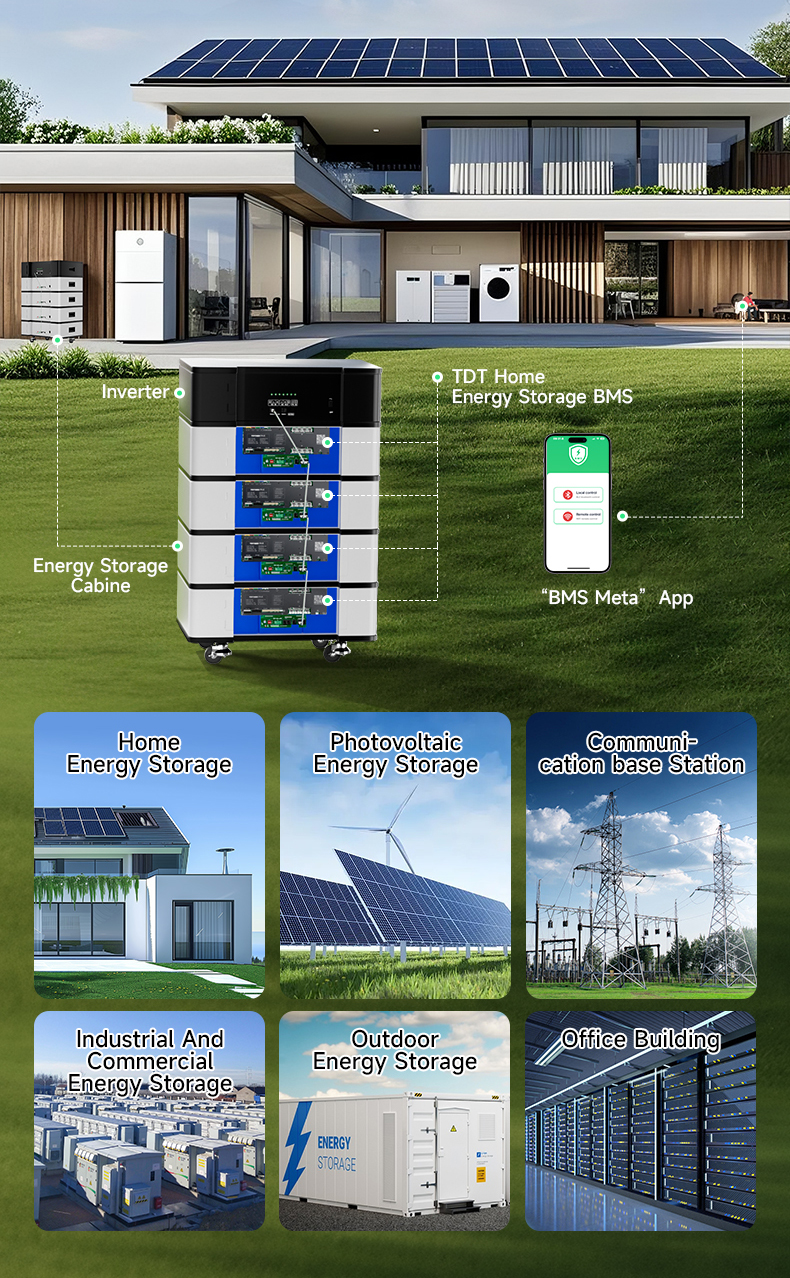

Home Energy Storage BMS Professional Solution
It is also suitable for application scenarios such as communication base stations, building energy storage, and industrial energy storage.

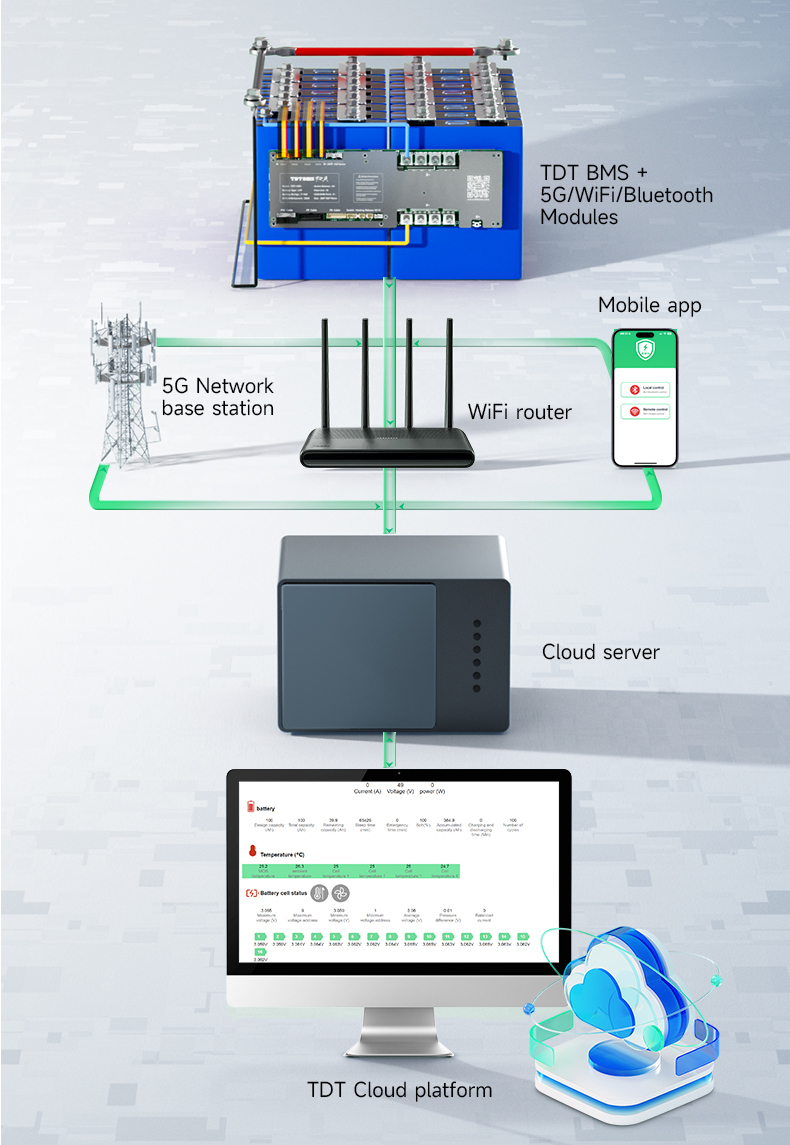

Intelligent "IoT Cloud" Remote Management Efficiently
Optional WiFi module allows access to the IoT Cloud platform to manage lithium batteries remotely and in bulk. Battery data is stored in the cloud, supporting multi-level sub-accounts.

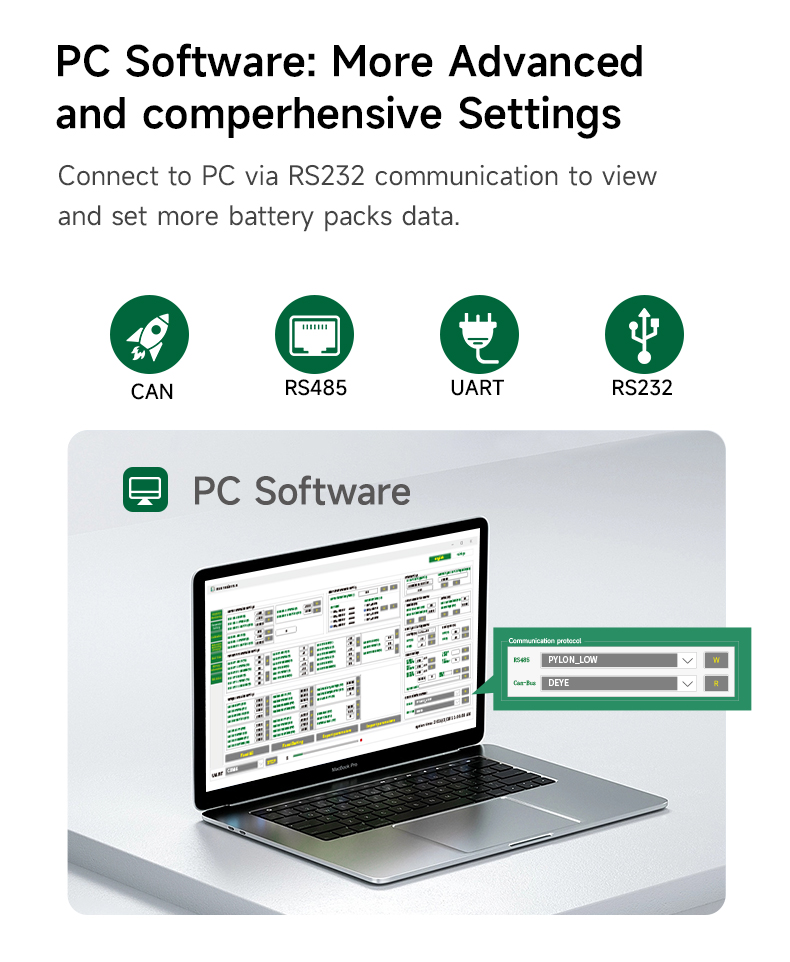

APP + PC + Screen + IoT Cloud:
1. Can change battery type | 2. Can change cell number | 3. Can select inverter protocols

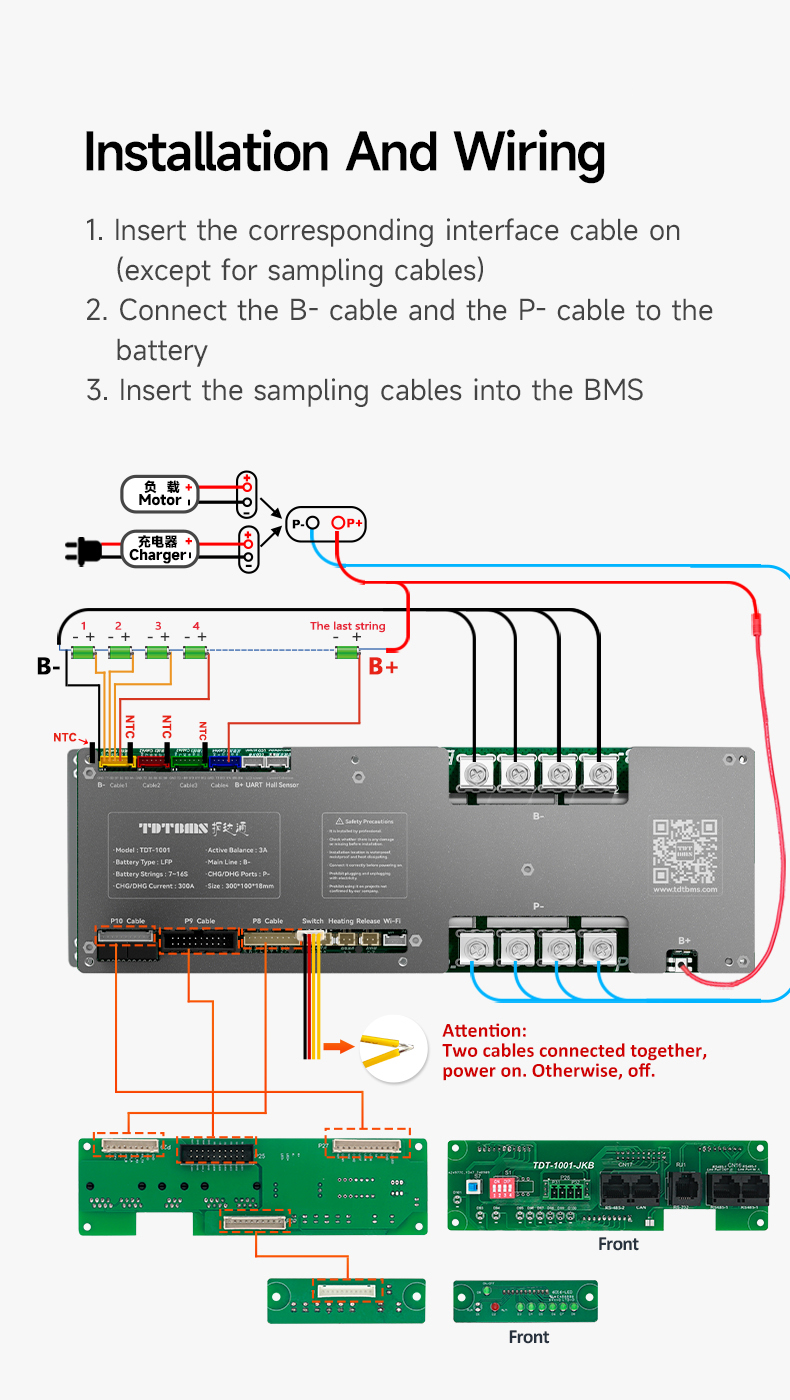

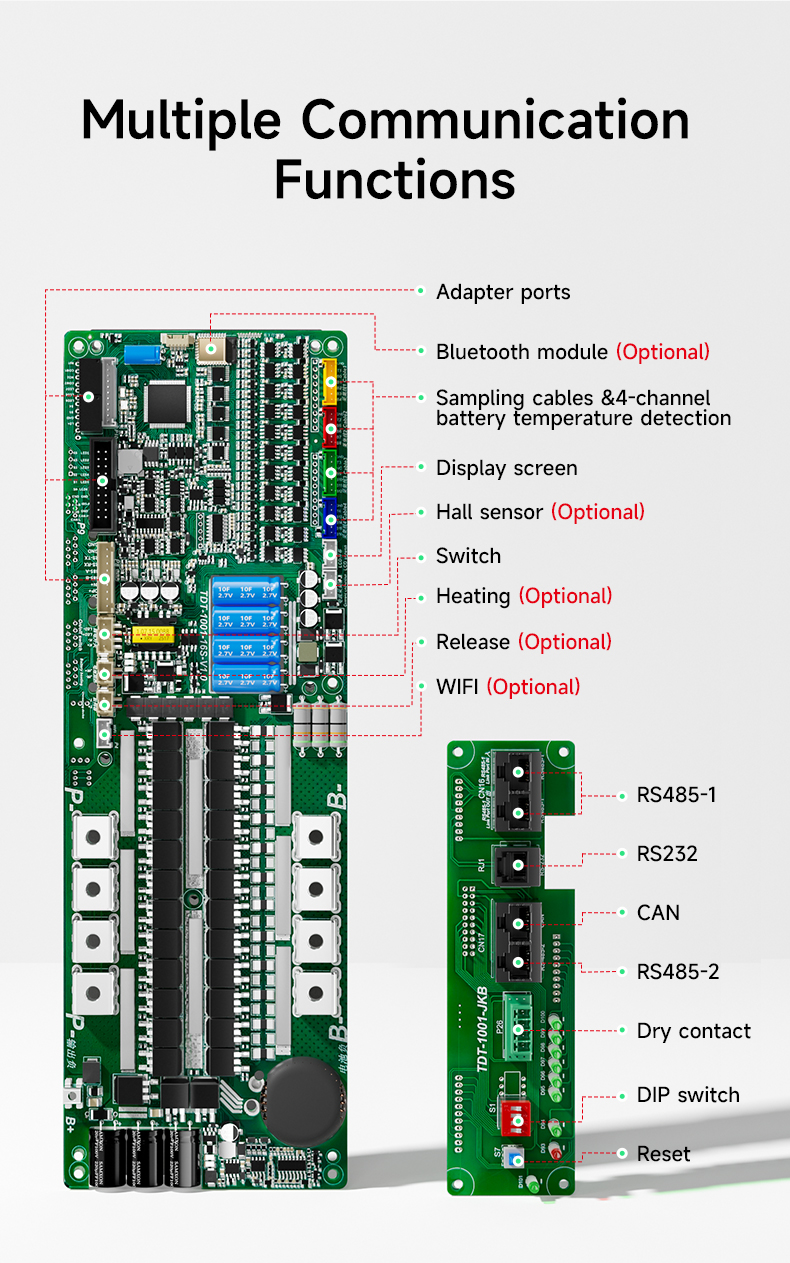

Interface and Wiring Configuration
Attention Warnings:
- When welding battery cables, do not connect them incorrectly or inversely. If it has been incorrectly connected, the circuit board may be damaged and needs to be retested before using it.
- When assembling, the BMS should not touch the cell's surface directly so as not to damage the cell. Assembly should be firm and reliable.
- Pay attention to not letting the cables, soldering iron, solder, etc. touch the components on the circuit board. Otherwise, it may damage the circuit board.
- Pay attention to anti-static, moisture-proof, and waterproof protection when using the BMS.
- Please follow the designed parameters and working conditions, and do not exceed the range in this specification. Otherwise, it may damage the protection board.
- After connecting the BMS with the battery pack well, if there is no voltage output or charge for the first time, please check whether the cable connection is correct.

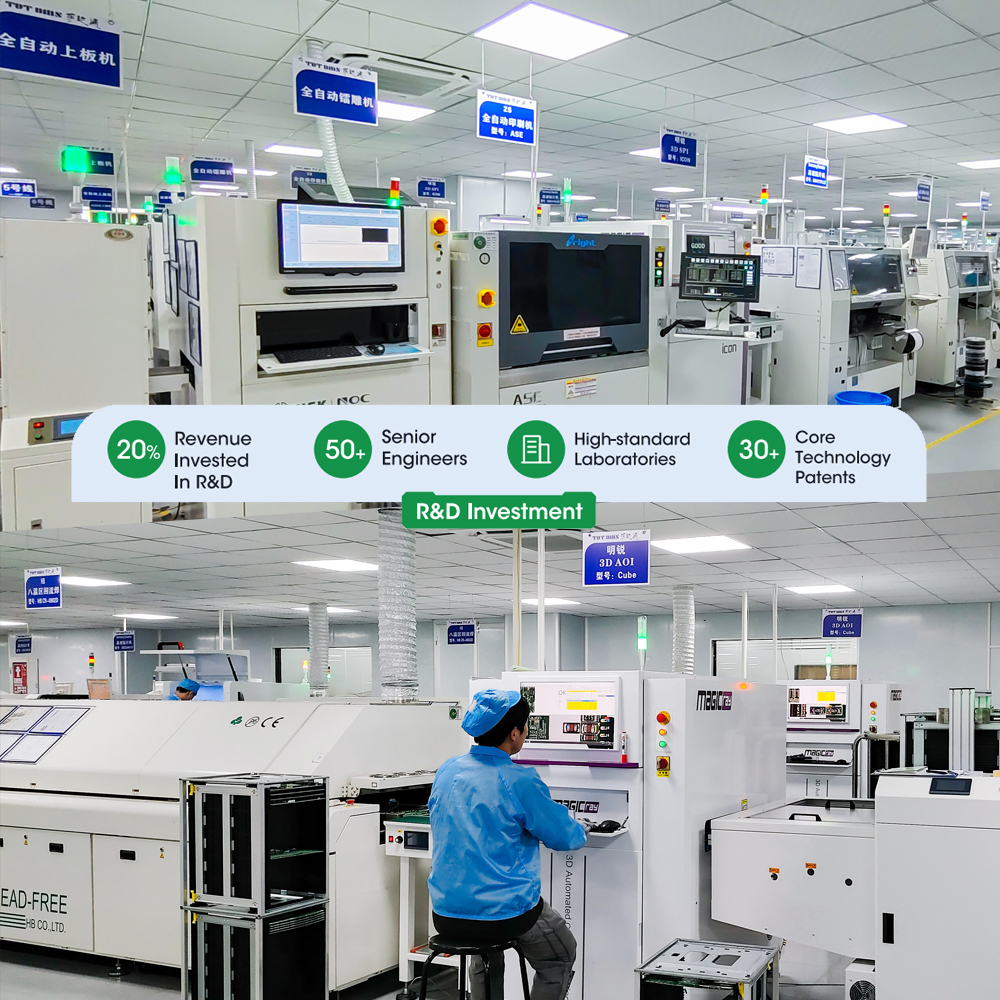

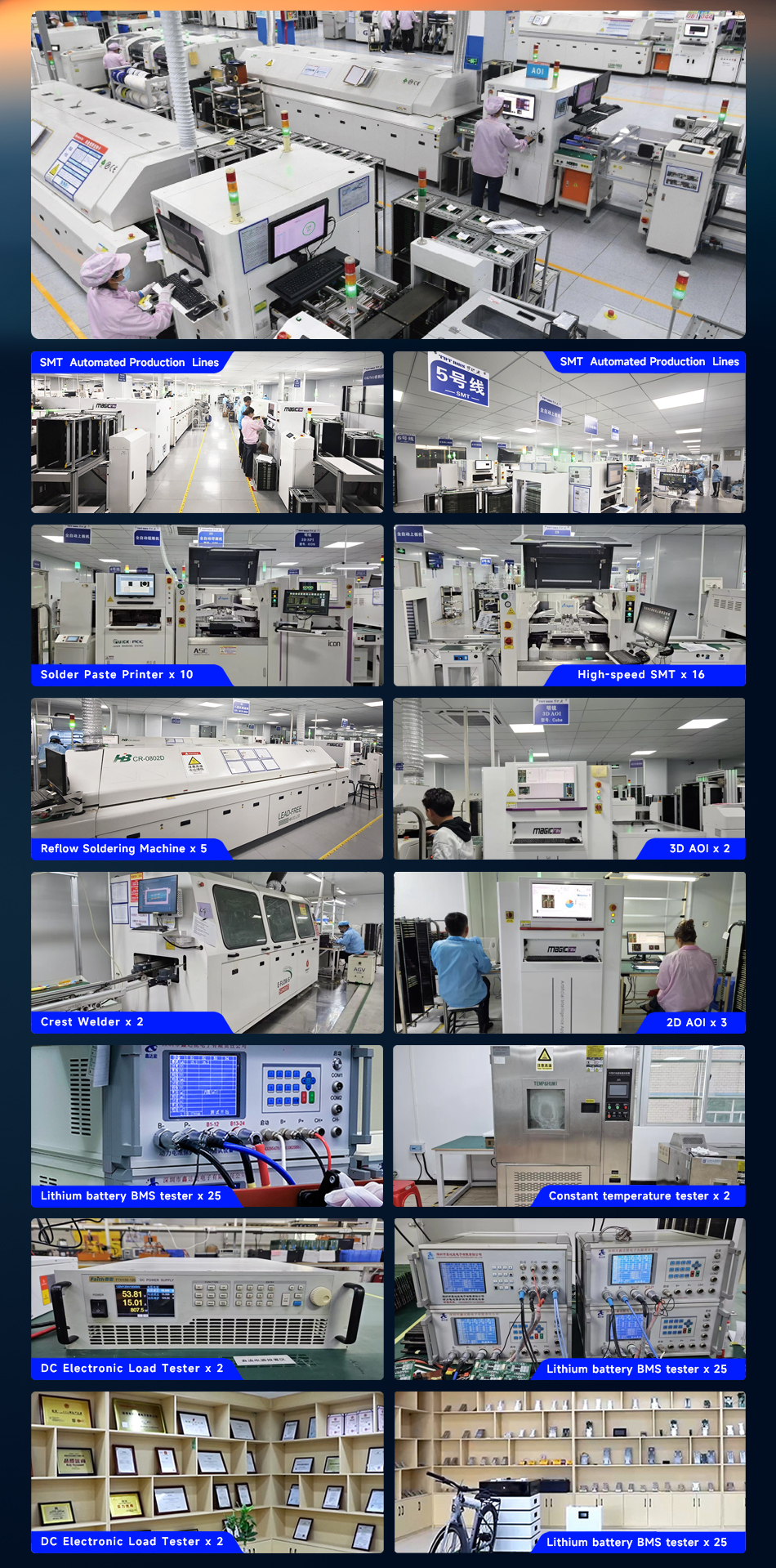

Production & Quality Control Showcase
Packaging & Shipping
Frequently Asked Questions
Why choose our battery management solutions?

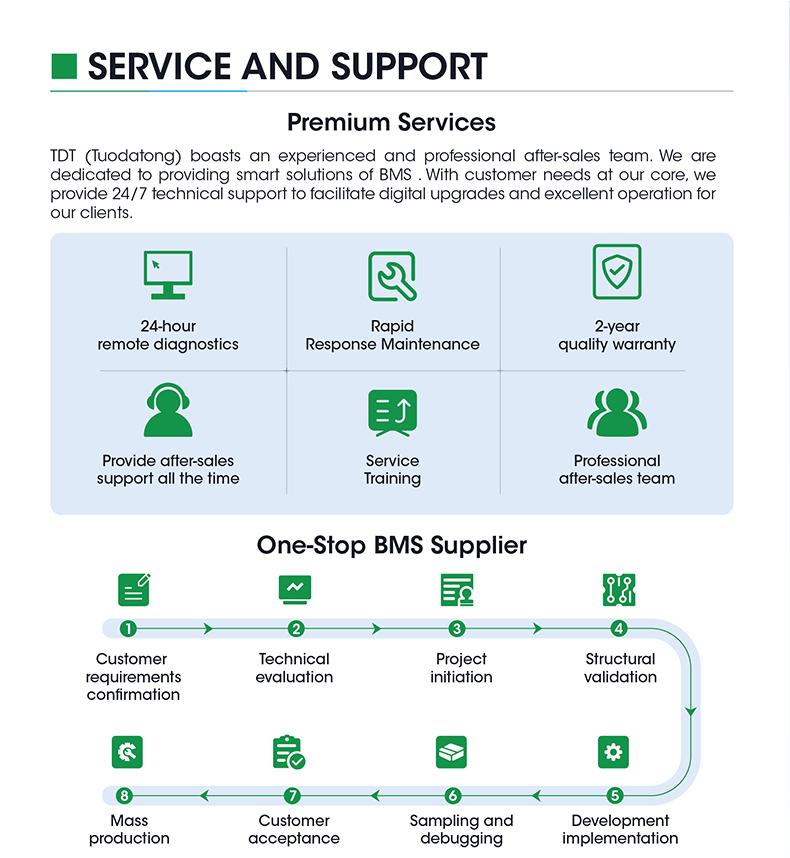

We provide you with efficient after-sales service backed by strong technical support accumulated over 13 years. All products have obtained international standard certifications including FCC, CE, ROHS, and ISO. We offer direct factory pricing and highly controllable delivery timelines.
What is your product range and battery compatibility?
We specialize in battery management systems (BMS) for power batteries, energy storage batteries, and consumer electronics applications. Our systems are primarily designed and optimized for Lithium Iron Phosphate (LFP) and Nickel Manganese Cobalt (NCM) chemistries.
Is there a Minimum Order Requirement (MOQ) and customization option?
Our MOQ is 1 unit. We provide ODM customization services to match your custom battery requirements. The delivery time is 1-3 days for existing samples and 3-15 days for customized samples or bulk batch orders.
What payment terms do you support?
We accept standard TT wire transfers and cash payments. Standard options are fully negotiable and include Visa, Mastercard, T/T, PayPal, Apple Pay, Google Pay, GC Real-Time Bank Transfer, and RMB accounts.
How do you ensure product quality?
All products undergo strict inspection procedures from raw material intake to final shipment, implementing 100% full testing. The products are certified under FCC, CE, ROHS, and ISO standards, and come with a reliable 2-year warranty protection scheme.
How do I choose the BMS that best suits my battery pack?
You can choose the appropriate BMS model based on the voltage and working current configurations that match your specific battery pack setup. Feel free to contact our customer support team with your battery requirements for technical guidance.
