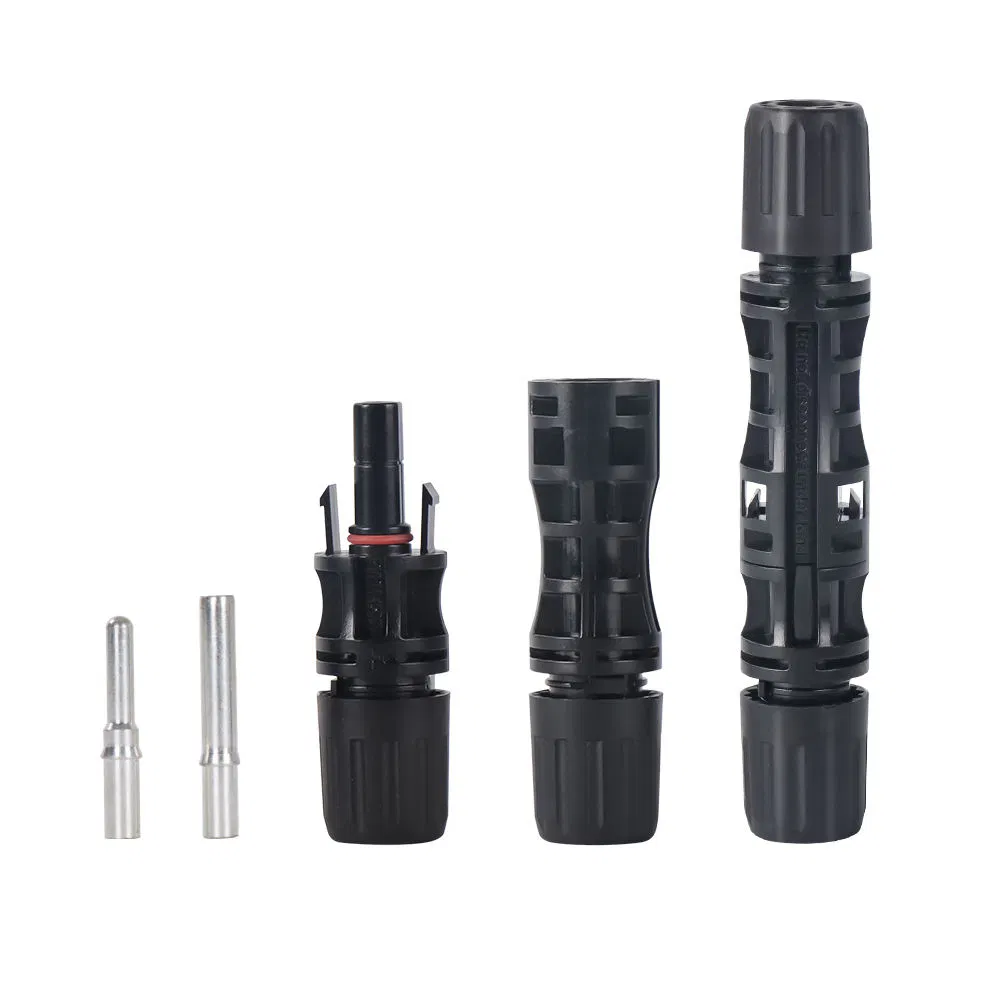

High Stability MC4 Solar Cable Connectors
Enhanced with Premium Tin Copper Pins for Photovoltaic Systems
SOLAR CONNECTOR Outstanding Features:
Effortless on-site processing for seamless installation.
Capable of accommodating PV cables with a variety of insulation diameters, ensuring versatility.
Secure mating safety with intelligently keyed housings.
Engineered for enduring performance with multiple plugging and unplugging cycles.
Designed to support a high current carrying capacity for robust performance.
Globally recognized with TUV and UL approvals for maximum reliability.
SOLAR CONNECTOR Technical Specifications:
Item
SOLAR CONNECTOR Details
Model Number
WSPVCC
Test Voltage
1000V/1500 DC
Overvoltage Type/Pollution Degree
6000V(50Hz, 1min)
Contact Resistance Of Plug Connector
CAT III /2
Contact Resistance Of Plug Connector
ImΩ
Contact Material
Copper, Tin-plated
Insulation Material
PPO
Degree Of Protection
IP2X/IP68
Flame Class
UL94-VO
Safety Class
II
Suitable Cable
OD 4.5-8.5(2.5-6.0mm2)
Insertion Force/Withdrawal Force
≤ 50N/ ≥ 50N
Connecting System
Crimp connection
Temperature Range
-40ºC ~ +125ºC
Detailed Photos

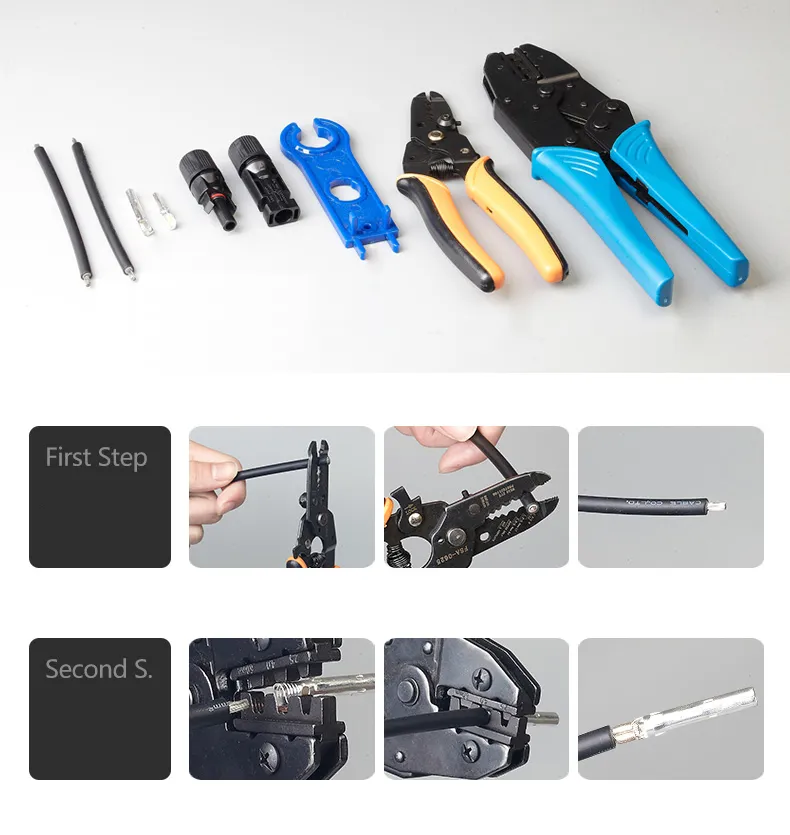

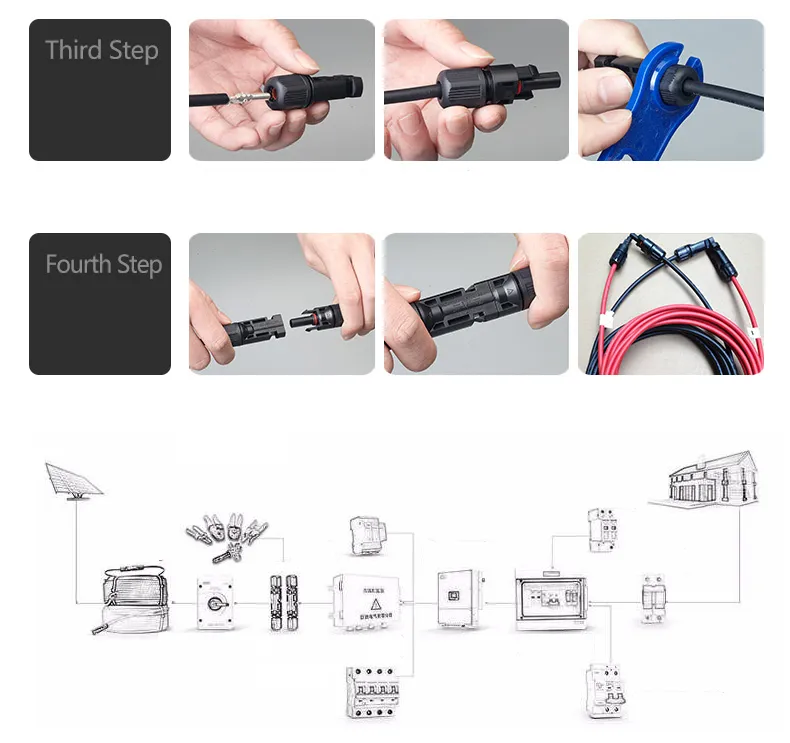

Installation Instructions
Packaging & Shipping
After Sales Service
Expedited responses
Enjoy an average reply time of just 2.75 hours.
Swift delivery
Delivering up to 10,000 pairs in less than 7 days.
Complimentary photography
Receive free, high-quality photos and videos of your products.
Production transparency
Stay updated with synchronized progress on your product creation process.
Seamless communication
Benefit from English major level 8 proficiency to enhance communication efficiency.
Comprehensive service
Experience peace of mind with a 25-year warranty and prompt communication.
Frequently Asked Questions (FAQ)
What is the rated voltage and current capacity of these solar connectors?
These solar cable connectors are engineered for high-power demands, offering a rated voltage of 1500V DC and a rated current capability of 30A or 50A depending on system specifications.
Which solar cable cross-sections are compatible with this model?
The connectors are highly versatile and accommodate PV cable cross-sections ranging from 2.5mm² to 10mm² (equivalent to 14 to 8 AWG) with insulation outer diameters of 4.5mm to 8.5mm.
What is the waterproof rating and ambient operating temperature range?
They feature an IP68 protection rating (submersible in 1 meter of water for 1 hour) when mated and are designed to function reliably in ambient temperatures from -40°C to +85°C.
What materials are used for insulation and contact terminals?
The terminal pin is made of premium tin-plated copper/iron for high electrical conductivity, while the insulation housing is composed of high-strength PPO material with a UL94-V0 flame retardant class.
What certifications and standards do these connectors meet?
These solar cable connectors are certified under rigorous safety standards, holding TUV approval to ensure reliable, high-standard operation in commercial and residential PV installations.
What warranty and lifespan expectations come with these connectors?
Built with premium weather-resistant housing and durable contact pins, these connectors are backed by a 25-year warranty, matching the expected life cycle of standard solar PV systems.
