Basic Info.

Rated Voltage 690V

Application Category Cable End

Color Black

Crimping Method Screw Crimping, Crimping

Connection Capacity AWG 12-10

Certificates UL/ISO/RoHS/TUV

Transport Package PE Film+Carton

Specification Custom

HS Code 850760

Production Capacity 50000 pieces/Month

Packaging & Delivery

Package Size 20.00cm * 15.00cm * 5.00cm

Package Gross Weight 0.800kg

Product Description

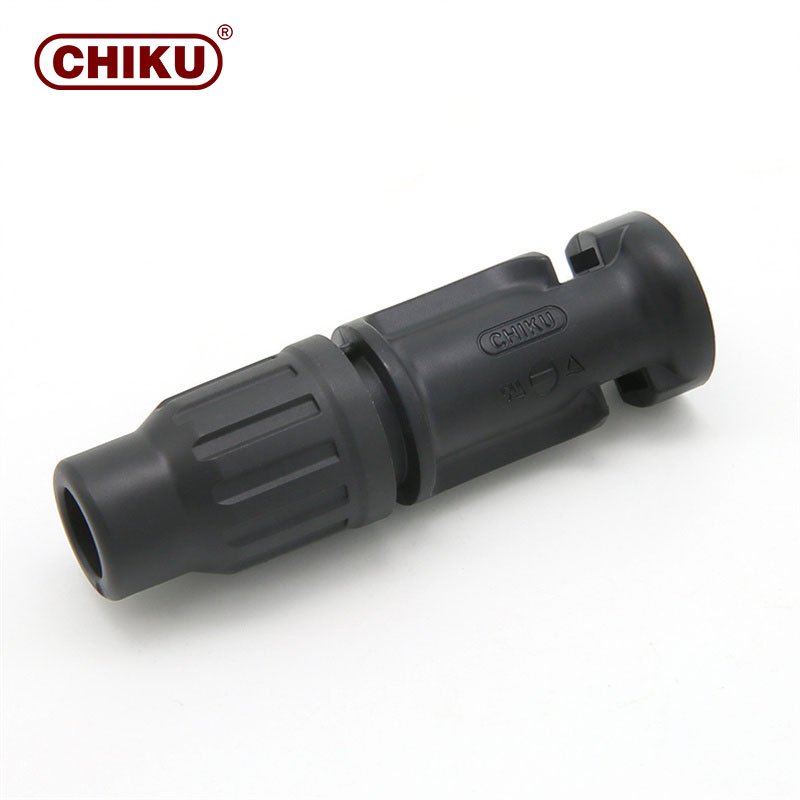

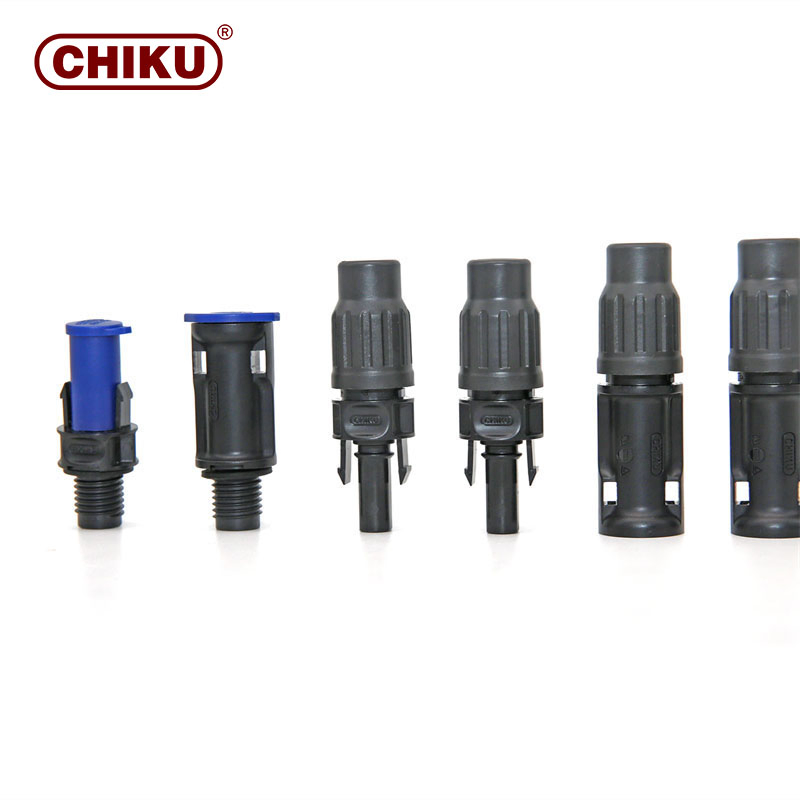

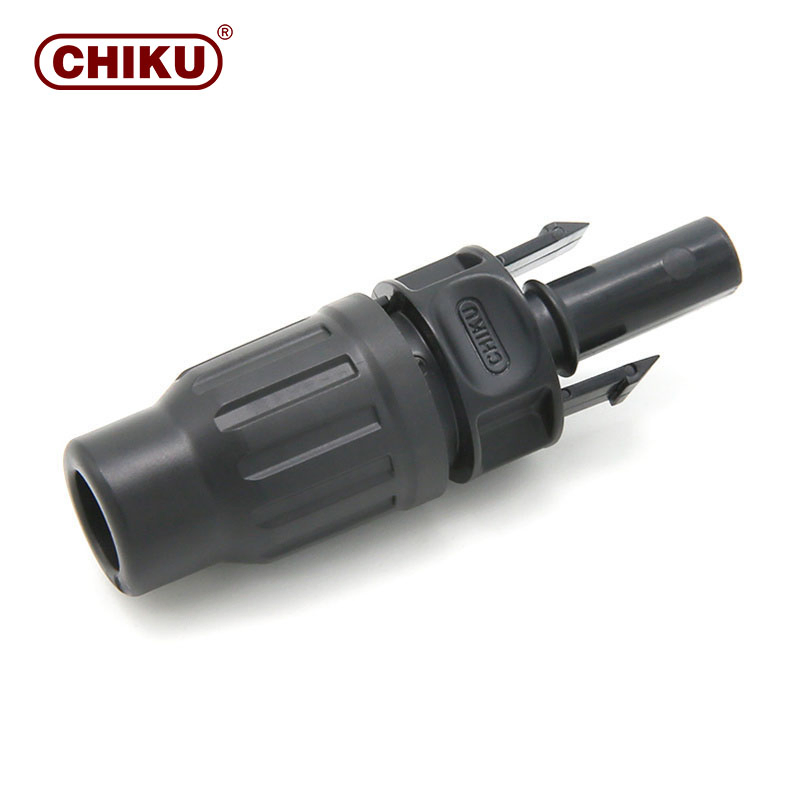

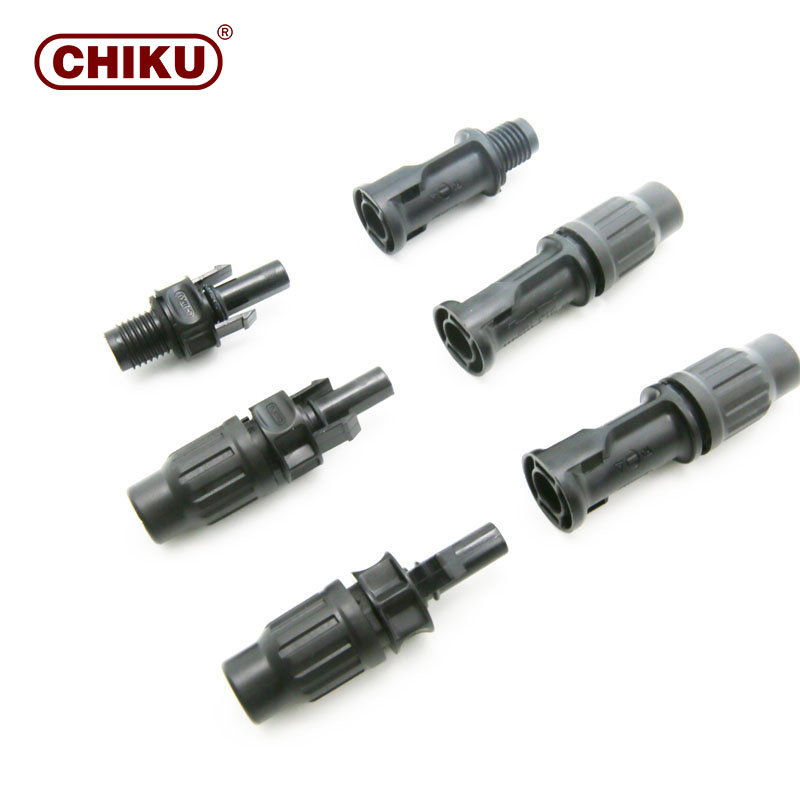

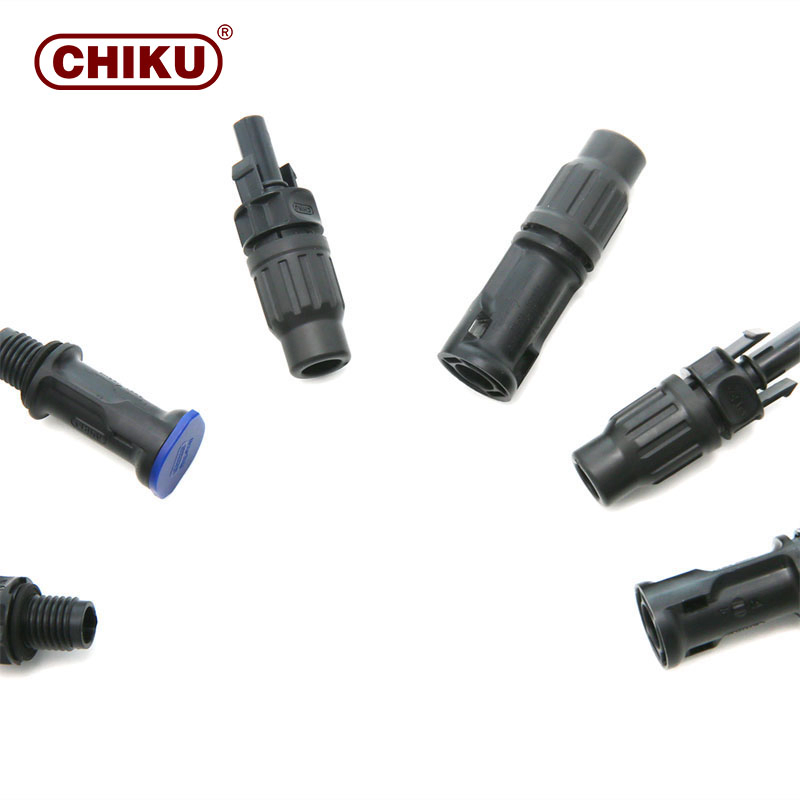

Solar Cable Connector for Solar Photovoltaic PV System

PV Connector Series

Photovoltaic DC Connector
Rated Voltage: 1500V
Wiring range: 2.5/4/6/10mm2
Type: Tool Unlock Type / Manual Unlock Type
Pollution Degree: III
Ingress Protection Rating: IP68
Standard: IEC62852, GB/T33765, UL6703, UL-486A-B Standard

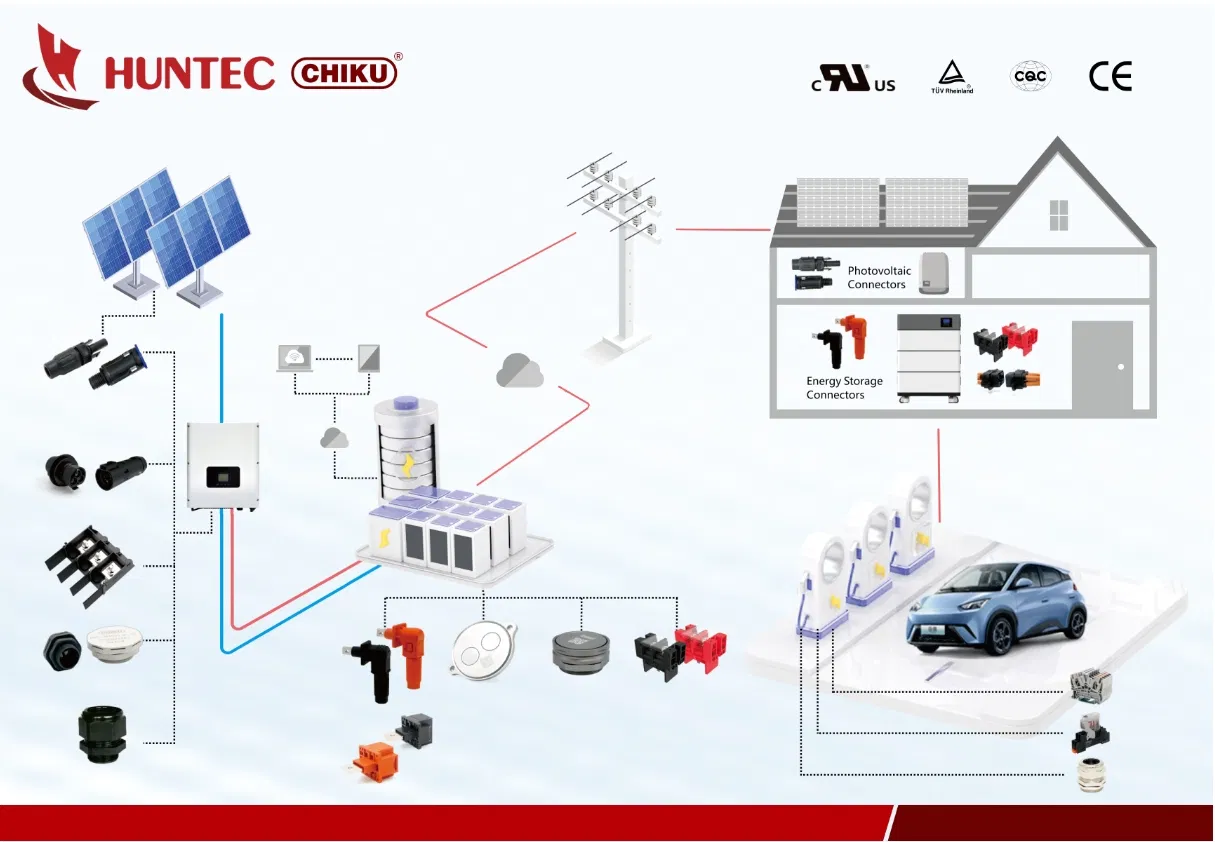

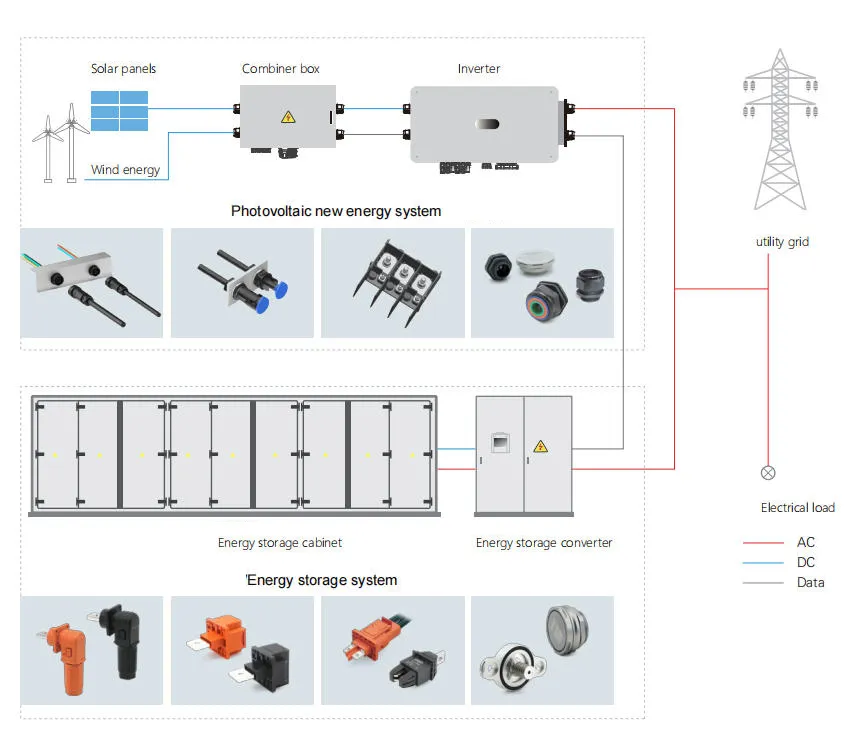

The DC connector (DC connector) of the PV ground photovoltaic system is mainly used in the electrical connection of photovoltaic module terminal junction boxes, photovoltaic inverters, energy storage equipment, photovoltaic combiner boxes, and photovoltaic power station arrays. Connectors for use in the d.c. circuits of photovoltaic systems with rated voltages up to 1500V d.c. and rated currents up to 50A per contact.

Name	Photovoltaic DC Connector	Insulation Material	PC/PA
Type of Terminal	Crimping	Flammability rating	UL94 V-0
Rated Voltage	1500V	Rated current	5A (2.5 mm2), 35A/45A (4 mm2/6 mm2), 50A (10 mm2)
Wiring range	2.5/4/6/10mm2	Pollution Degree	III
Ingress Protection Rating	IP68	Standard	IEC62852, GB/T33765, UL6703, UL-486A-B Standard
