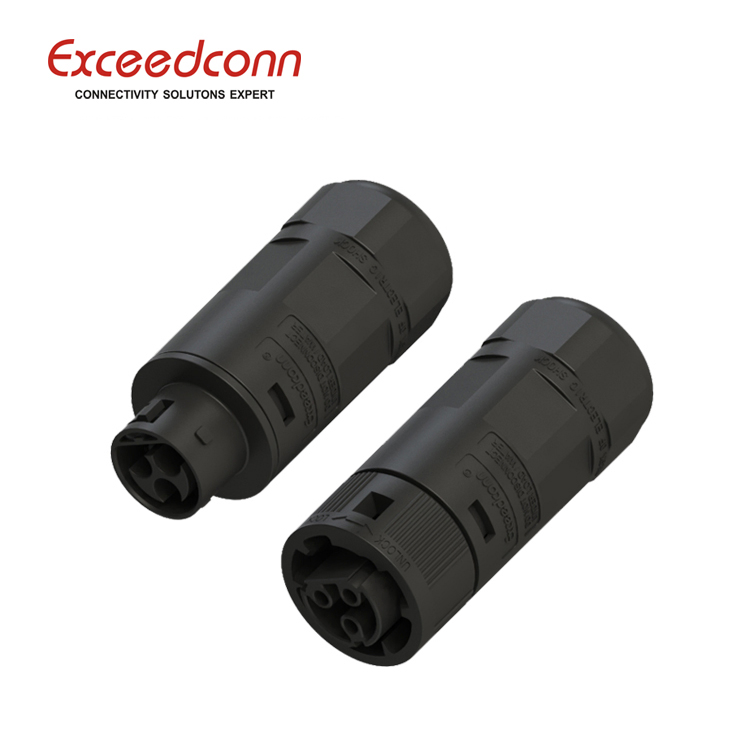

| Electrical Performance | |
| Rated Voltage | 250V AC |
| Rated Impulse Voltage | 4000V |
| Rated Current | 32A |
| Contact Resistance | ≤10mΩ |
| Insulation Resistance | ≥1000MΩ |
| Mechanical Capacity | |
| Cable Retention | OD:5.5~9.0, F≥80N; OD:9~12, F≥100N; OD:12~12.5, F≥120N; |
| Connector insertion force / Pullout force | ≥120N |
| Connector Insert and pullout frequency | 500 |
| Cable OD | 12~14mm |
| Operational Environment | |
| Protection Degree | IP68 1m-1H |
| Ambient Temperature | -40ºC~+85ºC |
| Sealing element | 960ºC |
| Flammability class(Insulator) | UL94 V-0 |
| Material | |
| Plastic | PA66 and PA66 30%GF |
| Conductor | Copper Alloy with Ni Plating |
| Sealing element | Silicone |
| Connecting Screw | SUS |

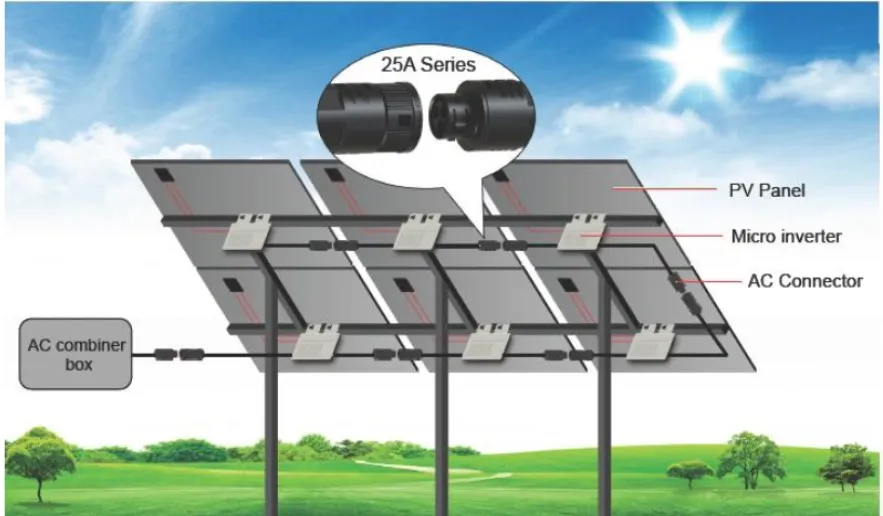

We are committed to providing professional lighting system connection solutions, product R&D, manufacturing, and OEM services. Our products are widely used in the fields of city lighting, landscape, solar energy, and industrial control. Our main customers include industry-leading enterprises.
With years of development, we own a professional and strong technical team. We can provide individualized connection solutions for different customers in different fields. Our team has accumulated more than 50 patents in connection solutions.
Adhering to the "rigorous, responsibility, cooperation" business philosophy, we provide customers with high-quality products and services, acting as your strong support on connection solutions.
A: We can supply free samples with freight collect.
A: Yes, it is preferred to discuss projects face-to-face. We believe visiting our factory will build confidence in our manufacturing capabilities.
A: We provide technical support and can assist you in solving issues encountered by your customers.
A: Yes, we have a complete product catalogue. Please contact us online to obtain a digital copy.
A: The protection degree is rated at IP68 (1m-1H), which makes it highly waterproof and ideal for rugged outdoor environments.
A: The connector operates at a rated voltage of 250V AC with a rated current of 32A.
