Effectively smoothen the power output to decrease the impact to the grid:

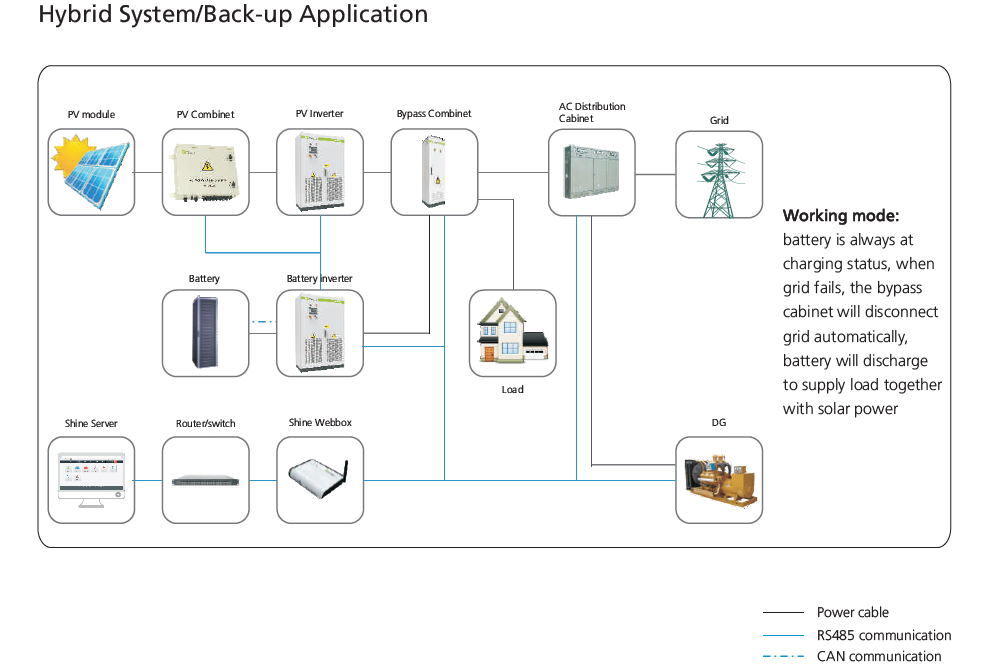

Reliable power supply for critical loads:
| Specification | HPL500KWH-LEP | HPL800KWH-LEP | HPL1MWH-LEP |
|---|---|---|---|
| Model | HPL500KWH-LEP | HPL800KWH-LEP | HPL1MWH-LEP |
| Solar Panel | 500KW | 800KW | 1MW |
| Hybrid Inverter | 300KW PCS | 800KW PCS | 1000KW PCS |
| Utility Voltage Range | 380V/360-440Vac ; 480/432V-528Vac 50/60Hz | ||
| Container Size | 20FT | 40FT | |
| Compatible Battery System | |||
| Max Capacity | TBD by Battery System | ||
| Size & Chemical | Customized (300KWH-1MWH, 1MWH-5MWH) | ||
| Battery Voltage Range | 250-900V | ||
| C Rate | TBD by Battery System (0.5C/1C) | ||
| Physical Specification | |||
| Cooling | Forced air cooling for power electronics. Air conditioned for battery system with heater and dehumidifier, 5KW*2 or 10kw*2 | ||
| Operating Temperature | -20℃ to 50℃ (De-Rating over 45 ℃) | ||
| Aux Power | 220V or 120V single phase built in, 5kw*2 transformer | ||
| Size | 6058x2591x2438mm / 20*8.6*8ft | 12192x2591x2438mm / 40*8.6*8ft | |
| Weight | TBD | ||
| Communication | RS485, CAN, Ethernet/MODBUS TCP/IP | ||
| Additional Parts | Fire system, Isolation, Backup battery, etc | ||

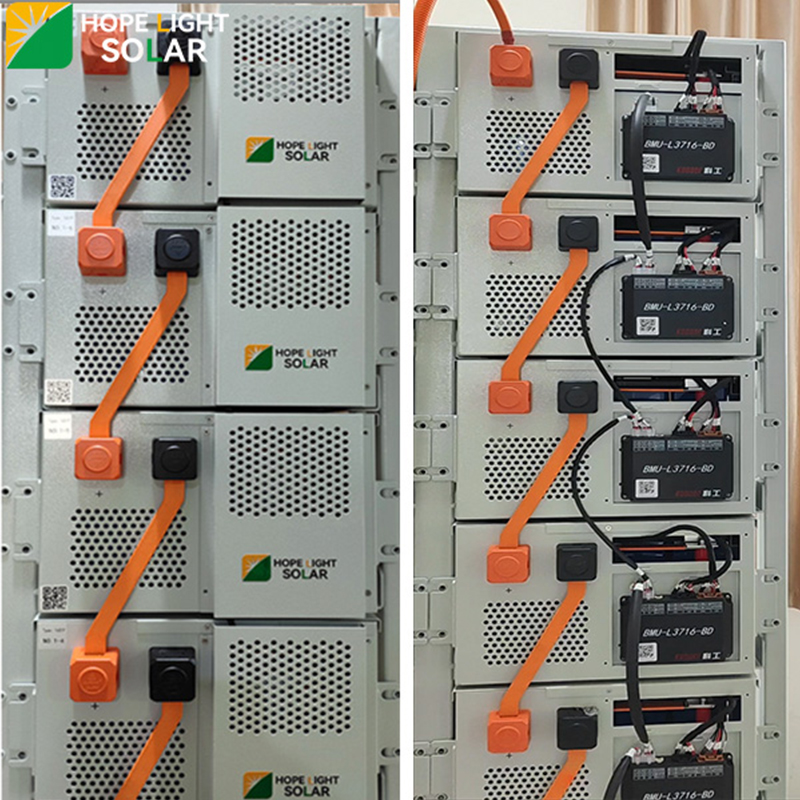

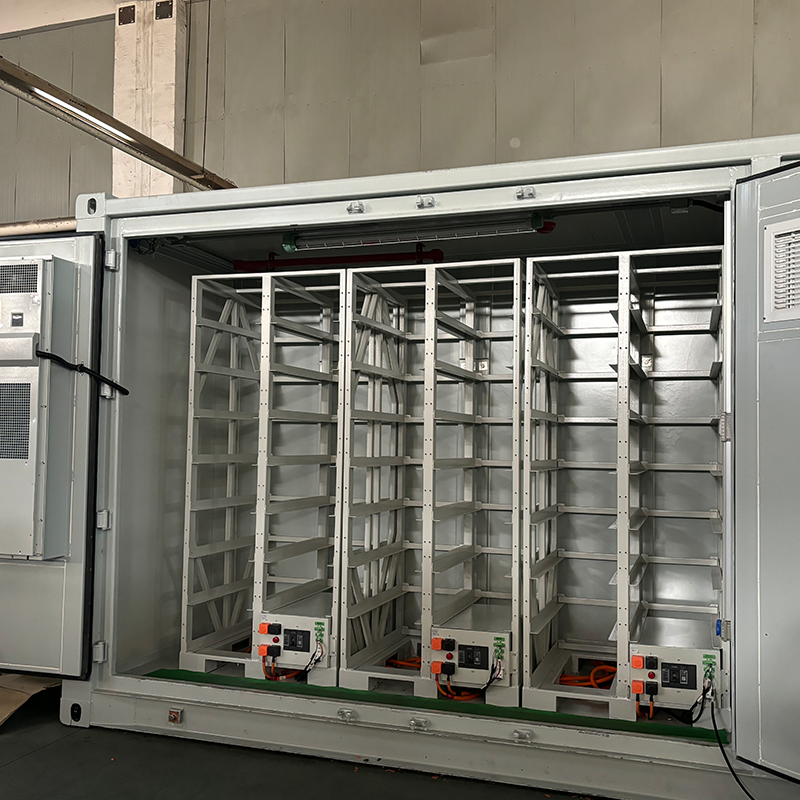

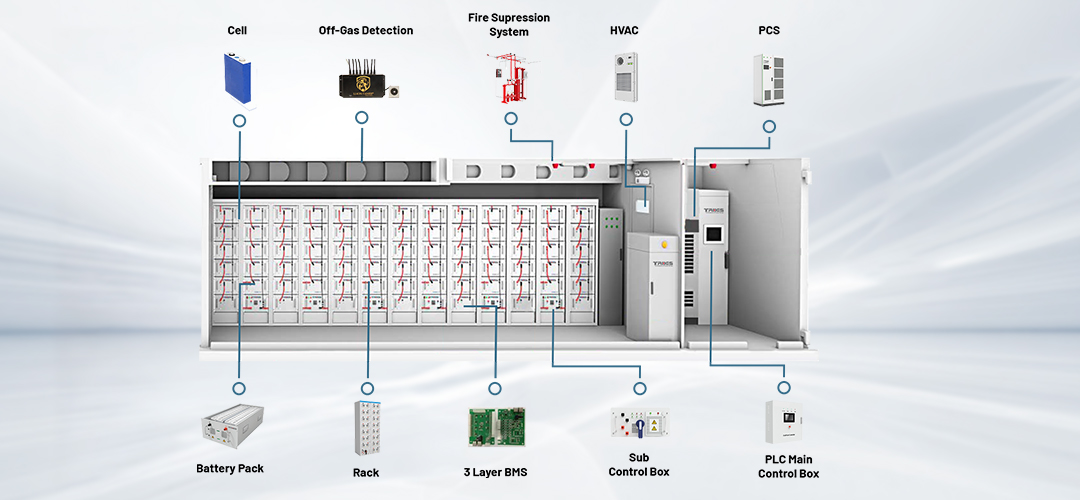

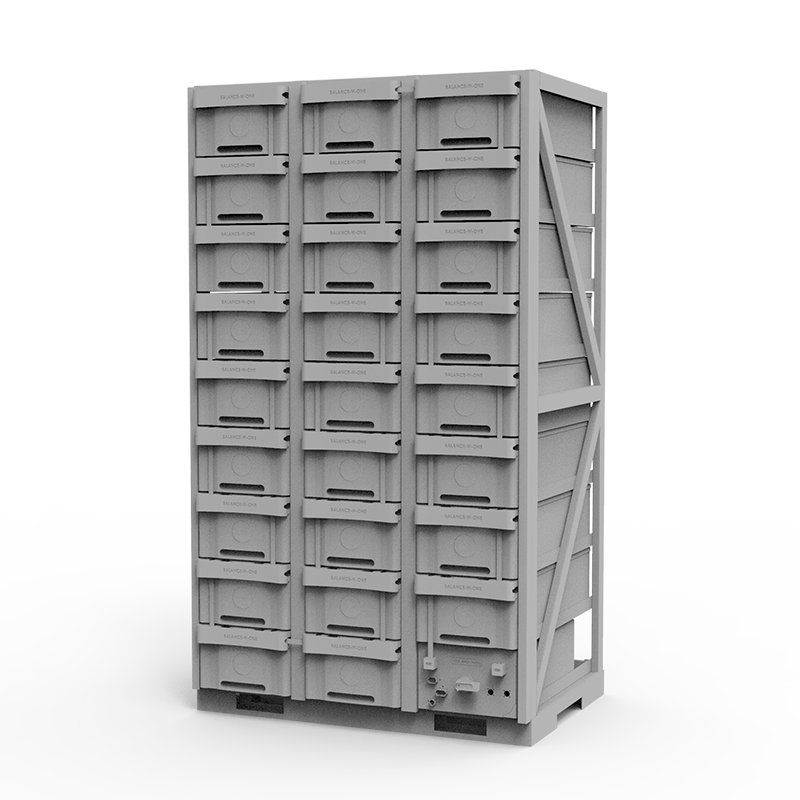

The battery cluster is the most basic component of the BESS container. Usually, the connection, communication, and reasonable capacity of the battery pack need to be considered. The battery rack needs to bear the weight of the battery pack. It can be detached and installed. Different discharge rates use different batteries, which need to be selected before system design.

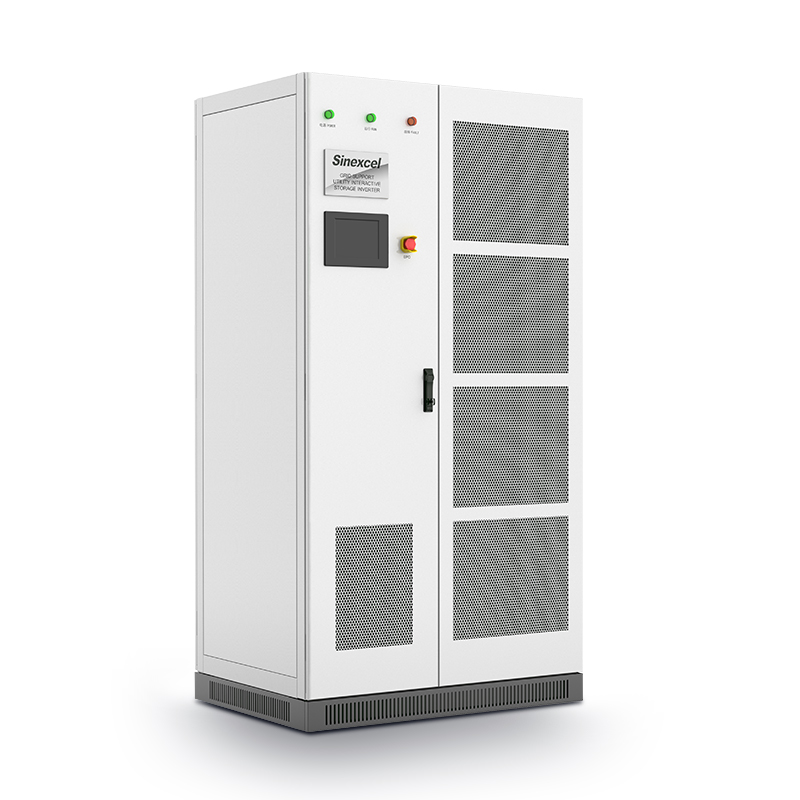

PCS is the core control and functional equipment of the system. It has a power of 500kw-2000kw. There is also a modular 50kw one, which can be freely combined into 100-300kw, which is very convenient. The certification of PCS determines its quality and scope of use. The PCS we use has met the requirements of Europe, America, Africa and most regions.

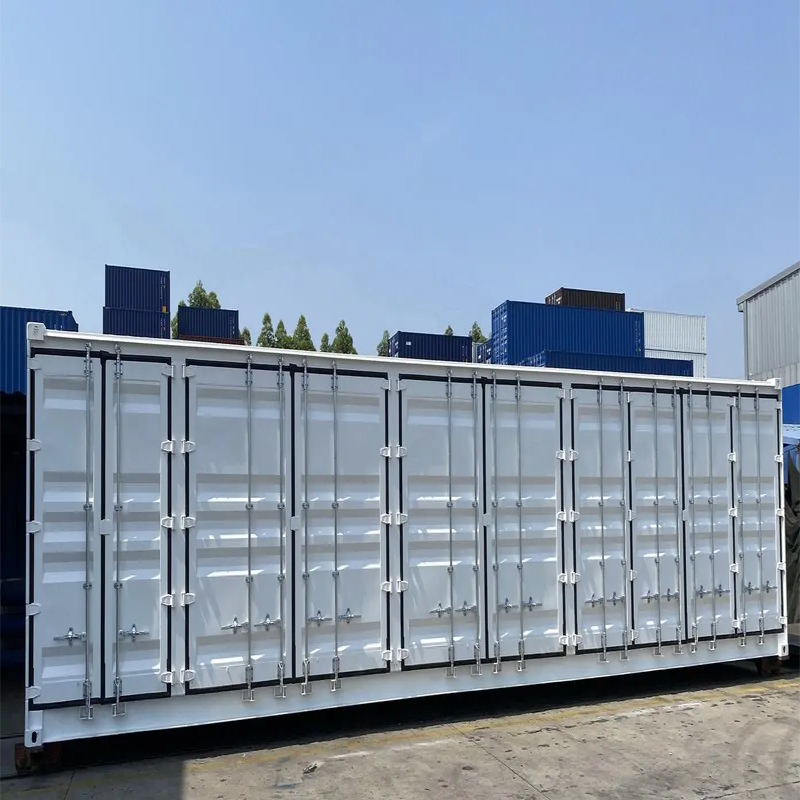

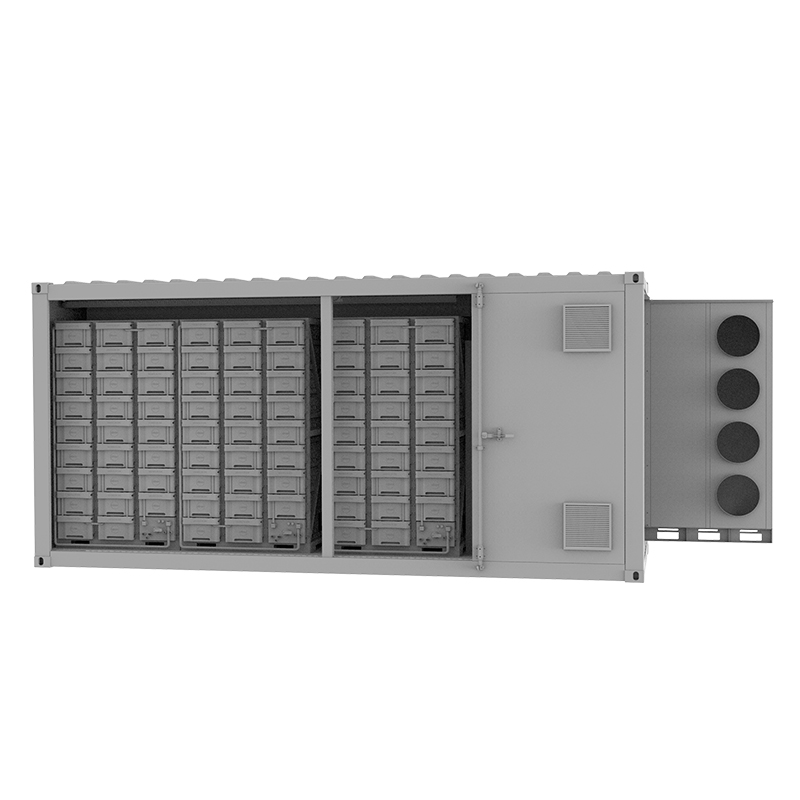

The system can be installed in different containers of 10ft, 20ft and 40ft, which is convenient for sea and land transportation. The entire cabinet can be certified for transportation without disassembly. Customers can install it directly after receiving the goods, which greatly reduces the workload and difficulty of debugging.
