| Model NO. | 3KW-30KW |
| Condition | New |
| Certification | ISO, CE |
| Application | Home, Industrial, Commercial |
| Specification | Normal, 450*270*610mm |
| Product Name | Solar Panels System |
| Type | Lifep04 |
| Nominal Energy of Battery Module | 5kwh |
| Rated Voltage | 51.2V |
| Working Voltage | 44.8V~57.6V |
| Rated Charging/Discharging Current | 50A |
| Maximum Charging/Discharging Current | 50A |
| Origin | Hebei |
| HS Code | 8541490000 |
| Package Size | 45.00cm * 27.00cm * 61.00cm |
| Package Gross Weight | 51.000kg |

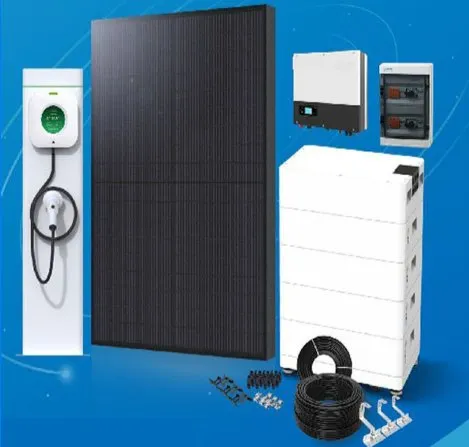

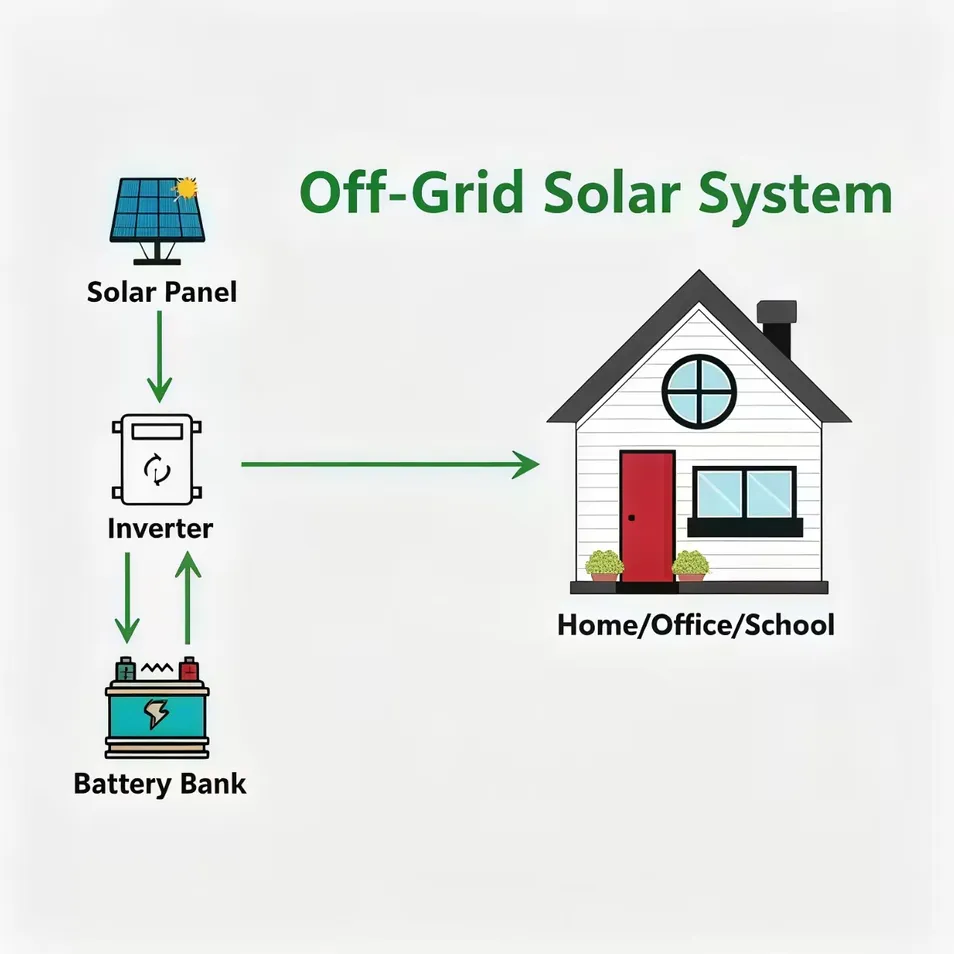

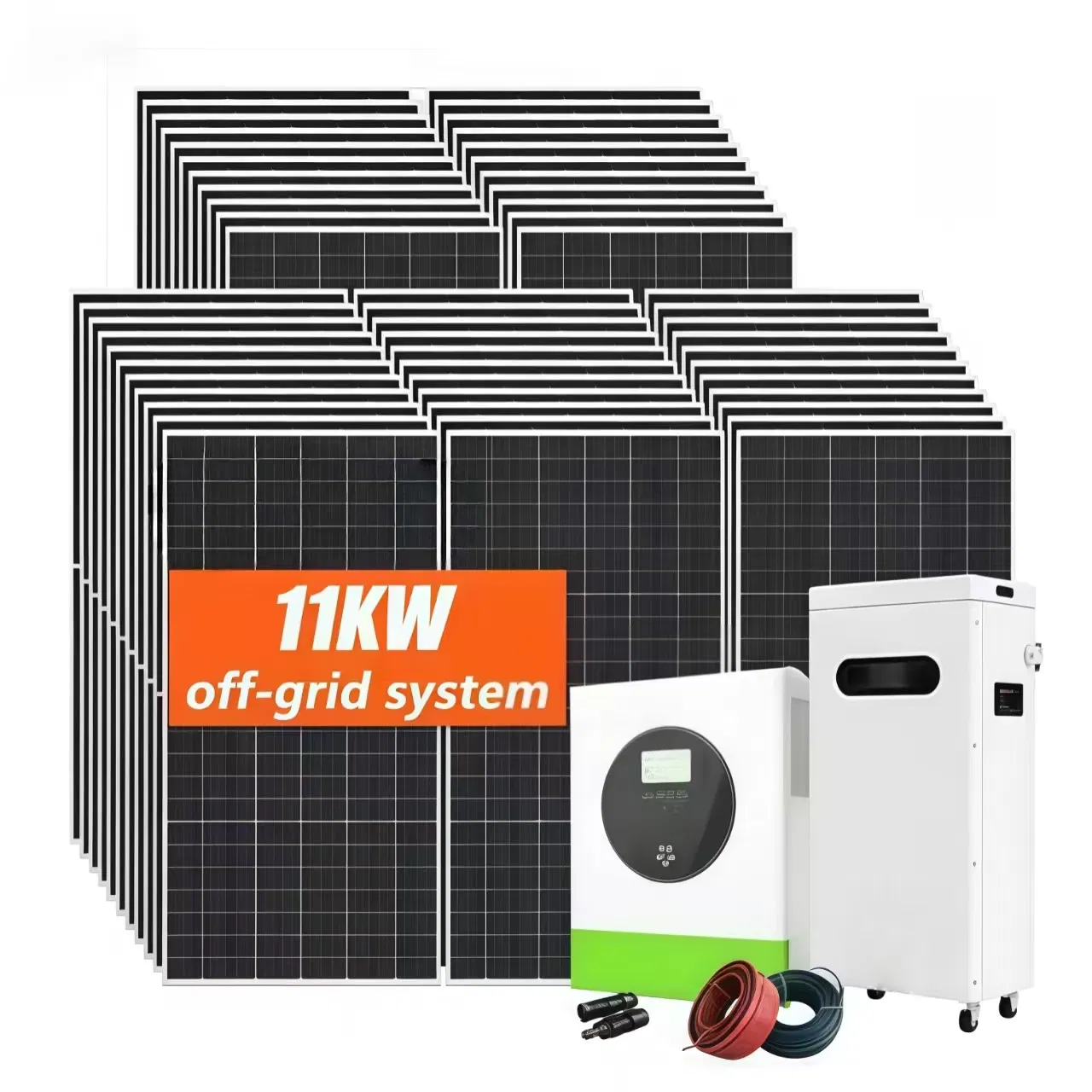

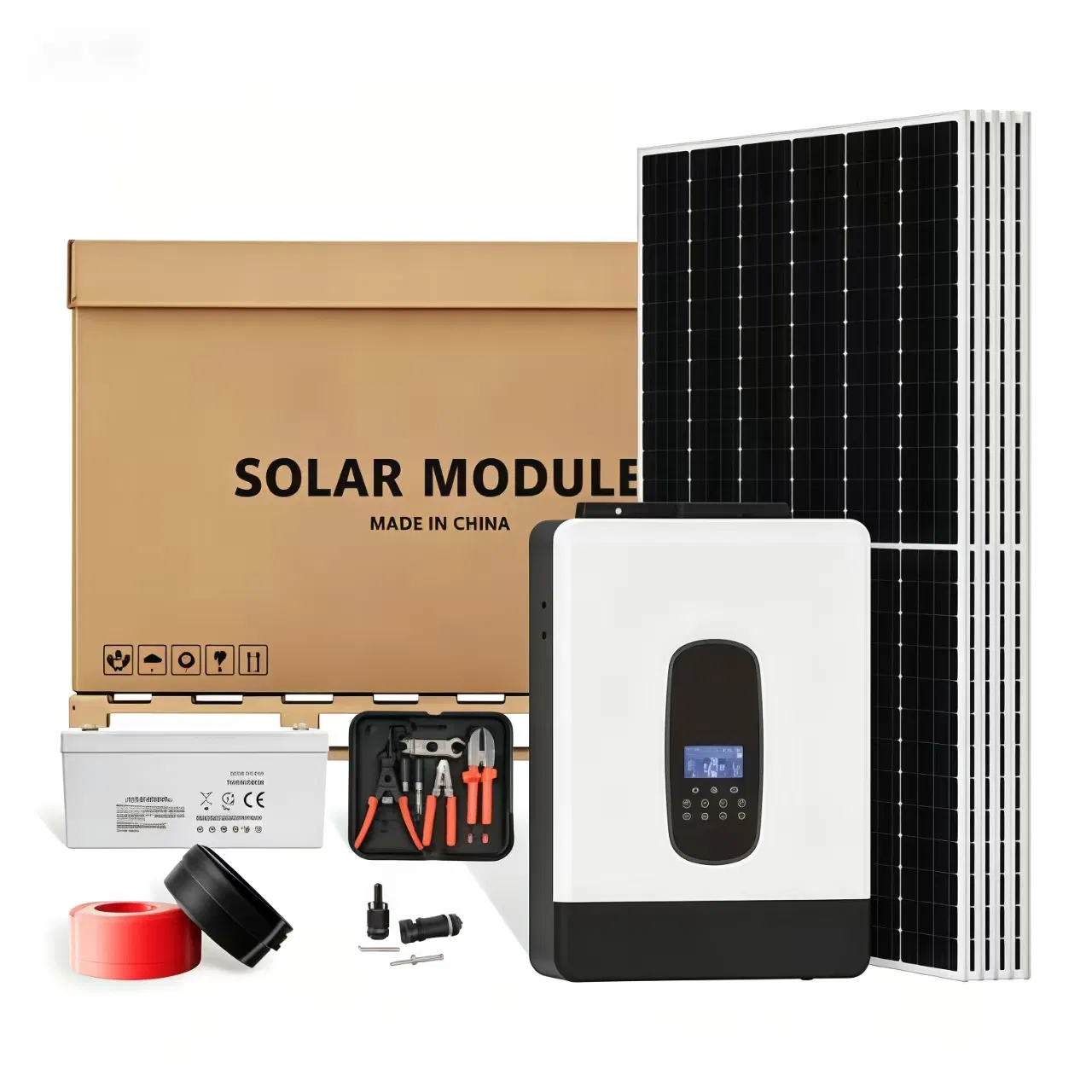

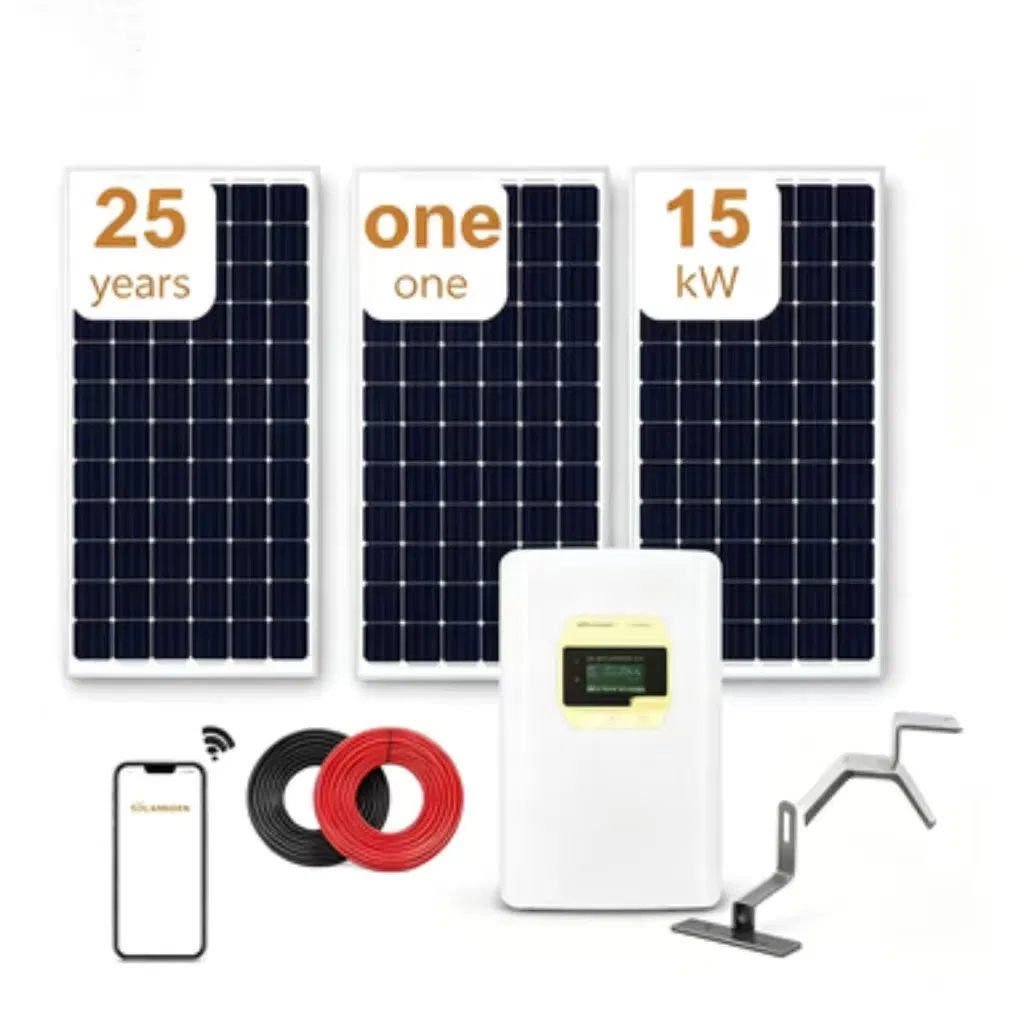

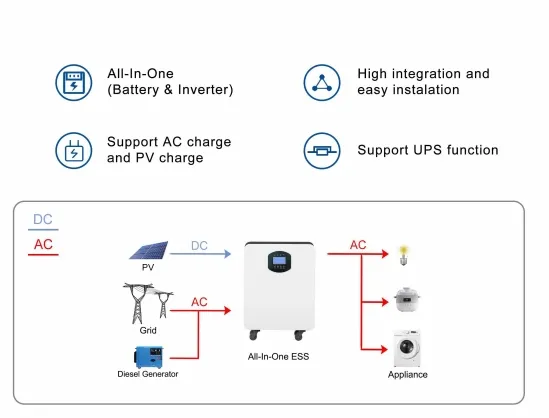

The integrated solar energy system for home light storage and charging is a household energy management system that integrates solar power generation, electrical energy storage, and intelligent charging. It aims to achieve energy self-sufficiency, reduce household electricity costs, and reduce dependence on traditional power grids. This system converts solar energy into electrical energy through solar panels and uses energy storage devices (such as lithium batteries) to store excess electricity for use when needed. The main components of the system include solar panels, inverters, energy storage batteries, intelligent control systems, as well as electricity meters and distribution devices.

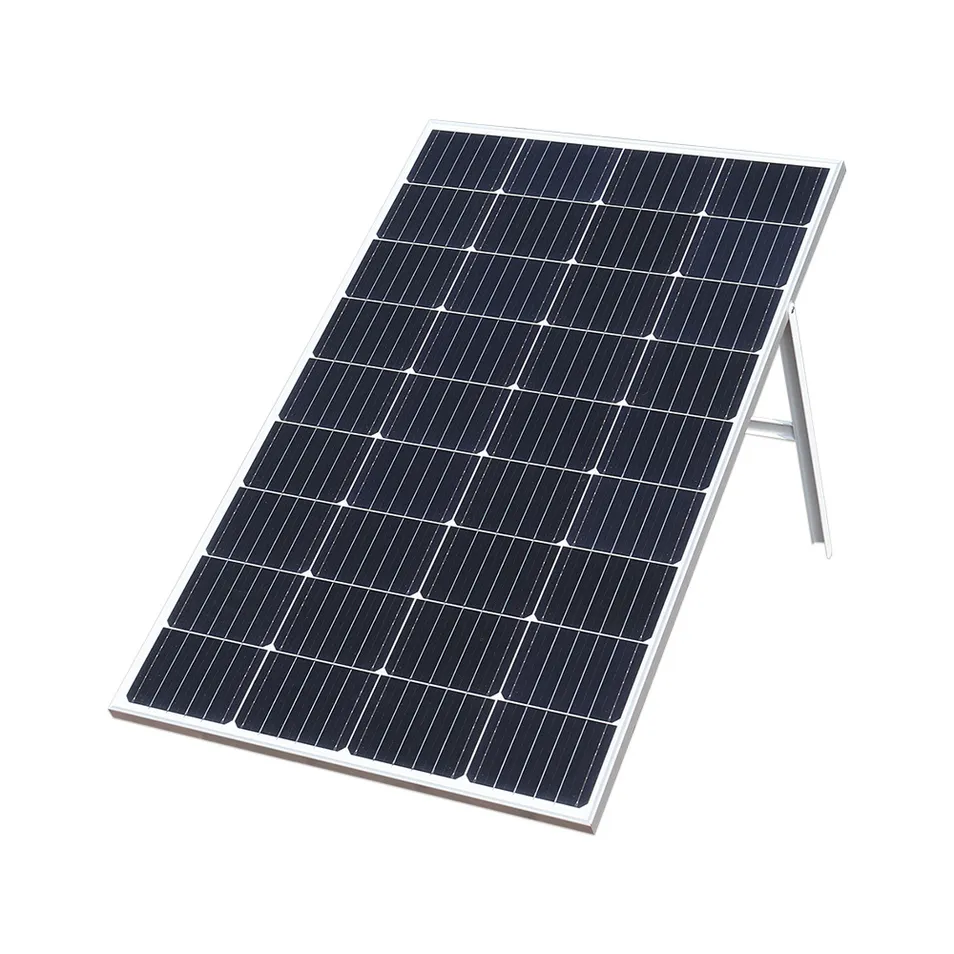

We produce high-efficiency monocrystalline/polycrystalline solar panels with power ranging from 100W to 1000W, featuring stable performance, long service life and strong weather resistance. Full customization is available for wattage, size, frame material and other specifications to fit your project needs.

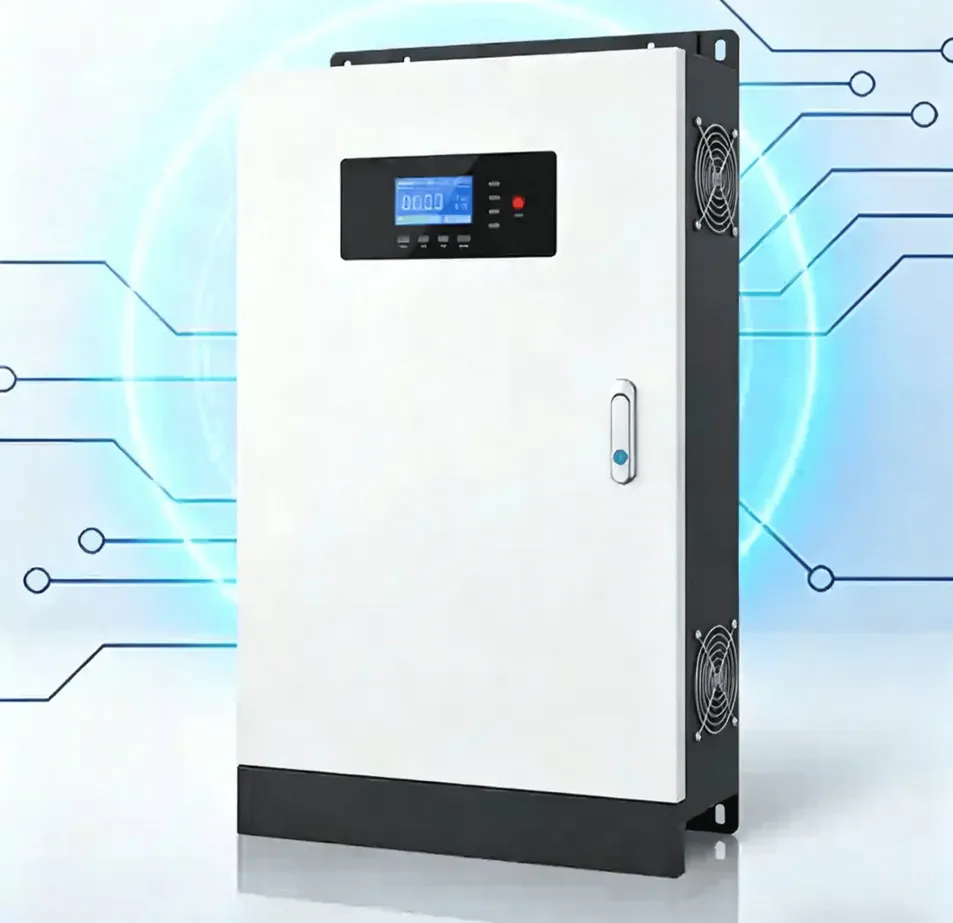

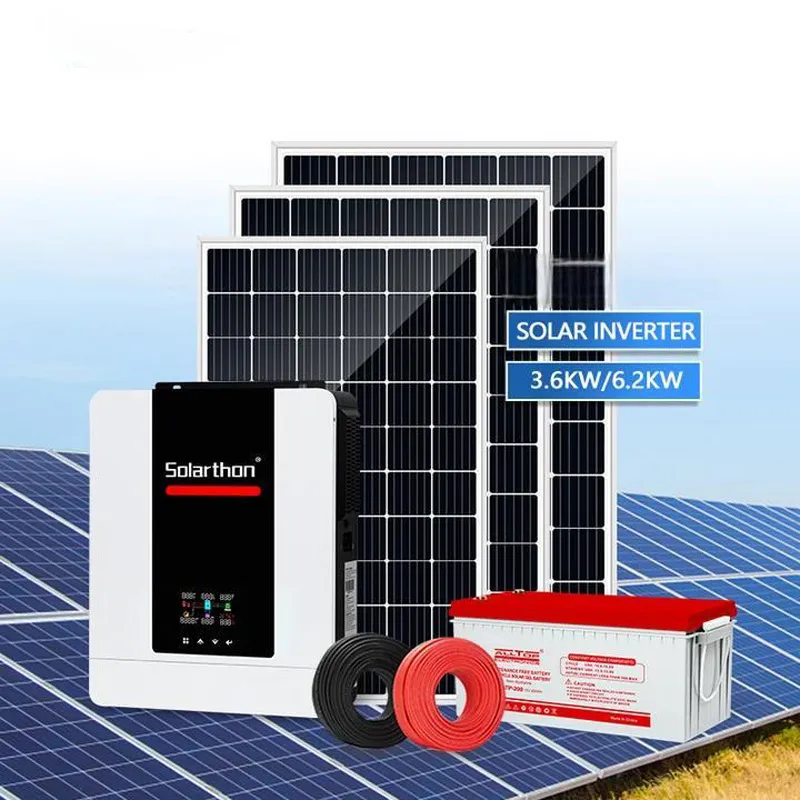

Our grid-tie/off-grid solar inverters convert DC power from solar panels to AC power for household and commercial use, equipped with intelligent monitoring, multiple safety protections and user-friendly displays. We support custom power ratings, functions and voltage standards to match your solar system perfectly.

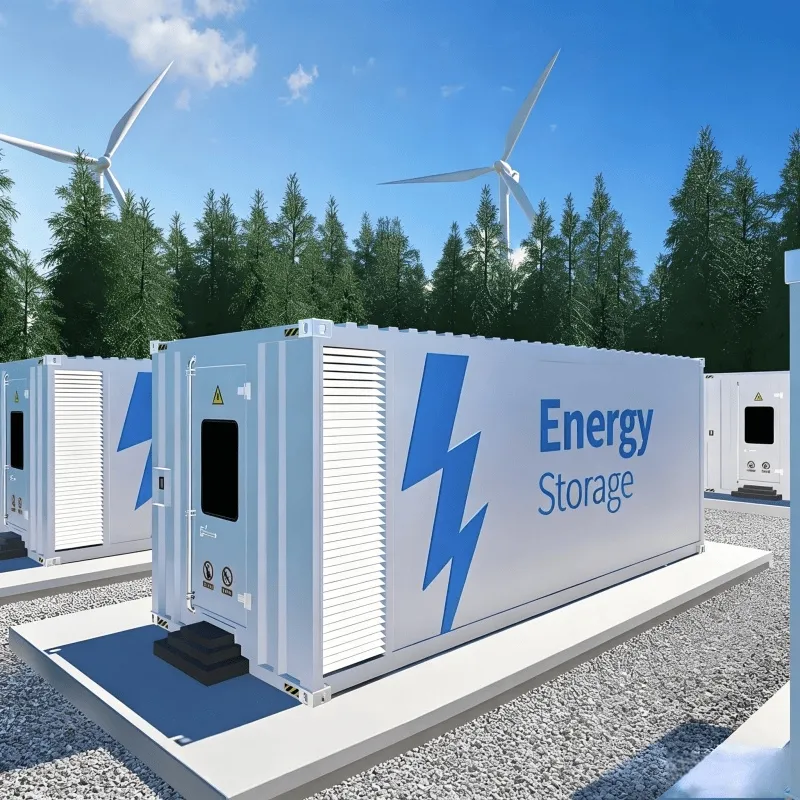

We offer lithium-ion battery energy storage systems for residential and commercial use, with high energy density, long cycle life and safe BMS protection, supporting off-grid power supply and peak shaving. Full customization is available for capacity, voltage, cabinet design and integration with solar systems to meet your energy storage demands.

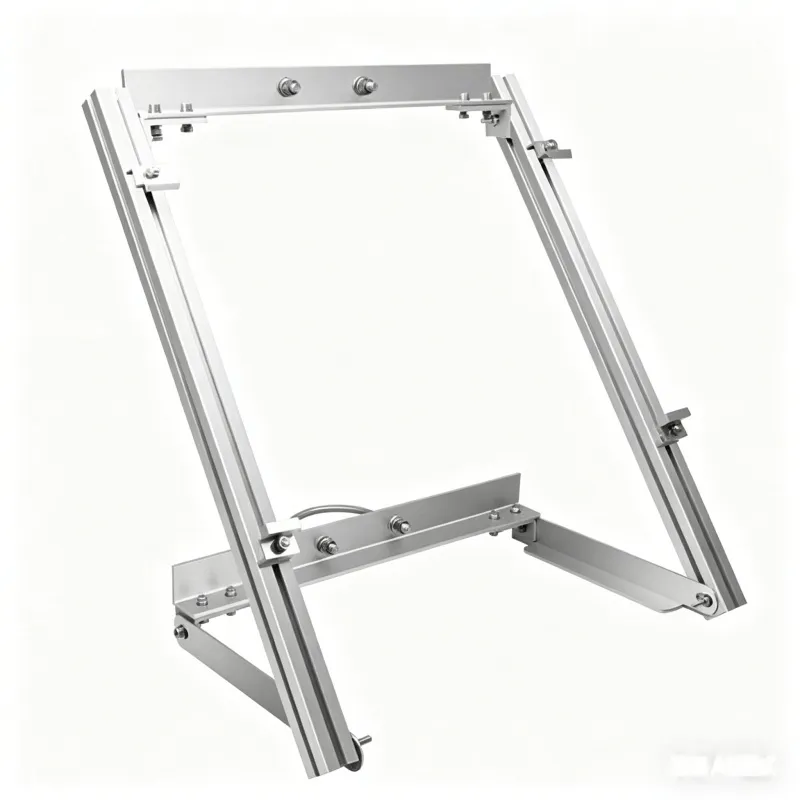

Made of corrosion-resistant aluminum alloy, our adjustable solar mounting brackets are suitable for roof, ground and balcony installation, with flexible angle adjustment and high load capacity. We can customize the size, structure, load capacity and installation type according to your panel model and installation scenario.

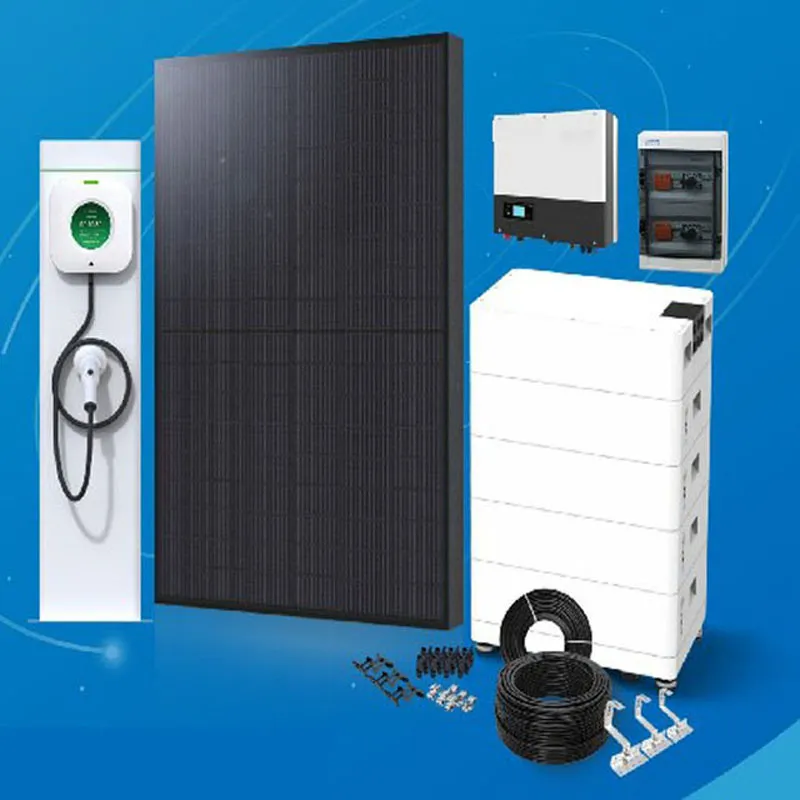

| Residental Photovoltaic, Storage and EV Charger Integrated System | |||||
| Model | YC-3K | YC-5K | YC-8K | YC-10K | YC-12K |
| Photovoltaic module | |||||

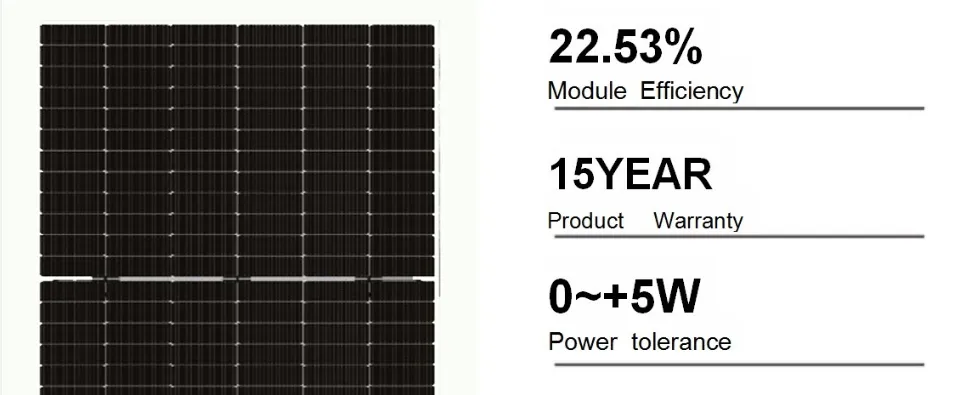

| Module specification | YC410PSF54M10/2 | ||||
| Power output | 410Wp | ||||
| Module number | 10 | 18 | 28 | 36 | 42 |
| Voltageat Pmax | 30.95 | ||||
| Currentat Pmax | 13.25 | ||||
| Open-circuit voltage | 37.28 | ||||
| Short-circuit current | 13.94 | ||||
| Size(W*H*D) | 1722*1134*35mm | ||||
| Module efficiency | 21.00% | ||||
| Module weight | 21.5kg | ||||
