| General Info | ||||
| Model | P3000 | |||
| Region/Country | US/CA/EU/UK/FR/AU/CN/KR/ZA | |||
| Net Weight | 25Kg | |||
| Product Dimension (H × L × W) | 480×285×300mm | |||

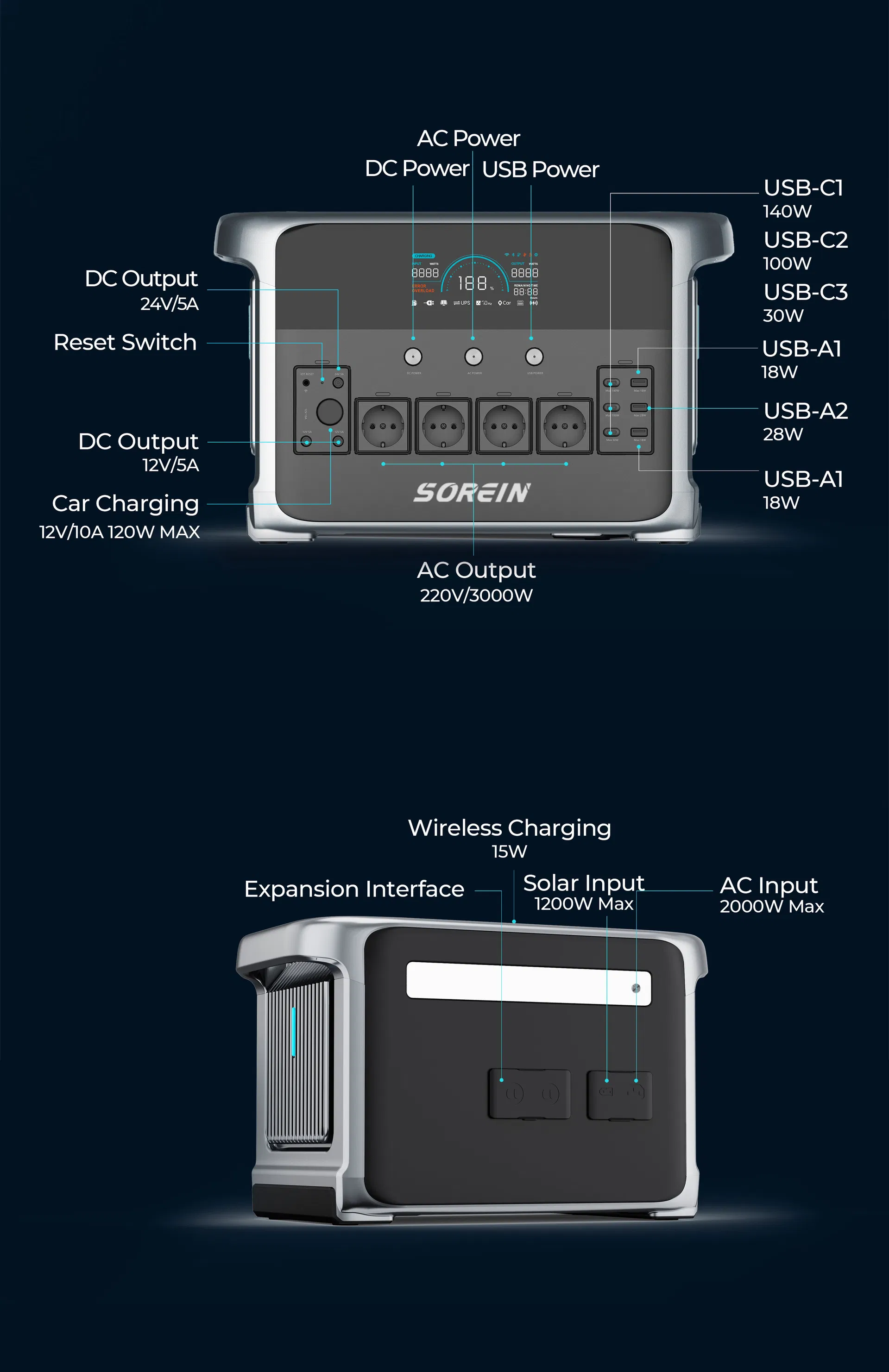

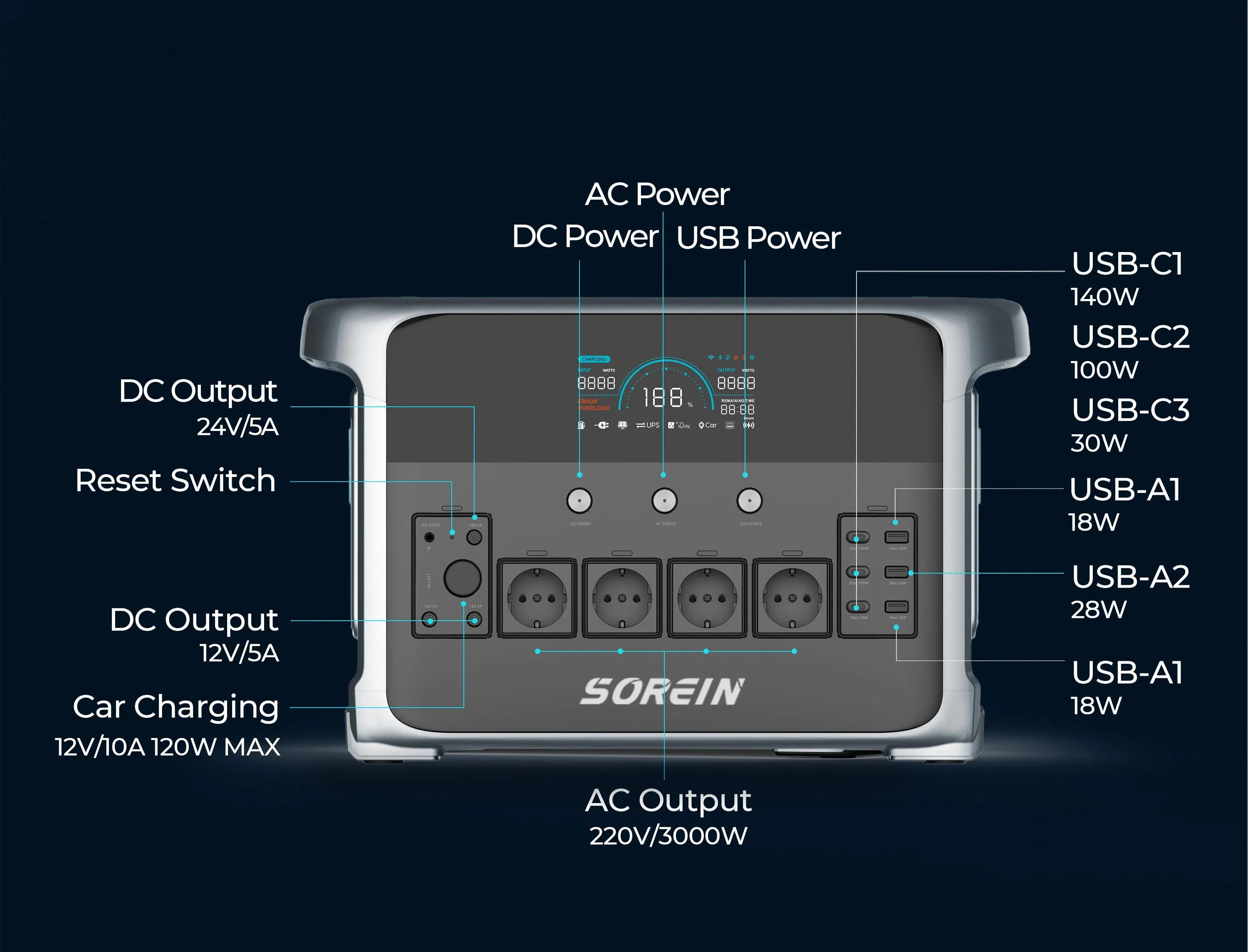

| Output Ports | ||||
| AC Output x4 (Pure sine wave) | 110V~240V 50Hz/60Hz 3000W Max | |||
| USB-A(x3) | 5V/3A, 9V/3A, 12V/2A, 28W Max 5V/3A, 9V/2A, 12V/1.5A, 18W Max 5V/3A, 9V/2A, 12V/1.5A, 18W Max |
|||
| USB-C (×3) | 5V/3A,9V/3A,12V/2A,15V/3A 20V/5A, 28V/5A 140W Max 5V/3A,9V/3A,12V/2A, 15V/3A,20V/5A,100w Max 5V/3A,9V/3A,12V/2.5A, 30W Max |
|||
| Cigarette Lighter(x1) | 12V 10A, 120W Max | |||
| DC5521 Output (×2) | One Port 12V/5A (Cigarette Lighter Port+DC5521x2 output 120w Max) | |||
| DC5525 Output(x1) | 24V/5A,120W Max | |||
| Total Output (x1) | 3000W Max | |||

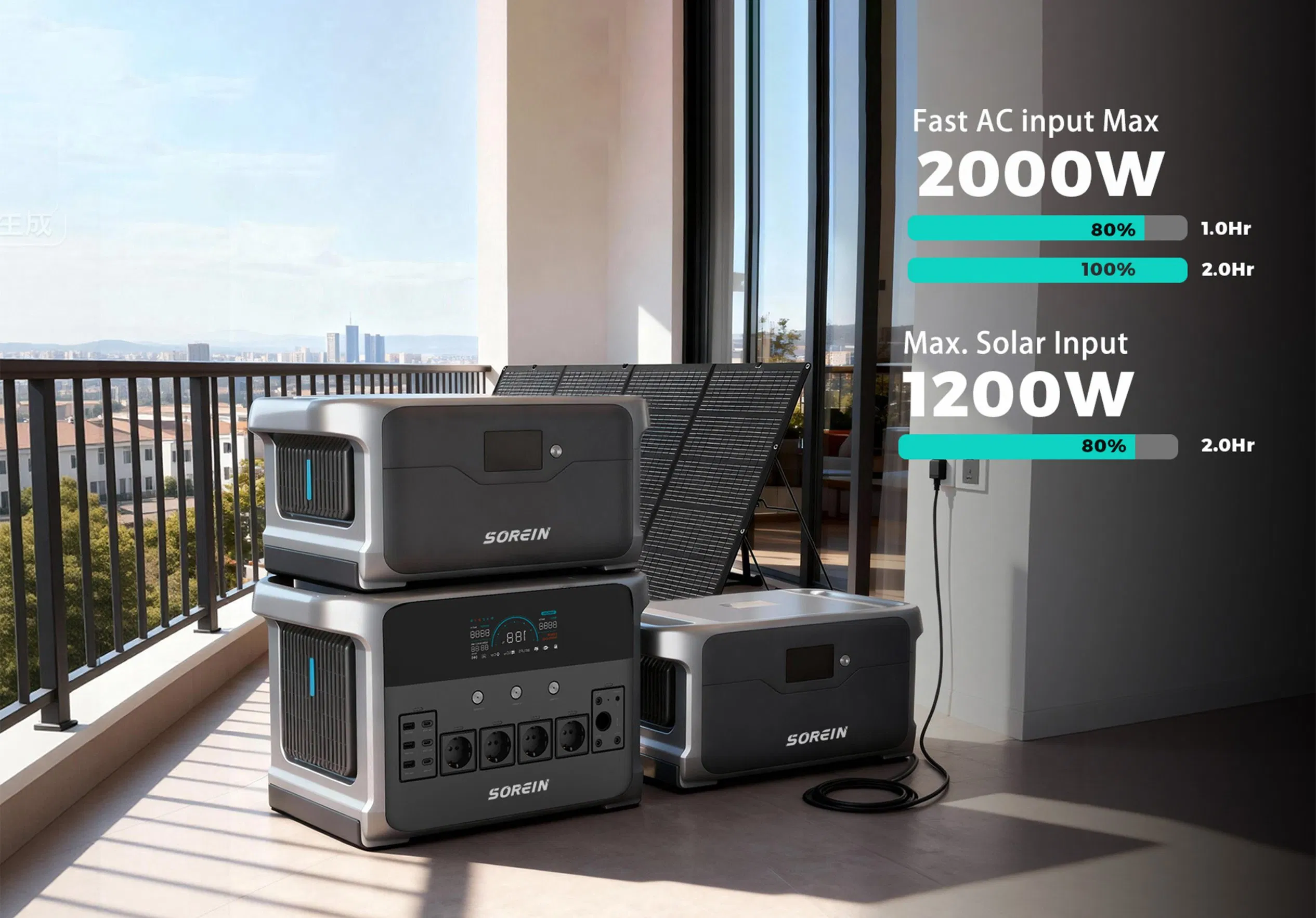

| Input Ports | ||||
| AC Charging (x2) | 100-130V 60Hz, 2000W Max | 100-130V 60Hz, 2000W Max | ||
| MTTP Charging | 12-70V 25A Max, 1200W Max | |||
| Cigarette Lighter | 12/24 V 8.5A Max | |||
| Battery Info | ||||

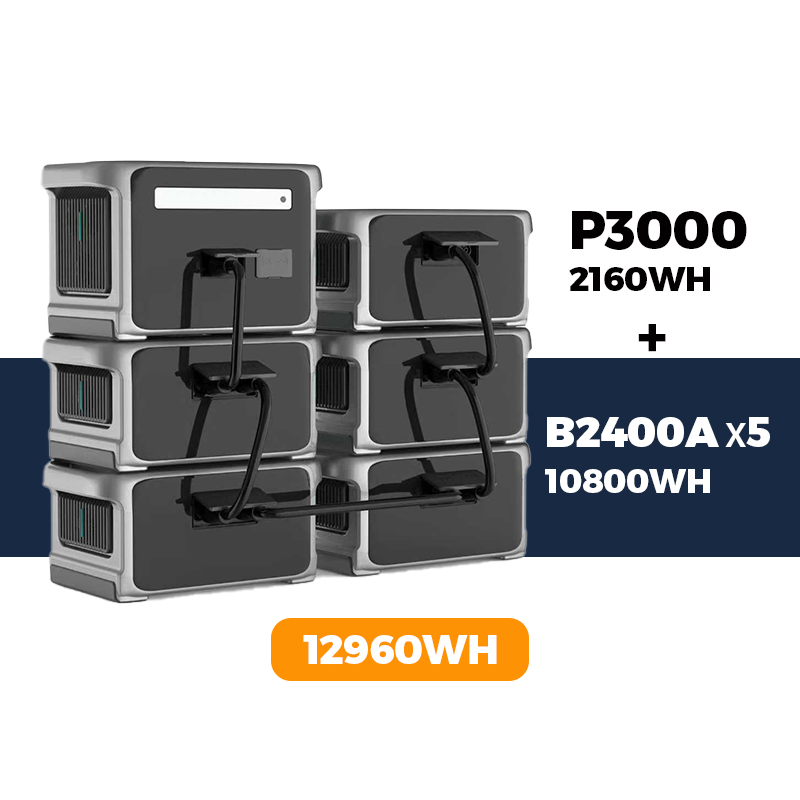

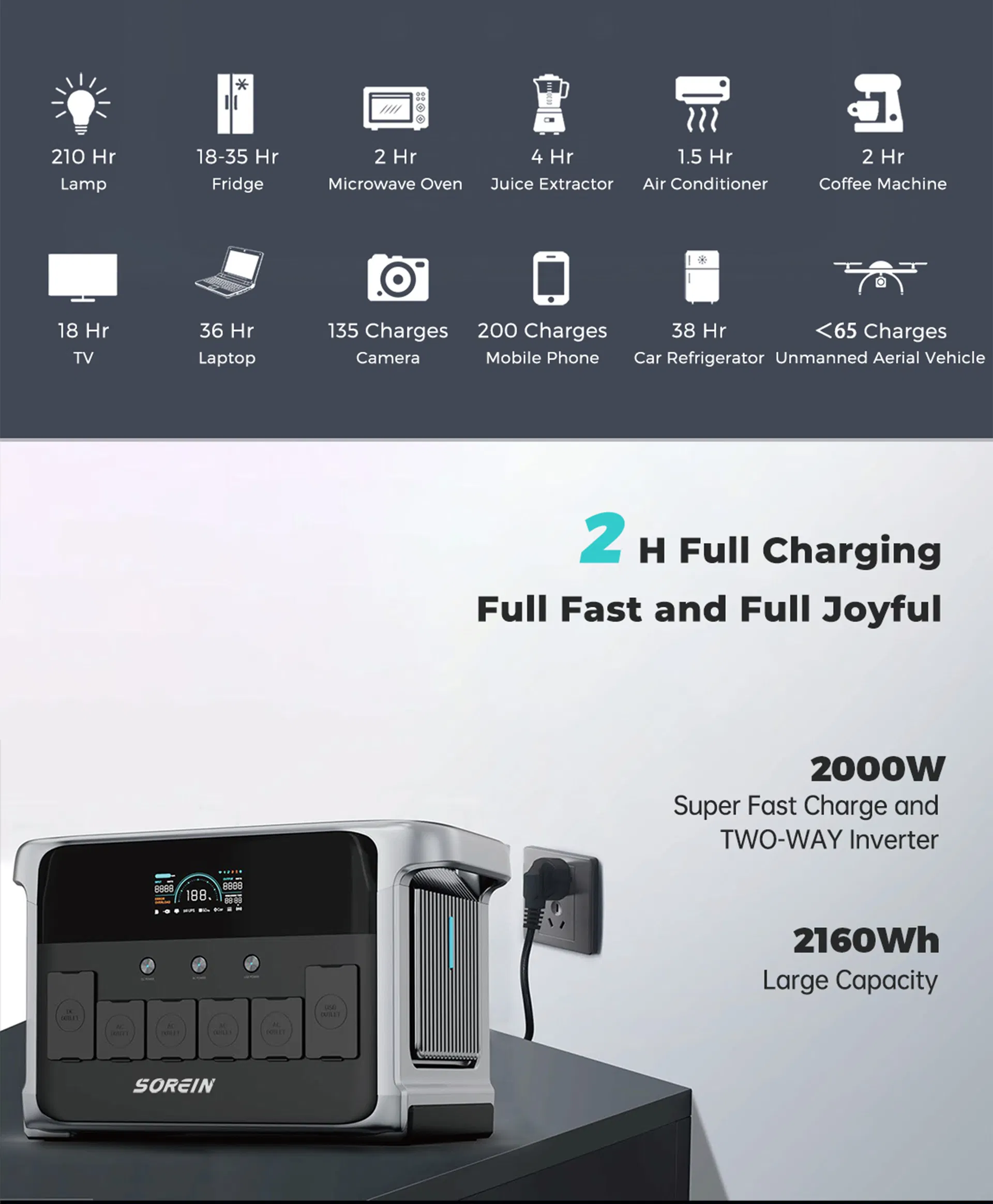

| Battery Capacity | 2160Wh, 45Ah, 48V | |||
| Cell Chemistry | LFP | |||
| Cycle Life | 3,500 cycles to 80% capacity | |||
| Operating Temperature | ||||
| Optimal Operating Temp | 20°C~30°C (68°F ~ 86°F) | |||
| Discharging Temperature | -20°C~45°C (-4°F ~ 113°F) *In environments below 0°C, the discharge efficiency decreases, so we recommend using the smart heating module (optional). | |||
| Charging Temperature | 0°C~45°C (32°F ~ 113°F) | |||
| Storage Temperature | 0°C~45°C (32°F ~ 113°F) | |||
