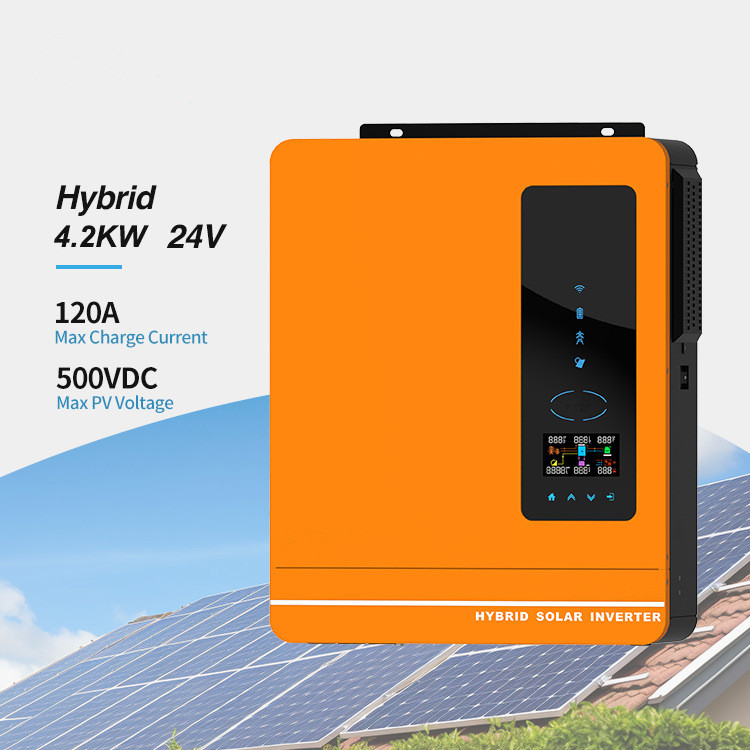

| Parameter | 4200W Model | 6200W Model |
|---|---|---|
| Rated Power | 4200W | 6200W |
| Maximum PV Input Power | 6200W | 6500W |
| PV INPUT (DC) | ||
| Nominal DC Voltage/Max DC Voltage | 360VDC/500VDC | |
| Maximum DC Voltage Range | 60-450VDC | |
| GRID OUTPUT (AC) | ||
| Nominal Output Voltage | 220/230/240VAC | |
| Output Voltage Range | 195.5-253VAC | |
| Nominal Output Current | 15.7A | 27.0A |
| Power Factor | >0.99 | |
| EFFICIENCY | ||
| Max Conversion Efficiency (Solar to AC) | 98% | |
| TWO LOAD OUTPUT POWER | ||
| Full Load | 4200W | 6200W |
| Maximum Second Load (battery mode) | 1200W | 2067W |
| Main Load Cut Off Voltage | 22VDC | 44VDC |
| Main Load Return Voltage | 26VDC | 52VDC |
| AC INPUT | ||
| AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | |
| Maximum AC Input Current | 30A | 40A |
| Nominal Operating Frequency | 50/60Hz | |
| Surge Power | 7200W | 12400W |
| BATTERY MODE OUTPUT (AC) | ||
| Nominal Output Voltage | 220/230/240VAC | |
| Output Waveform | Pure sine wave | |
| BATTERY & CHARGER | ||
| Nominal DC Voltage | 24VDC | 48VDC |
| Max Charging Current (Solar to AC) | 120A | |
| Maximum AC Charging Current | 100A | |
| PHYSICAL | ||
| Dimension, D x W x H (mm) | 420*350*110mm | 450*350*110mm |
| Net Weight (kgs) | 9 | 10 |
| INTERFACE | ||
| Communication Interface | WIFI | |
