| Model | AP-20 | AP-30 | AP-40 | AP-50 | AP-60 | AP-80 |
|---|---|---|---|---|---|---|
| Rated Current | 20A | 30A | 40A | 50A | 60A | 80A |
| Maximum Charging Current | 22A | 32A | 42A | 52A | 62A | 82A |
| Mppt Range Operating Voltage | ||||||
| 12VDC | 18VDC~80VDC | |||||
| 24VDC | 30VDC~100VDC | |||||
| 36VDC | 40VDC~100VDC | |||||
| 48VDC | 60VDC~150VDC | |||||
| 96VDC | Not Available | 120VDC~200VDC | ||||
| Maximum Pv Array Power | ||||||
| 12VDC | 280W | 420W | 570W | 700W | 900W | 1140W |
| 24VDC | 550W | 840W | 1130W | 1400W | 1700W | 2260W |
| 36VDC | 840W | 1260W | 1710W | 2100W | 2700W | 3420W |
| 48VDC | 1100W | 1650W | 2270W | 2800W | 3400W | 4540W |
| 96VDC | Not Available | 7200W | 9120W | |||
| Battery | ||||||

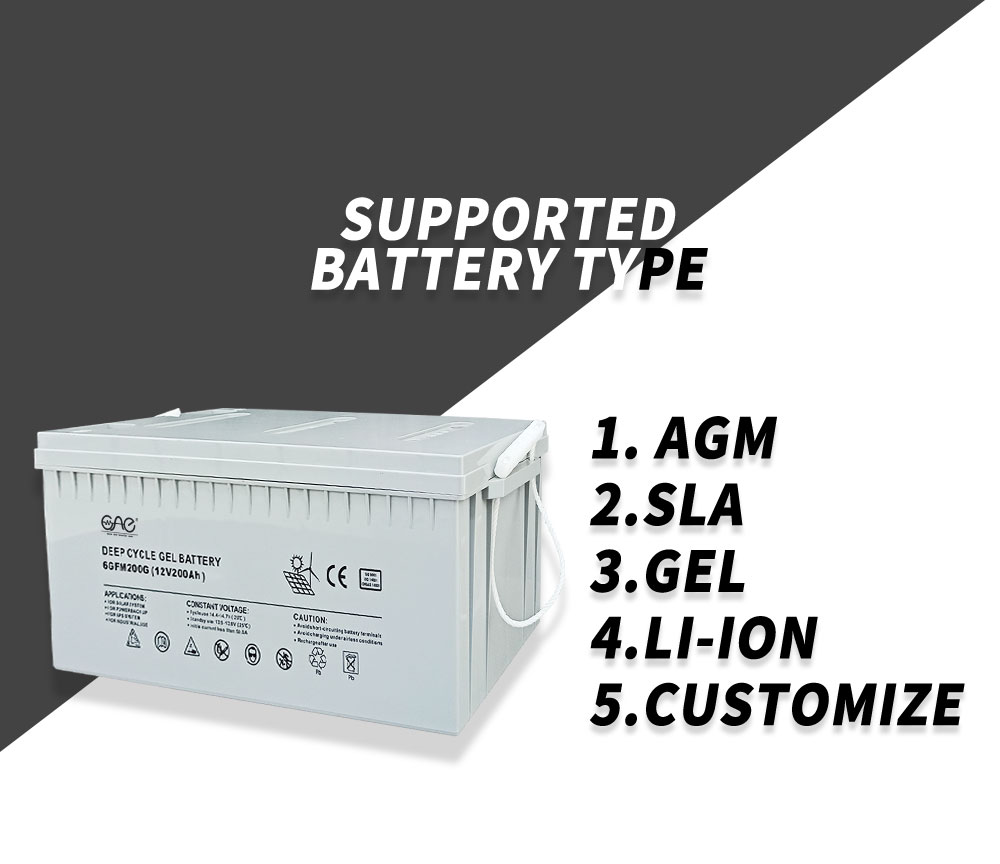

| Supportable Battery Type | Gel/SLA/AGM/Water/Lithium(lifepo4) battery | |||||
| Charging Mode | Three Stages: Constand Current(mppt),equalizing Charge, Floating Charge | |||||
| Maximum Efficiency | ≥99% | |||||
| Communication Portal | ||||||

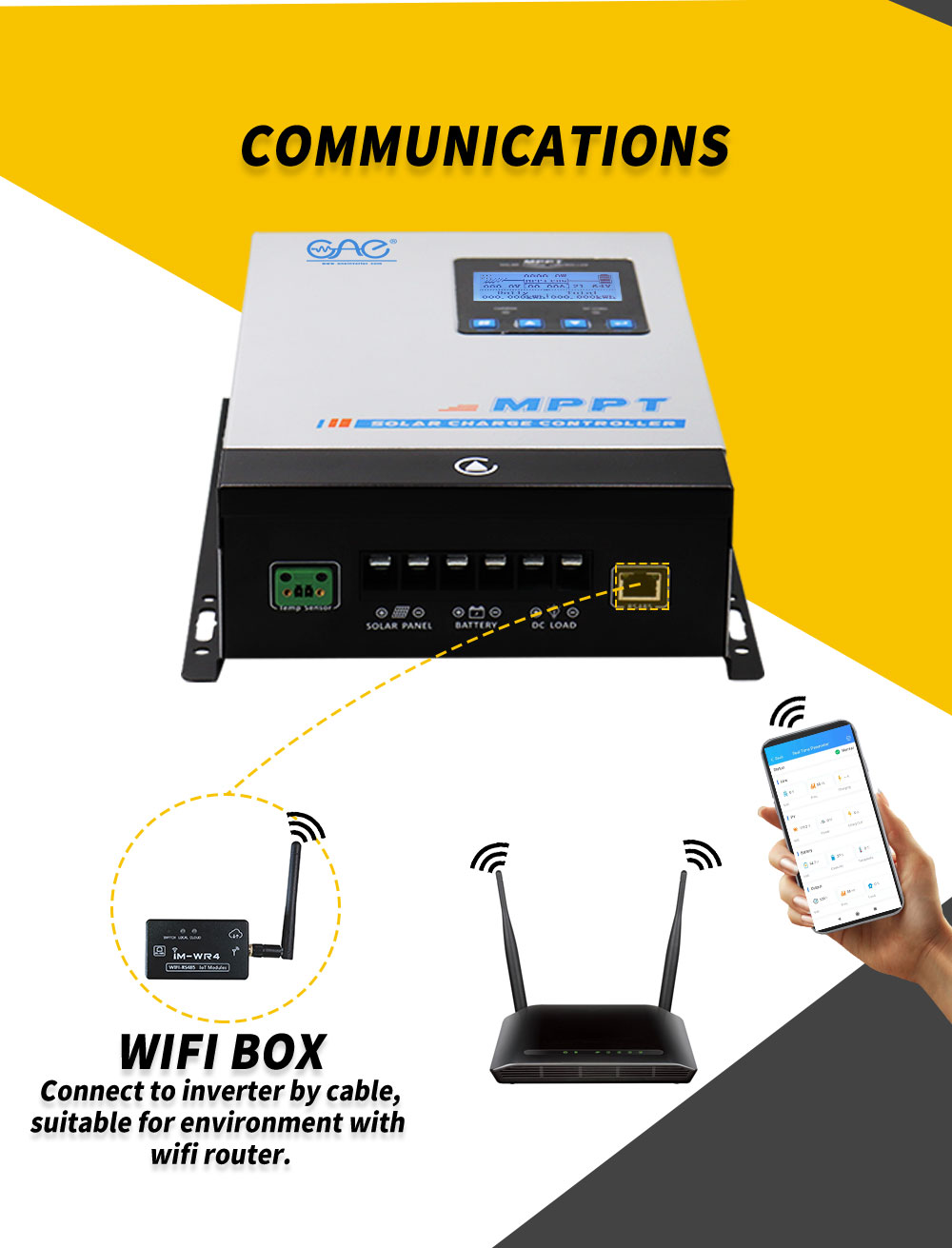

| Communication | RS485, available for wifi box & external control screen | |||||
| Physical | ||||||
| Dimension, D*W*H(MM) | 315*235*150 | 360*260*190 | ||||
| G.W.(KGS) | 3.5KGS | 4.5KGS | ||||
| *Product Specifications Are Subject To Change Without Further Notice | ||||||
