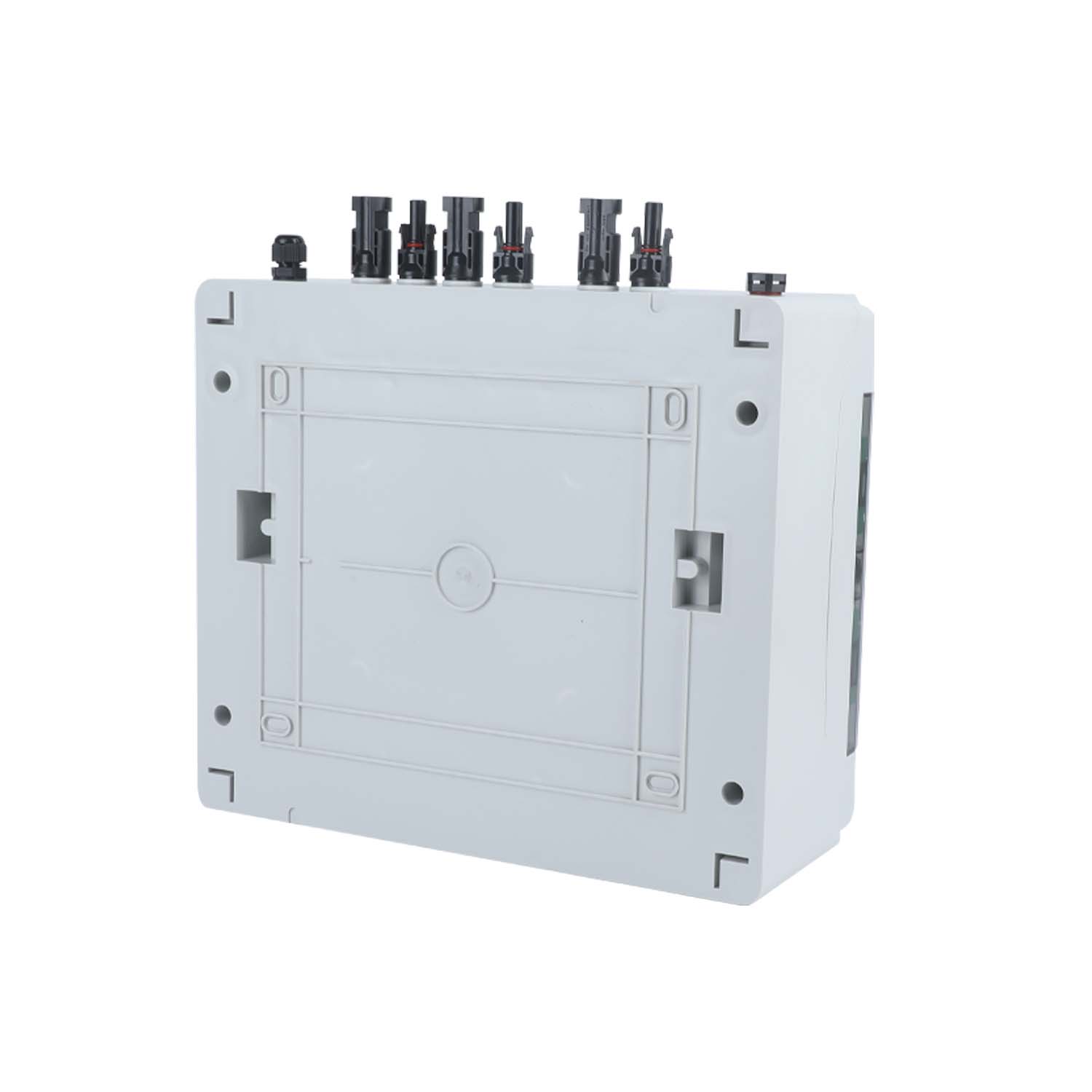

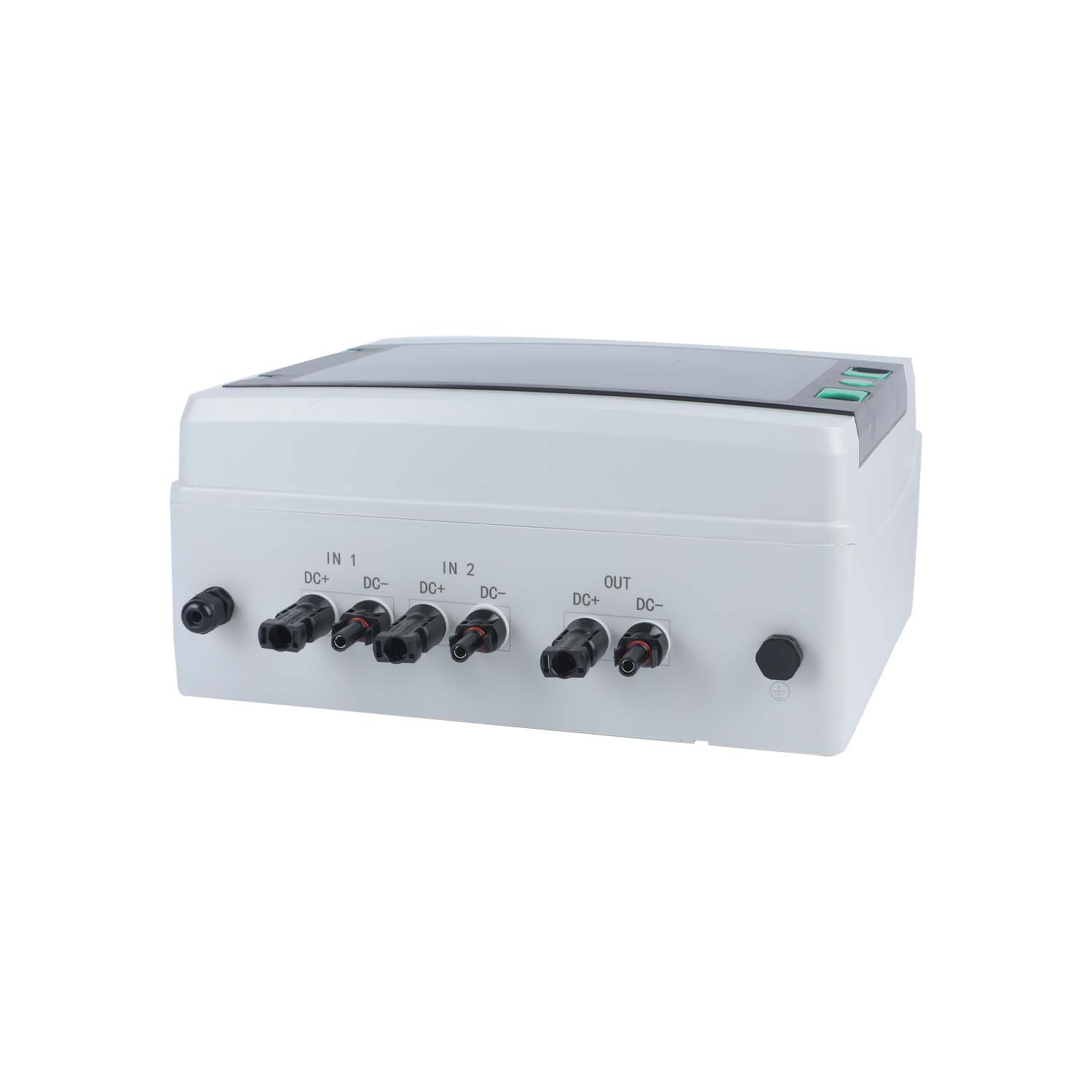

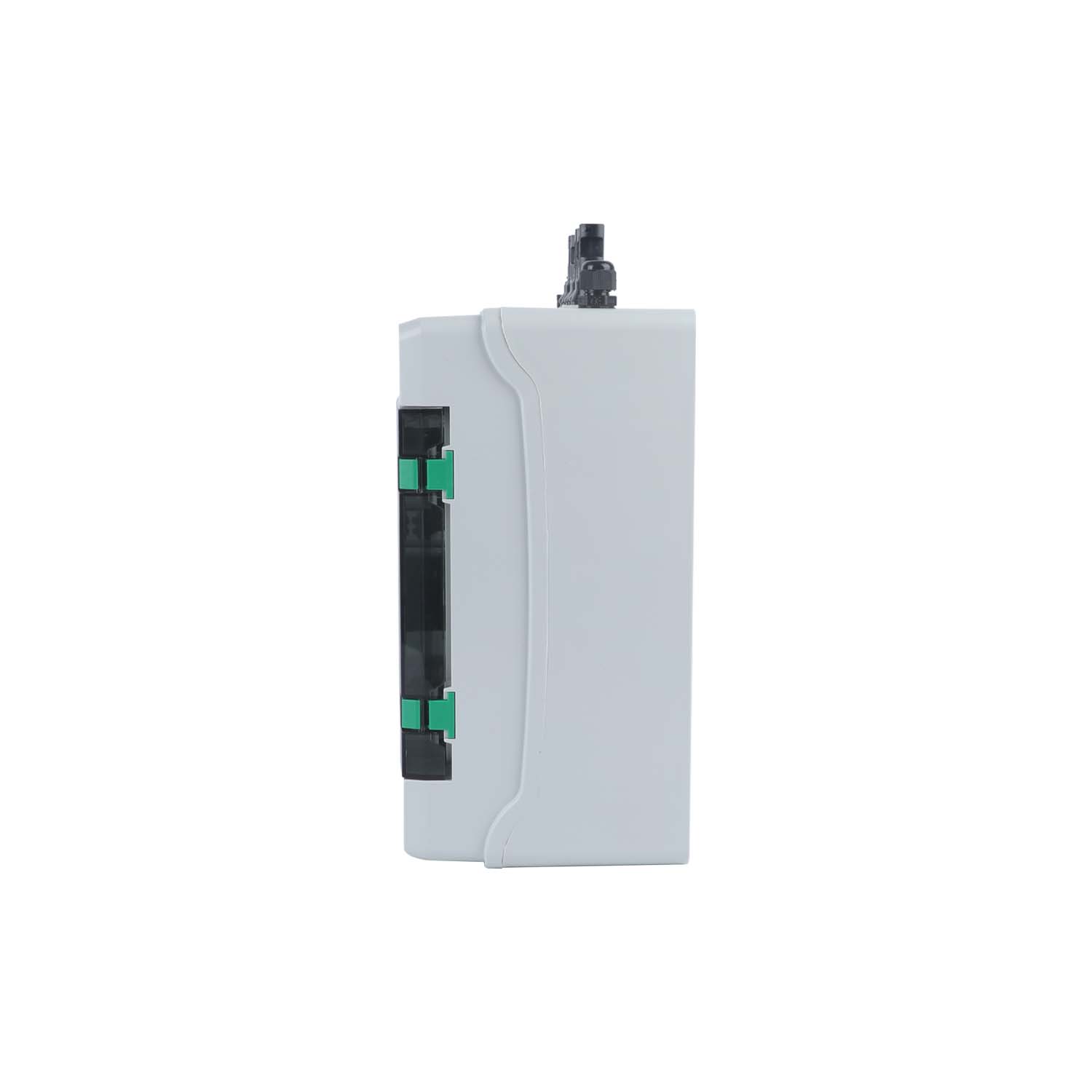

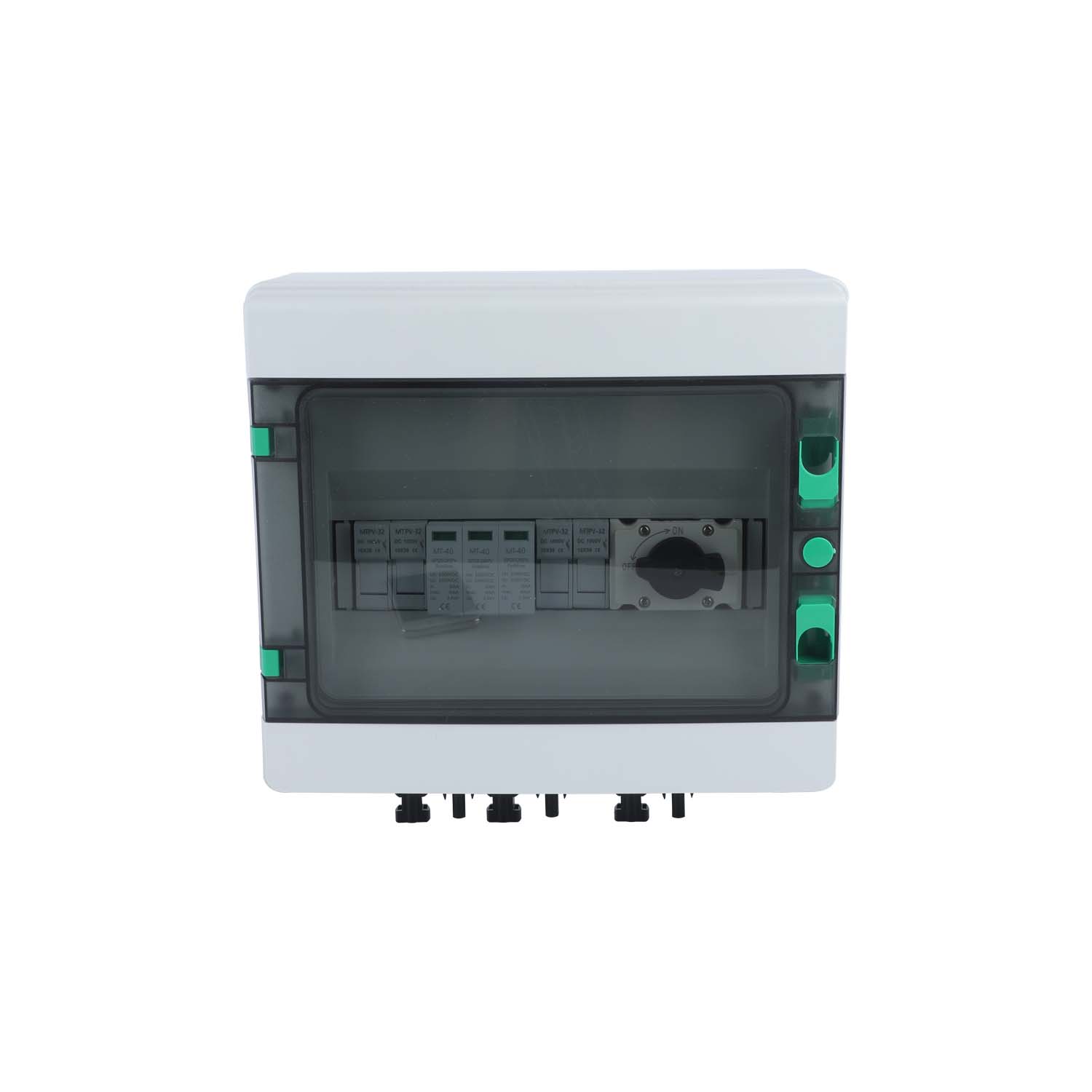

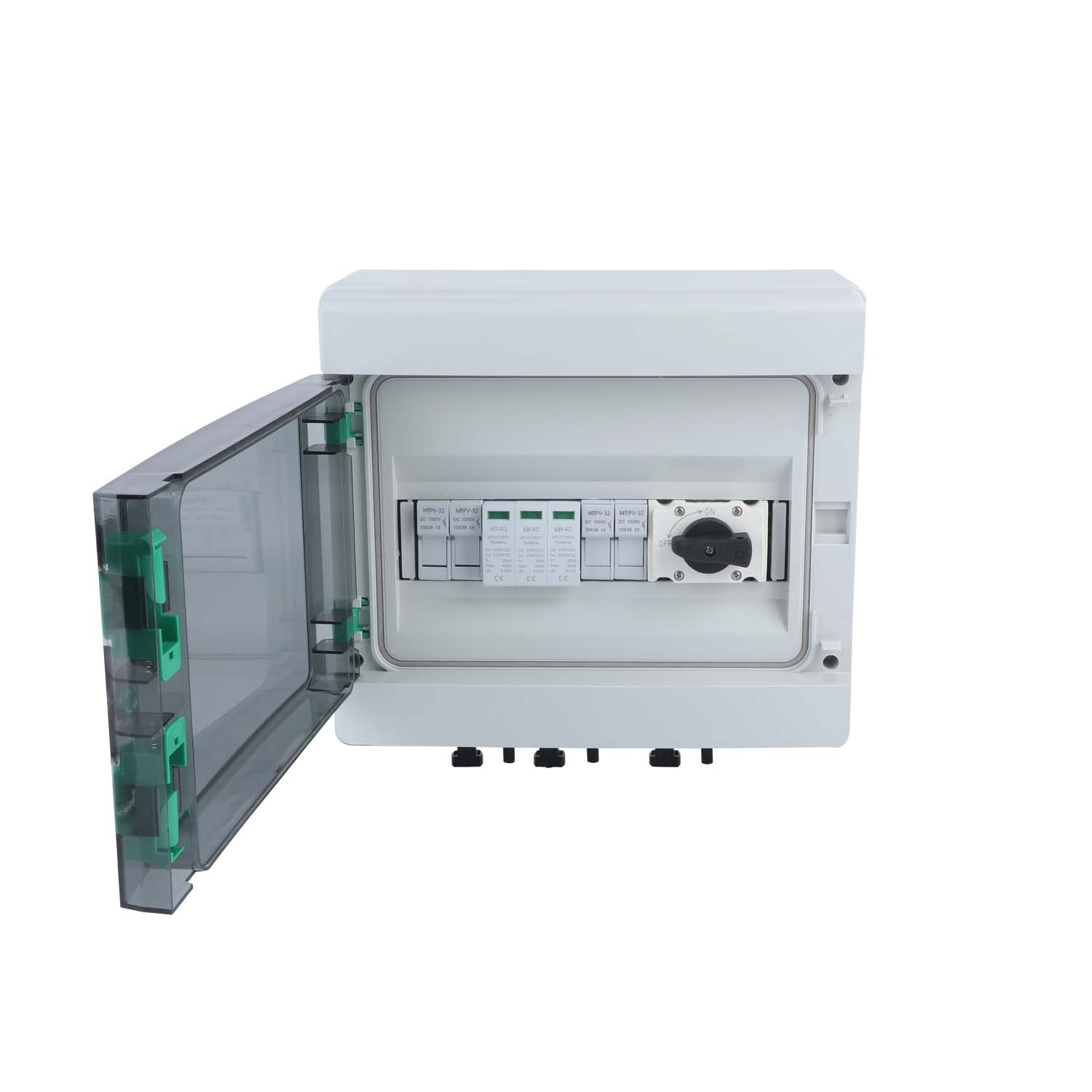

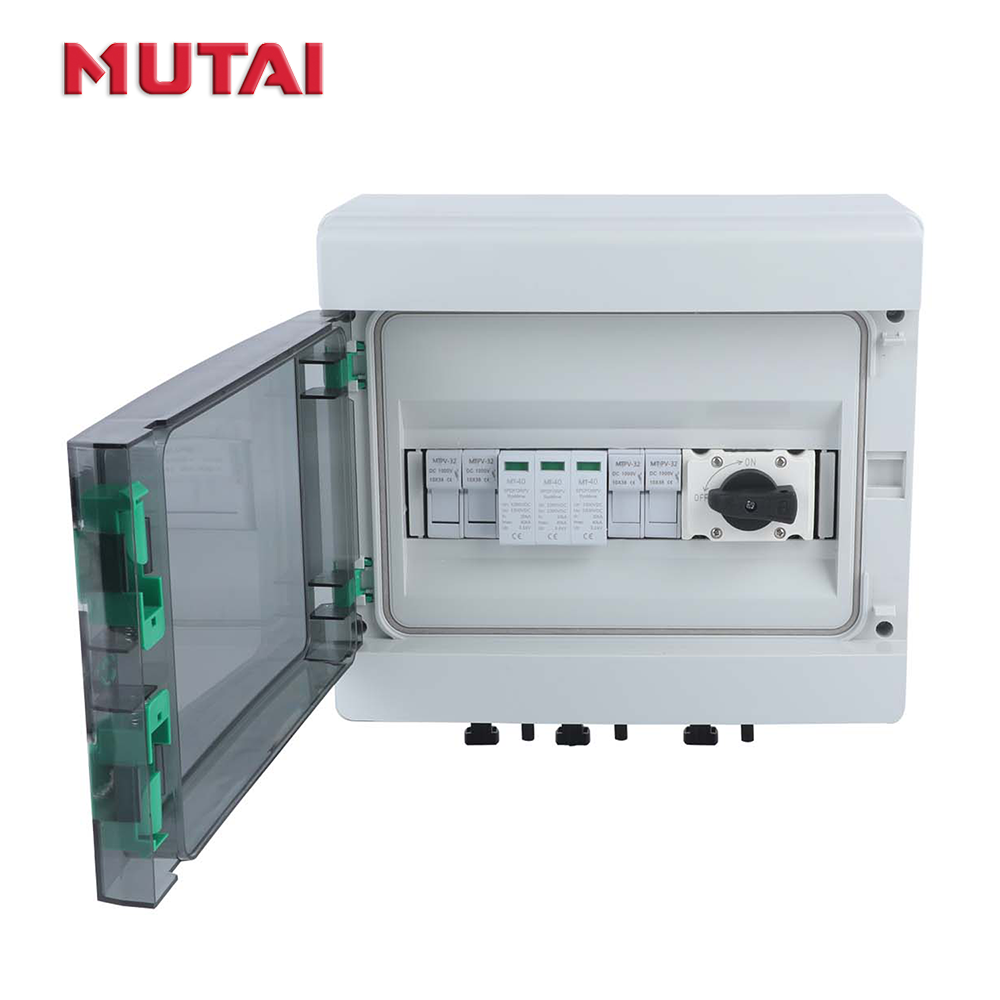

| DC1000V 10-63A 2 in 1 out | ||||
|---|---|---|---|---|
| Product name | specifications(1) | specifications(2) | quantity | other |
| Fuse holder | DC1000V | 4 | — | |
| 10*38 Fuse Link | 10A / 16A / 20A / 25A / 32A (Optional) | 4 | — | |
| DC Surge Arrester | 2P DC1000V 40kA | 3P DC1000V 40kA | 1 | (Optional) |
| DC Circuit Breaker | 4P 10-63A (Optional) | — | 1 | (Optional) |
| DC Switch Disconnector | — | 4P DC0-1200V 0-32A | 1 | (Optional) |
| Degree of Protection | IP65 | — | — | |
| Dimension (L*W*H) | 300*300*140mm | — | — | |
| input joint | MC-4 2.5-6² | 2 | Male-female terminal | |
| Output joint | MC-4 2.5-6² | 1 | Male-female terminal | |
| solar special cable | 4² or 6² | — | — | |
| Certification | CE | — | — | |
