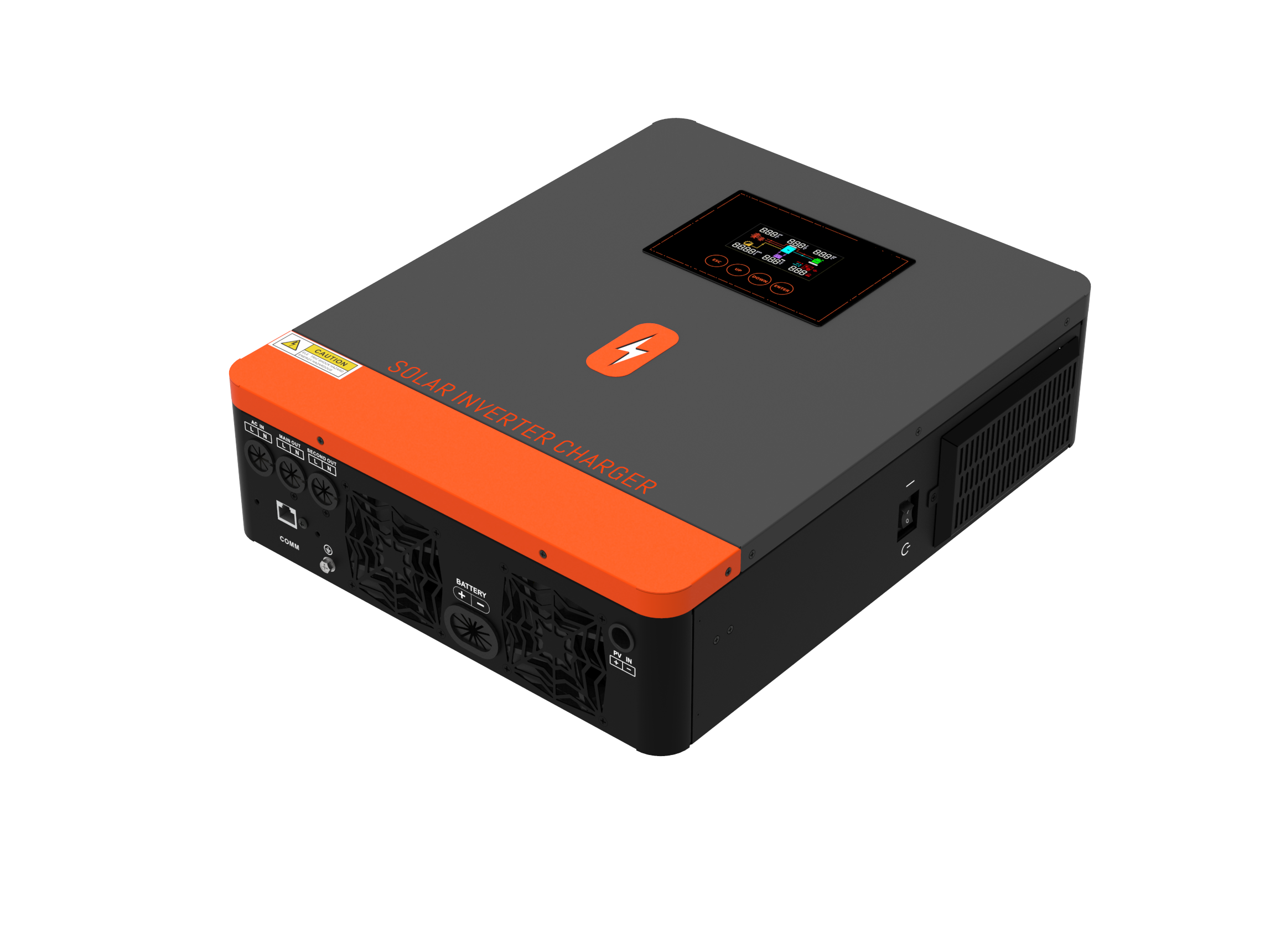

Products Description
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Efficient 6.2kW pure sine wave inverter enables seamless bi-directional conversion between 220V AC and 48V DC power, achieving up to 95% efficiency.

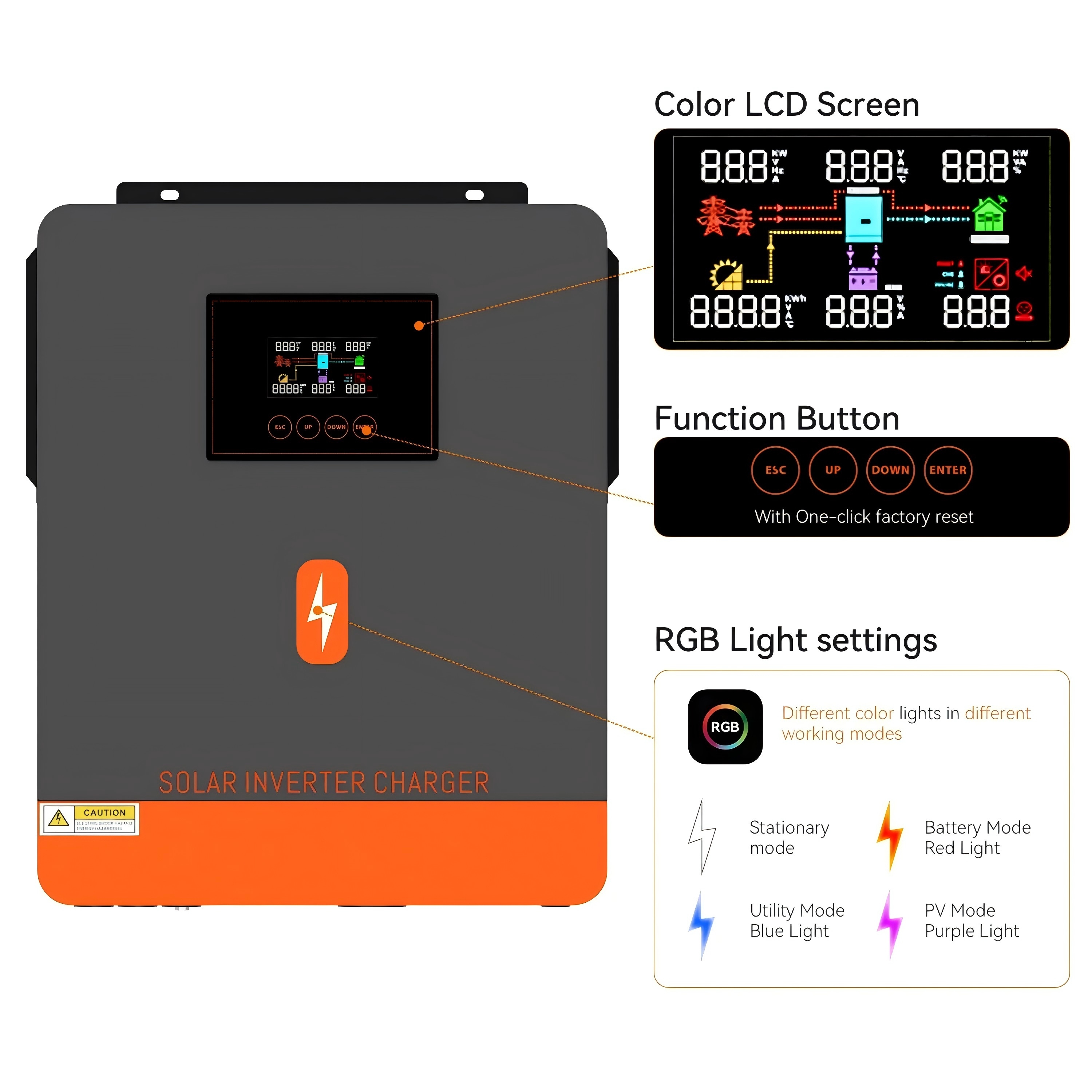

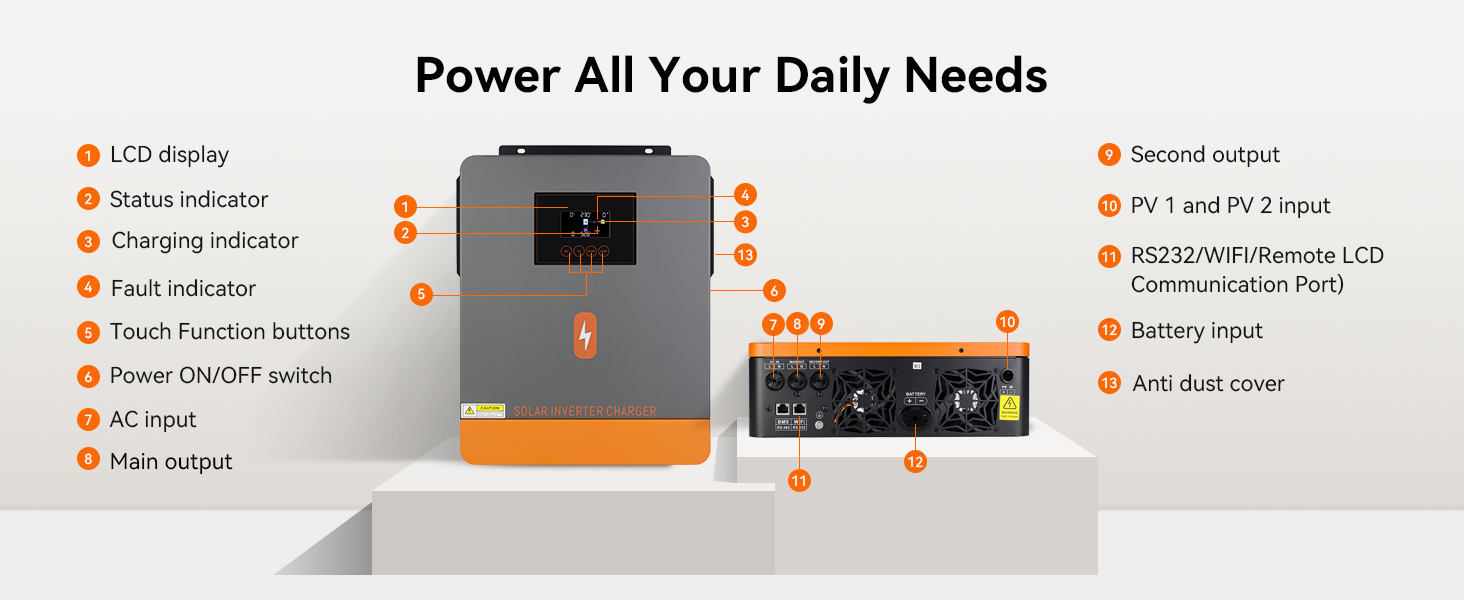

LCD Display
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

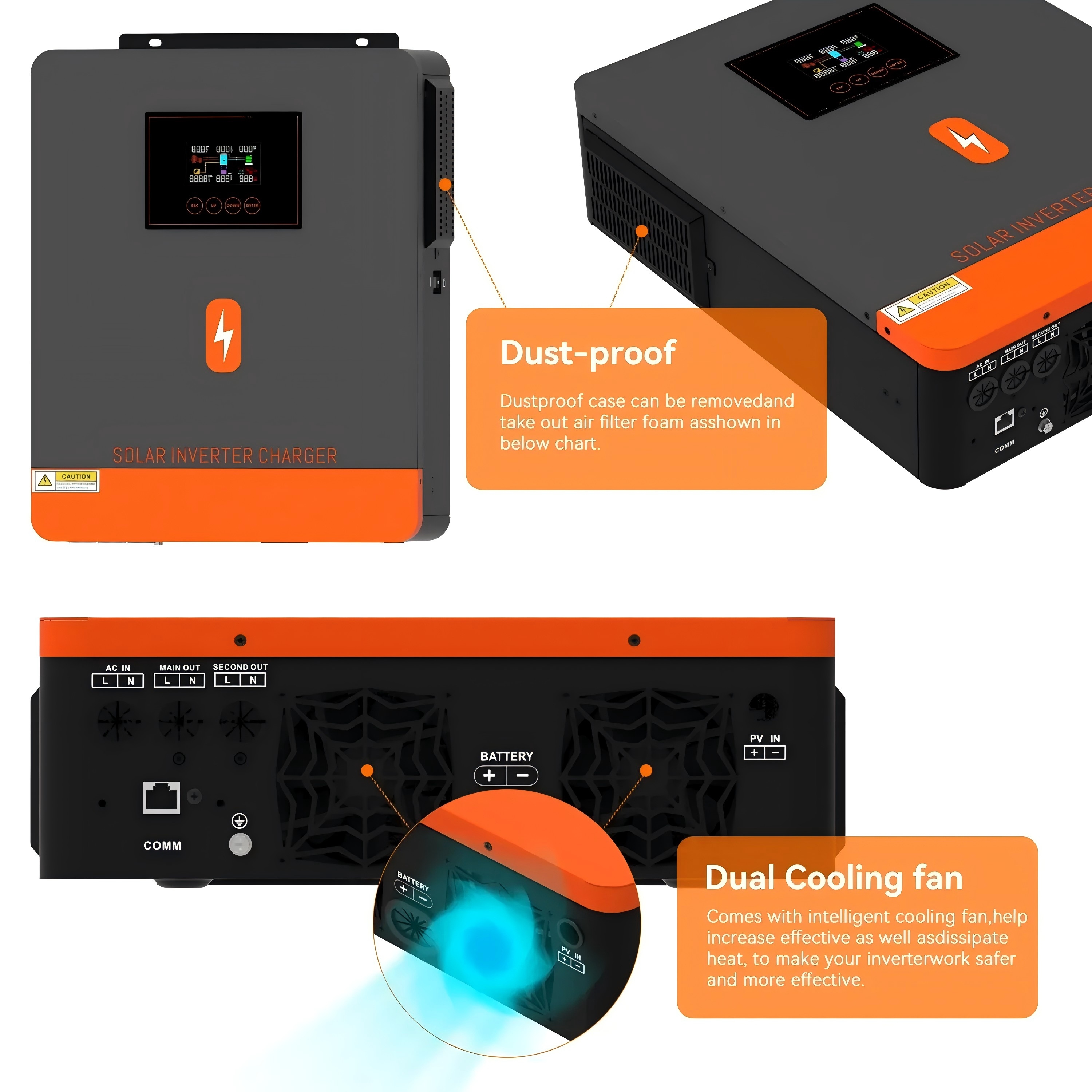

Anti-Dust Kit Design
This inverter is equipped with anti-dust kit. Inverter will automatically detect this kit and activate internal thermal sensor to adjust internal temperature. This kit also keeps dust from your inverter and increases product reliability in harsh environment.

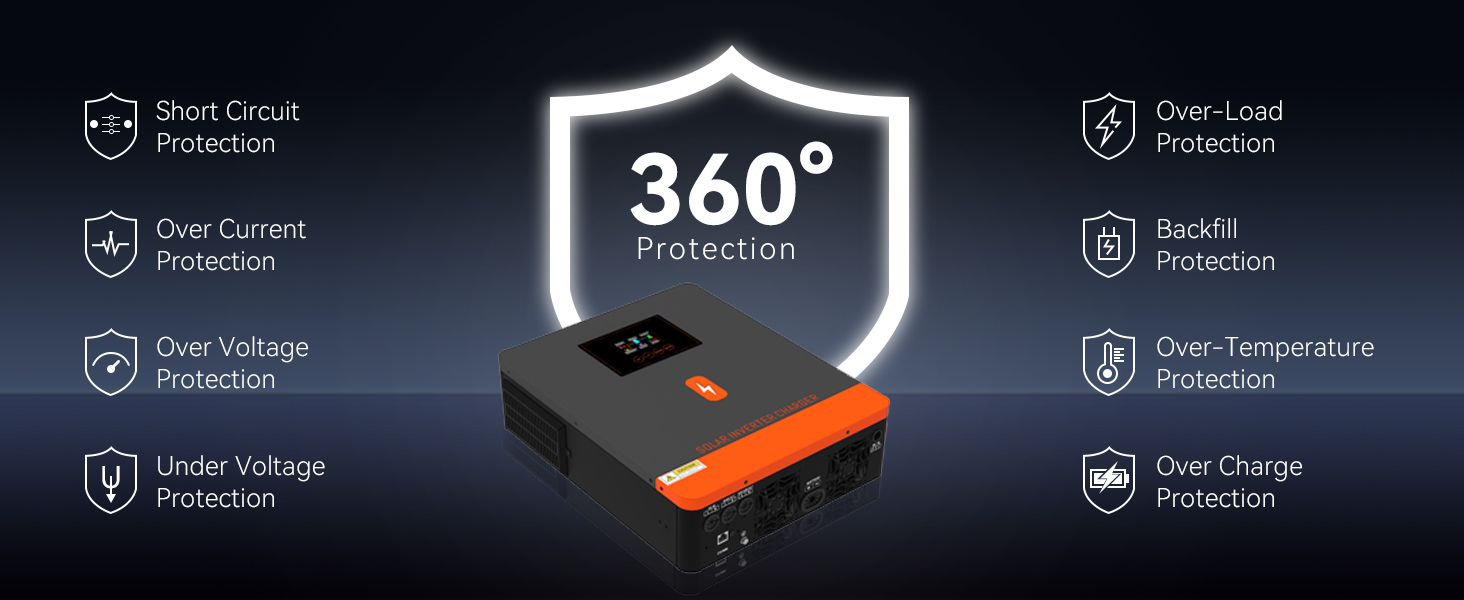

Full System Protection
The system offers comprehensive protections. Enjoy the benefits of overload, over-temperature, and short circuit protection, ensuring the safety of your system. Additionally, the smart battery charger optimizes performance, prolonging the lifespan of your batteries.

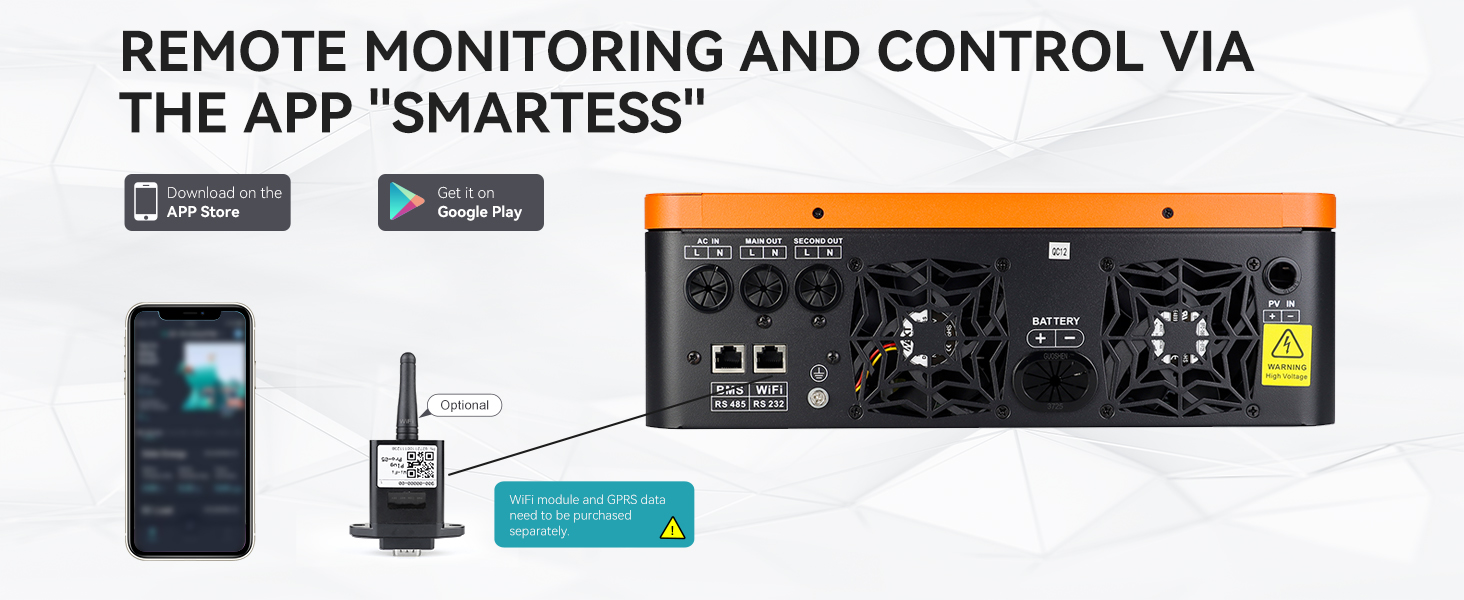

Real-Time Inverter Monitoring via APP
Features
- Pure sine wave inverter
- Configurable input voltage range for home appliances and personal computers via LCD setting
- Configurable battery charging current based on applications via LCD setting
- Configurable AC/Solar Charger priority via LCD setting
- Compatible to mains voltage or generator power
- Auto restart while AC is recovering
- Overload/ Over temperature/ short circuit protection
- Smart battery charger design for optimized battery performance
- Cold start function
Product Parameters
| Inverter Model |
POW-HVM4.2M-24V-N |
POW-HVM6.2M-48V-N |
| Input Voltage Waveform |
Sinusoidal (Utility or generator) |
| Nominal Input Voltage |
230Vac |
| Nominal Input Frequency |
50/60Hz (Auto detection) |
| Efficiency |
>95% (Rated R load, battery full charged) |
| Transfer Time |
10ms typical (UPS); 20ms typical (Appliances) |
| Rated Output Power |
4200W |
6200W |
| Output Voltage Regulation |
230Vac±5% Single phase |
| Battery Type |
Lithium and Lead Acid Battery, support user define |
| System Voltage |
24V |
48V |
| Max. PV Array Power |
6200W |
6500W |
| PV Array MPPT Voltage Range |
60-450V |
90-500V |
| Max. PV Array Open Circuit Voltage |
500Vdc |
| Max Charging Current (AC+PV) |
120Amp |
| Operation Temperature Range |
-10℃ ~50℃ |
| Dimension |
110x334x423mm |
| Net Weight |
9.5kg |
10kg |
Global Solar Energy Innovative Applications
We are a professional Global Solar Energy Innovative Application Company. Solar energy is an environmentally protective, safe, and pollution-free new energy source that is cleaner and safer than conventional energy. Under the vision of bringing new energy to life, we aim to develop smaller, smarter, and more stable products. All our efforts are dedicated to providing customers with perfect services. We hope to make it possible for customers to receive support globally through our various international storage networks. We provide high-quality solar inverters, Solar Charge Controllers, Solar batteries, solar systems, Solar PV Connectors, wire connectors, and excellent overall solutions with professional services to fully meet the requirements of various types of photovoltaic modules. Our products operate efficiently and stably in various environments, and have been exported to more than 150 countries around the world over the past 10 years. We advocate for a new energy lifestyle, promoting the development of ecological technology to protect the natural environment and achieve common progress between humanity and nature. Our development and production quality systems hold multiple certifications including CE, IEC, EMC, VDE, LVD, and EN50549. Every product is fully tested before shipping to meet strict quality inspection standards, with instruction manuals included in the package.
FAQ
How to install and use the solar inverter?
We provide comprehensive English instruction manuals and detailed step-by-step videos covering machine assembly, disassembly, and operational procedures to guide our customers.
What if I do not have direct experience with importing?
We work with reliable shipping agents who can deliver items directly to your doorstep via sea, air, or express delivery, helping you select the most suitable shipping method.
What is the monthly production capacity for these products?
Our monthly production capacity is approximately 20,000 to 30,000 units.
How is technical support handled?
We offer lifetime online technical support. If any operational or technical issues arise post-delivery, our team is available to assist you via online consultations.
Can you customize the solar inverters for specific requirements?
Yes, customization is available for parameters such as the outer color design, brand styling, and other unique physical patterns.
How do you ensure the quality of the products?
All products undergo strict quality inspections and performance testing prior to shipment. A detailed testing and quality report along with the product manual is included in every package.
