Product Description

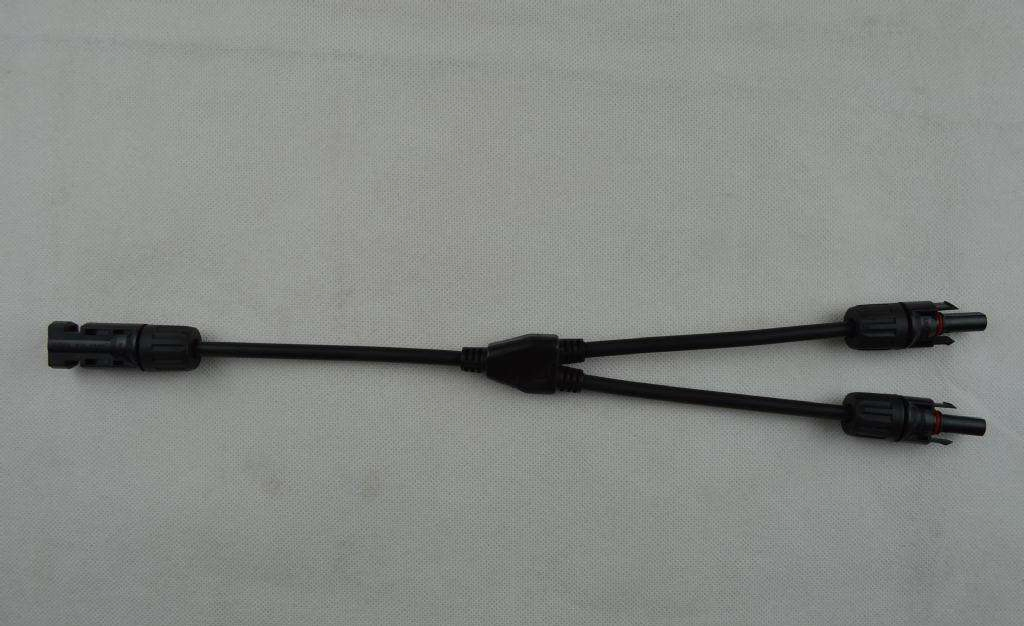

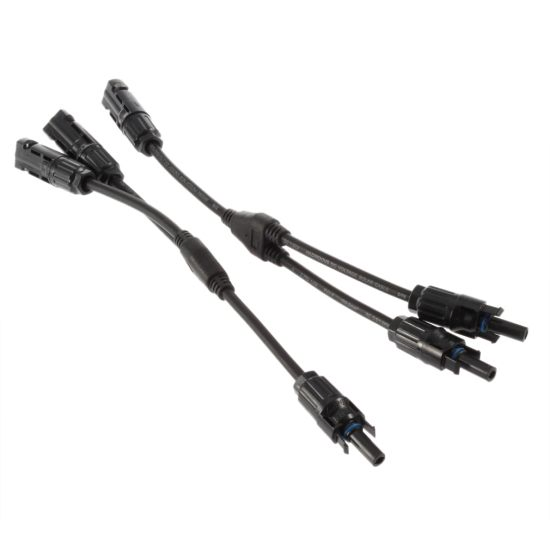

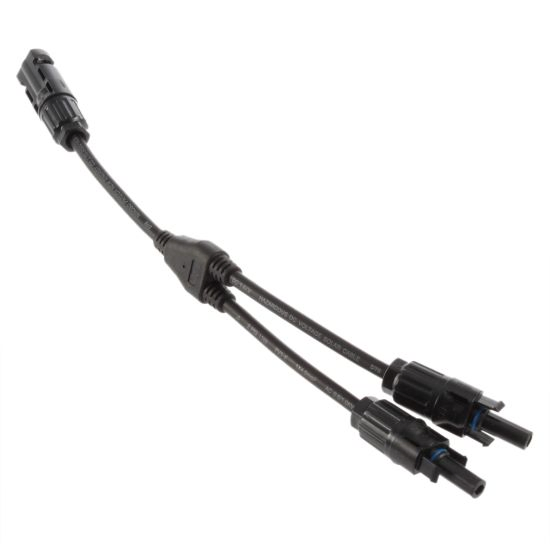

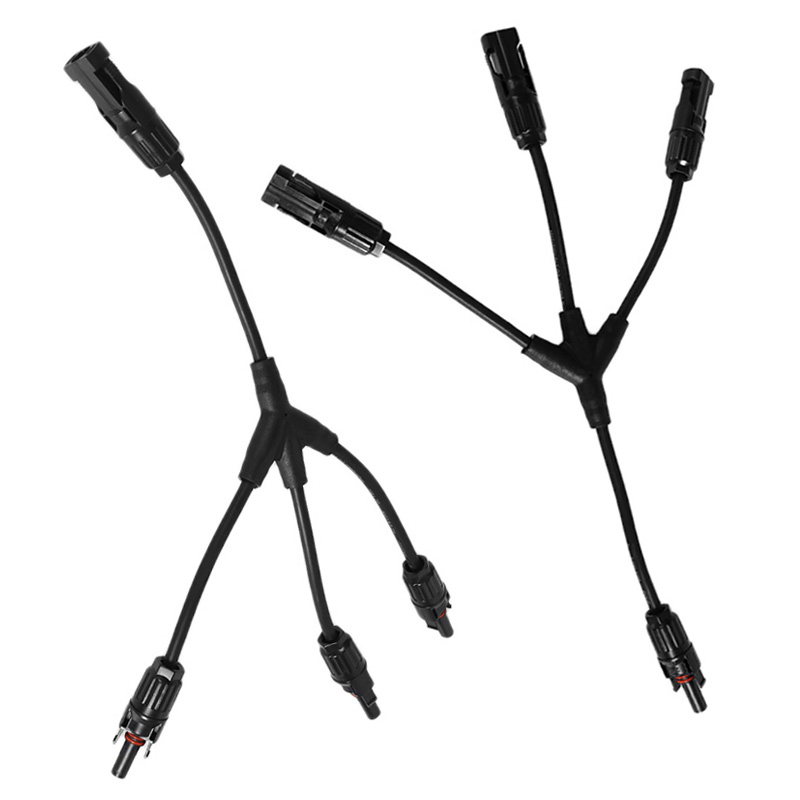

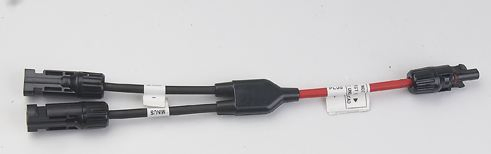

- The details of PV cable connector mc4 Y branch for solar system
- Acc.to DIN V VDE V 0126-3/12.06, UL1703 standard.
- Highly robustness, UV-Resistance.
- Connector adopts touch and insertion of reed with inner-knob type.
- Auto-lock equipment of male and female points enable connection more easy and reliable.
- Popular figure suit most of field installation.
- Simple on-site processing.
- Accommodates PV cable with different insulation diameters.
- High current carrying capacity.
Shipment
- We ship to world wide.
- Most orders ship within 1~5 days after payment.
- Item shipped from China mainland using airmail by EMS, UPS, DHL, TNT or Hong Kong post, we accept the customer's shipping request.
- 100% test before shipment. After we shipped the goods, we will email you the shipping information.
- Assembly Instructions of PV cable connector mc4 Y branch for solar system
During self assembly, parts and tools other than those stated by the manufacturer are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.
The end product must provide protection from electric shock.
Unplugging under load: PV plug connections must not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.
Disconnected connectors should be protected from dirt and water with sealing caps.
Plugged parts are watertight IP67.
FAQ
Q1. What's the warranty?
10 years product warranty, 25 years liner power output warranty.
Q2. Can you offer me the best price?
More information of your demand is needed: power capacity/material/Qty/etc, then could we suggest the most suitable one and quote you the best price.
Q3. Can I have a sample order for solar panels?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q4. How to proceed an order for solar panels?
Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q5. Is it OK to print my logo on solar panel product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6. How can you guarantee the quality?
Professional product quality inspection team ensures order defective rate; Otherwise, we take full responsibility according to our wholesome after-sales support system.
