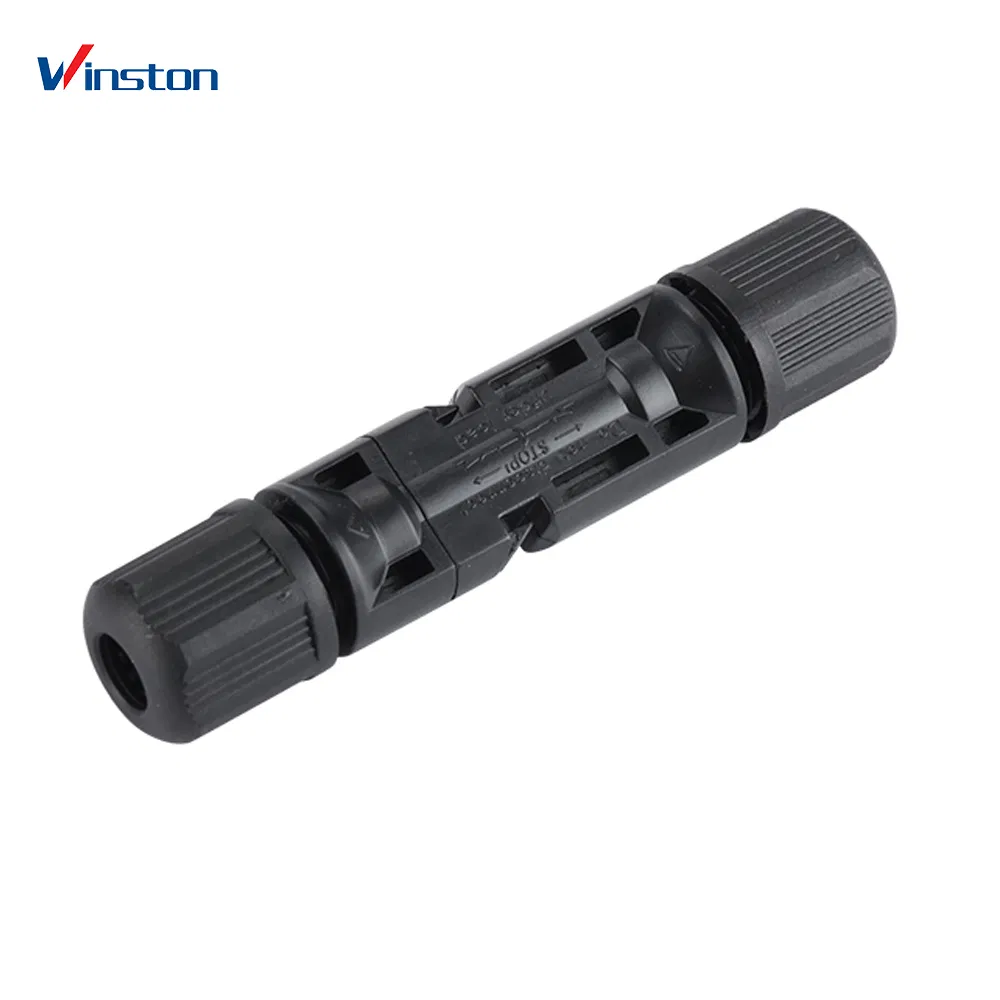

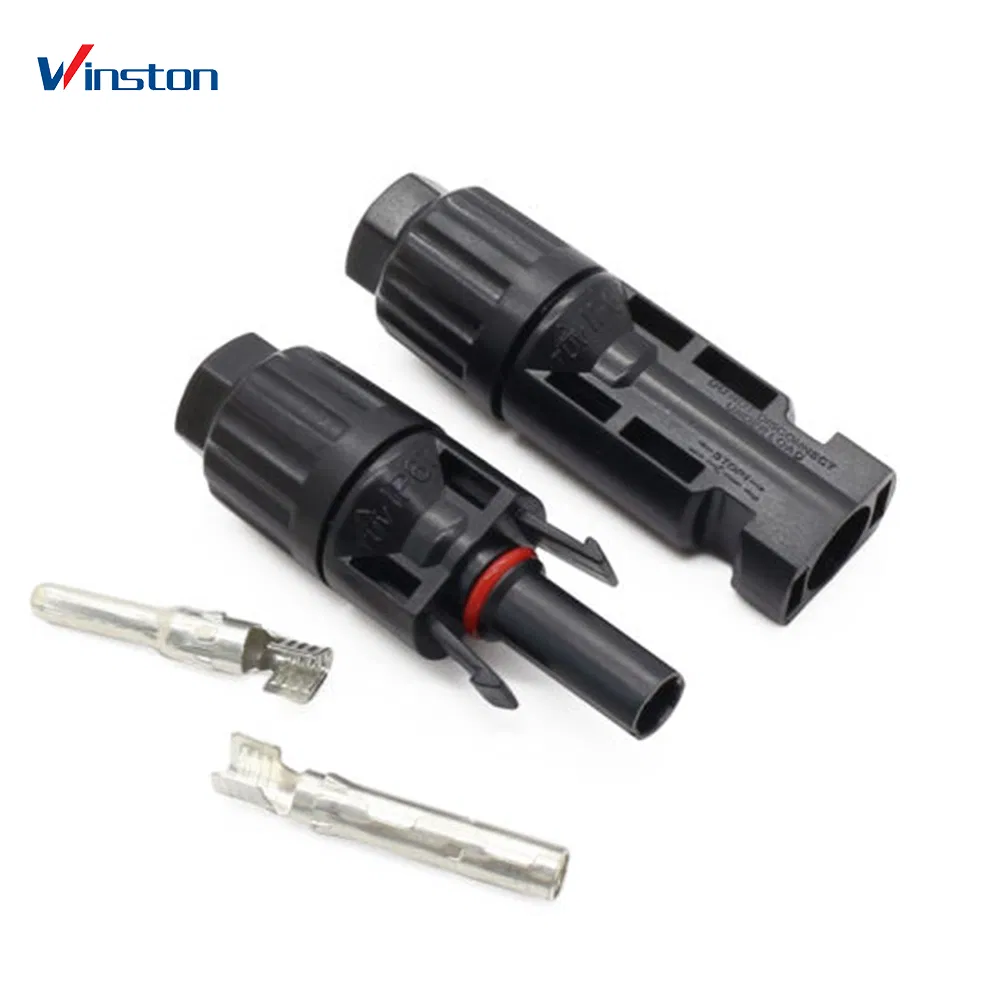

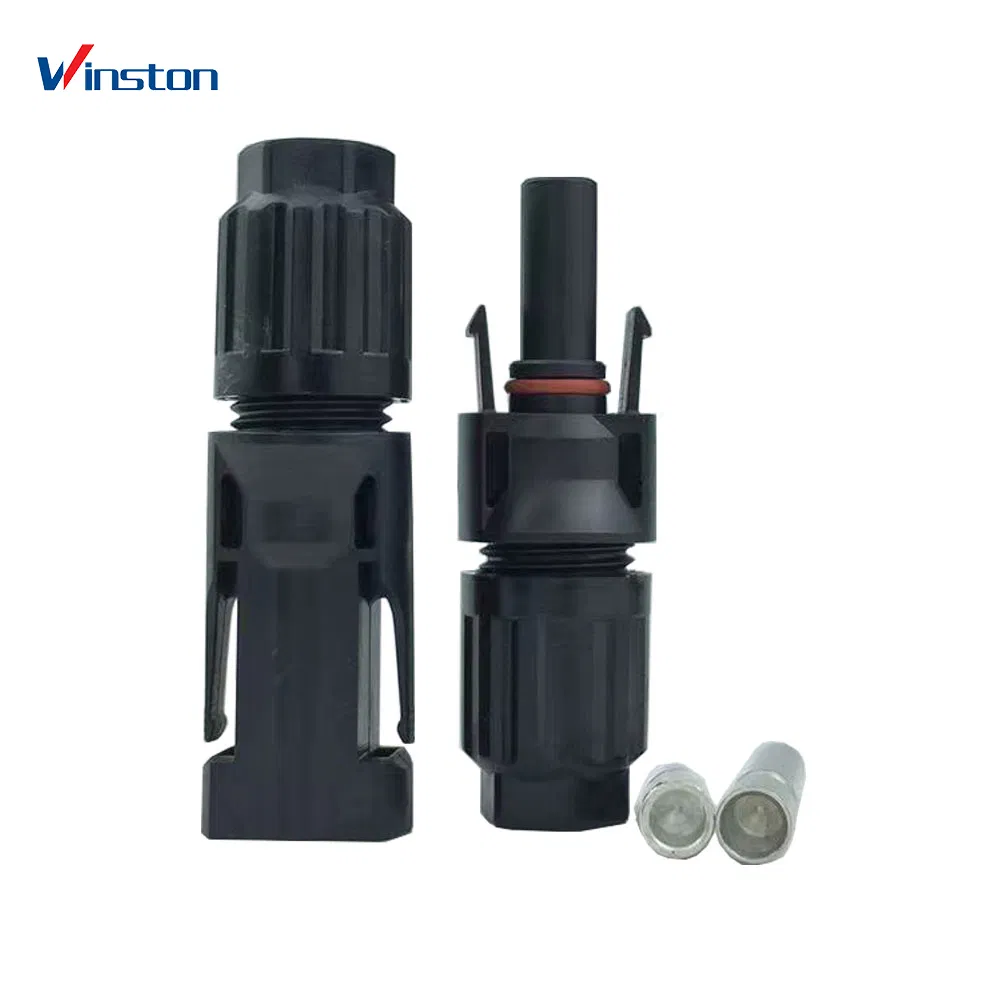

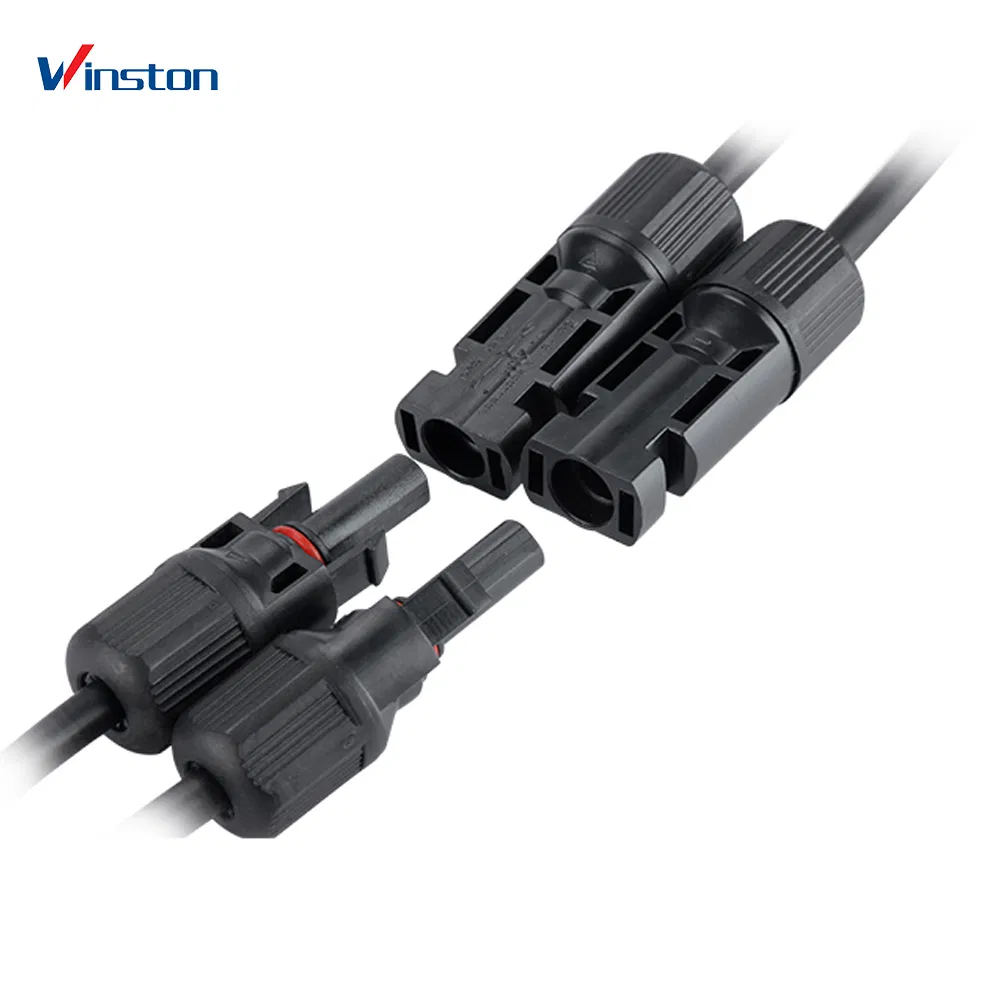

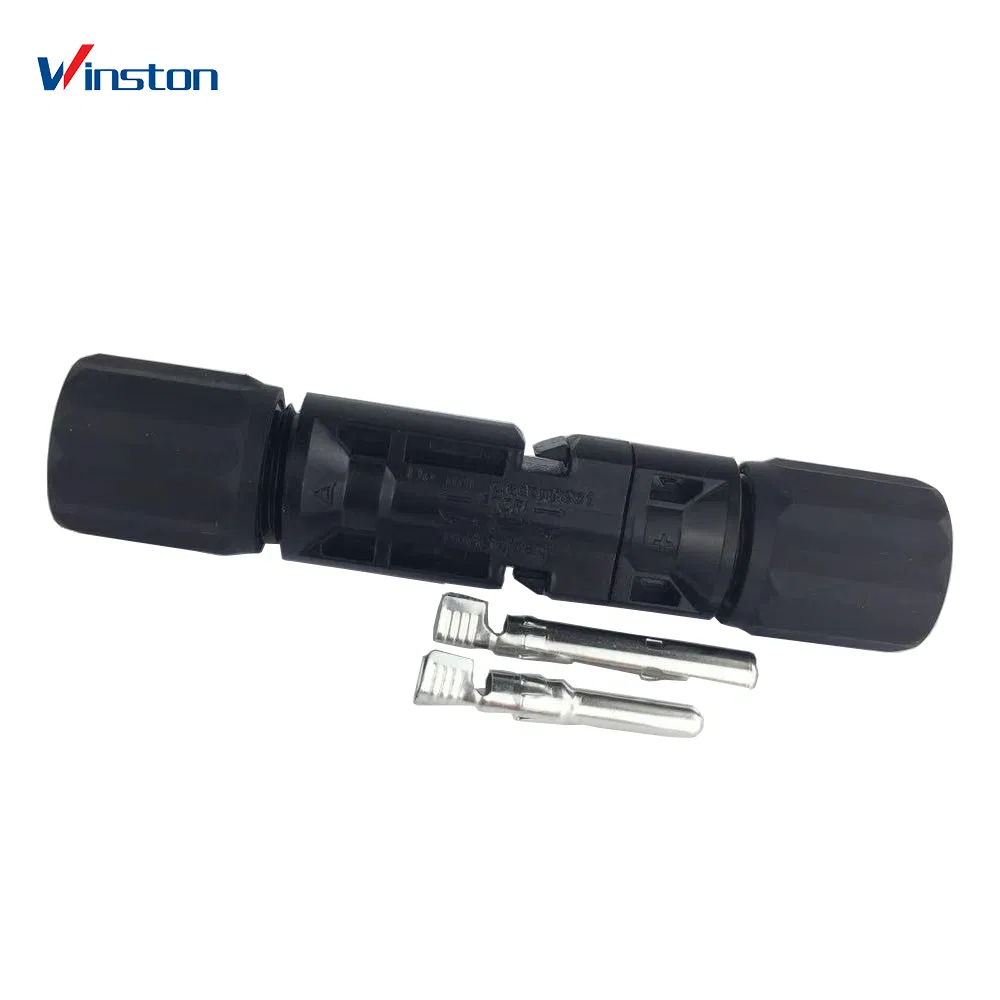

Winston Waterproof Solar Cable Connector for Solar PV System
Winston Waterproof Solar Cable Connector for Solar PV System
Winston Waterproof Solar Cable Connector for Solar PV System
Winston Waterproof Solar Cable Connector for Solar PV System
Winston Waterproof Solar Cable Connector for Solar PV System
1 / 5
Winston Waterproof Solar Cable Connector for Solar PV System
Winston Waterproof Solar Cable Connector for Solar PV System
Winston Waterproof Solar Cable Connector for Solar PV System
Winston Waterproof Solar Cable Connector for Solar PV System
Winston Waterproof Solar Cable Connector for Solar PV System

Winston Waterproof Solar Cable Connector for Solar PV System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

  • Overview
  • Product Description
  • Specifications
  • Dimensions(mm)
  • Packaging & Shipping
Overview
Basic Info.
Model NO.
PVCC
Certification
CE
Application
Home, Industrial, Commercial, Solar Energy System
Specification
Normal, CE
Gender
Male and Female
Rated Current
30A
Degree Protection
IP67
Rated Voltage
DC 1000V
Insulation Material
PPO
Suitable Cable Cr
2.5/4/6mm2 (14/12/10AWG)
Transport Package
Export Standard Carton Box or ODM
Trademark
OEM/Neutral
Origin
China
Production Capacity
10000PCS/Month
Packaging & Delivery
Package Size
5.00cm * 5.00cm * 5.00cm
Package Gross Weight
0.500kg
Product Description
  • Simple on-site processing;
  • Mating safety provided by keyed housings;
  • Multiple plugging and unplugging cycles;
  • Accommodates PV cable with different insulation diameters;
  • High current carrying capacity;
  • Rated current: up to 30A;
  • Accommodates PV cable with different insulation diameters.

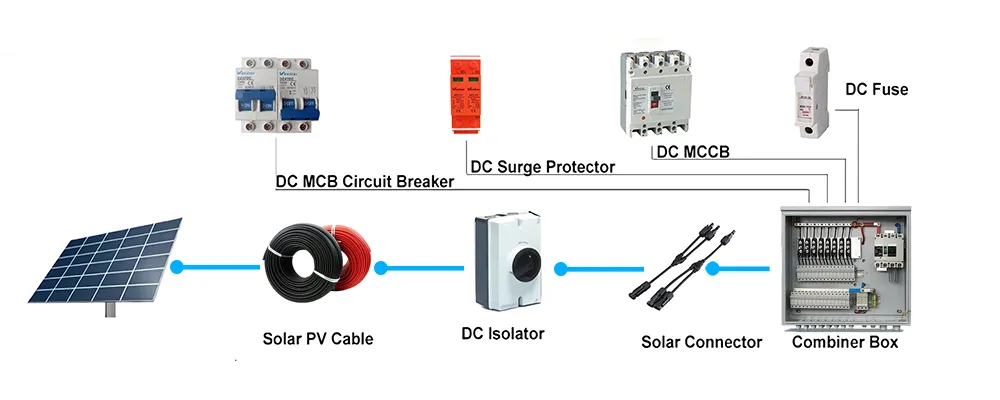

Waterproof Solar Cable Connector for Solar PV System
Specifications
Parameter Details
Name SOLAR CONNECTOR
Model Number PVCC
Test Voltage 1000V DC
Overvoltage Type/Pollution Degree 6000V(50Hz, 1min)
Contact Resistance Of Plug Connector CAT III /2
Contact Resistance Of Plug Connector (Unit) 1 mΩ
Contact Material Copper, Tin-plated
Insulation Material PPO
Degree Of Protection IP2X/IP67
Flame Class UL94-V0
Safety Class II
Suitable Cable OD 4.5-8.5 (2.5-6.0mm2)
Insertion Force / Withdrawal Force ≤ 50N / ≥ 50N
Connecting System Crimp connection
Temperature Range -40ºC ~ +125ºC
Dimensions (mm)

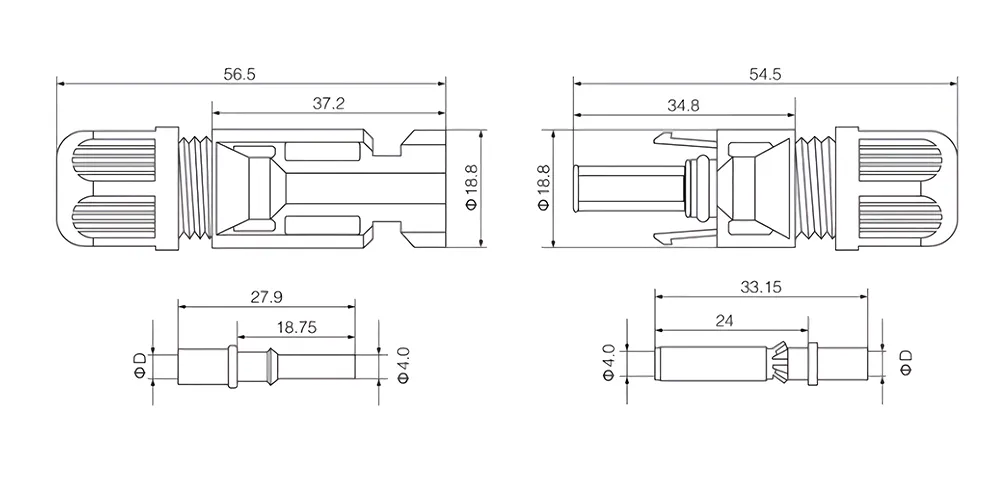

Waterproof Solar Cable Connector Dimensions
Packaging & Shipping
Waterproof Solar Cable Connector Packaging
Frequently Asked Questions
What is the rated voltage and current capacity for this solar connector?
The connector is designed to handle a rated voltage of DC 1000V and can support a rated current of up to 30A, making it suitable for standard PV power configurations.
What cable sizes are compatible with the PVCC connector?
The connector accommodates PV cables with cross-sections of 2.5mm², 4.0mm², and 6.0mm² (corresponding to 14/12/10 AWG).
Does this solar connector offer waterproof protection?
Yes, it features an IP67 protection rating when mated, ensuring it is dustproof and capable of withstanding immersion in water, making it ideal for outdoor installations.
What materials are used for insulation and contacts?
The insulation shell is crafted from high-performance PPO (Polyphenylene Oxide), while the contact elements are made of tin-plated copper to ensure superior electrical conductivity.
What temperature limits can the connector tolerate?
The connector operates reliably across a wide temperature range from -40ºC up to +125ºC, and meets the UL94-V0 flame retardant standard for enhanced safety.
Is special tooling required for installing these connectors?
No complex tooling is required. The connection process uses a standard crimp system, and the keyed housing design provides a simple and secure mating configuration.
