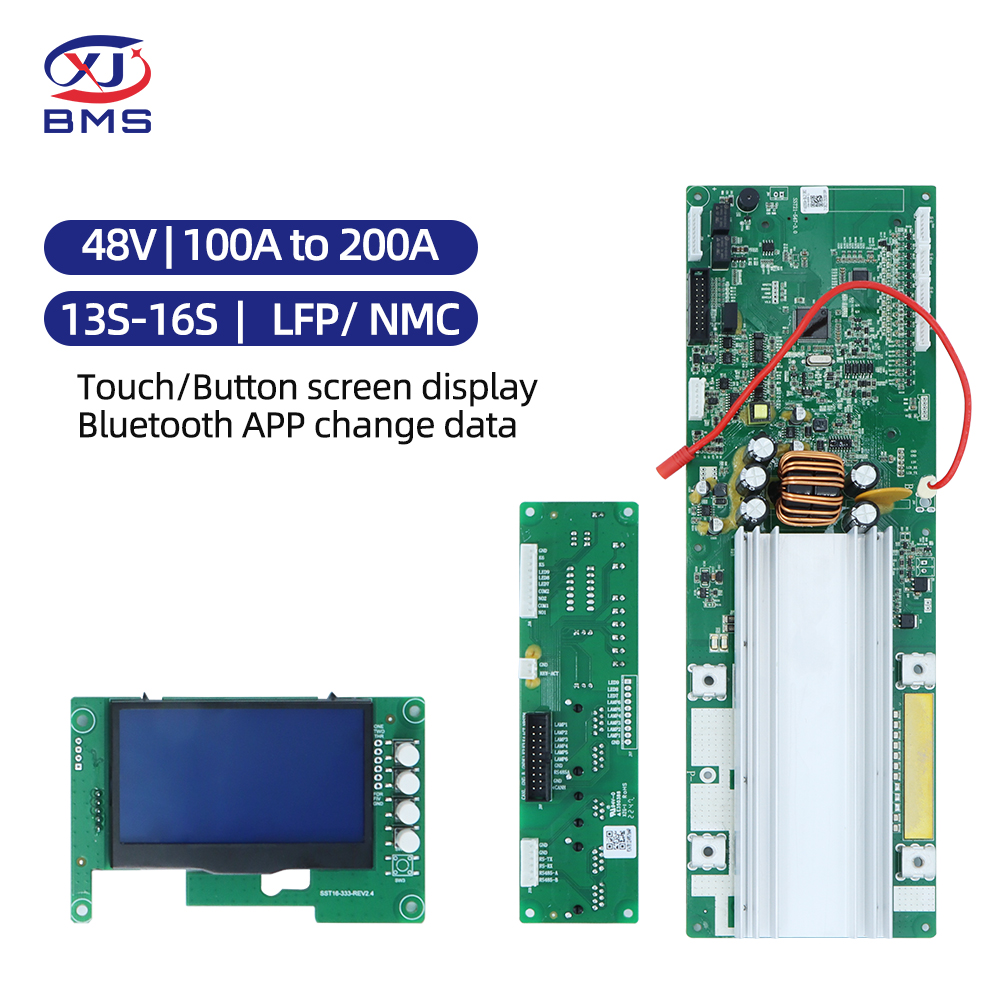

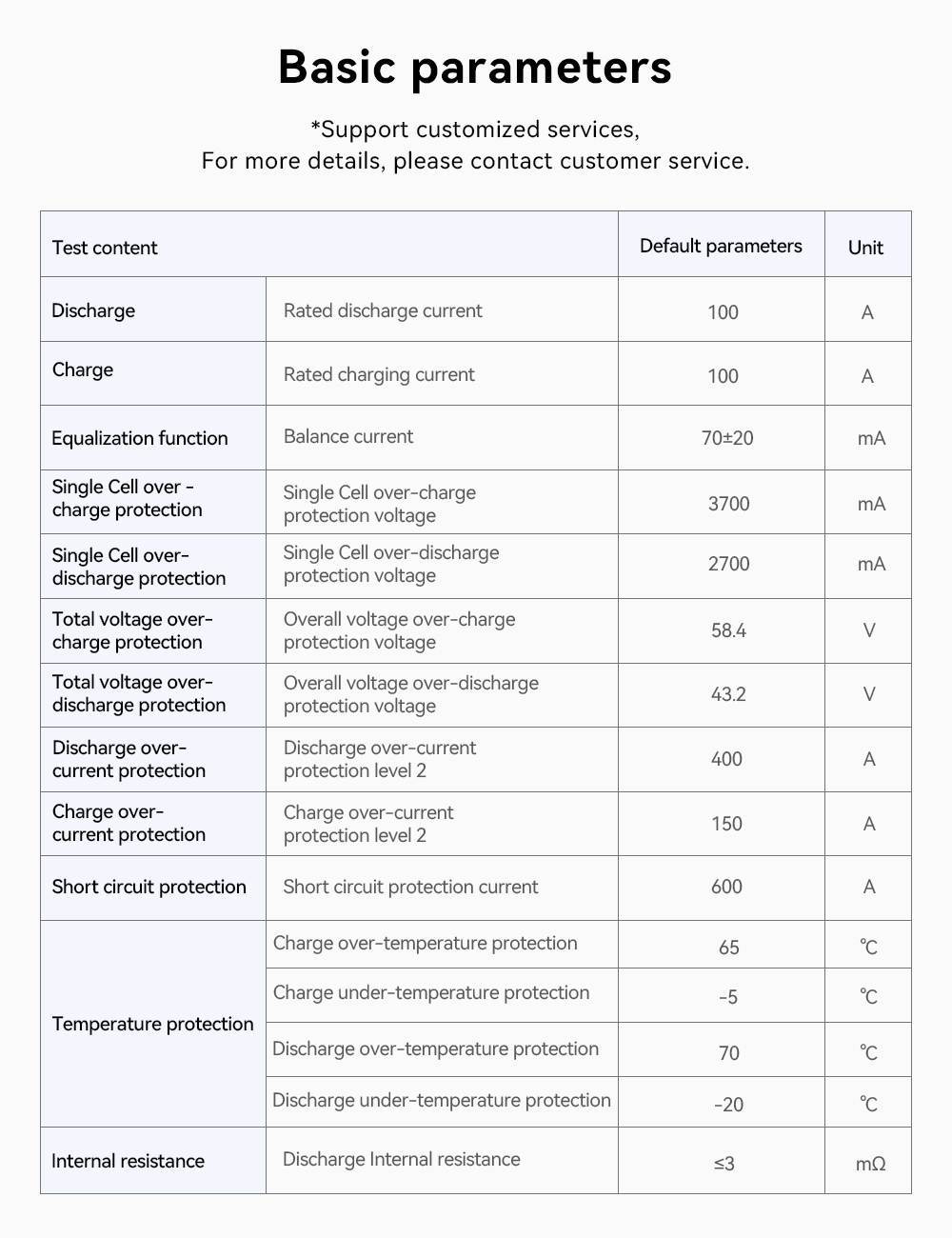

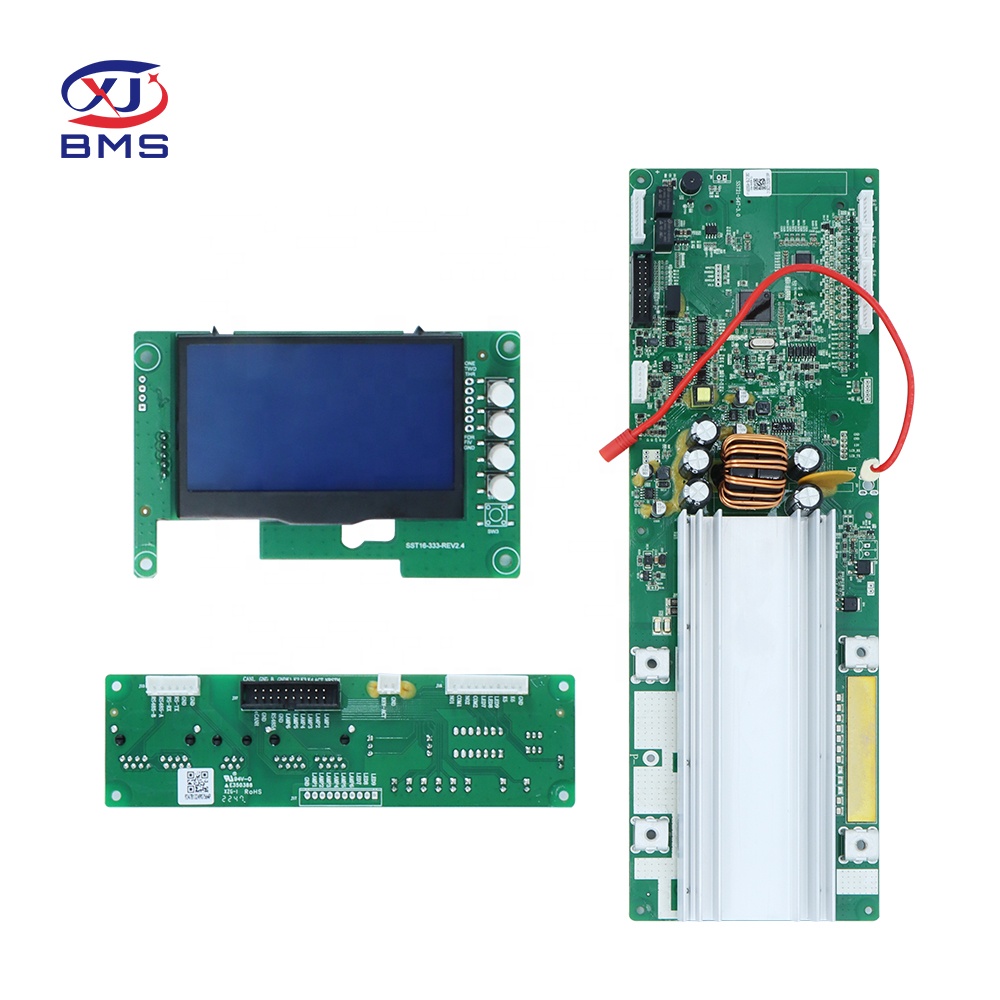

Product Description
| Model |
13S/14S/15S/16S 100A/200A Home Energy Storage BMS |

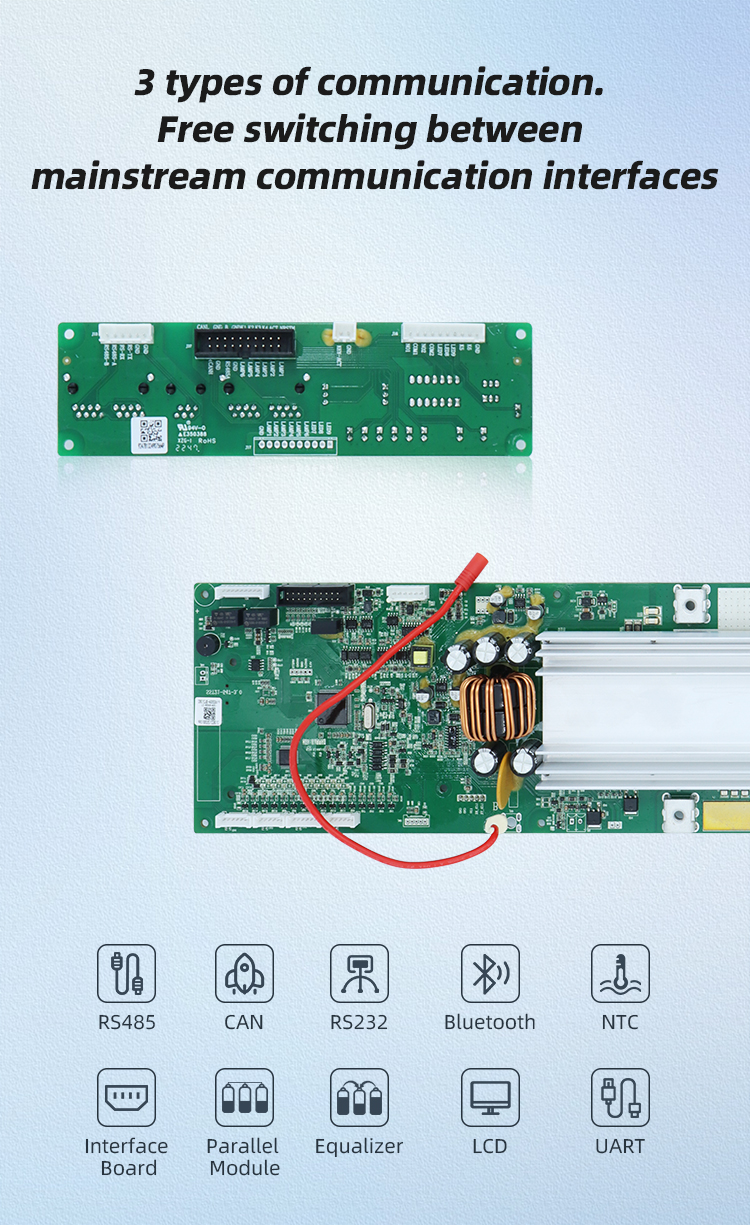

| Communication Protocol |
RS232/RS485/LCD |

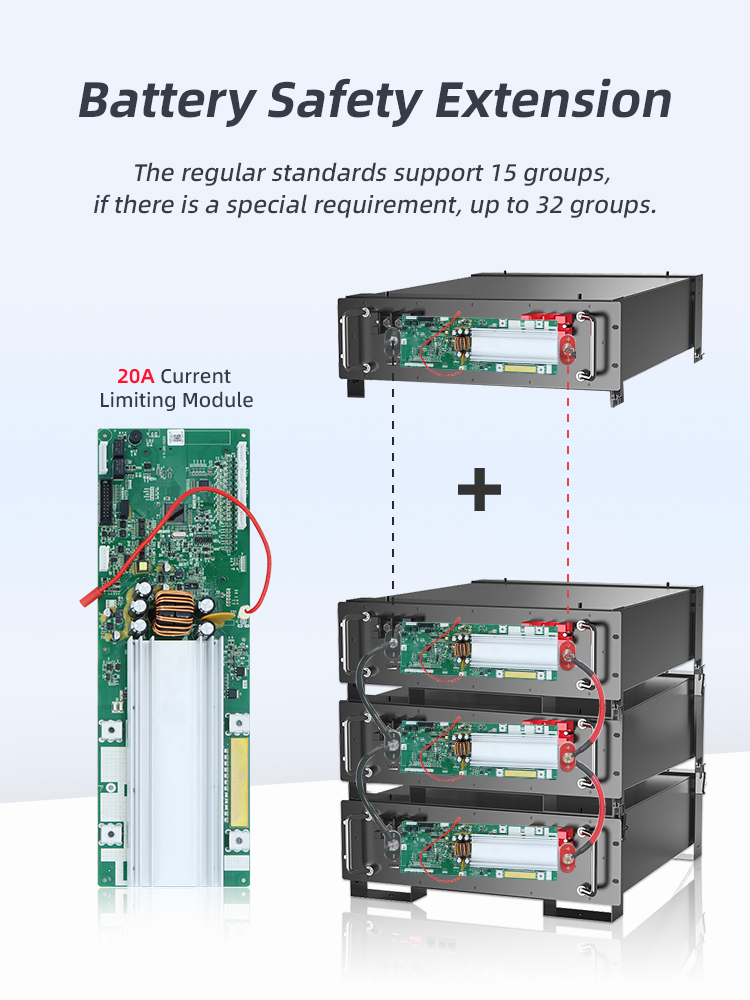

| Max. Parallel No |
15 |
| Series |
13S to 16S |
| Current |
100A/200A |
| Voltage |
48V |

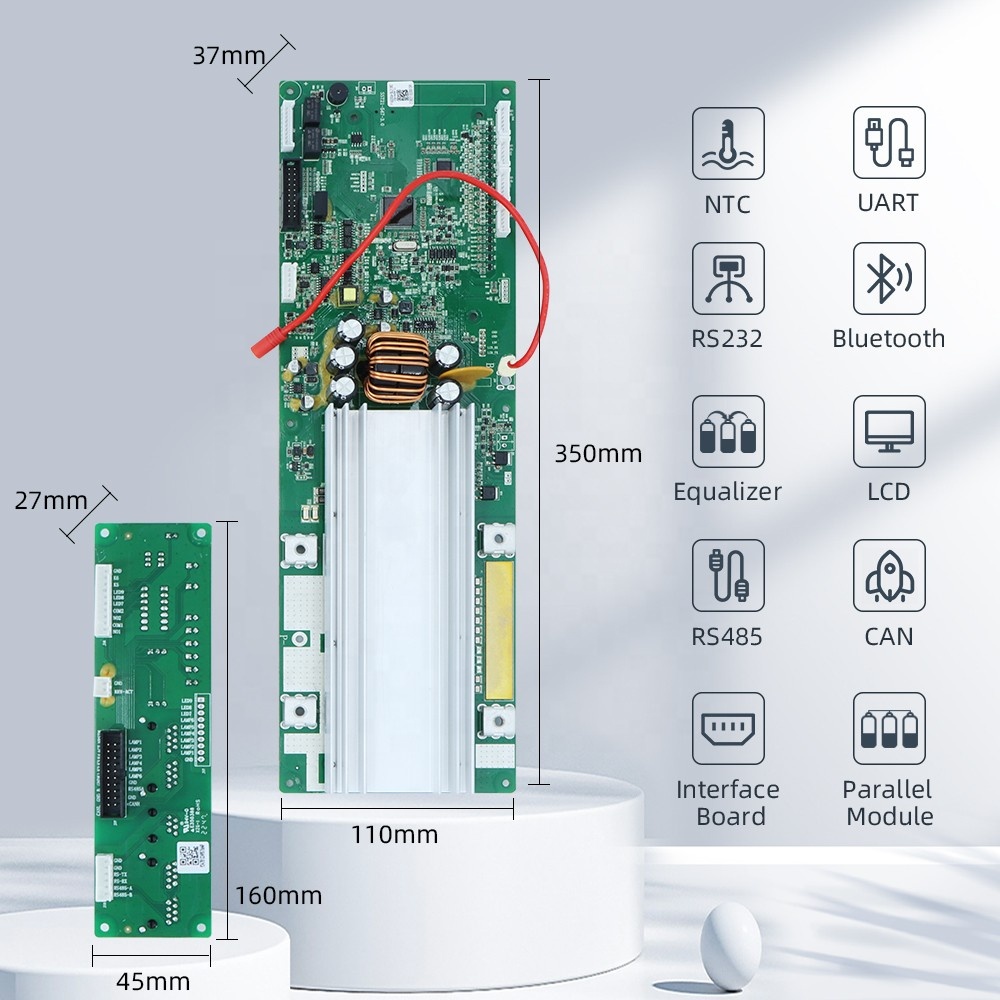

| Size(mm) |
350*110*37mm |
| Weight |
2KG |
| Warranty |
2 Years |

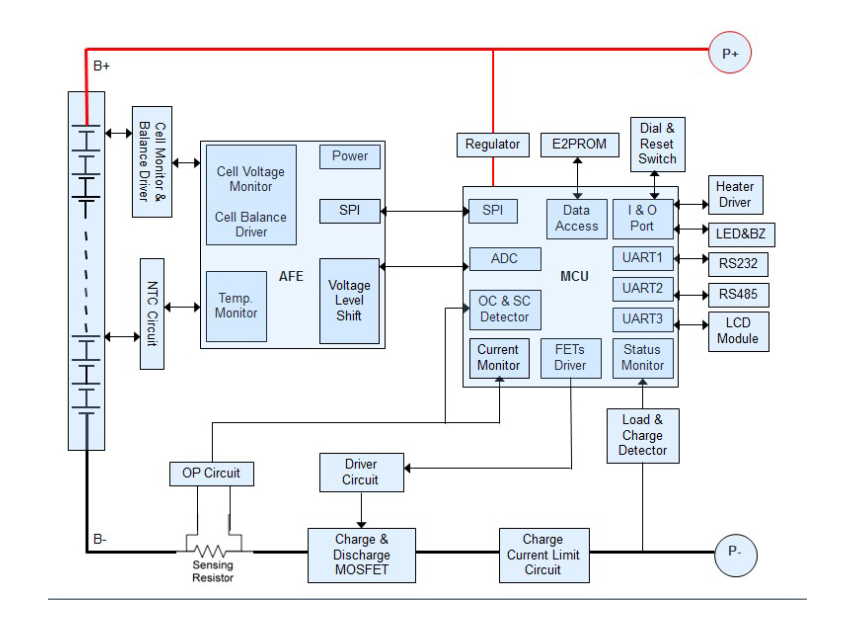

Functional Characteristics
✓Highly integrated analog front end
✓Adjustable overcurrent protection
✓Isolated power supply circuit
✓Has a variety of sleep and wake up modes
✓Integrated serial IC
✓Low power consumption
✓High voltage accuracy (≤20mV)
✓Dual RS485 communication
✓High current accuracy (≤2%@FS)
✓Parameters are adjustable
✓4-way battery temperature detection (≤2°C)
✓Buzzer alarm function
✓SOC estimation function
✓LED status indicator function
✓SOH estimation function
✓With charge balancing function
✓Short-circuit protection
Recommend Products
Company Profile
We are a leading manufacturer and R&D expert with nearly 10 years of experience in advanced BMS technology and a production factory covering nearly 5000 square meters. The company specializes in producing cutting-edge intelligent BMS, Lifepo4 BMS, lithium-ion BMS, electric bicycle BMS, tricycle BMS, solar energy storage BMS, home energy storage BMS, low voltage product BMS, and other series of energy storage protection products.
We take pride in providing high-quality and reliable products that meet customers' usage needs according to ISO 9001 standards. We focus on professional manufacturing methods and rigorous quality control practices to ensure that every product leaving the factory meets the customer's usage parameter requirements, including excellent performance and durability.
To ensure customer satisfaction, we offer comprehensive after-sales tracking services, enabling customers to stay informed about their orders and obtain any necessary support or assistance at any time. Additionally, we offer fast delivery services to ensure that customers receive their products on time at a competitive price. We aim to be a trustworthy and respected partner.
Packing & Delivery
FAQ
1. Why do we choose you?
- We have nearly 15 years of production technical support and can provide you with professional after-sales service.
- The products have obtained international standard certifications such as FCC, CE, ROHS, and ISO.
- We can provide you with the best solution in terms of cost, productivity can guarantee delivery time, and you or agents are always welcome to visit our factory and production process at any time and give us valuable suggestions.
2. What is your product range (type)?
We mainly produce power batteries, energy storage batteries, security energy storage, battery management systems in the consumer field, and batteries are mainly used for lithium iron phosphate and ternary batteries.
3. How to choose a BMS suitable for your battery?
According to the matching voltage and current of your battery, you can consult our professional customer service, and we will provide you with the most suitable battery management system.
4. Do you have a minimum order requirement(MOQ)? Can it be customized?
- Our MOQ is 1.
- ODM customization is available.
- Existing samples will be delivered within 1 day, and customized samples will be delivered within 3~7 days.
- When you place an order, the sample fee will be refunded according to the situation.
5. What is your payment terms?
We accept TT wire transfer and cash payment etc, everything can be negotiated. Available payment methods: visa, master card, T/T, PayPal, APPLE PAY, GOOGLE PAY, GC REAL TIME BANK TRANSFER, RMB.
6. How do you guarantee the quality?
- From raw materials to shipment, products will go through strict inspection procedures and implement full inspection to ensure product quality.
- We have ISO certification support, and the quality of workmanship is at the forefront of the industry.
- Provide 2 years after-sales warranty service.
