Basic Info.
Insulating Material
Silicon Rubber
Wire Core Material
Tinned Wire
Transport Package
Polybag+ Carton
Production Capacity
300000PCS/Month

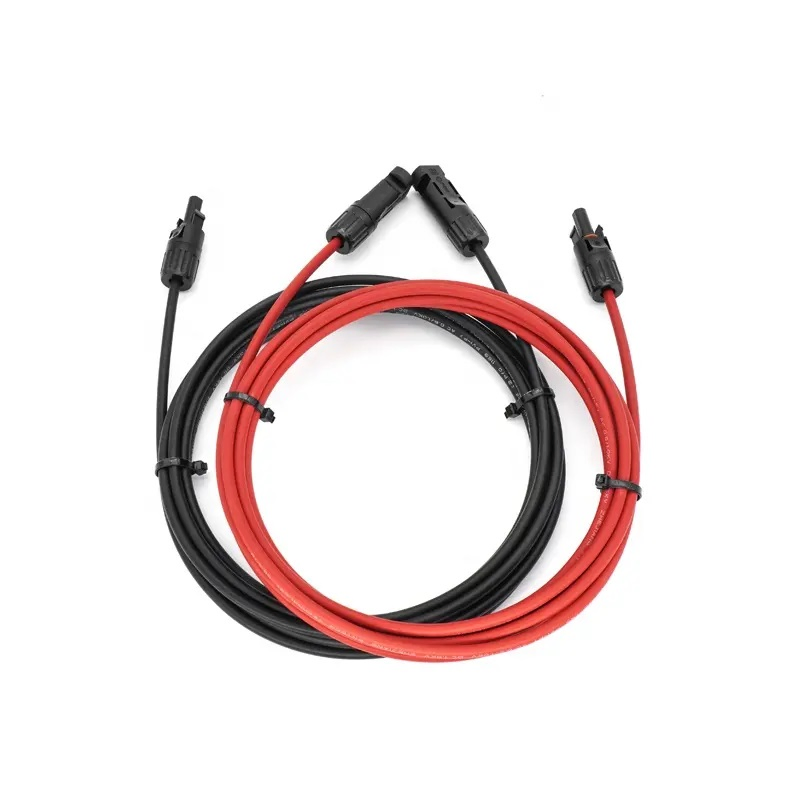

Product Description

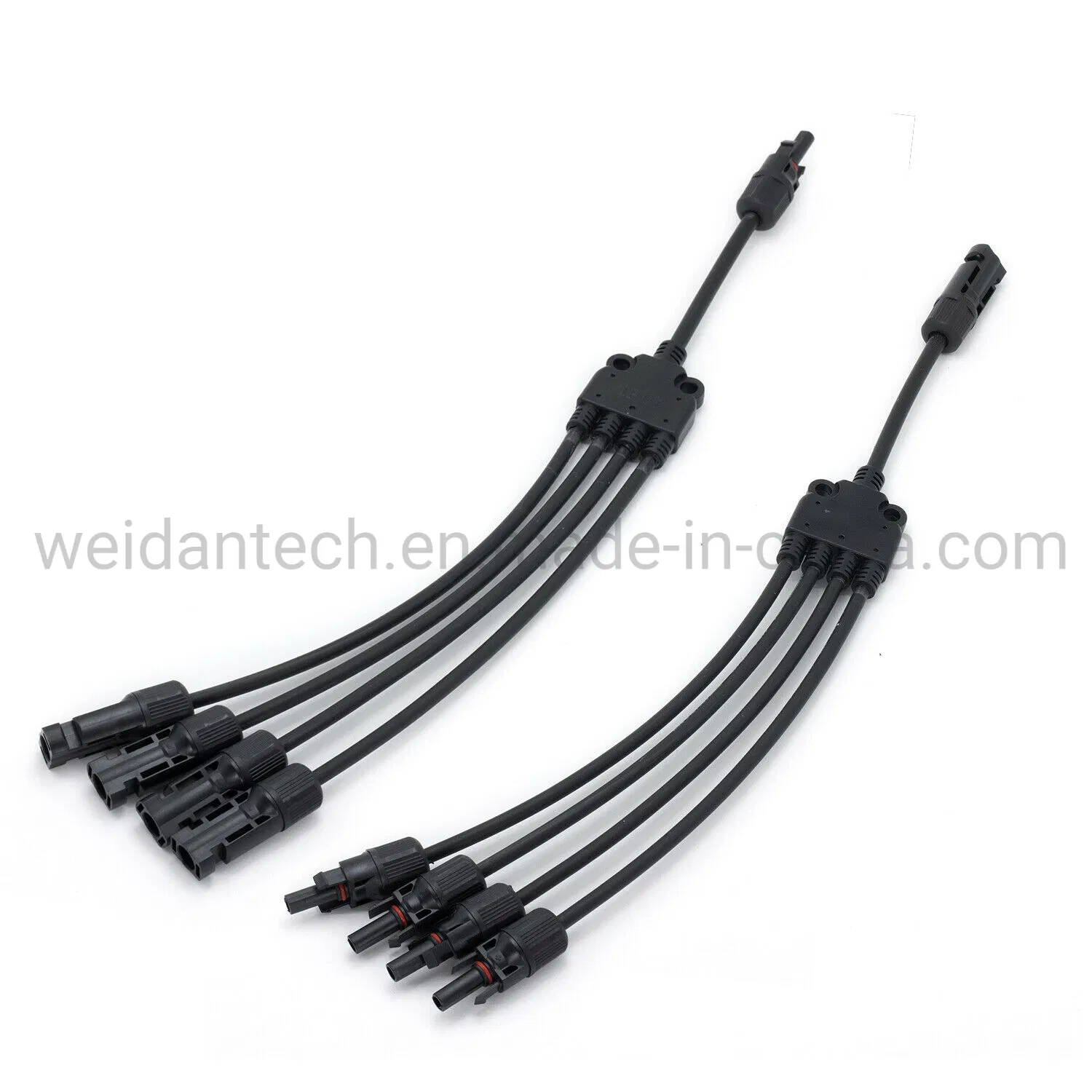

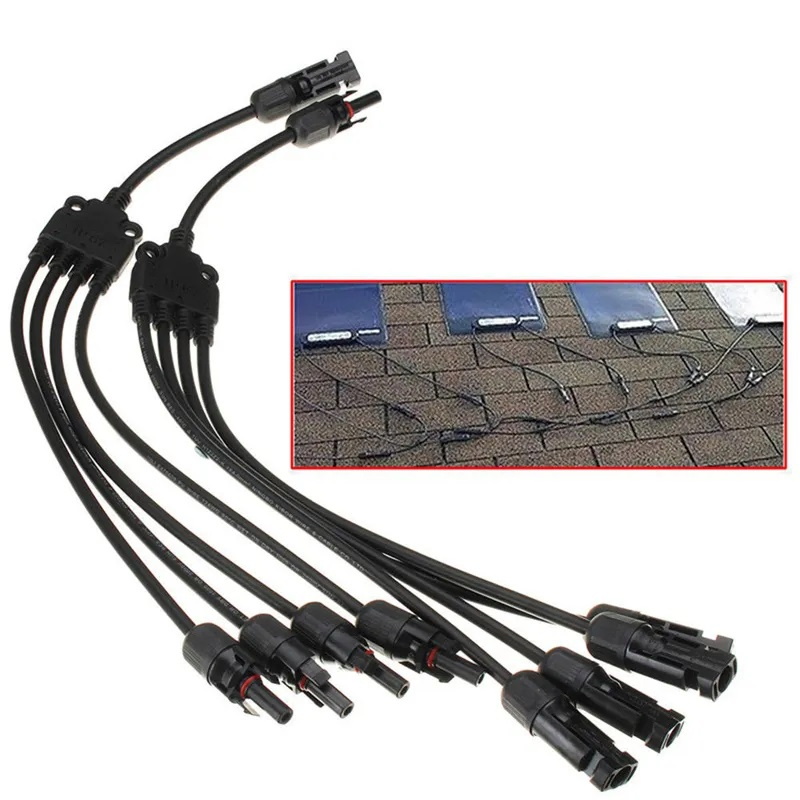

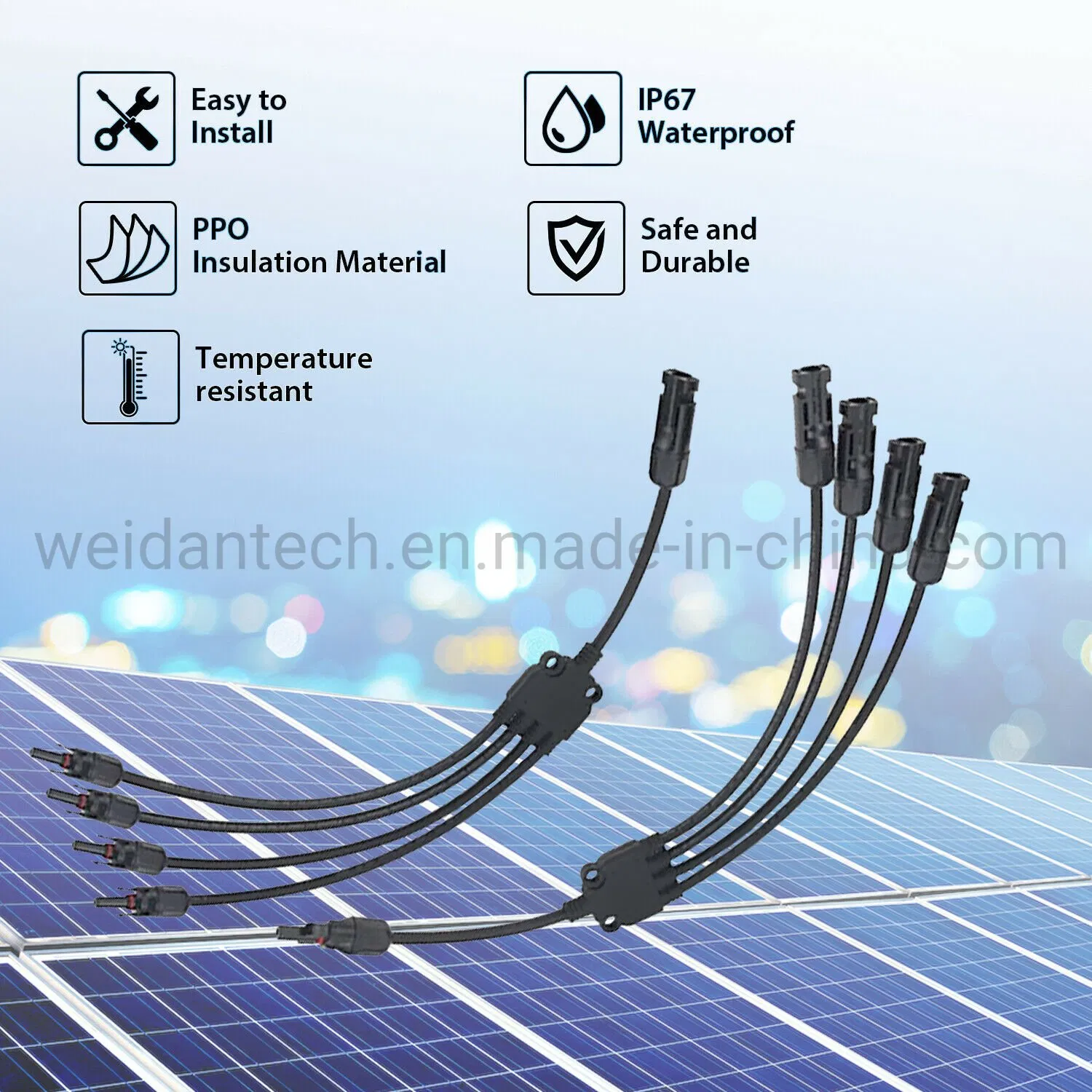

Y Solar Cable connector set is perfect Solution to parallel connection Multiple panels together in a solar field, and is typically used in Parallel applications, FFFFM, MMMMF.

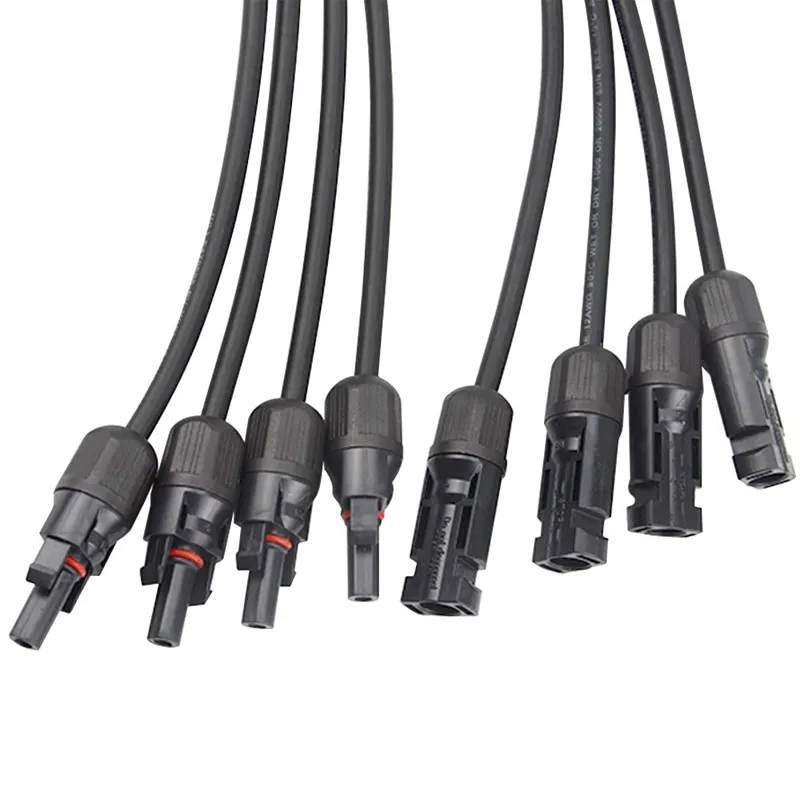

⚙ Characteristics
- Waterproof
- Compatible with PV Cable with different insulation diameters
- excellent aging resistance and UV Endurance, design of dustproof
- Load capability with Big current and high Voltage
- Quick & Simple Assembly processing and simple removal of plugs without aid of any Extra instrument
- Strong Pulling force capability. Low contact resistance
📋 Specification
- Insulation Material: PPO
- Rated Current: 20A(4mm2)---30A (6mm2)
- Rated Voltage: 1000V(TUV) & 600V(UL)
- Test Voltage: 6KV(50HZ, 1 Min)
- Typical Contact Resistance: ≤5mΩ
- Contact Material: Copper, Silver Plated
- Degree of Protection: IP67
- Safety degree: UL94V-0
- Material RTI: 110ºC
- Ambient Temperature Range: -40ºC untill +85ºC
- Main Cable specification: 6mm2(AWG10)
- Branch Cable spec: 4mm2 (AWG12)
- Insertion Force: ≤ 50N
- Withdrawal force: ≥50N
- Cable length: 48CM
Frequently Asked Questions
What is the primary function of this Y Solar Cable connector set?
The Y Solar Cable connector set is designed specifically for parallel connection of multiple solar panels in a solar field. It is commonly used in parallel applications including FFFFM and MMMMF configurations.
What is the waterproof rating of this solar connector?
This Y Branch connector set features an IP67 protection degree, rendering it highly dustproof and waterproof. It ensures reliable and safe outdoor performance under harsh environmental conditions.
Are these solar connectors easy to assemble and disassemble?
Yes, the connector allows for quick and simple assembly processing. The plugs can also be easily removed without the assistance of any extra instruments, making installation and maintenance highly efficient.
What are the electrical ratings for this solar connector?
It has a rated current of 20A for 4mm² cables and 30A for 6mm² cables. The rated voltage is certified at 1000V (TUV) and 600V (UL), with a test voltage of 6KV (50Hz, 1 min).
What insulation and contact materials are used?
The connector utilizes high-quality PPO as its insulation material, while the contact material is made of copper with silver plating, ensuring a low contact resistance of ≤5mΩ.
What is the working temperature range for this solar connector?
It is designed to withstand extreme environments, operating efficiently within an ambient temperature range of -40ºC to +85ºC, with a material Relative Thermal Index (RTI) of 110ºC.
