Products Description
TTNergy Battery System
GLOBAL LEADING DISTRIBUTED ENERGY SOLUTION PROVIDER

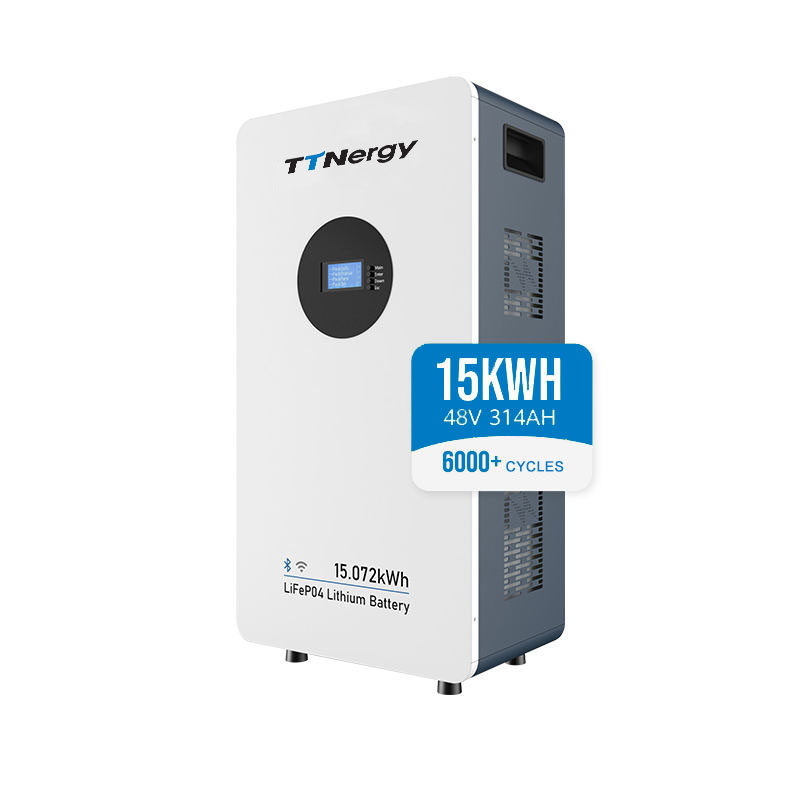

Residential Energy Storage Battery 15KWh/16KWh
SUPERIOR PERFORMANCE LFP BATTERY
- High safety LiFePO4 battery
- Support up to 16 units in parallel
- More than 6000 cycles
1

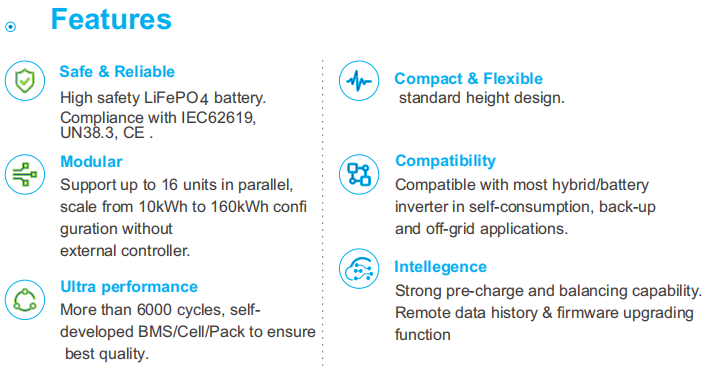

Safe & Reliable
High safety LiFePO4 battery. Compliance with IEC62619, UN38.3, CE.
2
Modular
Support up to 16 units in parallel, scale from 10kWh to 160kWh configuration without external controller.
3
Compatibility
Compatible with most hybrid/battery inverter in self-consumption, back-up and off-grid applications.
Product Parameters
| Items |
48V/314AH |
51.2V/314AH |
| Nominal voltage |
48V |
51.2V |
| Nominal capacity |
314Ah |
314Ah |
| Nominal energy |
15KWh |
16KWh |
| Max. voltage range |
42V~54.75V |
44.8V~58.4V |
| Charge voltage |
54.7V |
58.4V |
| Float voltage |
54V |
57.6V |
| Recommend charge current |
<150A |
<150A |
| Max. charge current |
≤200A |
≤200A |
| Recommend discharge current |
<150A |
<150A |
| Max. discharge current |
≤200A |
≤200A |
| Communication |
CAN /RS485 |
CAN /RS485 |
| Peak discharge current |
200A@3mins |
200A@3mins |
| IP rating |
IP20 |
IP20 |
| Cycle life |
≥6000 cycles |
≥6000 cycles |
| Net weight |
~115kg |
~120kg |

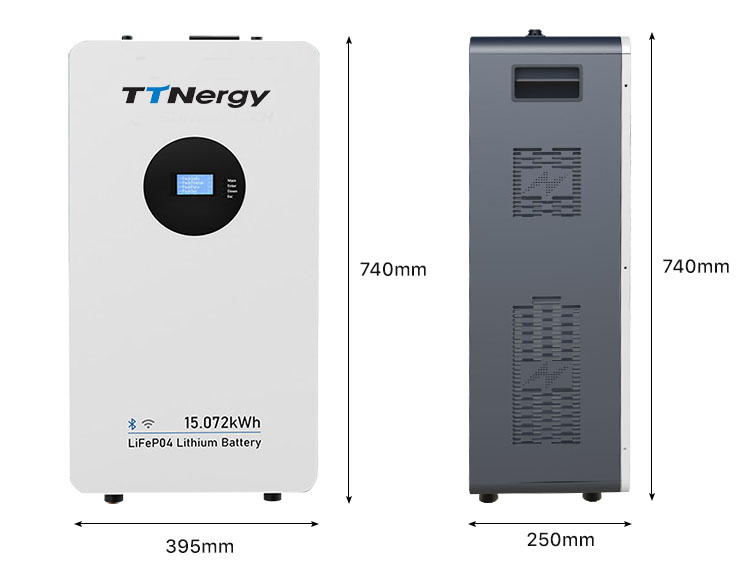

| Dimension(W*H*D) |
740*380*250mm |
740*380*250mm |
| Cell type |
Lithium-iron phosphate |
Lithium-iron phosphate |
| Design life |
15 years |
15 years |
| Charging Temperature |
0~65°C |
0~65°C |
| Discharging Temperature |
-20~65°C |
-20~65°C |
| Relative humidity |
5%~90%, No condensation |
5%~90%, No condensation |
| Install altitude |
≤3000m |
≤3000m |
| Install location |
Indoor |
Indoor |
| Installation |
Floor mounted |
Floor mounted |
| Certification |
IEC62619 / UN38.3 / CE / CEC |
IEC62619 / UN38.3 / CE / CEC |
If you need other parameters, you can contact us, we have our own factory, and professional engineers, support customization.

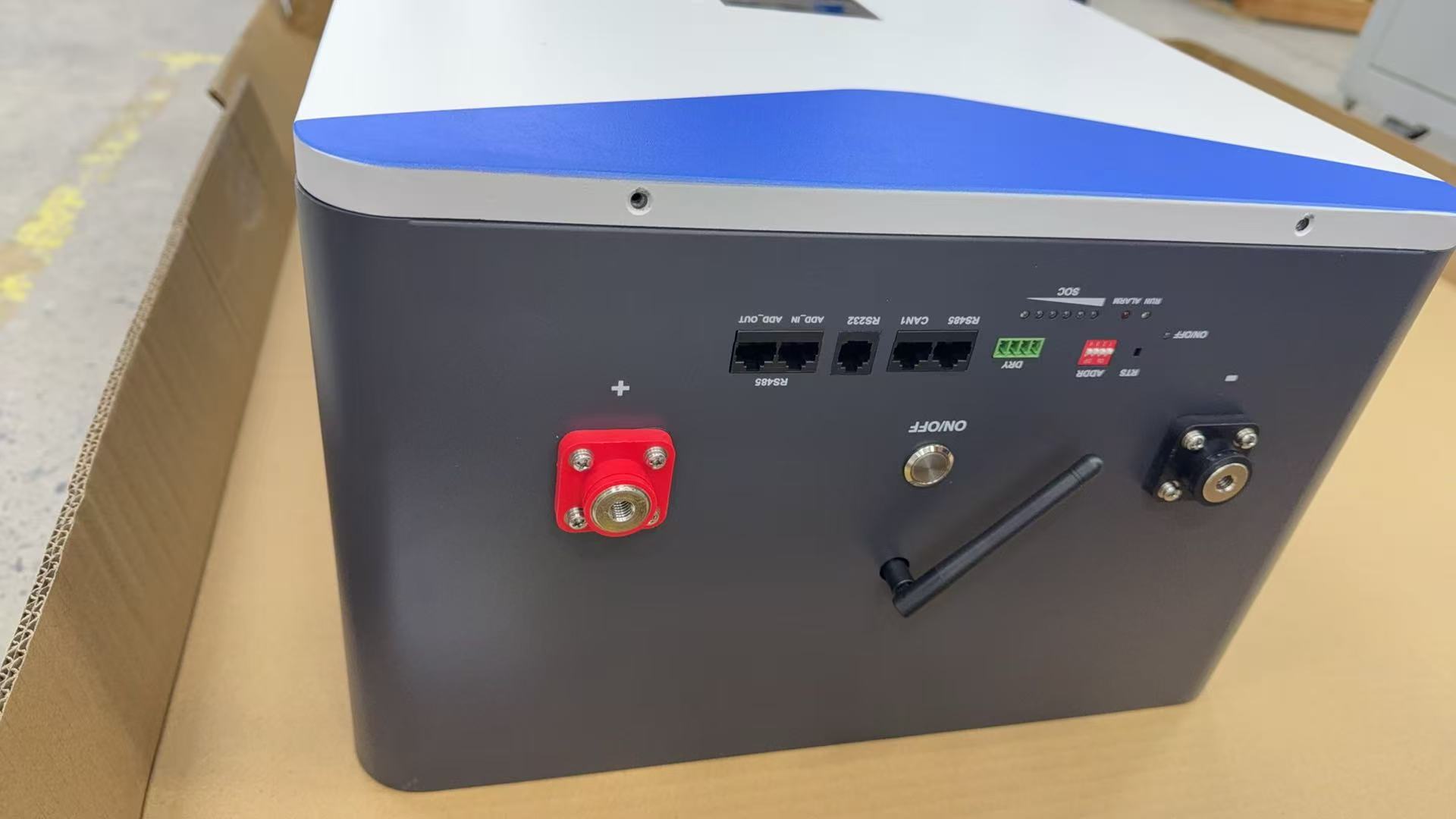

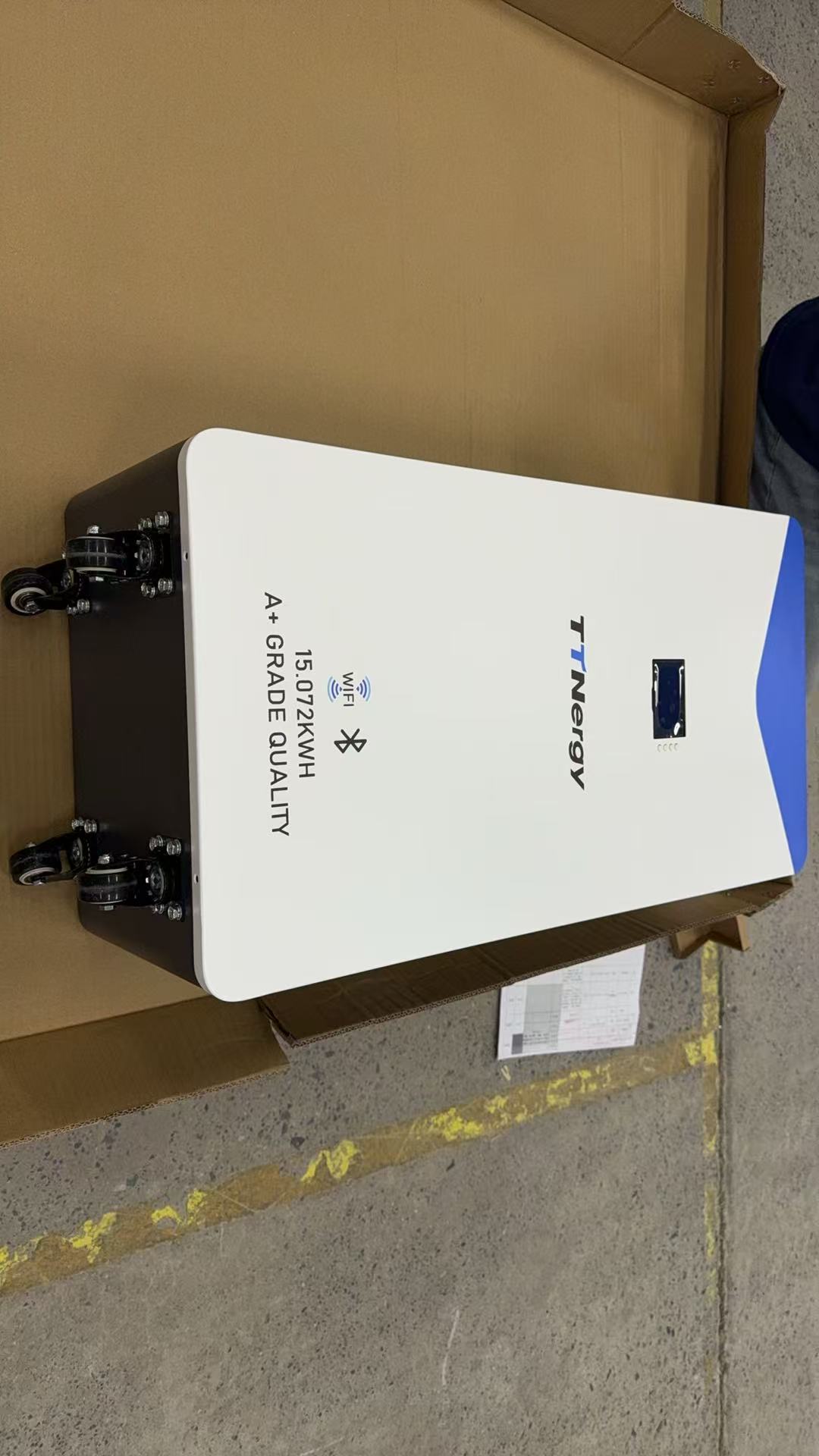

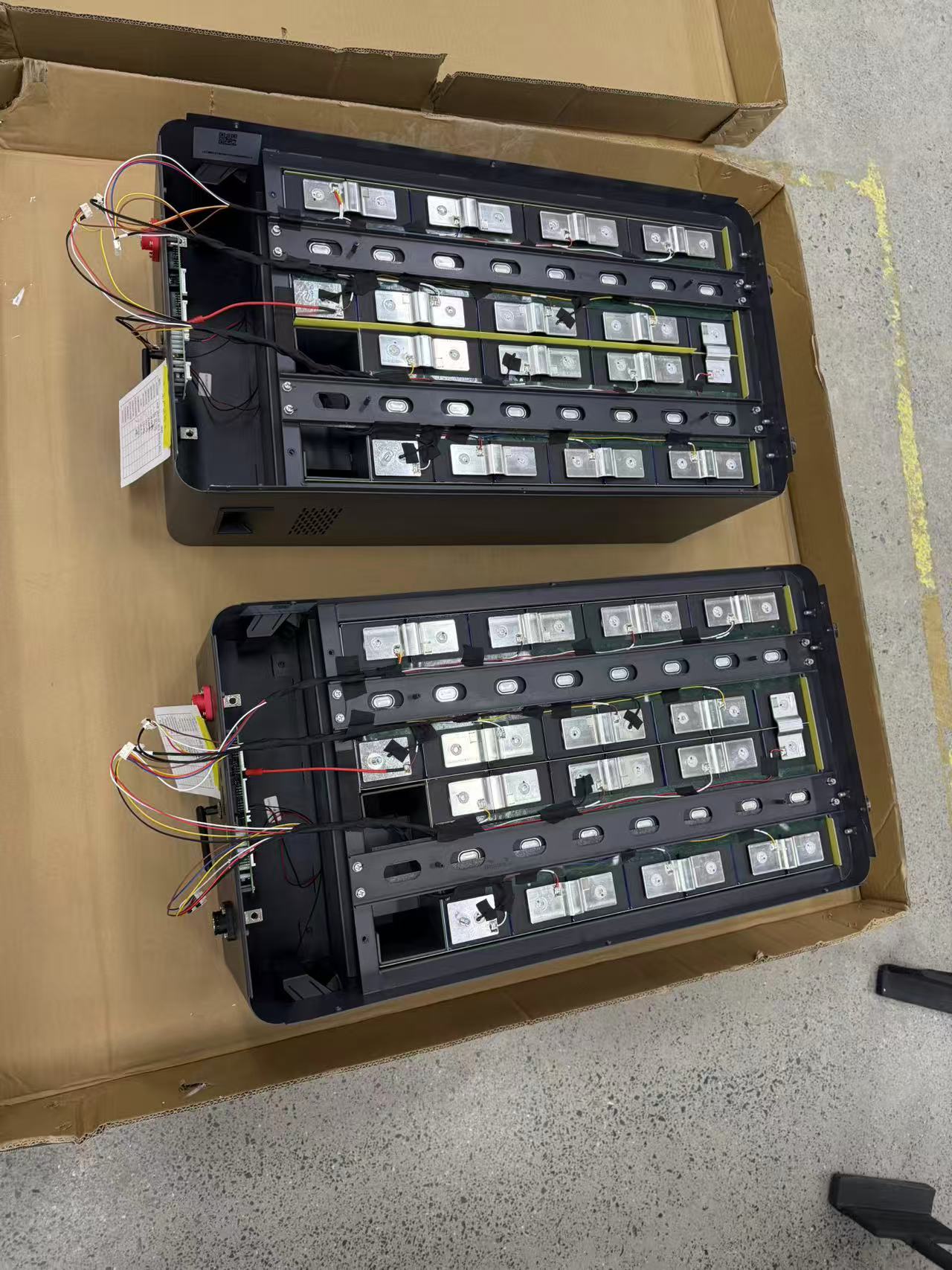

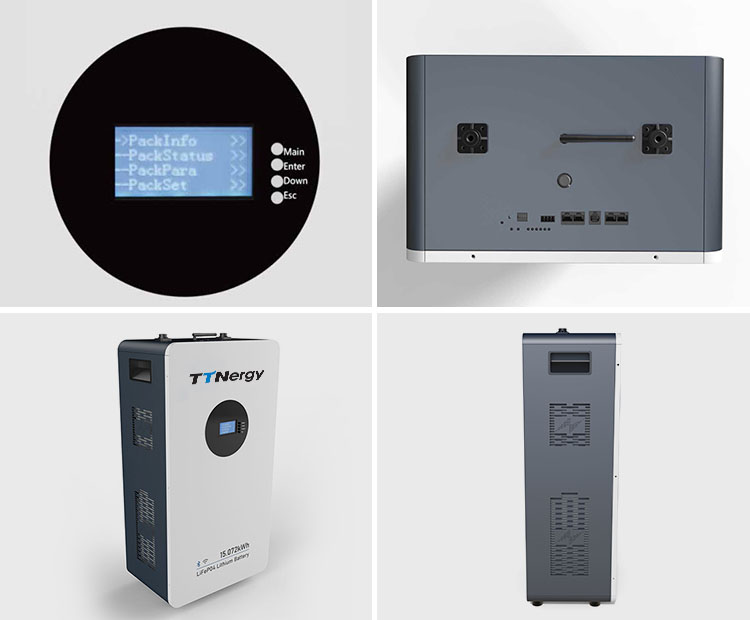

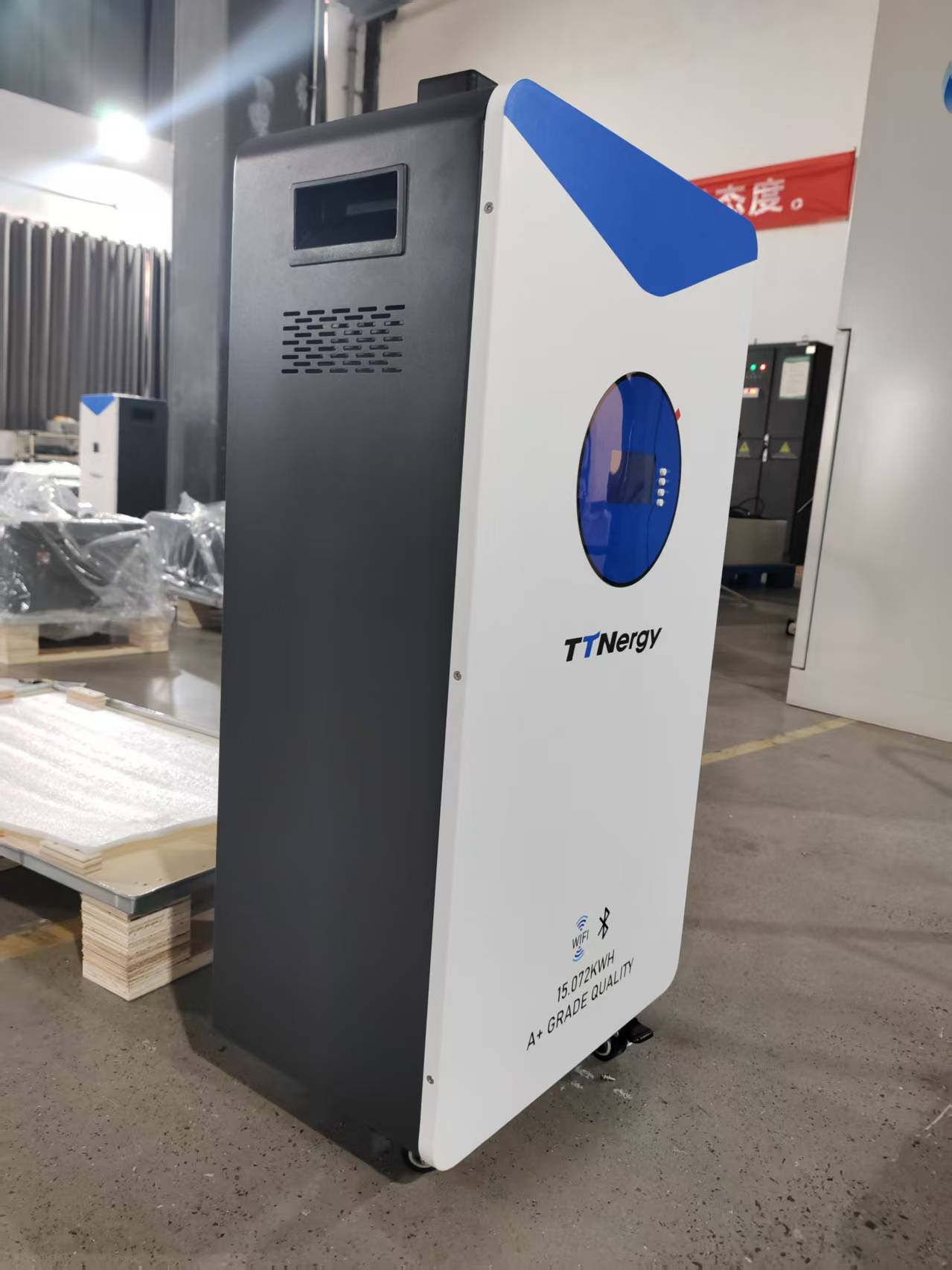

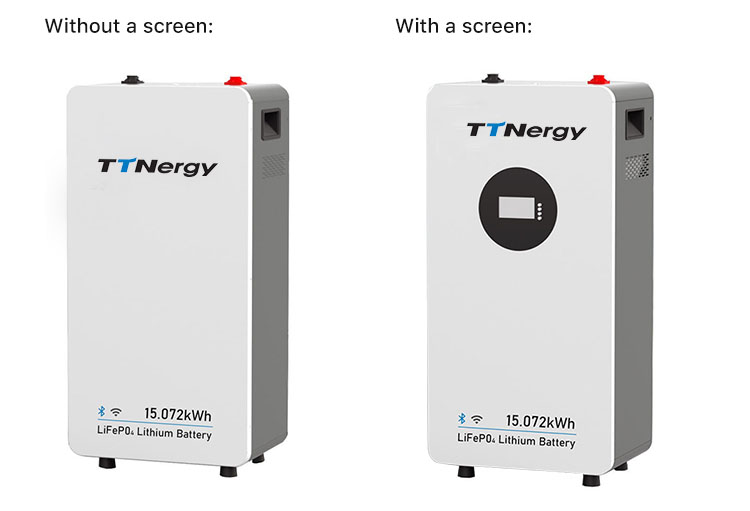

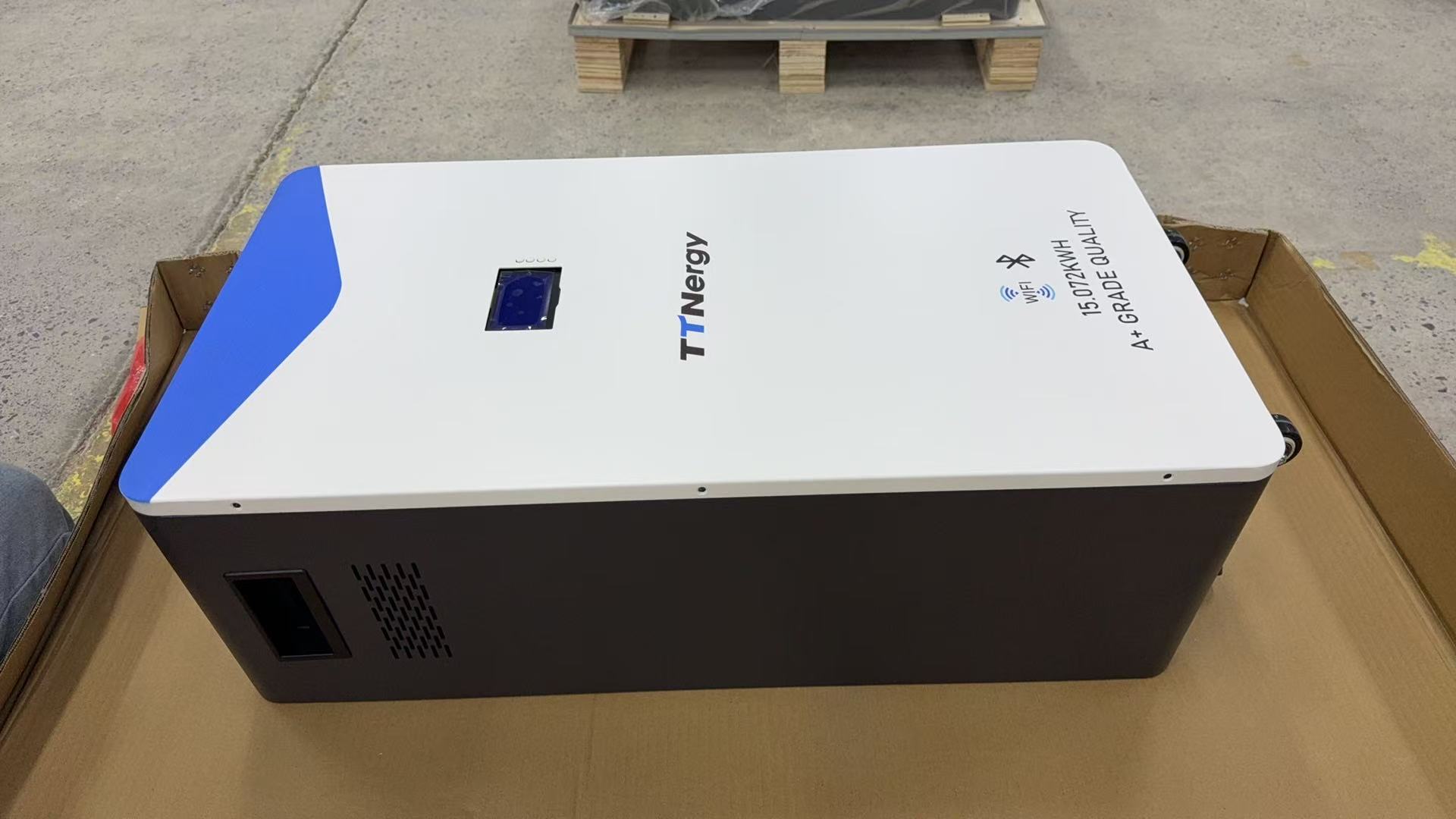

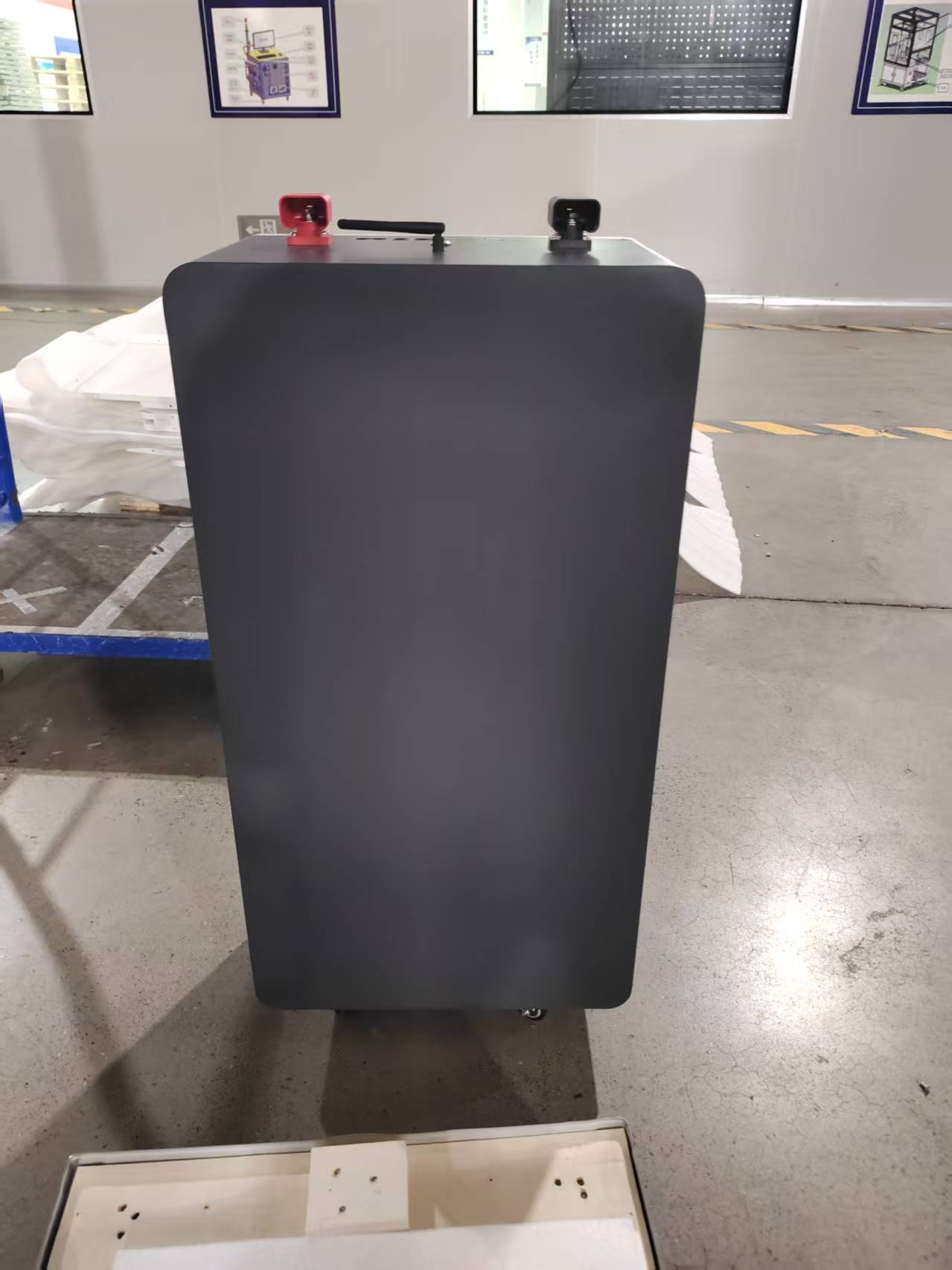

Product Details

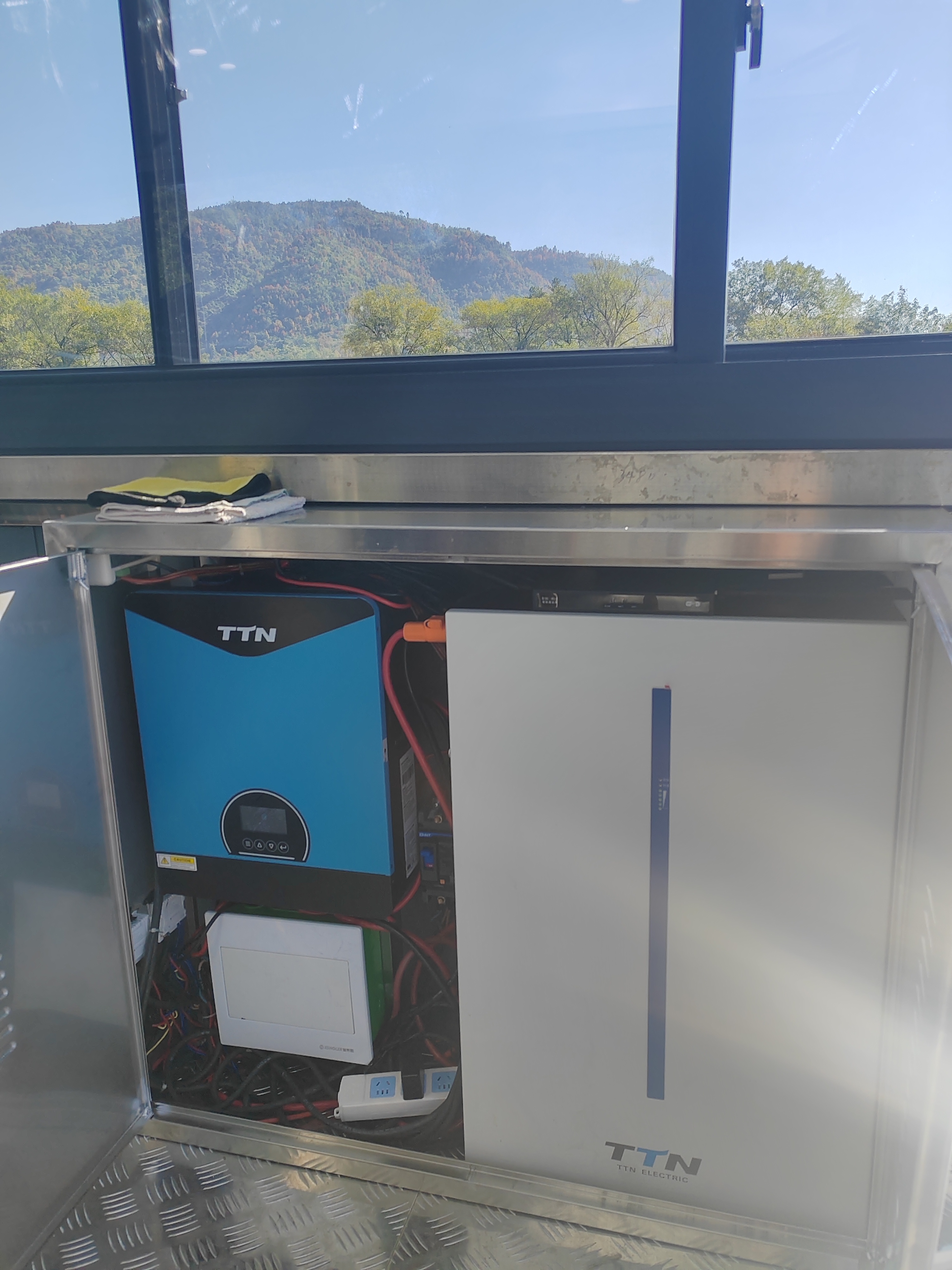

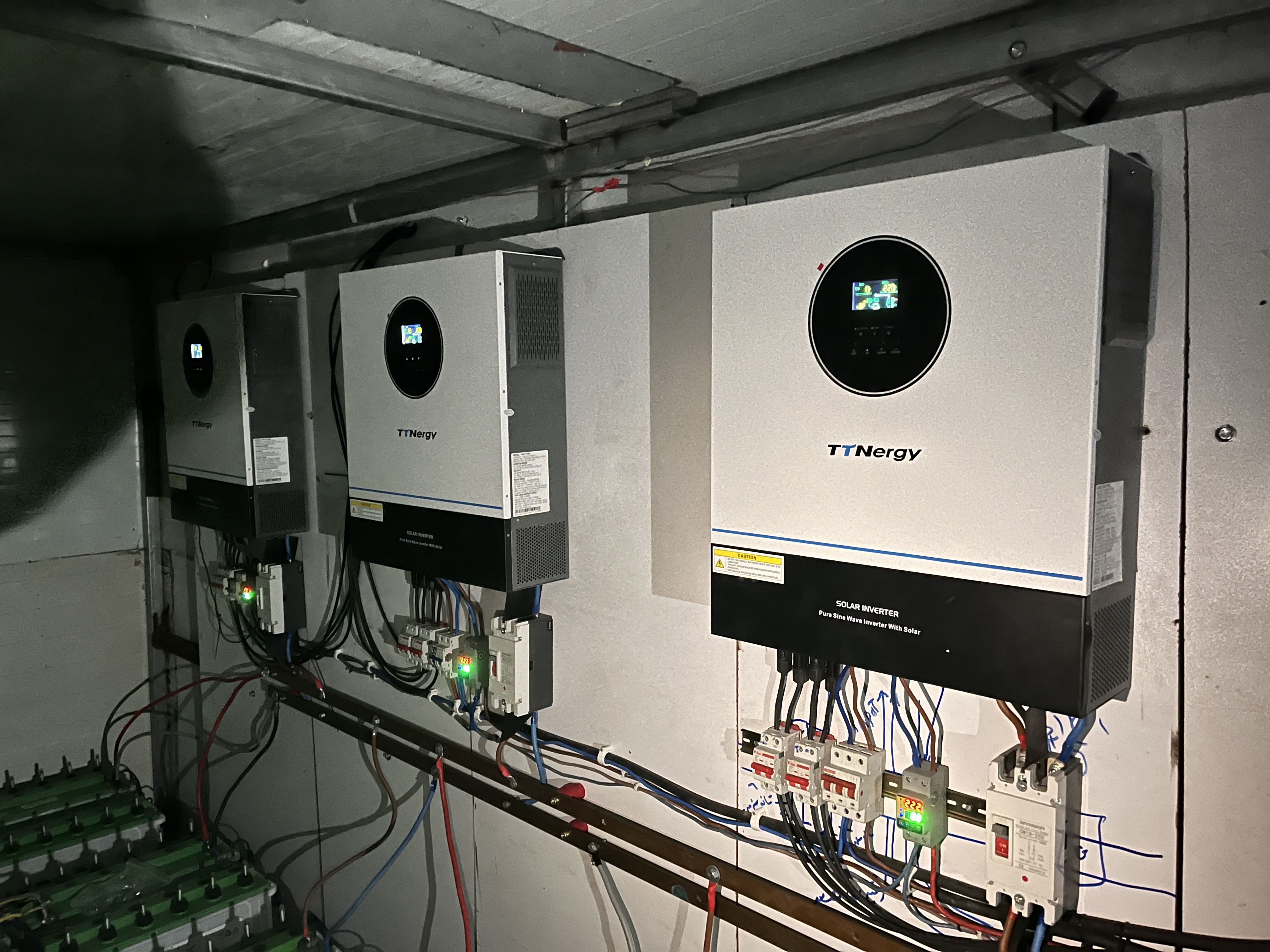

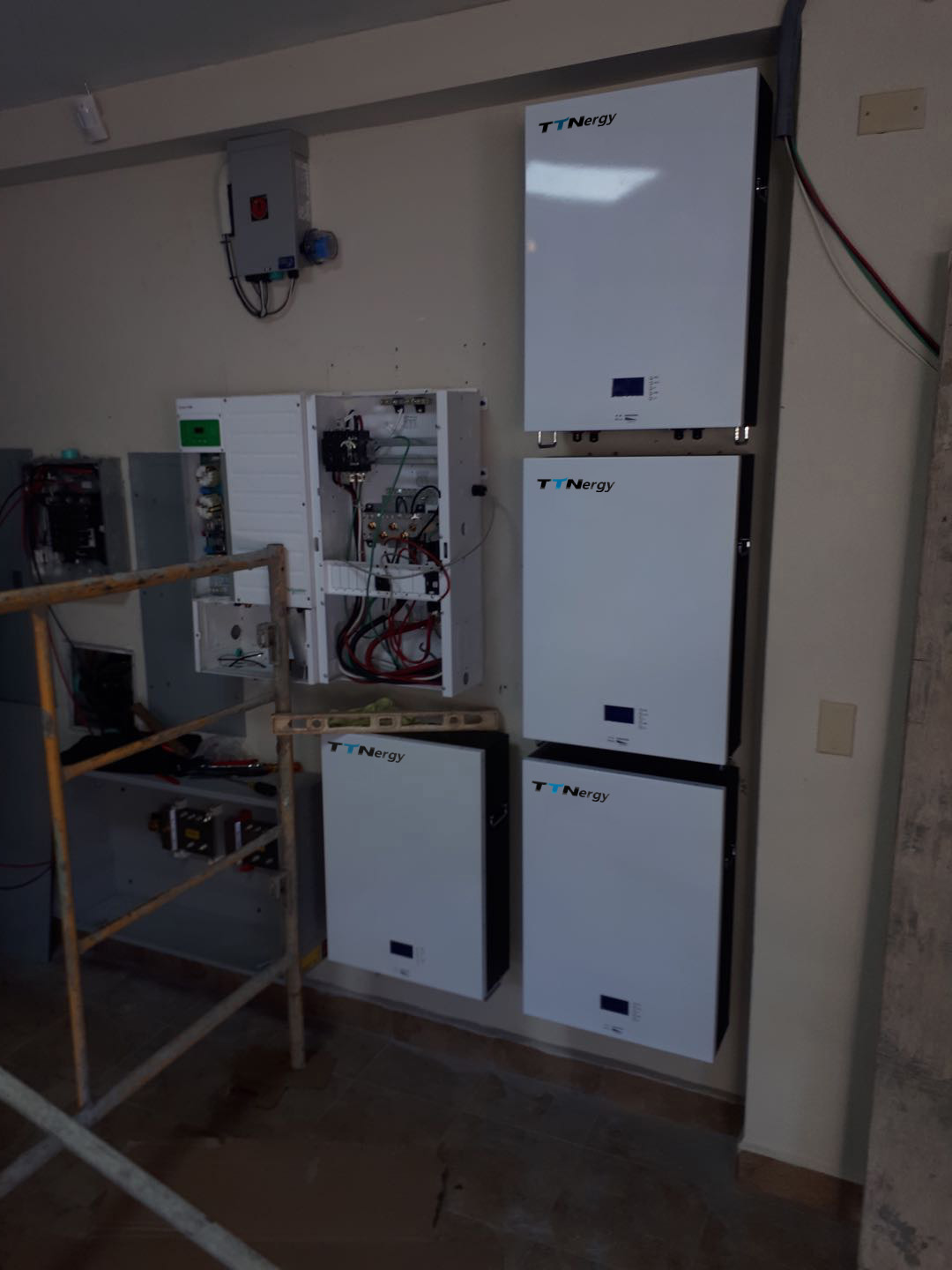

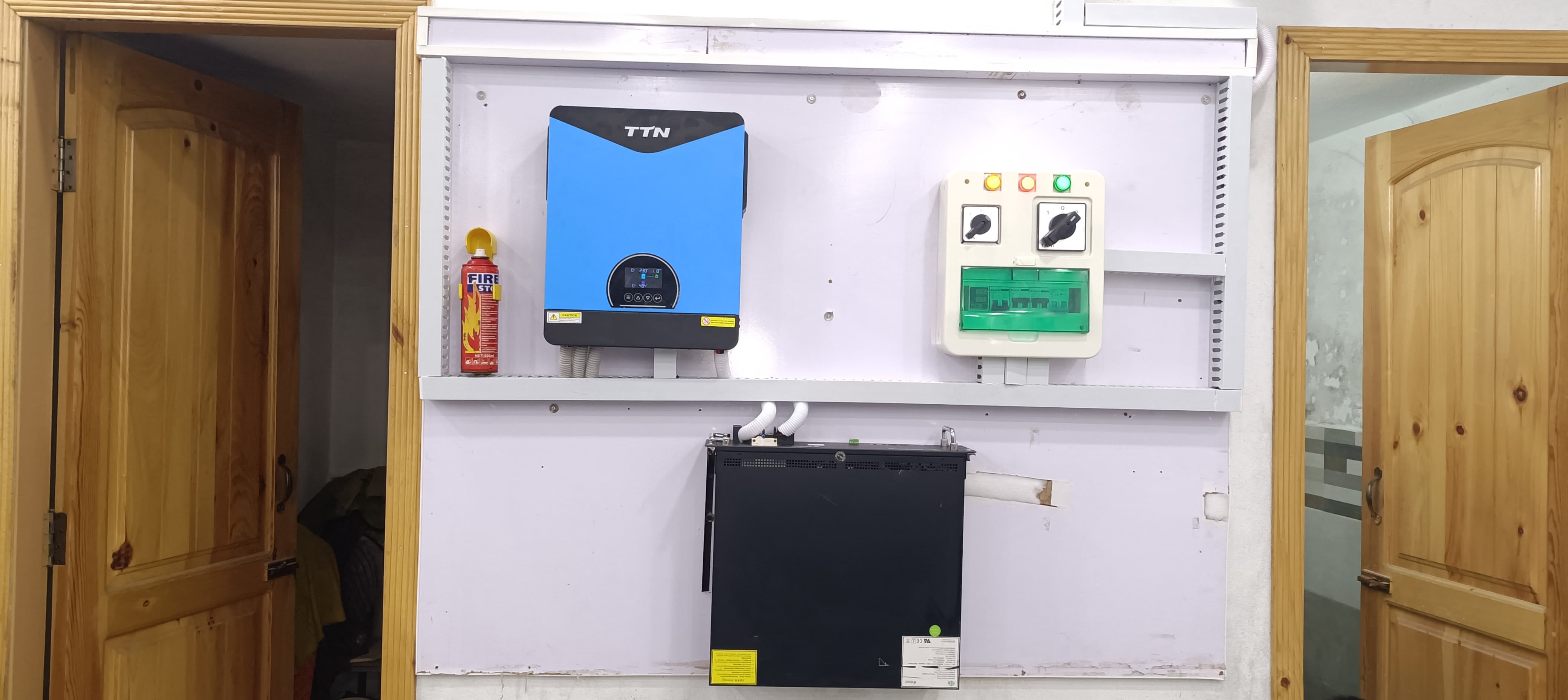

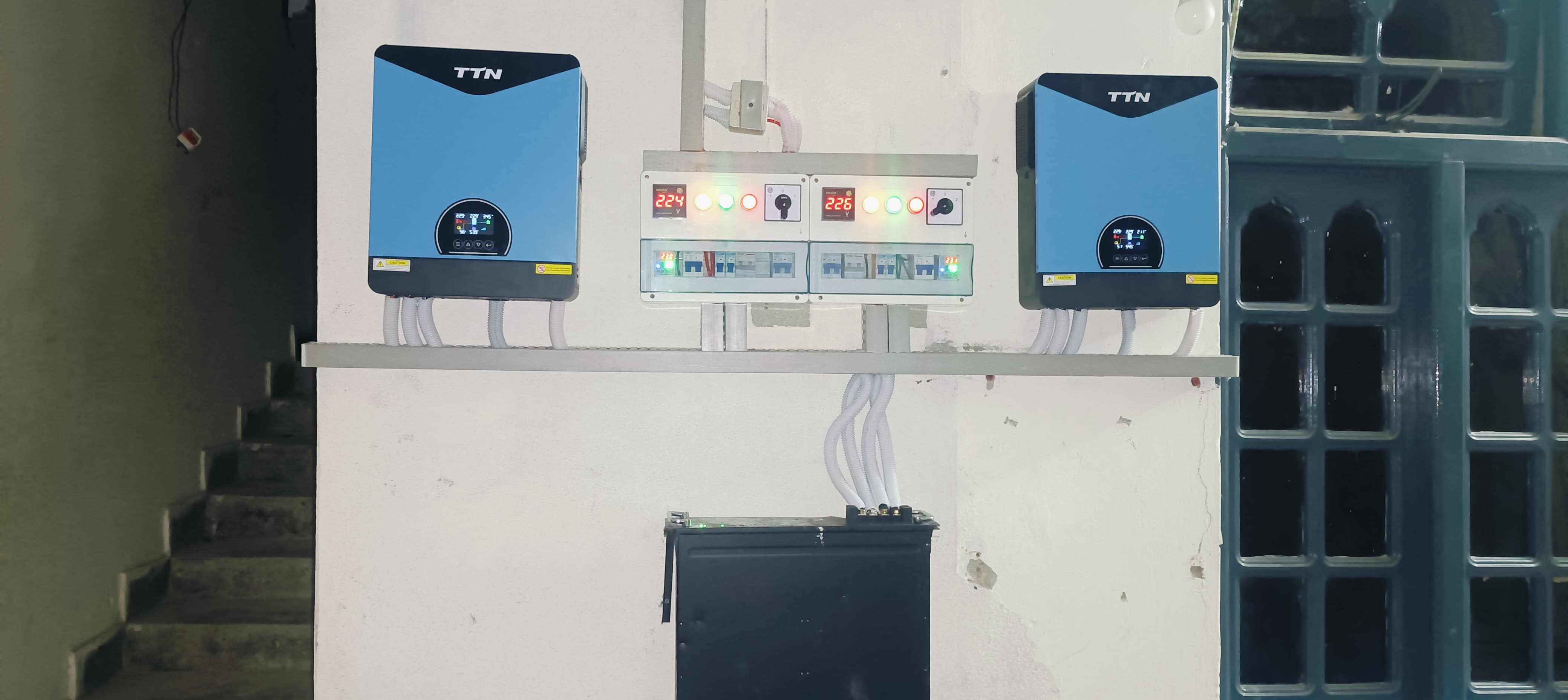

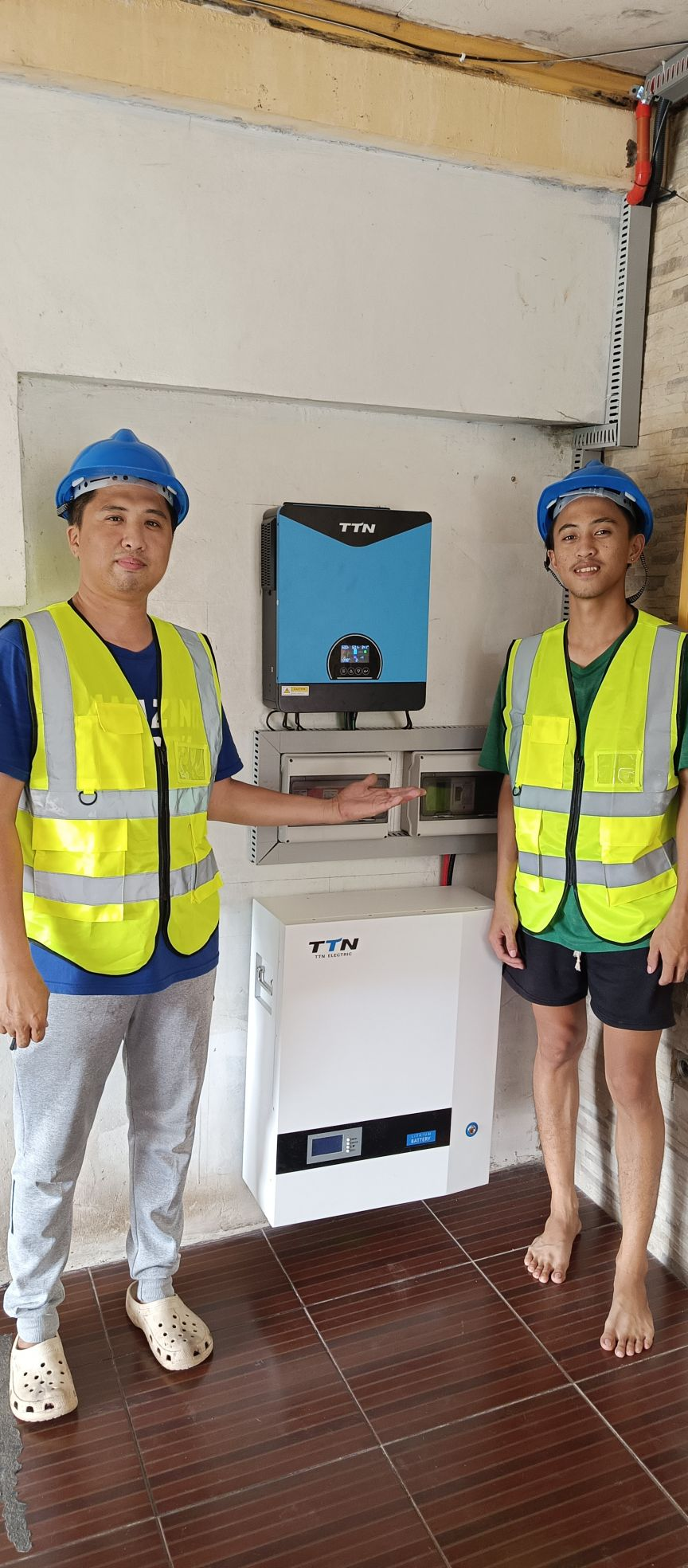

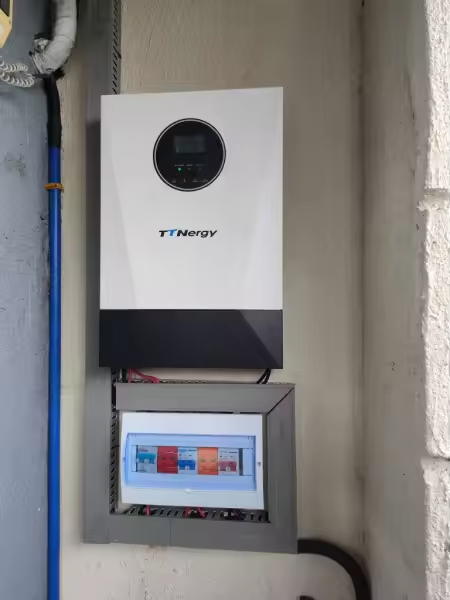

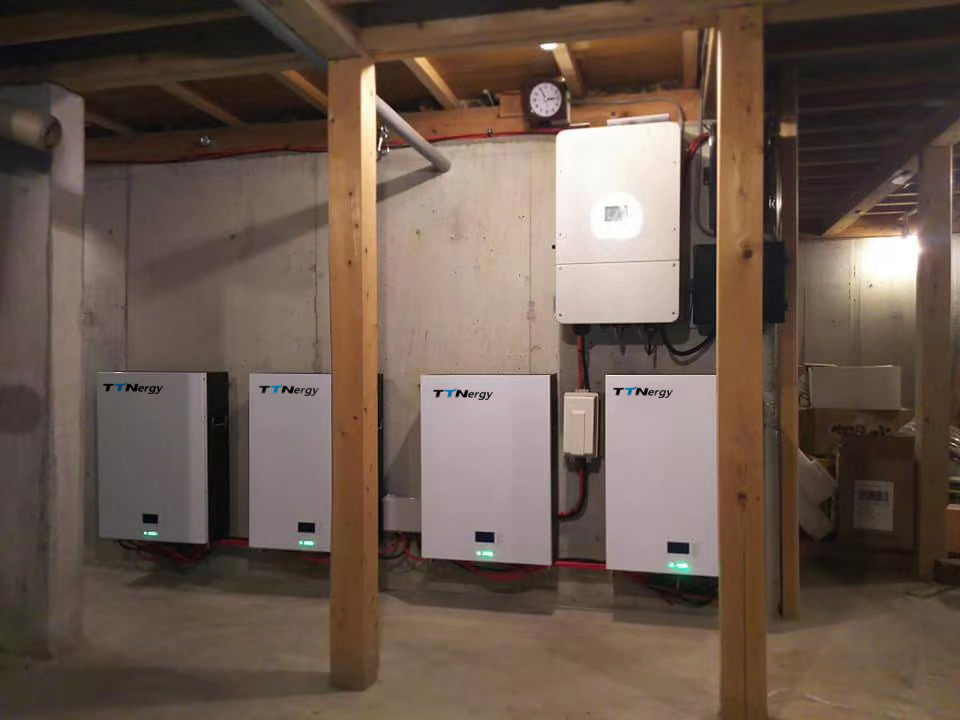

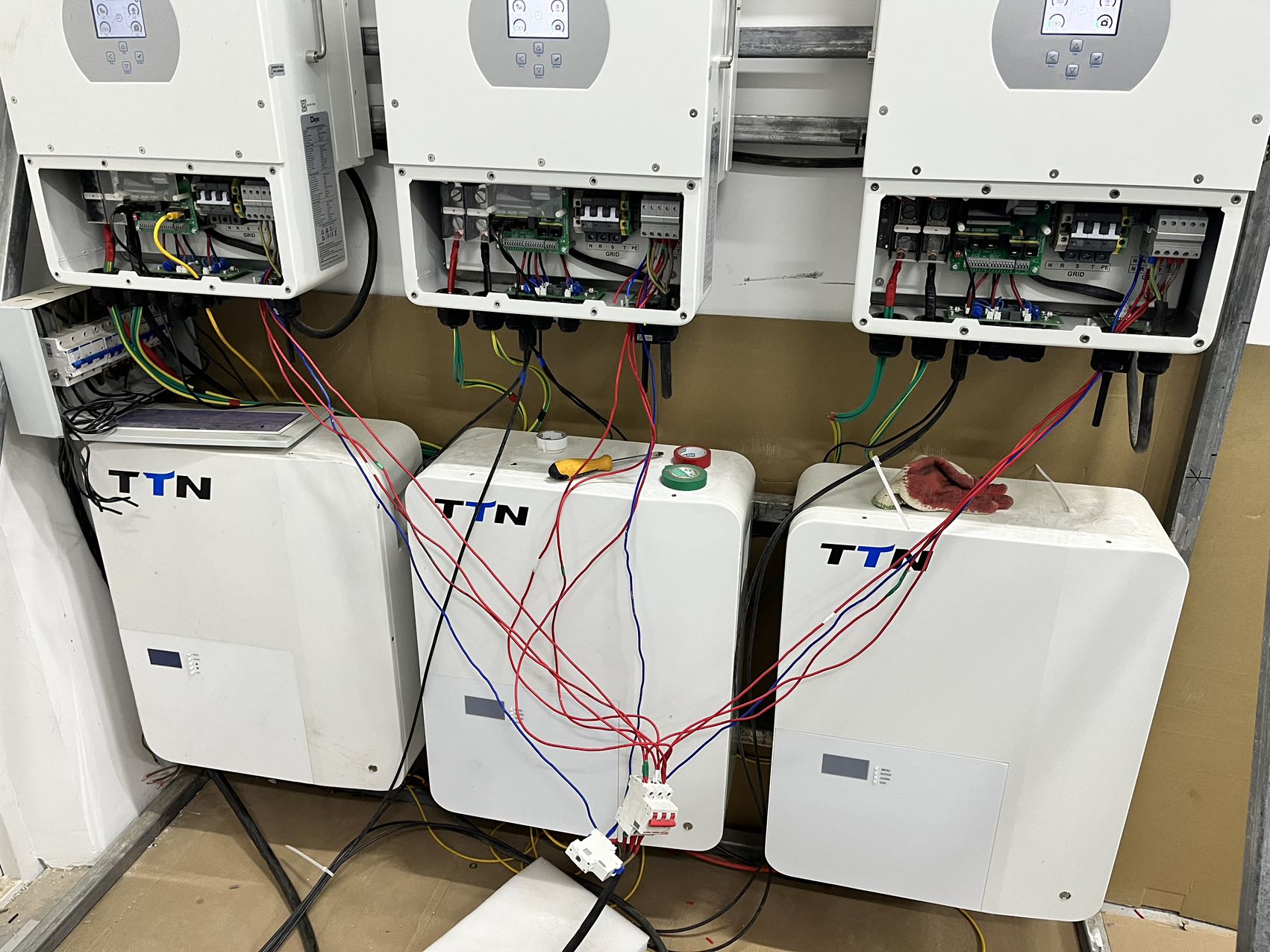

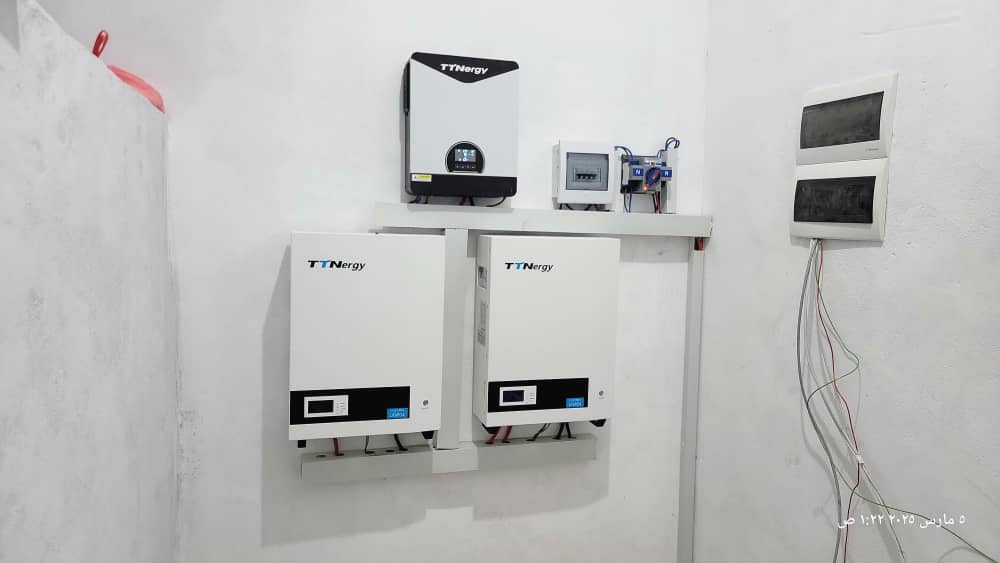

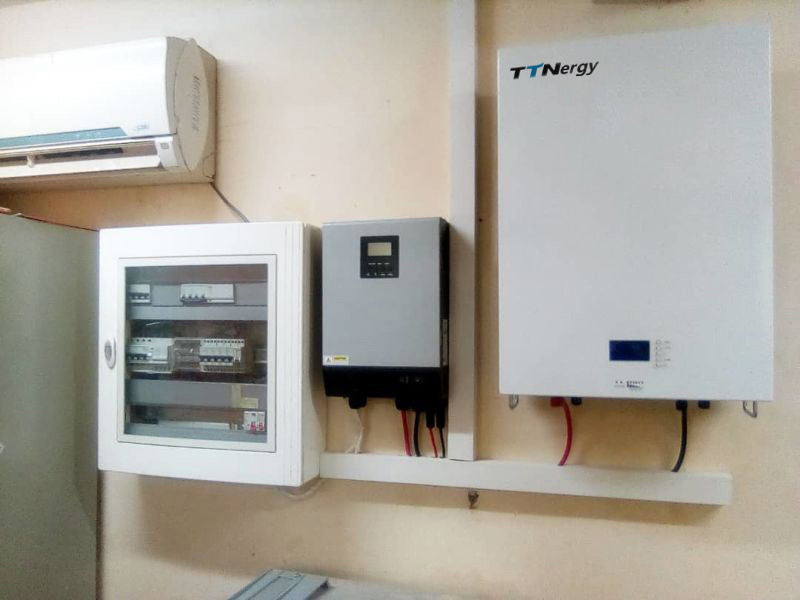

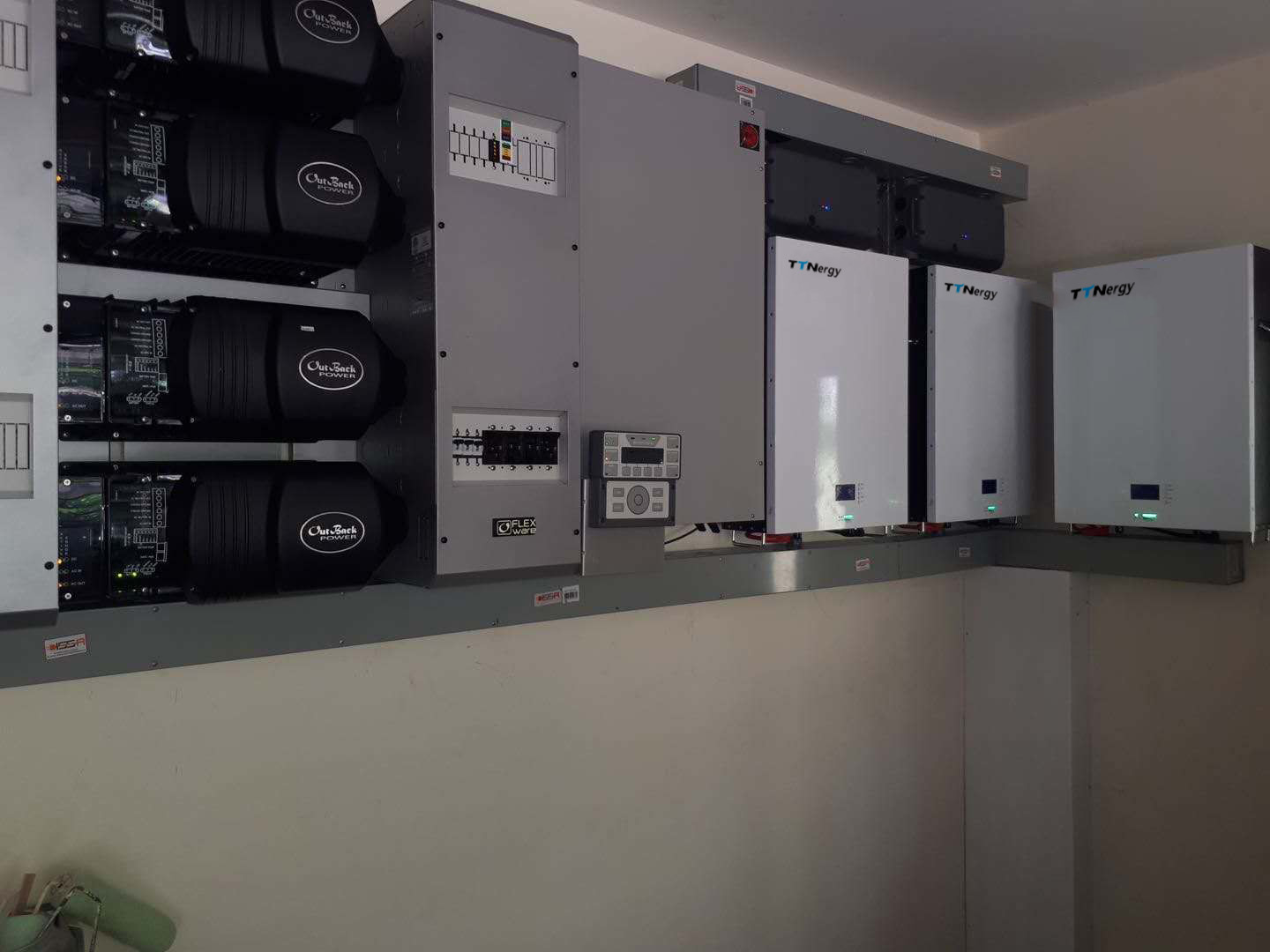

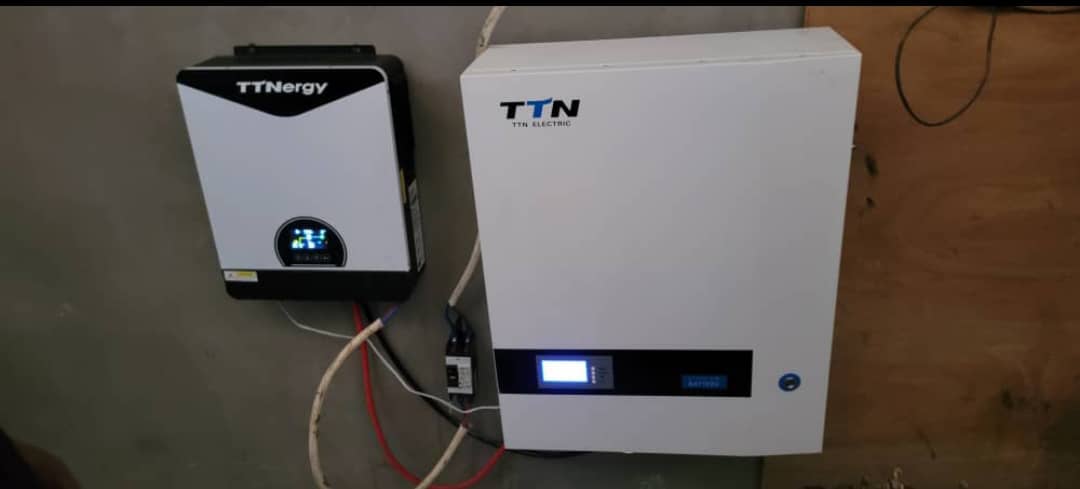

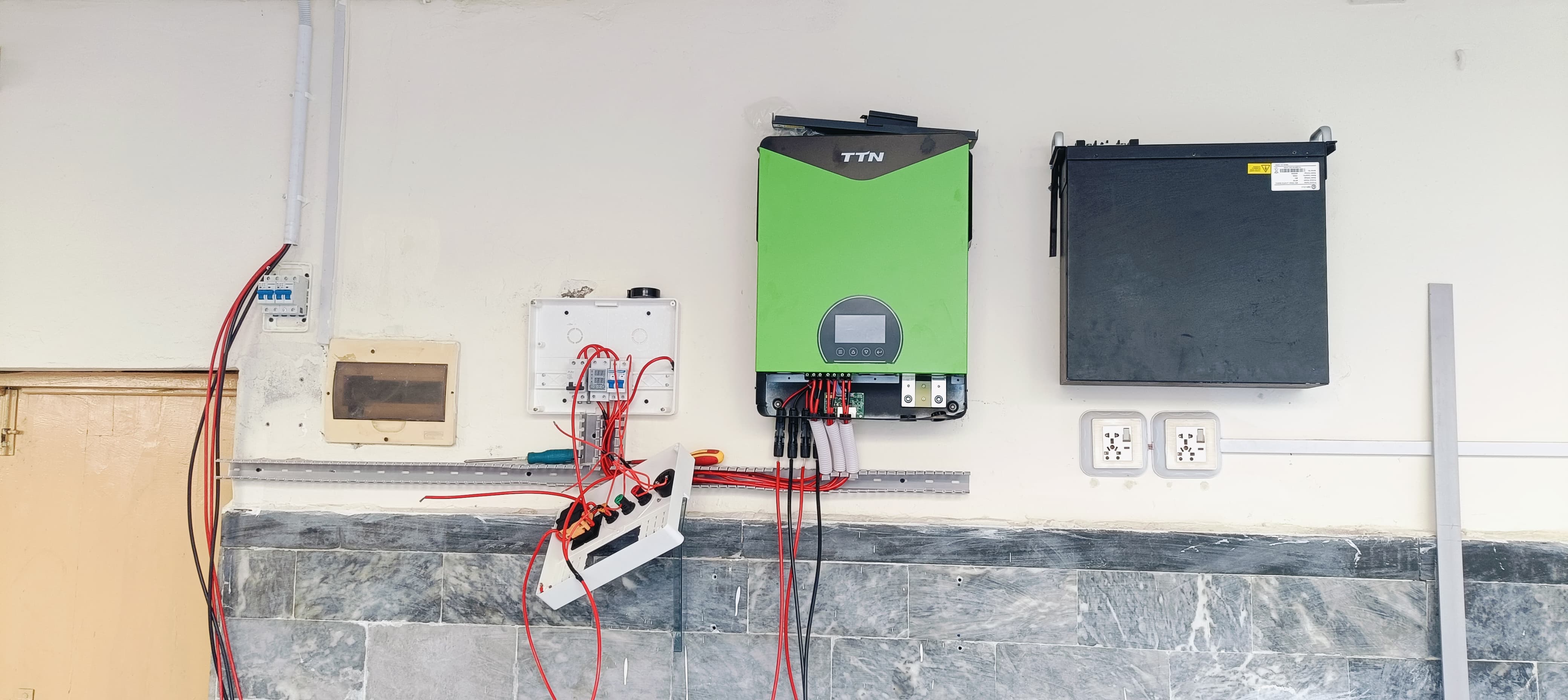

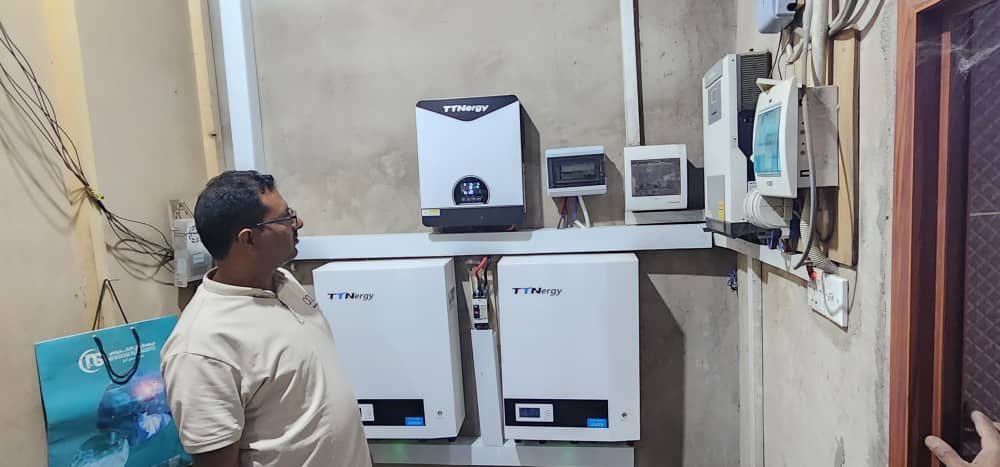

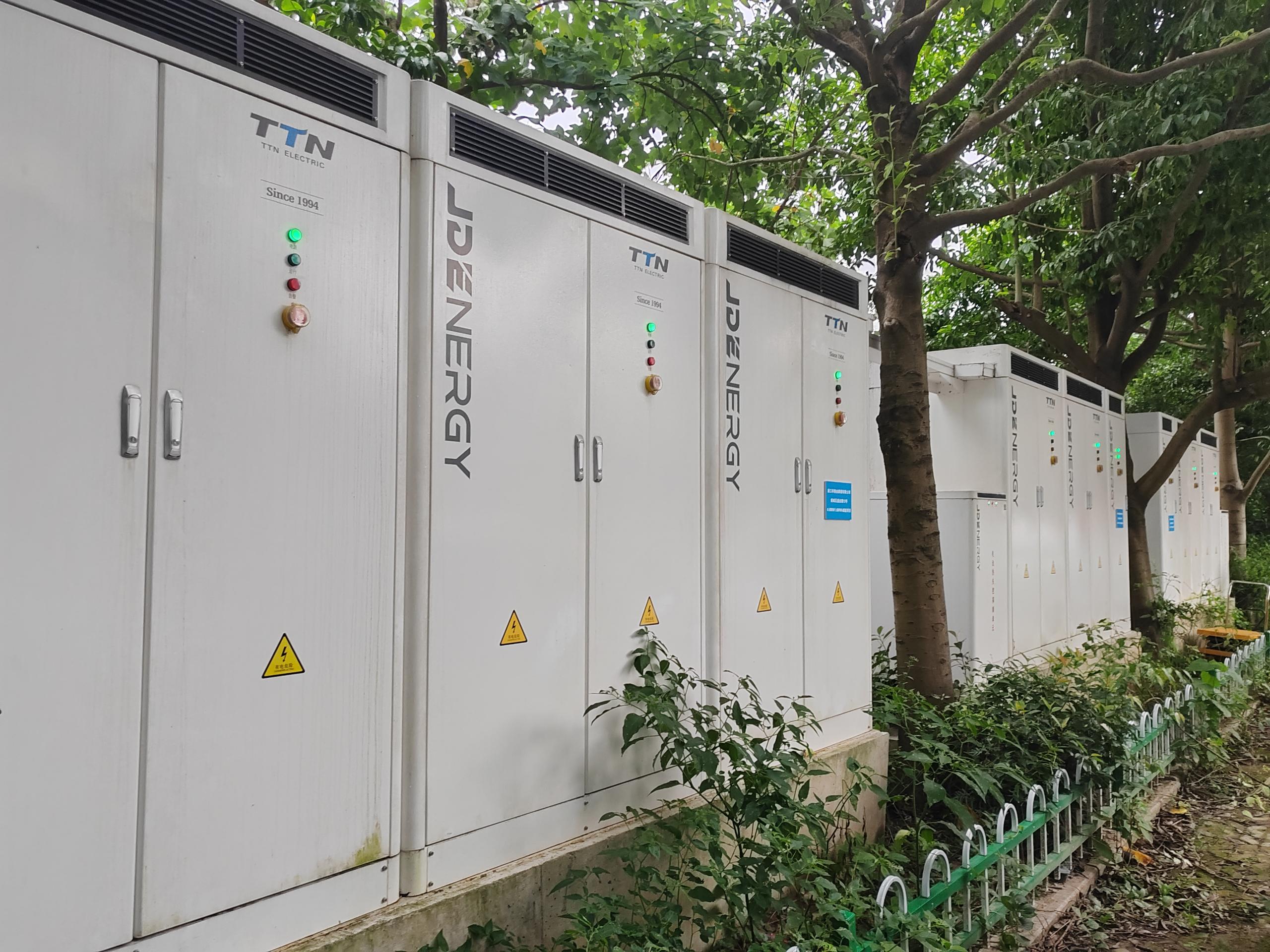

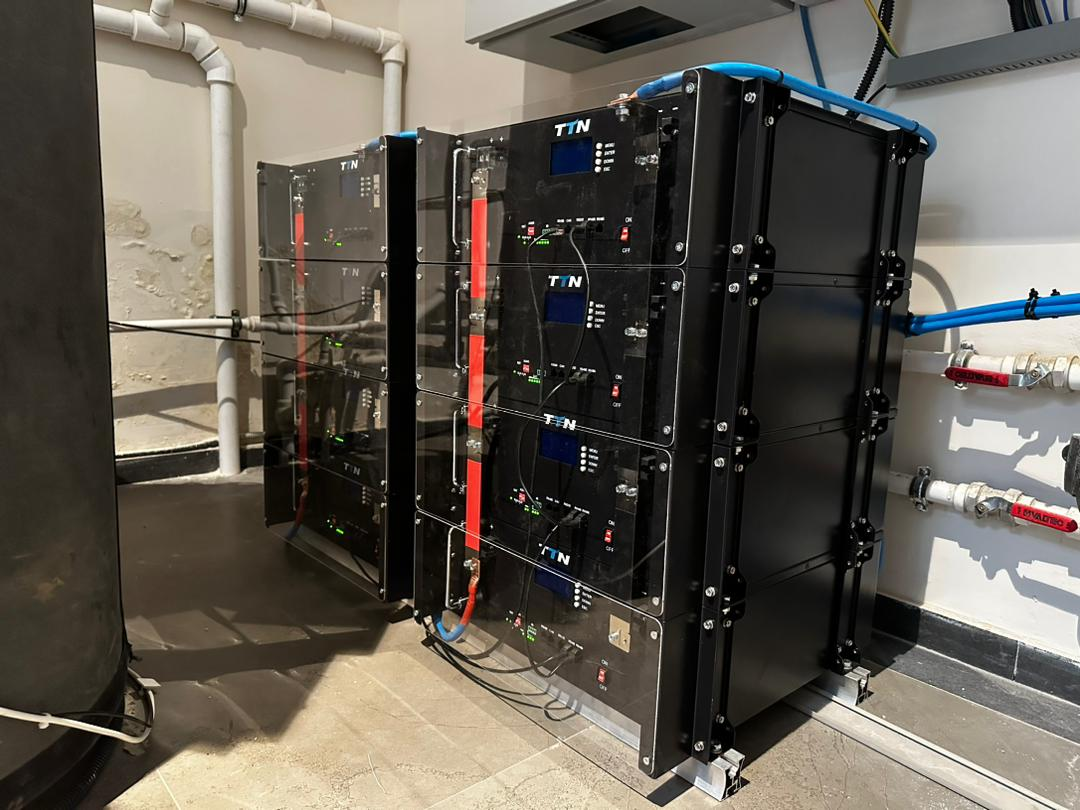

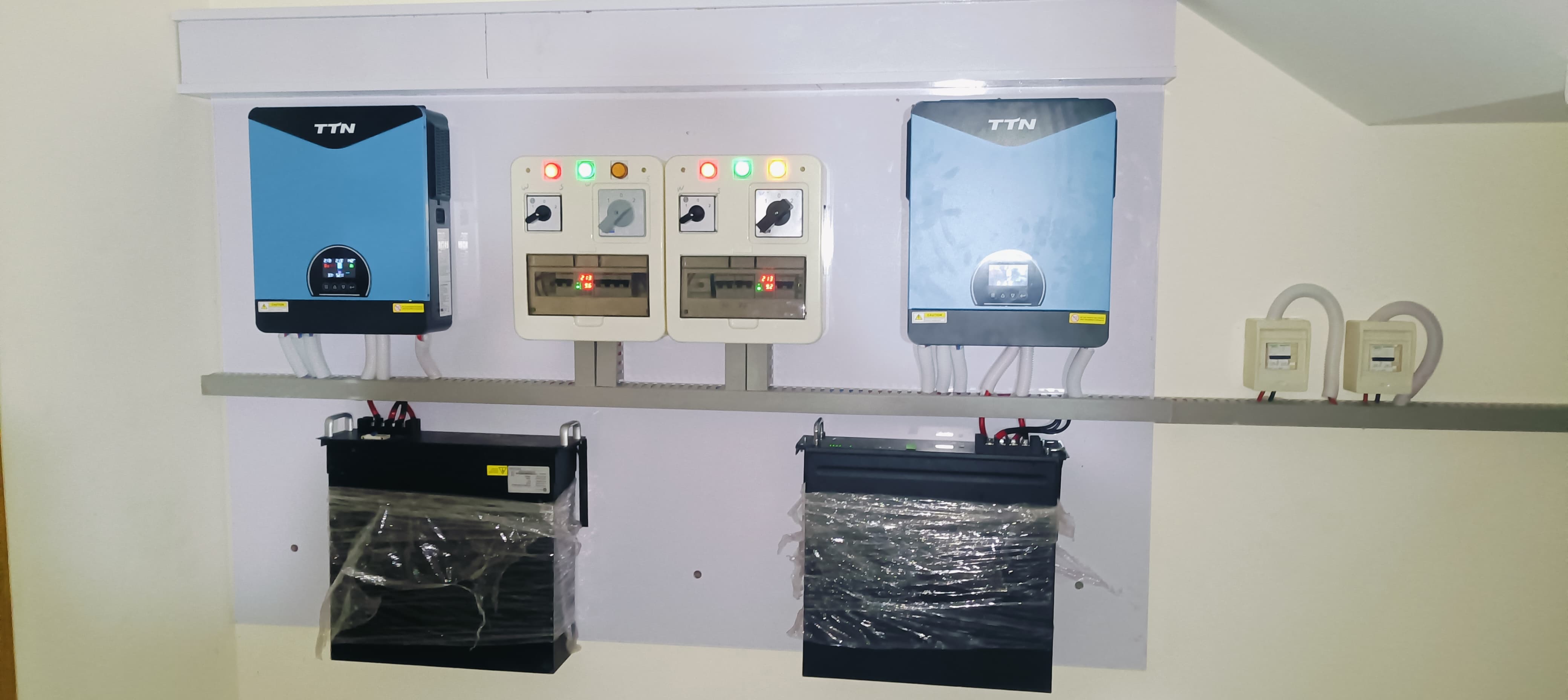

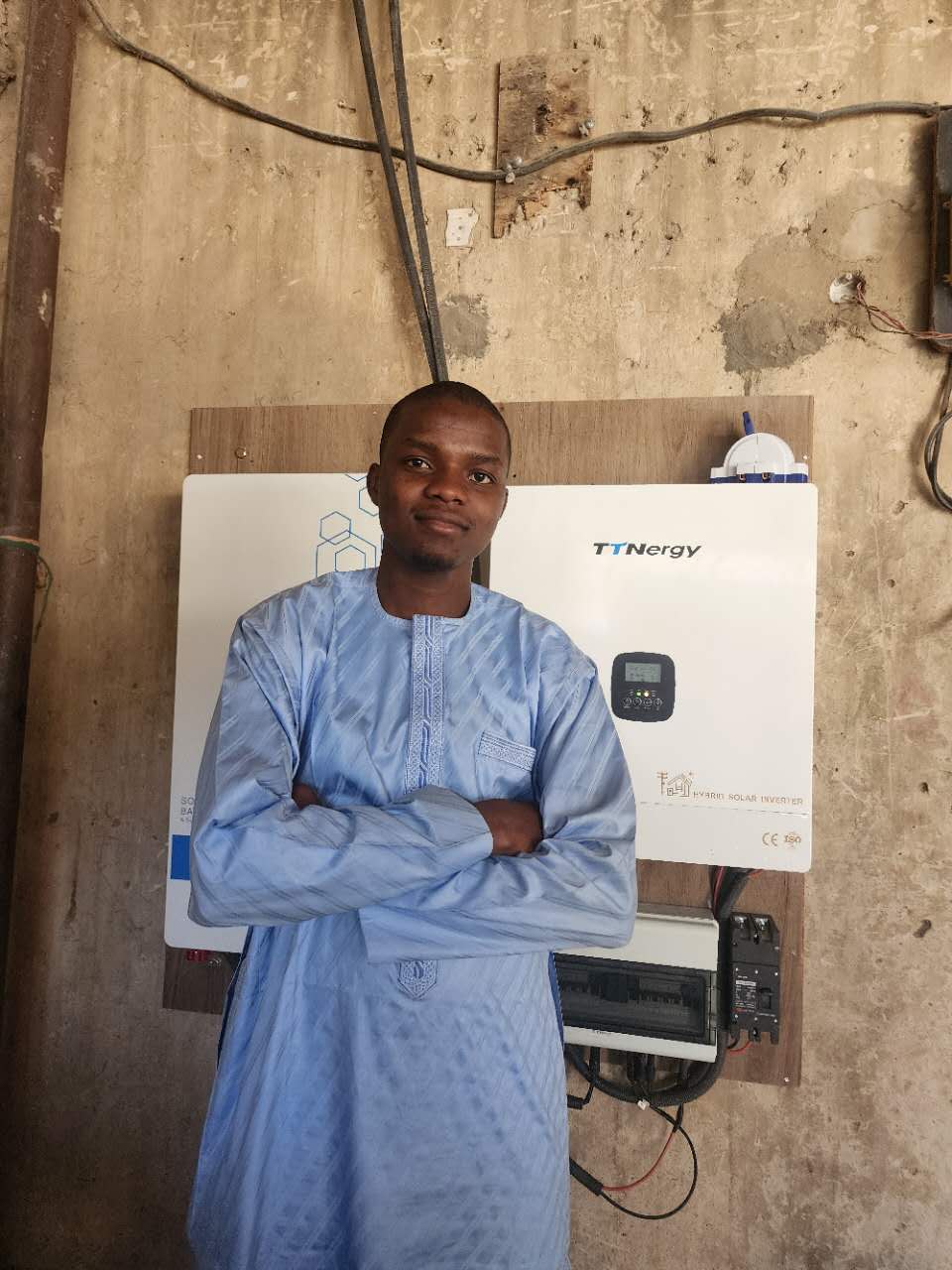

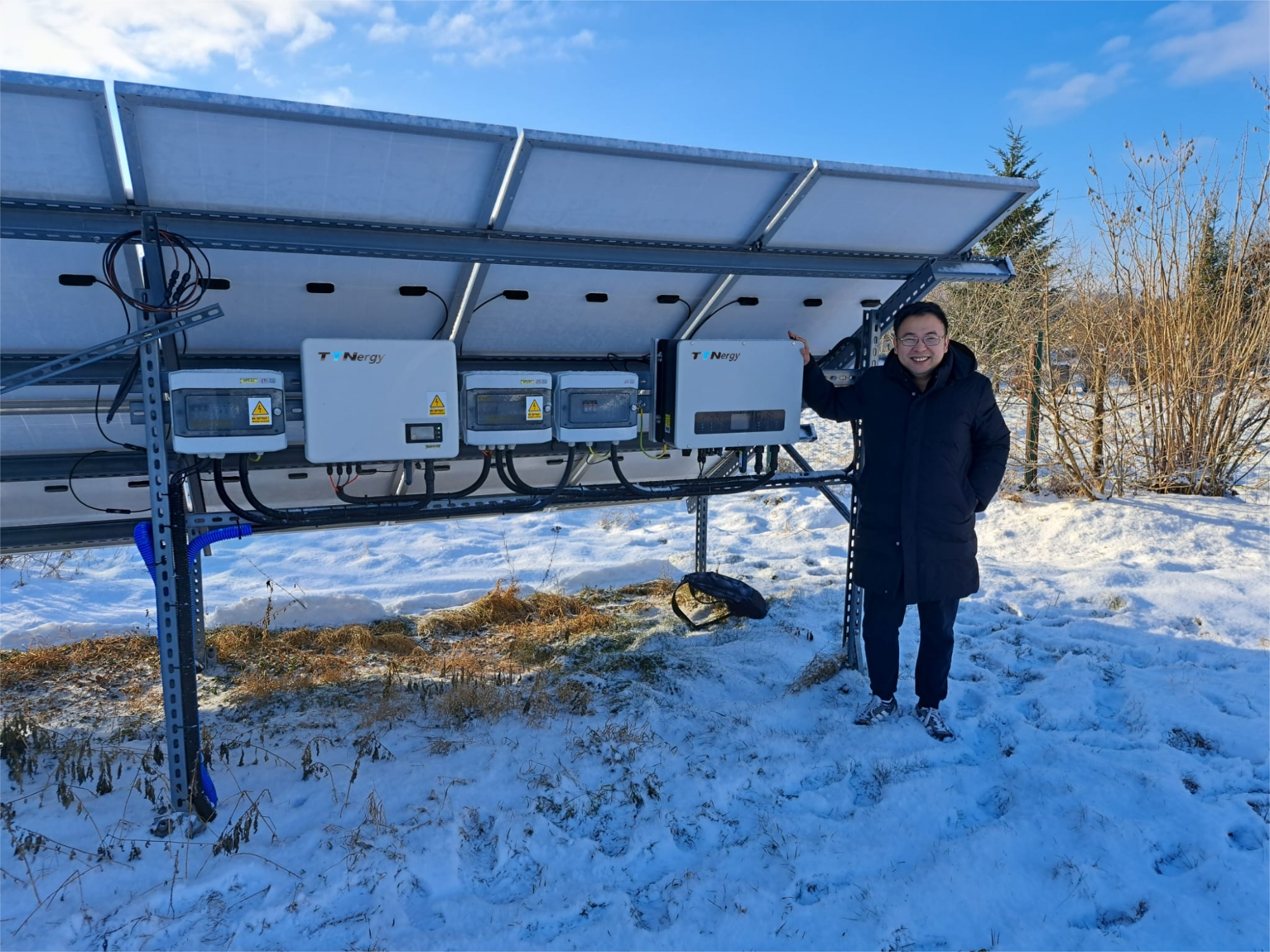

Projects case
Expo

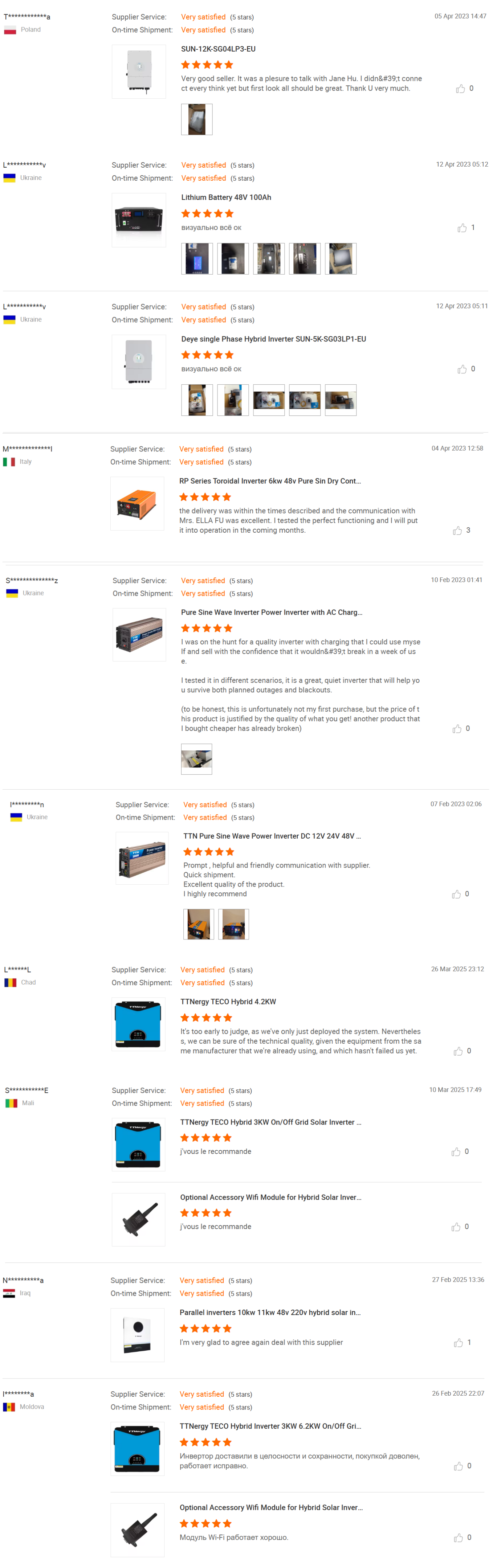

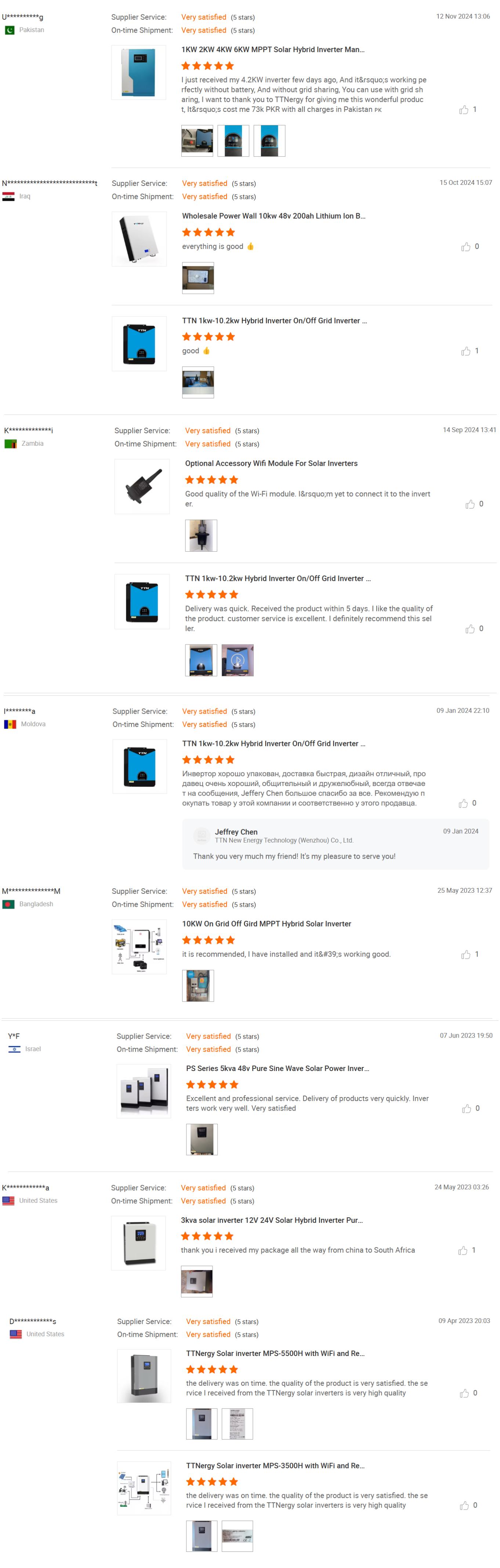

Customer review

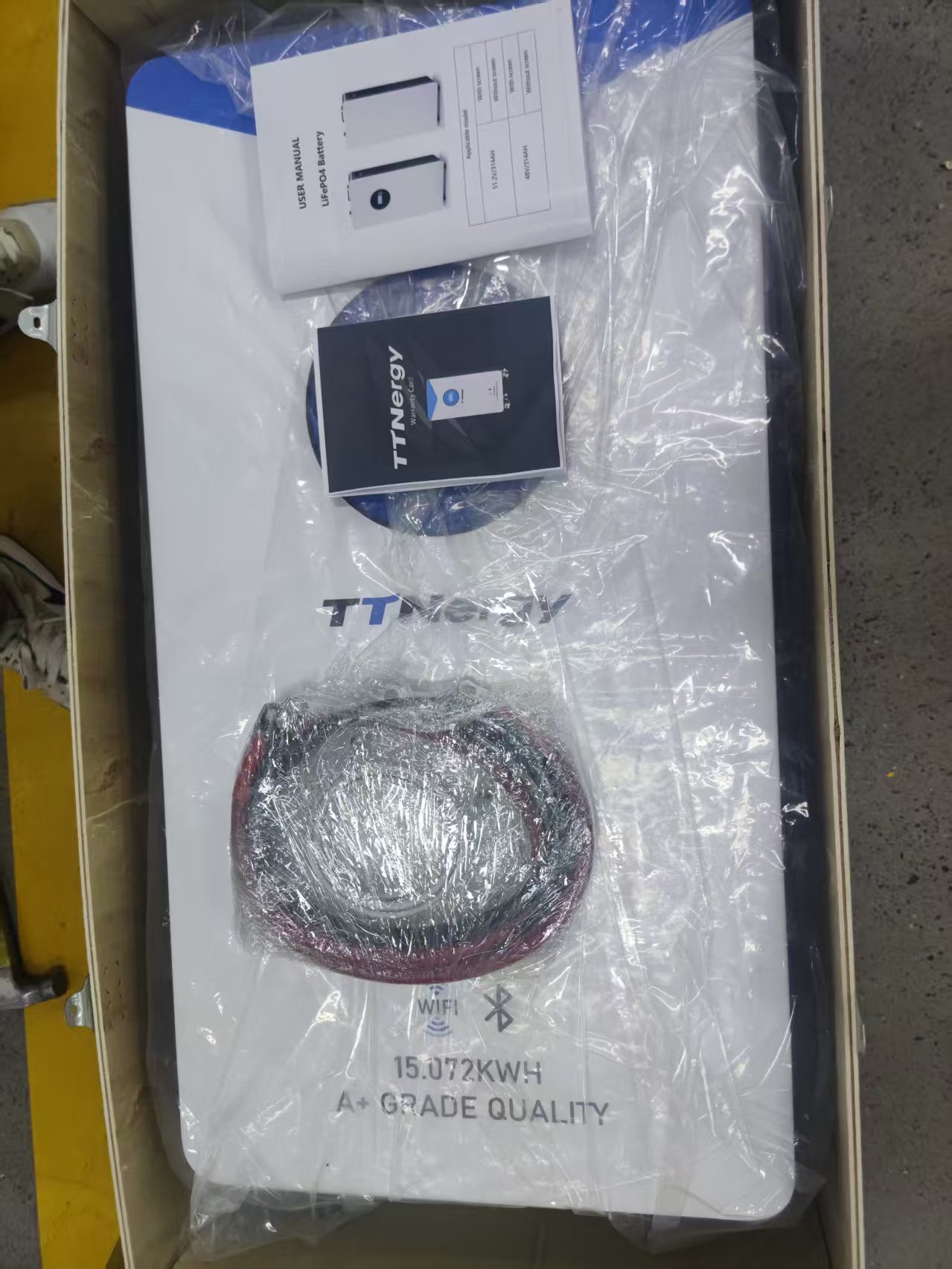

Product packaging
Certifications
Frequently Asked Questions
What is the nominal energy and voltage of these battery systems?
These residential energy storage batteries come in two versions: a 48V/314Ah model offering 15KWh nominal energy, and a 51.2V/314Ah model offering 16KWh nominal energy.
How many battery units can be connected in parallel?
The system supports modular scaling, allowing up to 16 units to be connected in parallel to expand capacity from 15KWh/16KWh up to 240KWh/256KWh without needing an external controller.
What is the lifespan and cycle capability of the LFP battery?
Designed with high-safety Lithium Iron Phosphate (LiFePO4) cell chemistry, the battery supports ≥6000 cycles and has a design life of 15 years.
What inverters are compatible with these batteries?
They feature built-in CAN and RS485 communication protocols, making them fully compatible with most hybrid and battery inverters used in self-consumption, back-up, and off-grid configurations.
What are the safe operating temperature ranges for charging and discharging?
The safe charging temperature range is 0°C to 65°C, and the discharging temperature range is -20°C to 65°C.
Which safety and performance certifications do these batteries carry?
Our battery systems comply with global safety standards and hold certifications including IEC62619, UN38.3, CE, and CEC.
